◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#52271) — 33 parça

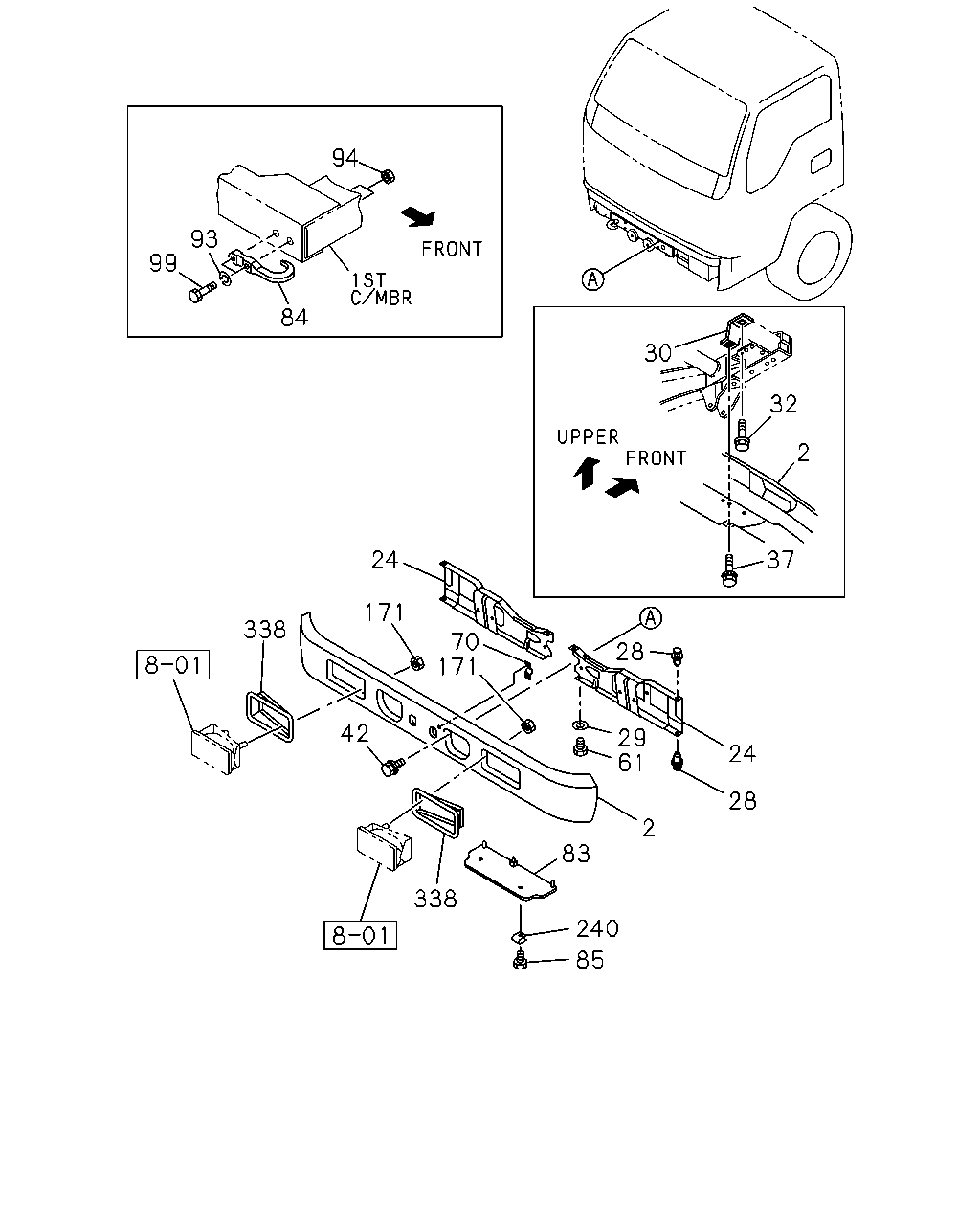

çizim 58328
94 93 99 84 30 32 2 24 37 171 338 70 171 28 42 29 61 24 28 2 83 338 240 85
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97582-434-0 01 1 0707- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FOG LAMP<T96> WHITE 		8-97582-423-0 01 1 0707- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> PRIMER 		8-97581-872-0 01 1 0707- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FOG LAMP<T96> PRIMER 		8-97581-871-0 01 1 0707- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97582-433-0 01 1 0707- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FOG LAMP<T96> DARK GRAY 		8-97582-422-0 01 1 0707- ● ●
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97997-822-0 01 1 0707- ● ●
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97997-820-0 01 1 0707- ● ●
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-752-6 01 1 0707- ● ●
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97035-751-6 01 1 0707- ● ●
28 FASTENER; BACK BAR
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 04 1 0707- ● ●
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 0707- ● ●
30 BRACKET; FRT BUMPER 8-97093-639-3 02 1 0707- ● ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28650-825-0 02 1 0707- ● ●
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0707- ● ●
42 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0707- ● ●
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50040-818-0 06 1 0707-0909 ● ●
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50540-818-0 06 1 0910- ● ●
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0707- ● ●
83 GUIDE; AIR,FRT BUMPER 8-97076-832-2 01 1 0707- ● ●
84 HOOK 8-94249-270-2 01 1 0707- ● ●
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 03 1 0707- ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0707- ● ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0707- ● ●
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0707- ● ●
171 NUT; BACK BAR
FOG LAMP<T96> M8 FLANGE 		1-09464-018-1 04 1 0707- ● ●
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT 		8-97210-973-1 03 1 0707- ● ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97582-639-2 01 1 0707- ● ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> WHITE 		8-97582-638-2 01 1 0707- ● ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> BLUE 		8-97582-637-2 01 1 0707- ● ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> BLUE 		8-97582-636-2 01 1 0707- ● ●
338 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97582-436-2 01 1 0707- ● ●
338 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> DARK GRAY 		8-97582-435-2 01 1 0707- ● ●
