Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

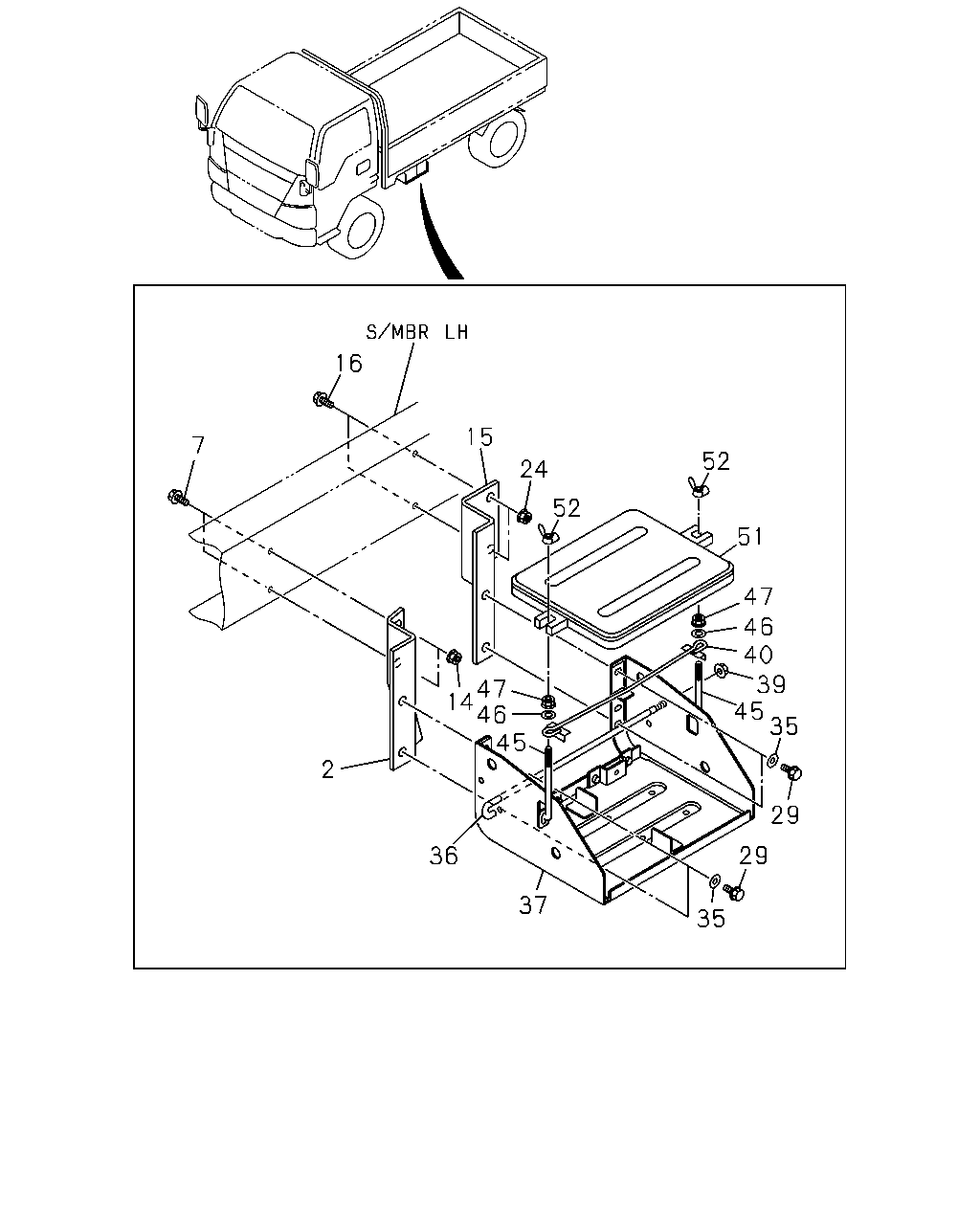

5-20 — BATTERY CARRIER
(#52269) — 17 parça
Tümü
A - NKC6SC
B - NKC6SF
16
15
7
52
24
52
51
47
46
40
39
45
35
47
14
46
45
2
29
29
36
37
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; BATTERY
8-98029-286-0
01
1
0707-
●
●
7
BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28051-025-0
02
1
0707-
●
●
14
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-210-0
02
1
0707-
●
●
15
BRACKET; BATTERY
8-98029-287-0
01
1
0707-
●
●
16
BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28051-025-0
02
1
0707-
●
●
24
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-210-0
02
1
0707-
●
●
29
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
0-50541-030-0
04
1
0707-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0707-
●
●
36
STOPPER; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>
8-94145-894-0
01
1
0707-
●
●
37
BRACKET; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>
8-97384-067-2
01
1
0707-
●
●
39
NUT; STOPPER,BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M6 FLANGE
0-91180-106-0
01
1
0707-
●
●
40
CLAMP; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>
5-53615-004-1
01
1
0707-
●
●
45
ROD; TENSION,BATTERY
9-53616-615-0
02
1
0707-
●
●
46
WASHER; PL,BATTERY TO CARRIER
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> ID=8.4 OD=22
0-91614-708-0
02
1
0707-
●
●
47
NUT; BRKT
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M8 FLANGE
0-91180-108-0
02
1
0707-
●
●
51
COVER; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>
8-97120-747-0
01
1
0707-
●
●
52
NUT; WING,COVER FIX
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M8 WING NUT
0-91118-408-0
02
1
0707-
●
●
