Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
5 - Frame, Cab Mounting
▶

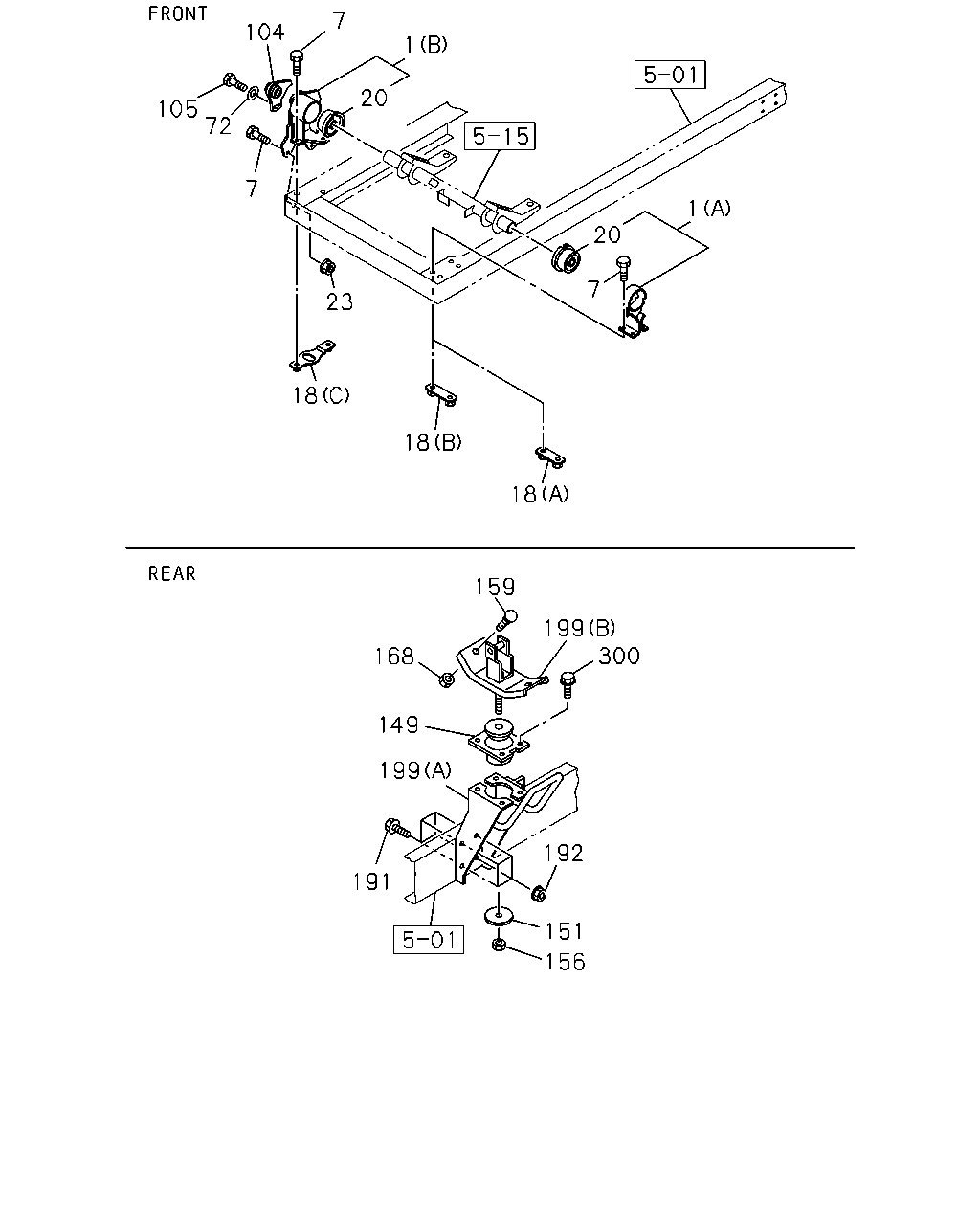

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#52267) — 24 parça
Tümü
A - NKC6SC
B - NKC6SF
7
104
1
20
105
72
7
1
20
7
23
18
18
18
159
199
300
168
149
199
192
191
151
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
MANUAL TILT CAB<RWZ> (A)
8-97388-364-1
01
1
0707-
●
●
1
BRACKET; CAB MTG
MANUAL TILT CAB<RWZ> (B)
8-97388-363-0
01
1
0707-
●
●
7
BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28651-240-0
08
1
0707-
●
●
18
PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (B)
8-97034-139-2
01
1
0707-
●
●
18
PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (A)
8-97034-140-2
01
1
0707-
●
●
18
PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (C)
8-97388-371-0
01
1
0707-
●
●
20
RUBBER; MTG,CAB BRKT
MANUAL TILT CAB<RWZ>
8-97096-893-1
02
1
0707-
●
●
23
NUT; MTG BRKT
MANUAL TILT CAB<RWZ> M12 FLANGE
0-91180-112-0
02
1
0707-
●
●
72
WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
0707-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97330-162-2
01
1
0707-1406
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-98286-068-0
01
1
1407-
●
●
105
BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28651-435-0
01
1
0707-
●
●
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ>
8-97095-149-3
02
1
0707-0804
●
●
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ>
8-98021-561-1
02
1
0805-
●
●
151
WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
0707-
●
●
156
NUT; CAB MTG RR
M16
0-91111-516-0
02
1
0707-
●
●
159
RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
0707-
●
●
168
NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE
0-91180-108-0
04
1
0707-
●
●
191
BOLT; BRKT FIX
M12X35 FLANGE
0-28651-235-0
08
1
0707-
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
08
1
0707-
●
●
199
BRACKET; CAB RR MTG
(A)
8-97356-576-2
01
1
0707-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98032-338-0
02
1
0707-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98018-949-1
01
1
0707-
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
0707-
●
●
