51139 - ELF300(MEXICO)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#52266) — 86 parça
Tümü
A - NKC6SC
B - NKC6SF
◀

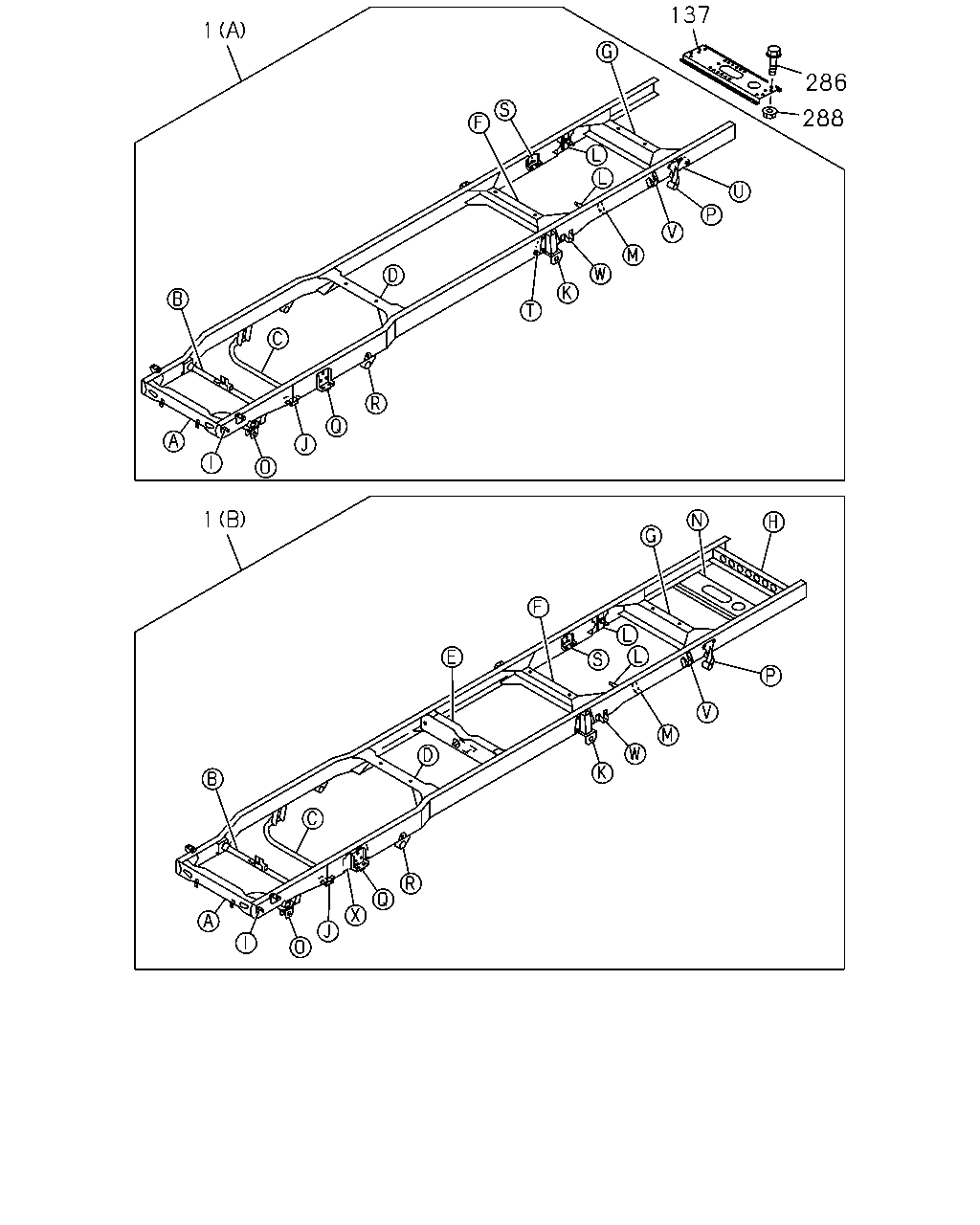

[501A] FRAME ASM (6 parça)
[501A] BRACKET(NO.1) (26 parça)
[501A] RIVET,BOLT,NUT (13 parça)
[501A] CROSS MEMBER (27 parça)
[501A] BRACKET(NO.2) (14 parça)
▶
137
1
286
288
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FRAME ASM
REAR WIDE TREAD(V4T) (A)
8-98018-031-2
01
1
0707-
●
1
FRAME ASM
(B)
8-98018-034-3
01
1
0707-
●
137
BRACKET; SPARE TIRE
8-97205-235-1
01
1
0805-
●
137
BRACKET; SPARE TIRE
8-97076-885-1
01
1
0707-
●
286
BOLT; SPARE TIRE BRKT
M10X30 FLANGE
0-28661-030-0
06
1
0805-
●
288
NUT; SPARE TIRE BRKT
M10 FLANGE
0-91180-210-0
06
1
0805-
●
101
358
63
140
140
142
137
105
24
215
51
215
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
BRACKET; FRT SPR,FRT
REAR WIDE TREAD(V4T)
8-97065-788-1
01
1
0707-
●
24
BRACKET; FRT SPR,FRT
8-97065-788-1
01
1
0707-
●
24
BRACKET; FRT SPR,FRT
REAR WIDE TREAD(V4T)
8-94366-816-1
01
1
0707-
●
24
BRACKET; FRT SPR,FRT
8-94366-816-1
01
1
0707-
●
51
BRACKET; ENG SUPPORT,OUTER
REAR WIDE TREAD(V4T)
8-98003-209-0
02
1
0707-
●
51
BRACKET; ENG SUPPORT,OUTER
8-98003-209-0
02
1
0707-
●
63
BRACKET; RAD MTG
REAR WIDE TREAD(V4T)
8-98035-104-1
01
1
0707-
●
63
BRACKET; RAD MTG
8-98035-104-1
01
1
0707-
●
101
BRACKET; RR SPR,FRT
REAR WIDE TREAD(V4T)
8-97034-156-1
02
1
0707-
●
101
BRACKET; RR SPR,FRT
8-97034-156-1
02
1
0707-
●
105
BRACKET; RR SPR,RR
REAR WIDE TREAD(V4T)
8-94459-512-1
01
1
0707-
●
105
BRACKET; RR SPR,RR
8-94459-512-1
01
1
0707-
●
105
BRACKET; RR SPR,RR
REAR WIDE TREAD(V4T)
8-94459-511-1
01
1
0707-
●
105
BRACKET; RR SPR,RR
8-94459-511-1
01
1
0707-
●
137
BRACKET; SPARE TIRE
8-97205-235-1
01
1
0805-
●
137
BRACKET; SPARE TIRE
8-97076-885-1
01
1
0707-
●
140
BRACKET; S/ABS,RR
REAR WIDE TREAD(V4T) (A)
8-97012-285-0
01
1
0707-
●
140
BRACKET; S/ABS,RR
(A)
8-97012-285-0
01
1
0707-
●
140
BRACKET; S/ABS,RR
REAR WIDE TREAD(V4T) (B)
8-94101-303-0
01
1
0707-
●
140
BRACKET; S/ABS,RR
(B)
8-94101-303-0
01
1
0707-
●
142
BRACKET; FLEX HOSE,BRAKE
REAR WIDE TREAD(V4T)
8-97035-308-0
01
1
0707-
●
142
BRACKET; FLEX HOSE,BRAKE
8-97035-308-0
01
1
0707-
●
215
BUSHING; BRKT,RR SPRING
REAR WIDE TREAD(V4T)
8-97184-699-1
04
1
0707-
●
215
BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
0707-
●
358
BRACKET; CAB EARTH
REAR WIDE TREAD(V4T)
8-97210-488-0
01
1
0707-
●
358
BRACKET; CAB EARTH
8-97210-488-0
01
1
0707-
●
376
376
376
376
376
376
376
376
376
176
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
118
NUT; STOPPER
REAR WIDE TREAD(V4T) M8 LOCK NUT
0-91370-008-0
04
1
0707-
●
118
NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
04
1
0707-
●
176
BOLT; C/MBR,ENG MTG
REAR WIDE TREAD(V4T) M10X30 FLANGE
0-28051-030-0
08
1
0707-
●
176
BOLT; C/MBR,ENG MTG
M10X30 FLANGE
0-28051-030-0
08
1
0707-
●
376
RIVET; FRAME
(A) D8X22 TAPER END
9-06750-822-0
AR
1
0707-
●
●
376
RIVET; FRAME
(B) D8X28 TAPER END
9-06750-828-0
AR
1
0707-
●
●
376
RIVET; FRAME
(C) D10X24 TAPER END
9-06751-024-0
AR
1
0707-
●
●
376
RIVET; FRAME
(D) D10X26 TAPER END
9-06751-026-0
AR
1
0707-
●
●
376
RIVET; FRAME
(E) D10X28 TAPER END
9-06751-028-0
AR
1
0707-
●
●
376
RIVET; FRAME
(F) D10X30 TAPER END
9-06751-030-0
AR
1
0707-
●
●
376
RIVET; FRAME
(G) D10X36 TAPER END
9-06751-036-0
AR
1
0707-
●
●
376
RIVET; FRAME
(H) D12X30 TAPER END
9-06751-230-0
AR
1
0707-
●
●
376
RIVET; FRAME
(I) D12X34 TAPER END
9-06751-234-0
AR
1
0707-
●
●
20
17
2
17
42
34
74
75
344
75
74
188
345
198
198
130
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
REAR WIDE TREAD(V4T)
8-97034-332-2
01
1
0707-
●
2
MEMBER; CROSS,1ST
8-97034-332-2
01
1
0707-
●
17
GUSSET; 1ST C/MBR
REAR WIDE TREAD(V4T)
8-97088-205-1
02
1
0707-
●
17
GUSSET; 1ST C/MBR
8-97088-205-1
02
1
0707-
●
20
MEMBER; CROSS,2ND
REAR WIDE TREAD(V4T)
8-97078-581-1
01
1
0707-
●
20
MEMBER; CROSS,2ND
8-97078-581-1
01
1
0707-
●
34
MEMBER; CROSS,3RD
REAR WIDE TREAD(V4T)
8-97047-768-2
01
1
0707-
●
34
MEMBER; CROSS,3RD
8-97047-768-2
01
1
0707-
●
42
MEMBER; CROSS,ENG MTG
REAR WIDE TREAD(V4T)
8-98011-485-2
01
1
0707-
●
42
MEMBER; CROSS,ENG MTG
8-98011-485-2
01
1
0707-
●
74
GUSSET; 4TH C/MBR
RH-UPPER, LH-LOWER
8-97101-837-1
02
1
0707-
●
74
GUSSET; 4TH C/MBR
RH-LOWER, LH-UPPER
8-97101-838-1
02
1
0707-
●
75
GUSSET; 5TH C/MBR
REAR WIDE TREAD(V4T) RH-UPPER, LH-LOWER
8-97062-499-0
02
1
0707-
●
75
GUSSET; 5TH C/MBR
RH-UPPER, LH-LOWER
8-97062-499-0
02
1
0707-
●
75
GUSSET; 5TH C/MBR
REAR WIDE TREAD(V4T) RH-LOWER, LH-UPPER
8-97062-500-0
02
1
0707-
●
75
GUSSET; 5TH C/MBR
RH-LOWER, LH-UPPER
8-97062-500-0
02
1
0707-
●
130
MEMBER; CROSS,END
8-97106-992-0
01
1
0707-
●
139
MEMBER; CROSS,6TH
REAR WIDE TREAD(V4T)
8-97062-498-1
01
1
0707-
●
139
MEMBER; CROSS,6TH
8-97062-498-1
01
1
0707-
●
188
BRACKET; SUPPORT,CTR BRG
8-97078-869-1
01
1
0707-
●
198
GUSSET; 6TH C/MBR
REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER
8-97062-499-0
02
1
0707-
●
198
GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER
8-97062-499-0
02
1
0707-
●
198
GUSSET; 6TH C/MBR
REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER
8-97062-500-0
02
1
0707-
●
198
GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER
8-97062-500-0
02
1
0707-
●
344
MEMBER; CROSS,4TH
8-97078-707-3
01
1
0707-
●
345
MEMBER; CROSS,5TH
REAR WIDE TREAD(V4T)
8-97062-497-3
01
1
0707-
●
345
MEMBER; CROSS,5TH
8-97062-497-3
01
1
0707-
●
39
217
173
103
103
147
147
173
136
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
BRACKET; FRT SPR,RR
REAR WIDE TREAD(V4T)
8-94258-091-0
02
1
0707-
●
39
BRACKET; FRT SPR,RR
8-94258-091-0
02
1
0707-
●
103
STOPPER; SUB SPR
REAR WIDE TREAD(V4T) (A)
8-97223-748-0
02
1
0707-
●
103
STOPPER; SUB SPR
(A)
8-97223-748-0
02
1
0707-
●
103
STOPPER; SUB SPR
REAR WIDE TREAD(V4T) (B)
8-97223-750-0
02
1
0707-
●
103
STOPPER; SUB SPR
(B)
8-97223-750-0
02
1
0707-
●
136
REINFORCEMENT; ENG SUPPORT
(B)
8-94370-228-1
01
1
0707-
●
136
REINFORCEMENT; ENG SUPPORT
(A)
8-97083-311-2
01
1
0707-
●
147
RUBBER; SUB SPRING
REAR WIDE TREAD(V4T)
8-97254-387-0
04
1
0707-
●
147
RUBBER; SUB SPRING
8-97254-387-0
04
1
0707-
●
173
STIFFENER; RR SPRING
REAR WIDE TREAD(V4T) (A)
8-94372-324-1
02
1
0707-
●
173
STIFFENER; RR SPRING
REAR WIDE TREAD(V4T) (B)
8-97213-460-4
02
1
0707-
●
217
BRACKET; HELPER RUBBER,RR SPRING
REAR WIDE TREAD(V4T)
8-94258-963-0
02
1
0707-
●
217
BRACKET; HELPER RUBBER,RR SPRING
8-94258-963-0
02
1
0707-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
