4-60 — REAR SUSPENSION (#52262) — 18 parça

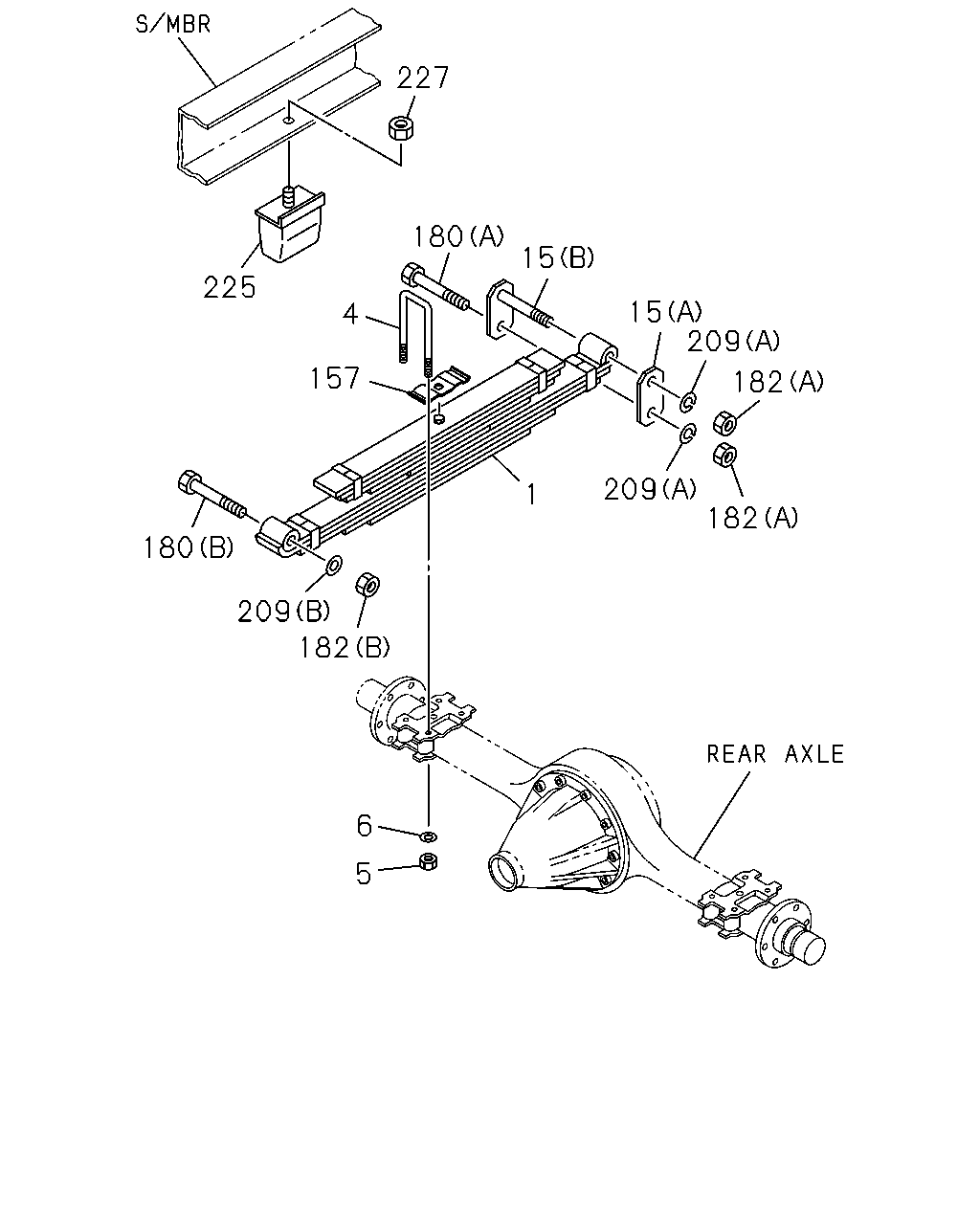

çizim 56955
227 180 15 225 15 209 4 157 182 209 1 182 180 209 182 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-97073-224-1 02 1 0707- ● ●
4 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 0707- ● ●
5 NUT; U-BOLT,RR SPR
M16 		8-97360-121-0 08 1 0707- ● ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0707- ● ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0707- ● ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0707- ● ●
157 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0707- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 0707- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0707- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 0707- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0707- ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0707- ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (A) M16 		0-91110-516-0 04 1 0707- ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 0707- ● ●
209 WASHER; PL
(B) ID=19 		8-97360-119-0 02 1 0707- ● ●
209 WASHER; PL
KD PREPARATORY PACK<6HF> (A) ID=16.5 		8-98011-489-0 04 1 0707- ● ●
225 RUBBER; CUSHION,RR SPR 8-94118-510-5 02 1 0707- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 0707- ● ●
