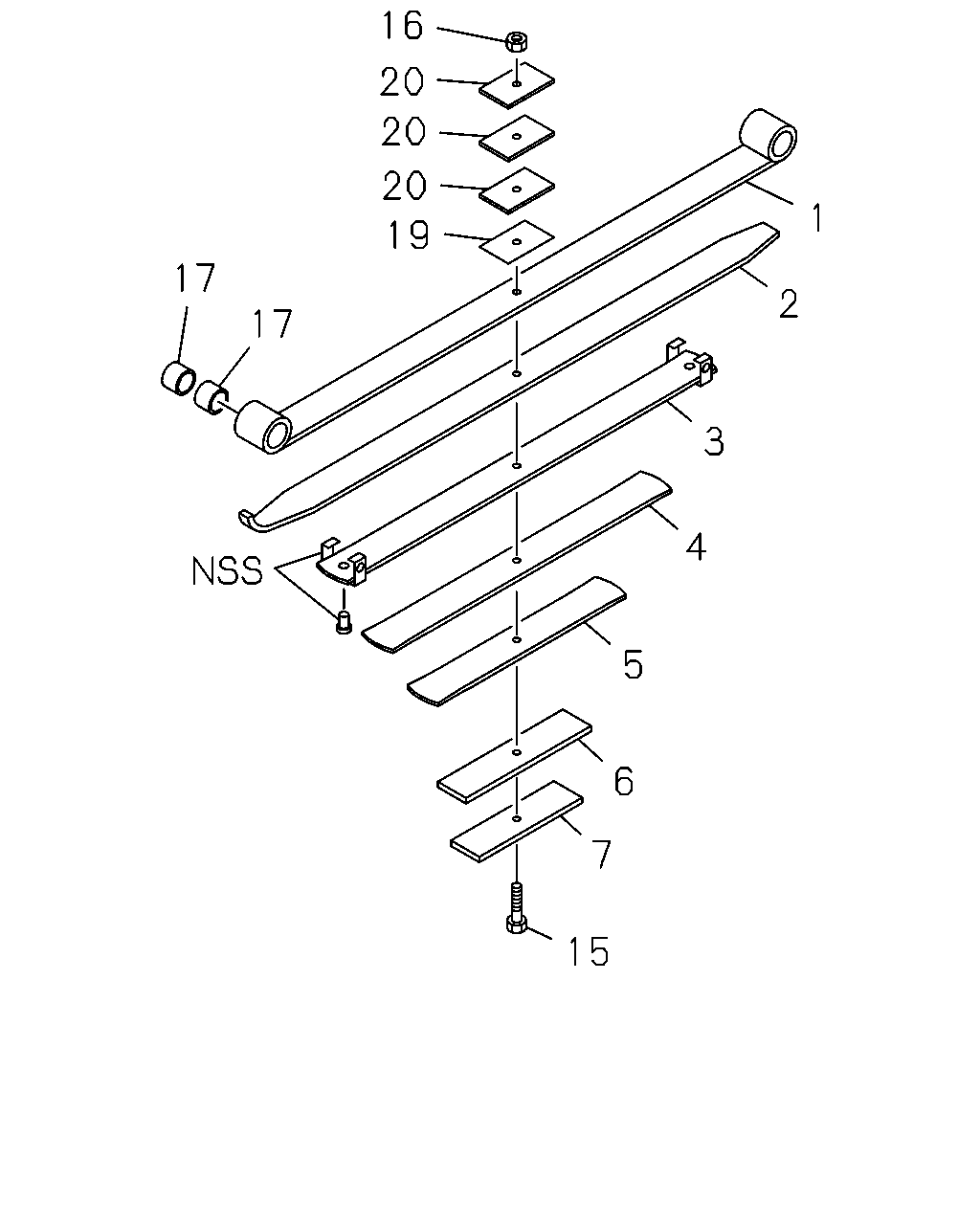

4-55 — FRONT LEAF SPRING (#52261) — 19 parça

16 20 20 20 1 19 17 2 17 3 4 5 6 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98042-916-0	8-98045-595-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98042-919-0	8-98045-596-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98042-916-0	8-98030-700-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98042-919-0	8-98030-707-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98042-916-0	8-98030-701-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98042-919-0	8-98030-708-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98042-916-0	8-98030-702-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98042-919-0	8-98030-709-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98042-916-0	8-98030-703-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98042-919-0	8-98030-710-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98042-916-0	8-98030-704-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98042-919-0	8-98030-711-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 8-98042-916-0	8-98030-705-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 8-98042-919-0	8-98030-712-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=100 ASM PART: A = 8-98042-916-0, B = 8-98042-919-0	8-94448-004-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98042-916-0, B = 8-98042-919-0	1-09400-055-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98042-916-0, B = 8-98042-919-0	8-98040-327-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98042-916-0, B = 8-98042-919-0	8-94478-008-1	01	1	-
20	SEAT; LEAF SPR,FRT T=8 ASM PART: A = 8-98042-916-0, B = 8-98042-919-0	8-94360-988-0	03	1	-
