4-50 — FRONT SUSPENSION (#52260) — 29 parça

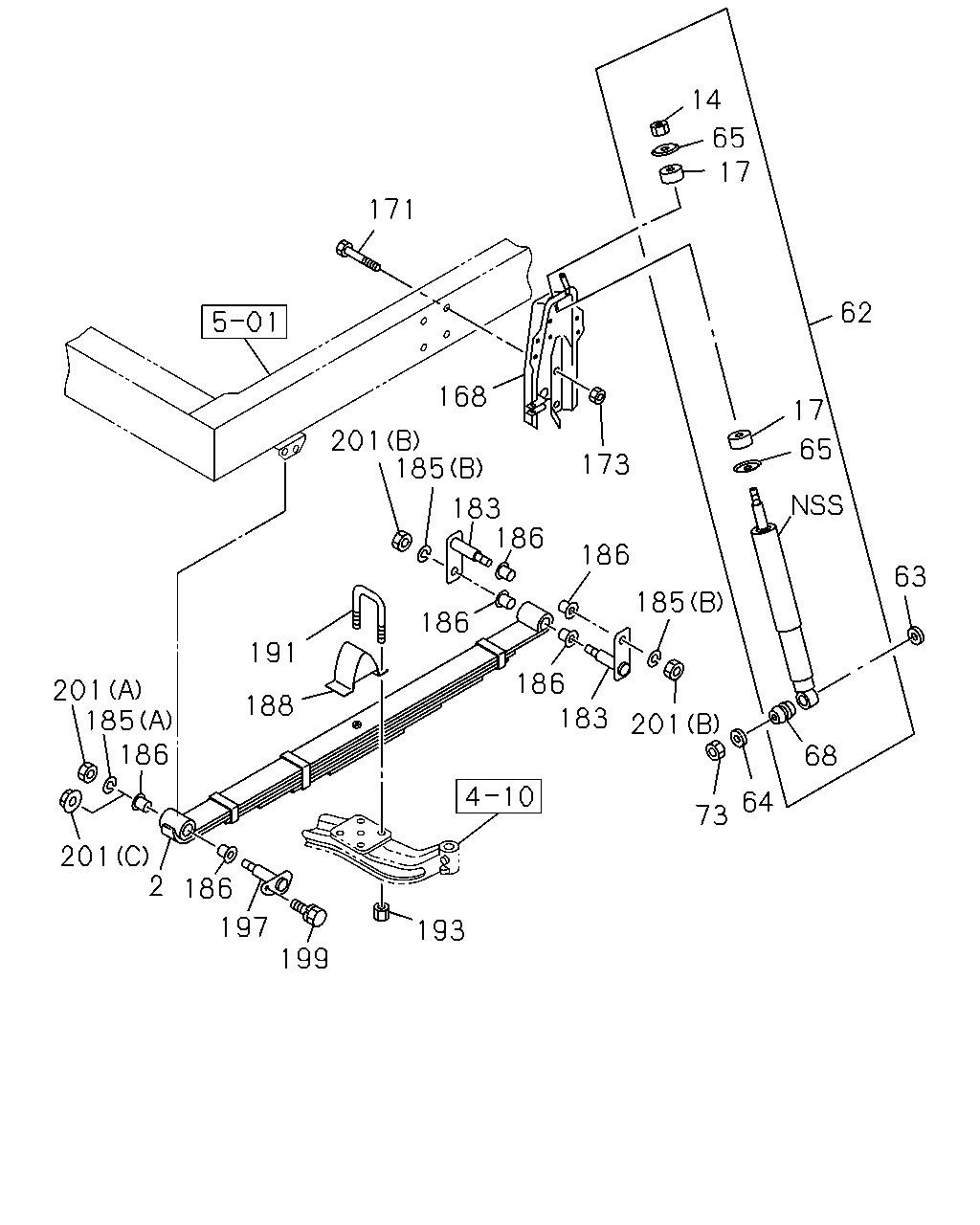

çizim 13539
14 65 17 171 62 168 17 201 185 65 173 183 186 186 63 185 186 191 186 183 201 185 186 188 201 68 64 73 201 2 186 197 193 199
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98042-919-0 01 1 0707- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98042-916-0 01 1 0707- ● ●
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0707- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0707- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-605-1 02 1 0707- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-127-1 02 1 0707- ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 0707-1011 ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
64 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0707- ● ●
65 WASHER; S/ABS
ID=10.5 OD=38 		9-51631-062-0 04 1 0707- ● ●
68 BUSHING; S/ABS
TOKICO 		8-94224-694-0 02 1 0707- ● ●
73 NUT; BRKT,SHOCK
M12 		0-91111-512-0 02 1 0707- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97367-173-1 01 1 0707- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97367-171-1 01 1 0707- ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0707- ● ●
173 NUT; S/ABS
M10 FLANGE 		0-91180-210-0 08 1 0707-1403 ● ●
173 NUT; S/ABS
M10 FLANGE 		0-91180-110-0 08 1 1404- ● ●
183 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0707- ● ●
185 WASHER; LK,PIN
(B) ID=16.5 		8-98011-489-0 04 1 0707- ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5 		8-98011-489-0 02 1 0707- ● ●
186 BUSHING; SHACKLE 8-97081-531-0 12 1 0707- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0707- ● ●
191 U-BOLT; FRT SPR
L=125 		8-97304-076-1 04 1 0707- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0707- ● ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 0707- ● ●
199 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0707- ● ●
201 NUT; PIN LK
(B) M16 		0-91110-516-0 04 1 0707- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> (A) M16 		0-91110-516-0 02 1 0707- ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (C) M16 FLANGE 		8-97360-125-0 02 1 0707- ● ●
