◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#52258) — 13 parça

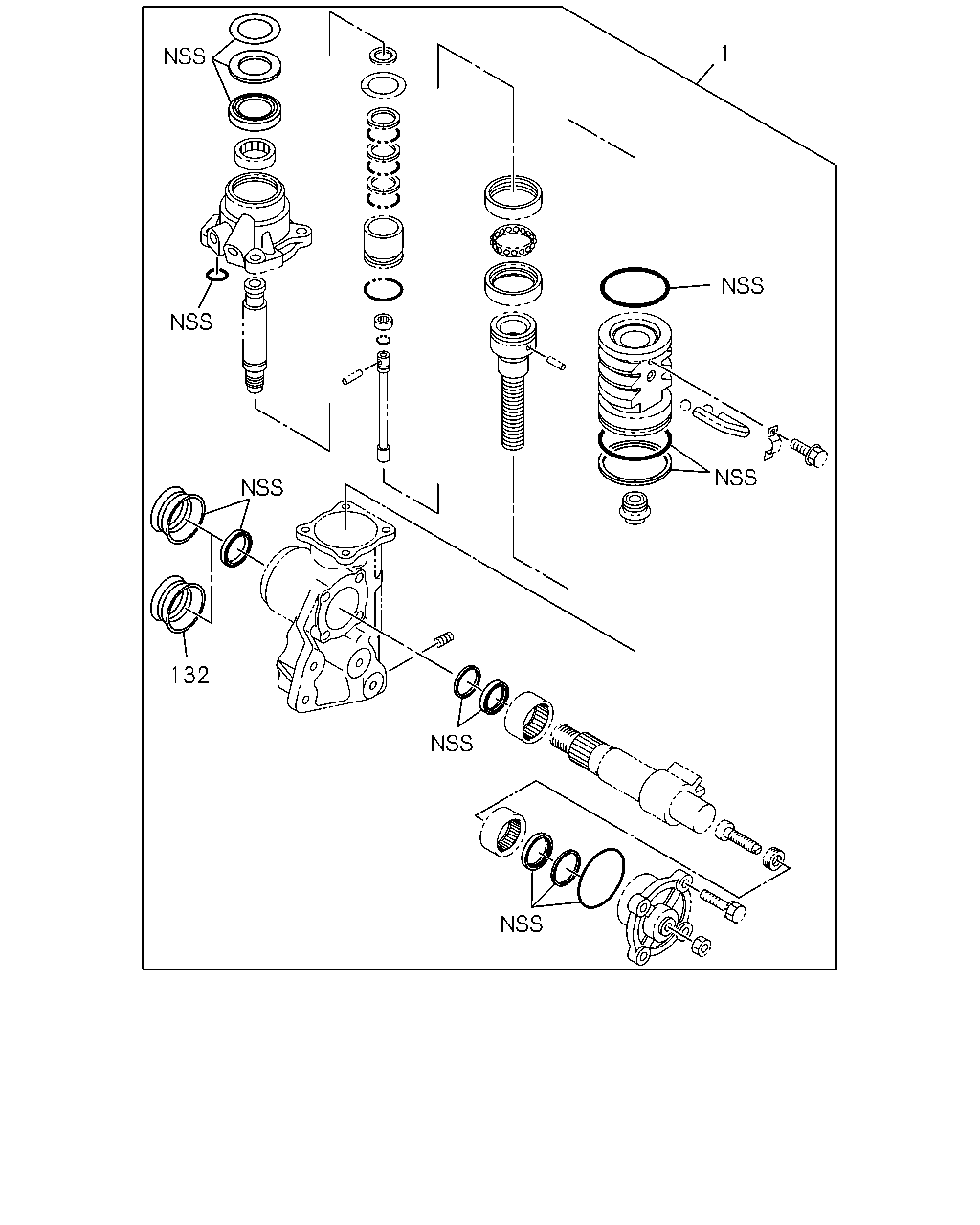

çizim 12834
132 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-98171-736-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98251-947-0 		8-97076-372-0 01 1 -

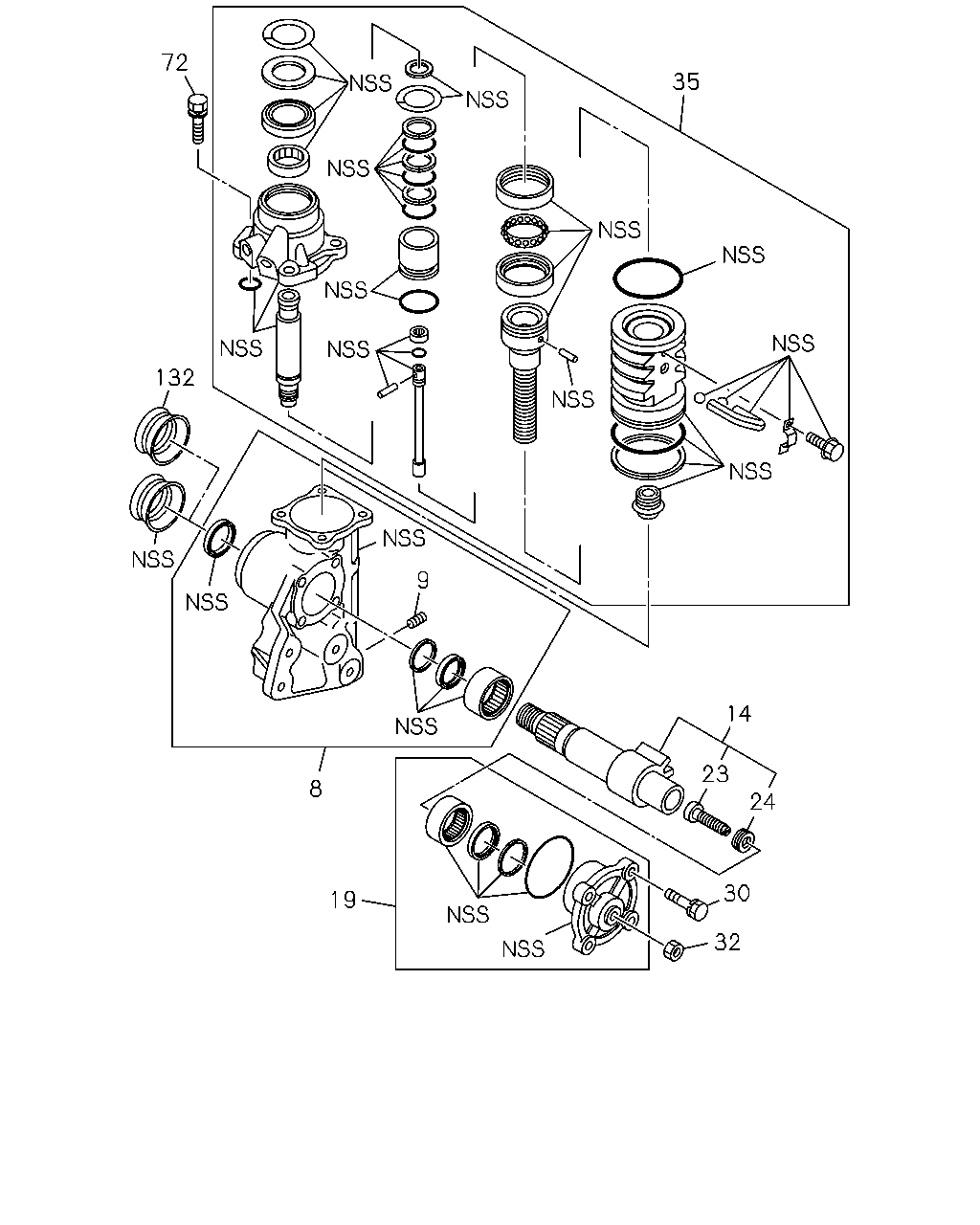

çizim 56915
35 72 132 9 8 19 14 23 24 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-97356-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-97356-137-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-98036-336-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-98036-337-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-98112-932-3 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97356-105-8, B = 8-98251-947-0 		8-98036-336-0 04 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 8-98251-947-0 		8-97076-372-0 01 1 -
