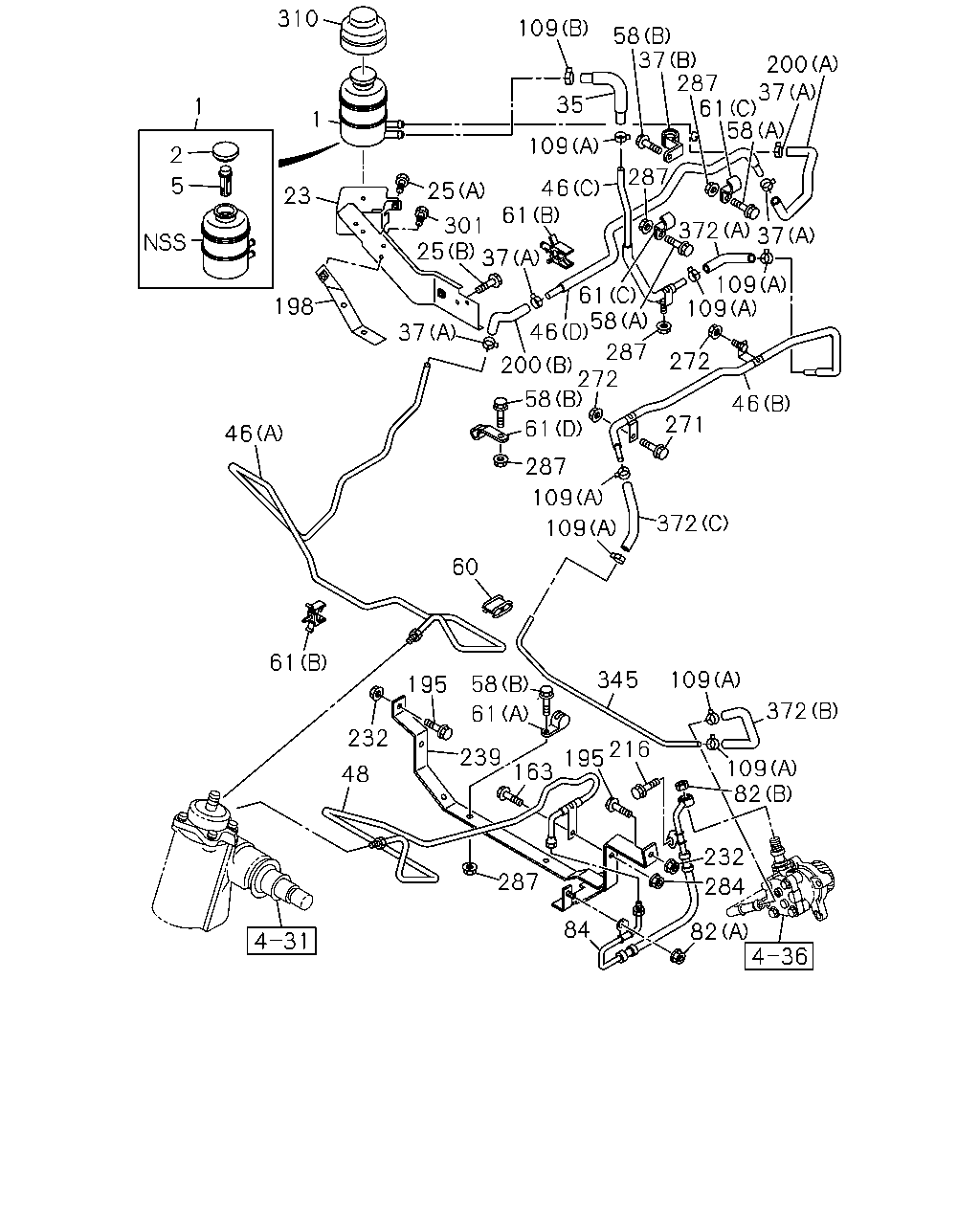

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#52256) — 55 parça

310 109 58 37 200 287 37 61 58 35 1 1 109 2 287 5 46 61 25 23 301 25 37 372 37 109 109 61 58 46 198 37 287 200 272 58 272 46 271 61 46 287 109 372 109 60 61 345 109 58 195 372 61 232 216 195 239 163 109 82 48 232 287 284 84 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0707-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0707-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0707-	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0707-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	0707-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
35	HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0707-	●	●
37	CLIP; HOSE,P/S (B) ID=35 H=45 L=33	1-09701-047-0	01	1	0707-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0707-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-94238-568-0	02	1	0707-0911	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	0912-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98000-438-2	01	1	0707-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-440-3	01	1	0707-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0707-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-98071-400-0	01	1	0707-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-437-2	01	1	0707-	●	●
58	BOLT; CLIP (A) M6X20 FLANGE	0-28650-620-0	02	1	0707-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	0707-	●	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0707-	●	●
61	CLIP; OIL PIPE (C) ID=6 L=22	1-09700-139-0	02	1	0707-	●	●
61	CLIP; OIL PIPE (D) ID=11 L=40	8-94259-342-0	01	1	0707-	●	●
61	CLIP; OIL PIPE (B) ID=10 H=40	8-94462-219-0	01	1	0707-	●	●
61	CLIP; OIL PIPE (B) ID=10 H=40	8-94462-219-0	01	1	0707-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=16	9-09525-526-0	04	1	0707-	●	●
82	NUT; FLEX HOSE,P/S (A) M8 FLANGE	0-91180-108-0	01	1	0707-	●	●
82	NUT; FLEX HOSE,P/S (B) M12 SELF LOCK	8-97028-390-1	01	1	0707-	●	●
84	HOSE; FLEX,P/S	8-98000-696-3	01	1	0707-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0707-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	0912-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0707-0911	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	05	1	0912-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0707-1003	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0707-	●	●
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0707-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0707-	●	●
200	HOSE; RUBBER,RETURN (B) L=150	0-09809-150-0	01	1	0707-	●	●
200	HOSE; RUBBER,RETURN (A)	8-98000-694-1	01	1	0707-	●	●
216	BOLT; FLEX HOSE M8X12 FLANGE	0-28050-812-0	01	1	0707-	●	●
232	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0707-	●	●
239	BRACKET; FLEX HOSE	8-98000-457-4	01	1	0707-	●	●
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0707-	●	●
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	03	1	0707-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0707-	●	●
287	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0707-	●	●
287	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0707-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0707-	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0707-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0707-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0707-	●	●
345	PIPE; OIL,FLEX HOSE TO PUMP	8-98000-439-1	01	1	0707-	●	●
372	HOSE; RUBBER (B)	8-98025-540-1	01	1	0707-	●	●
372	HOSE; RUBBER (C)	8-98032-217-0	01	1	0707-	●	●
372	HOSE; RUBBER (A)	8-98070-955-0	01	1	0707-	●	●
