4-31 — STEERING COLUMN AND SHAFT (#52254) — 89 parça

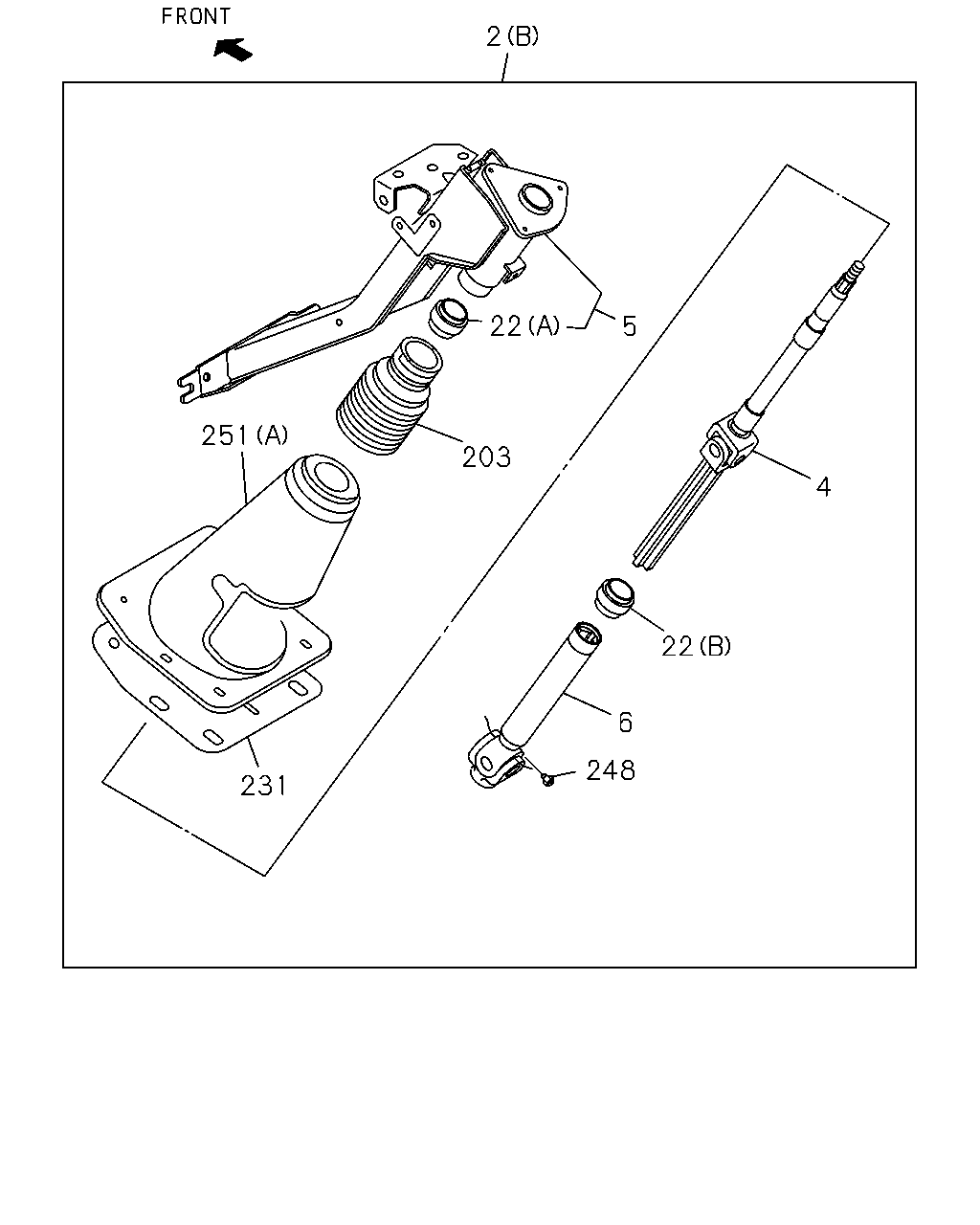

2 22 5 251 203 4 22 6 248 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97402-345-1	01	1	0707-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97400-058-1	01	1	0707-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97400-059-1	01	1	0707-	●	●
4	SHAFT; STRG	8-97378-634-0	01	1	0707-	●	●
5	COLUMN; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0707-	●	●
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0707-	●	●
5	COLUMN; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0707-	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0707-	●	●
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0707-	●	●
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0707-	●	●
203	BOOT; STRG COLUMN LWR	8-97076-822-0	01	1	0707-	●	●
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0707-	●	●
248	SCREW; YOKE	8-97222-984-0	01	1	0707-	●	●
251	COVER; LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97159-168-2	01	1	0707-	●	●
251	COVER; LWR TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK	8-97398-450-1	01	1	0707-	●	●
251	COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97398-450-1	01	1	0707-	●	●

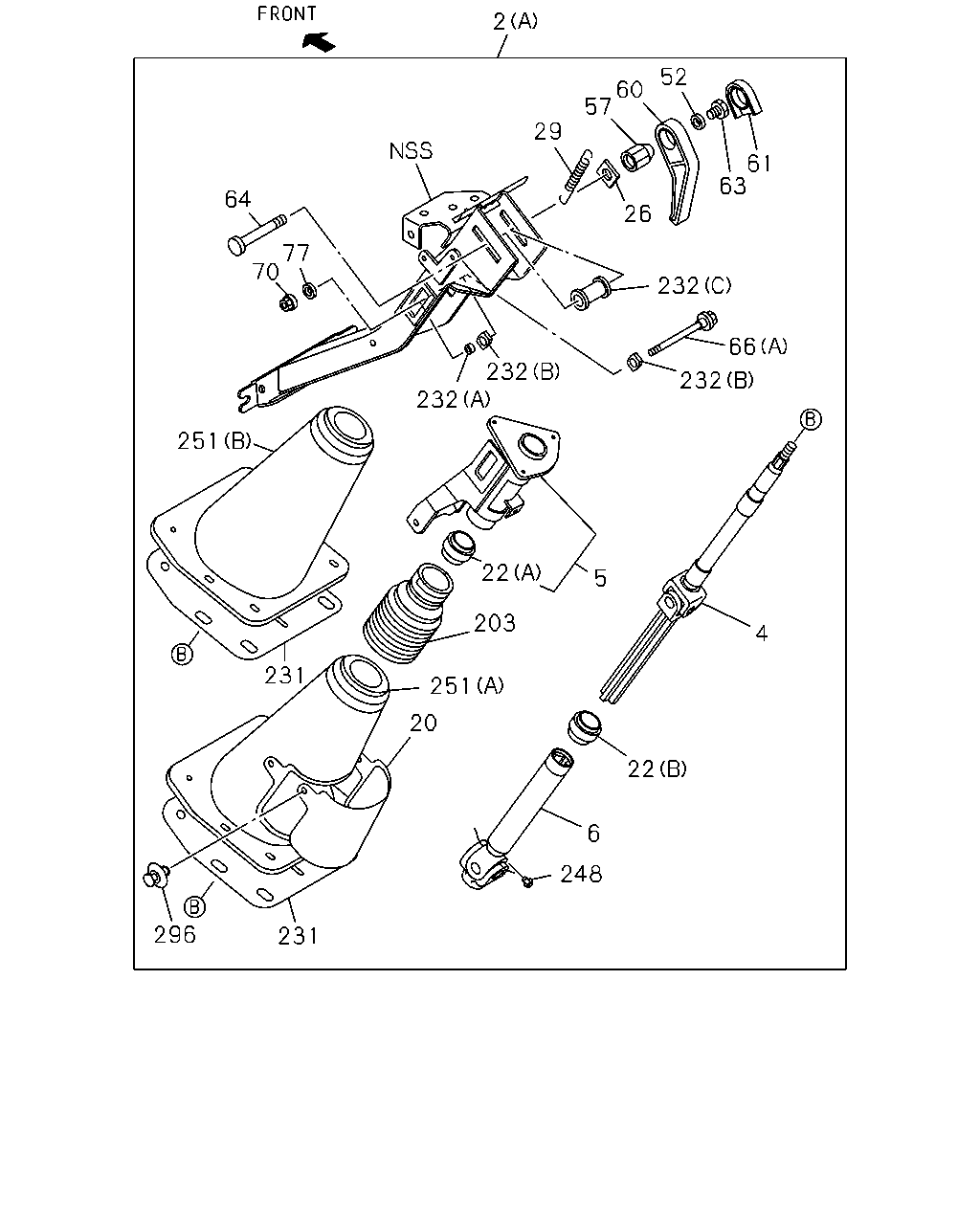

2 52 60 57 29 61 63 64 26 77 70 232 66 232 232 232 251 22 5 203 4 231 251 20 22 6 248 296 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97402-345-1	01	1	0707-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97400-058-1	01	1	0707-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97400-059-1	01	1	0707-	●	●
4	SHAFT; STRG	8-97378-634-0	01	1	0707-	●	●
5	COLUMN; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0707-	●	●
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0707-	●	●
5	COLUMN; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0707-	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0707-	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97291-634-1	01	1	0707-	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-634-1	01	1	0707-	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-634-1	01	1	0707-	●	●
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0707-	●	●
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0707-	●	●
26	PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0707-	●	●
29	SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0707-	●	●
52	WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0707-	●	●
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0707-	●	●
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0707-	●	●
61	CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0707-	●	●
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0707-	●	●
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0707-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0707-1112	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0707-	●	●
70	NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0707-	●	●
77	WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0707-	●	●
203	BOOT; STRG COLUMN LWR	8-97076-822-0	01	1	0707-	●	●
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0707-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0707-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0707-	●	●
232	SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0707-	●	●
248	SCREW; YOKE	8-97222-984-0	01	1	0707-	●	●
251	COVER; LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97159-168-2	01	1	0707-	●	●
251	COVER; LWR TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK	8-97398-450-1	01	1	0707-	●	●
251	COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97398-450-1	01	1	0707-	●	●
296	CLIP; COVER EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	0707-	●	●
296	CLIP; COVER TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0707-	●	●
296	CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0707-	●	●
296	CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0707-	●	●

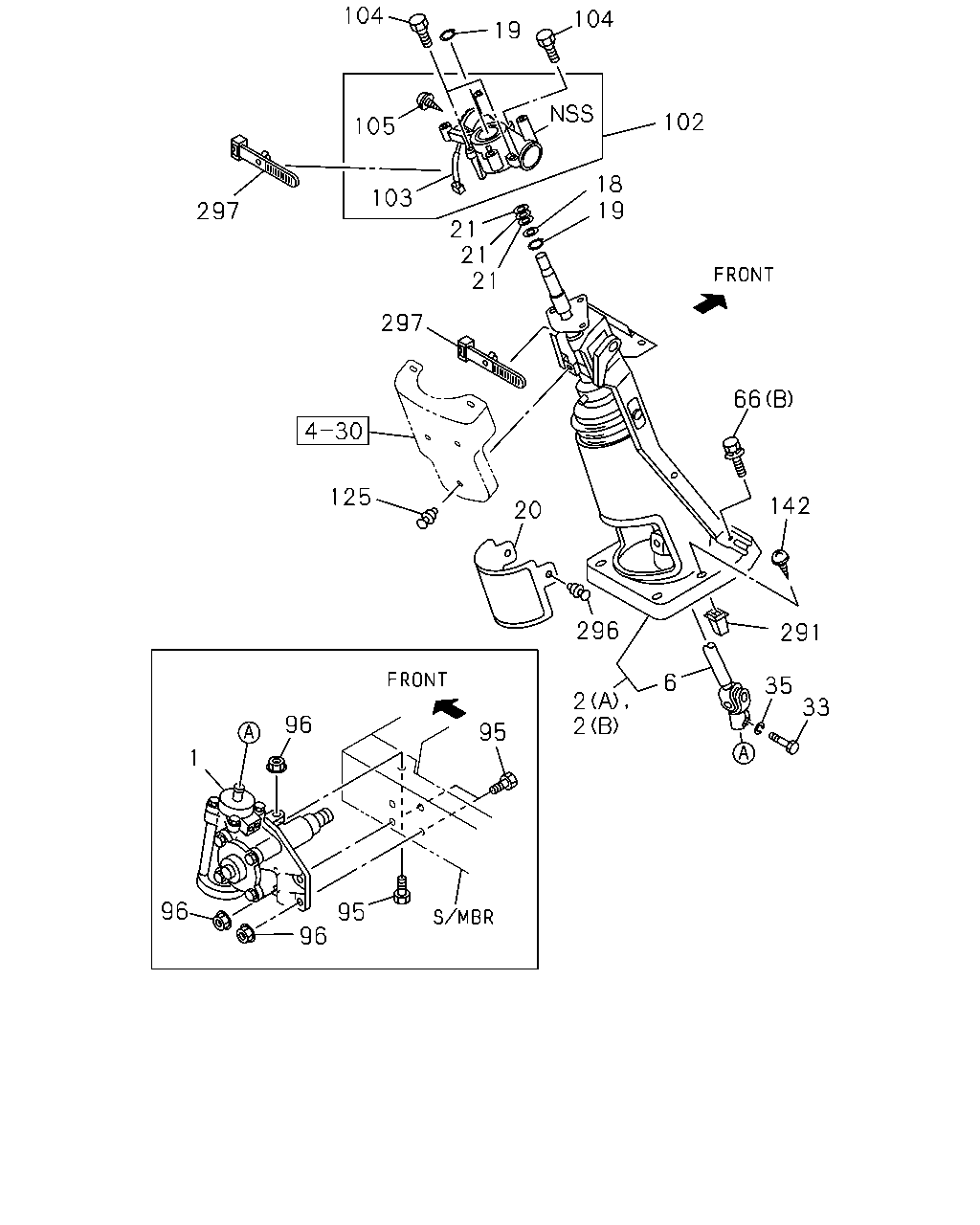

104 104 19 102 105 18 19 103 297 21 21 21 297 66 125 142 20 296 291 6 35 33 2 2 6 95 1 96 95 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97356-105-8	01	1	0707-1308	●	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98251-947-0	01	1	1309-	●	●
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (B) BLACK	8-97402-345-1	01	1	0707-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97400-058-1	01	1	0707-	●	●
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97400-059-1	01	1	0707-	●	●
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0707-	●	●
18	WASHER; STEERING SHAFT ID=19	8-94146-919-0	01	1	0707-	●	●
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	0707-	●	●
20	COVER; STRG SHAFT EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97291-634-1	01	1	0707-	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-634-1	01	1	0707-	●	●
20	COVER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-634-1	01	1	0707-	●	●
21	WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0707-	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0707-	●	●
35	WASHER; LK,STRG SHAFT ID=8.2	0-91510-808-0	01	1	0707-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0707-1112	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0707-	●	●
95	BOLT; STRG UNIT M12X45	8-97212-810-1	05	1	0707-	●	●
96	NUT; STRG UNIT M12 FLANGE	8-97359-618-0	05	1	0707-	●	●
102	LOCK ASM; STRG	8-97170-364-0	01	1	0707-	●	●
103	SWITCH; IGNITION	8-97088-268-0	01	1	0707-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0707-	●	●
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0707-	●	●
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0707-	●	●
125	CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0707-	●	●
142	SCREW; BRKT COWL M5X18 TAPPING	0-72180-518-0	06	1	0707-	●	●
291	GROMMET; STRG SHAFT COVER H=15	8-94463-268-1	06	1	0707-	●	●
296	CLIP; COVER EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	0707-	●	●
296	CLIP; COVER TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0707-	●	●
296	CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0707-	●	●
296	CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0707-	●	●
297	CLIP; BAND L=145	8-94257-575-1	03	1	0707-	●	●
