◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51139 - ELF300(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#52253) — 11 parça

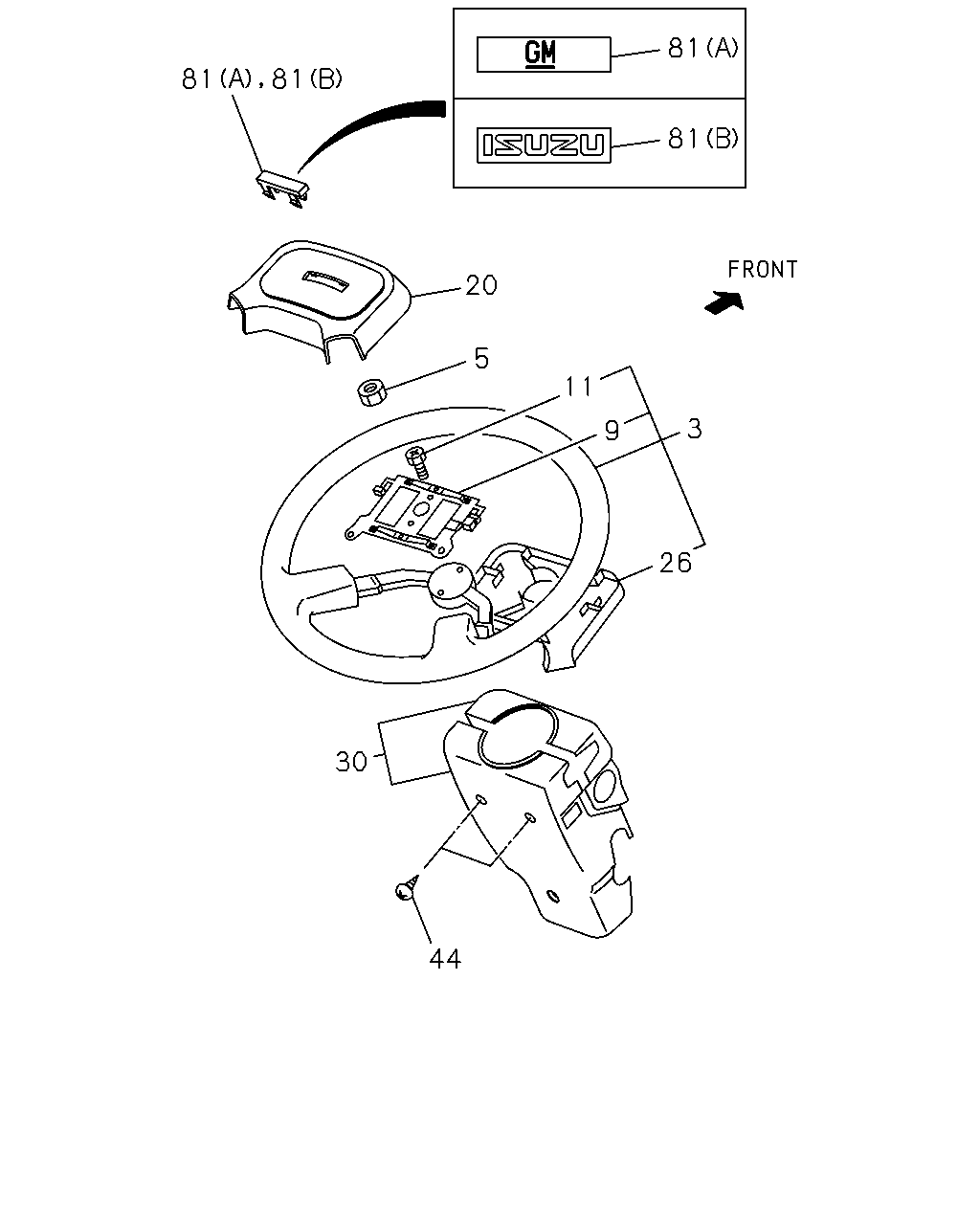

çizim 58301
81 81 81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 0707- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0707- ● ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 0707- ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0707- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 0707- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 0707- ● ●
30 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 0707- ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 0707- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 0707- ● ●
81 EMBLEM; STRG WHEEL
MARK VEHICLE NAME<EK7> (A) DARK GRAY 		8-97400-048-0 01 1 0707- ● ●
81 EMBLEM; STRG WHEEL
EXC. MARK VEHICLE NAME<EK7> (B) DARK GRAY 		8-97400-060-0 01 1 0707- ● ●
