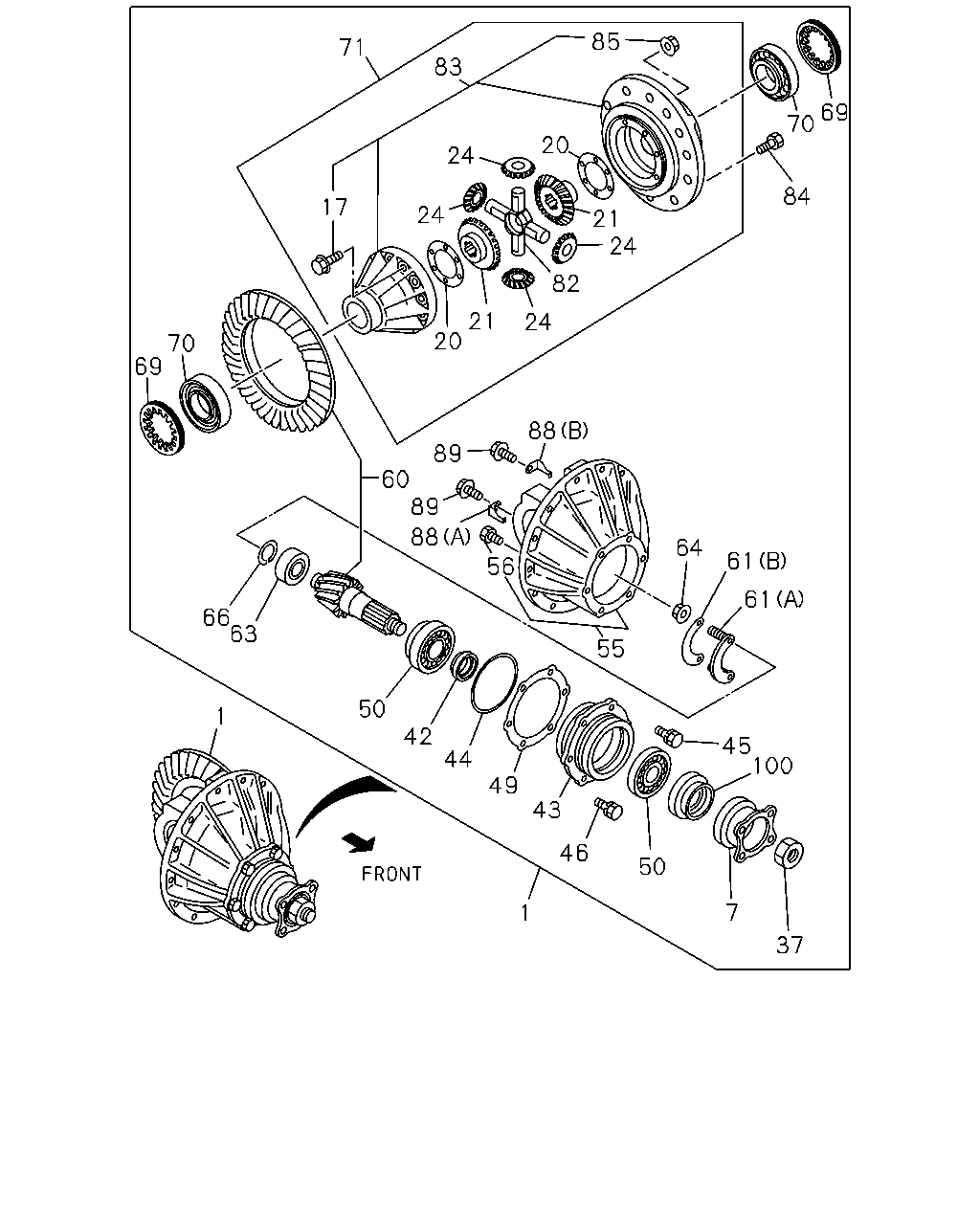

4-25 — REAR FINAL DRIVE (#52252) — 43 parça

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 41/8	8-98015-139-0	01	1	0707-	●	●
7	FLANGE; FINAL	8-94477-723-4	01	1	0707-	●	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0707-	●	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0707-	●	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0707-	●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0707-	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0707-	●	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0707-	●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0707-	●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0707-	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0707-0909	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311	●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0707-0909	●	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0707-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0707-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0707-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0707-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0707-	●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0707-	●	●
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	0707-	●	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0707-	●	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0707-	●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0707-	●	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97319-158-0	01	1	0707-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0707-	●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0707-	●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0707-	●	●
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0707-	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0707-	●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0707-	●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0707-	●	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0707-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	0707-	●	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0707-	●	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0707-	●	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0707-	●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91180-210-0	12	1	0707-	●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0707-	●	●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0707-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	02	1	0707-	●	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0707-	●	●
