Isuzu WW
▶
TRUCKS
▶
ELF
▶
51139 - ELF300(MEXICO)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶

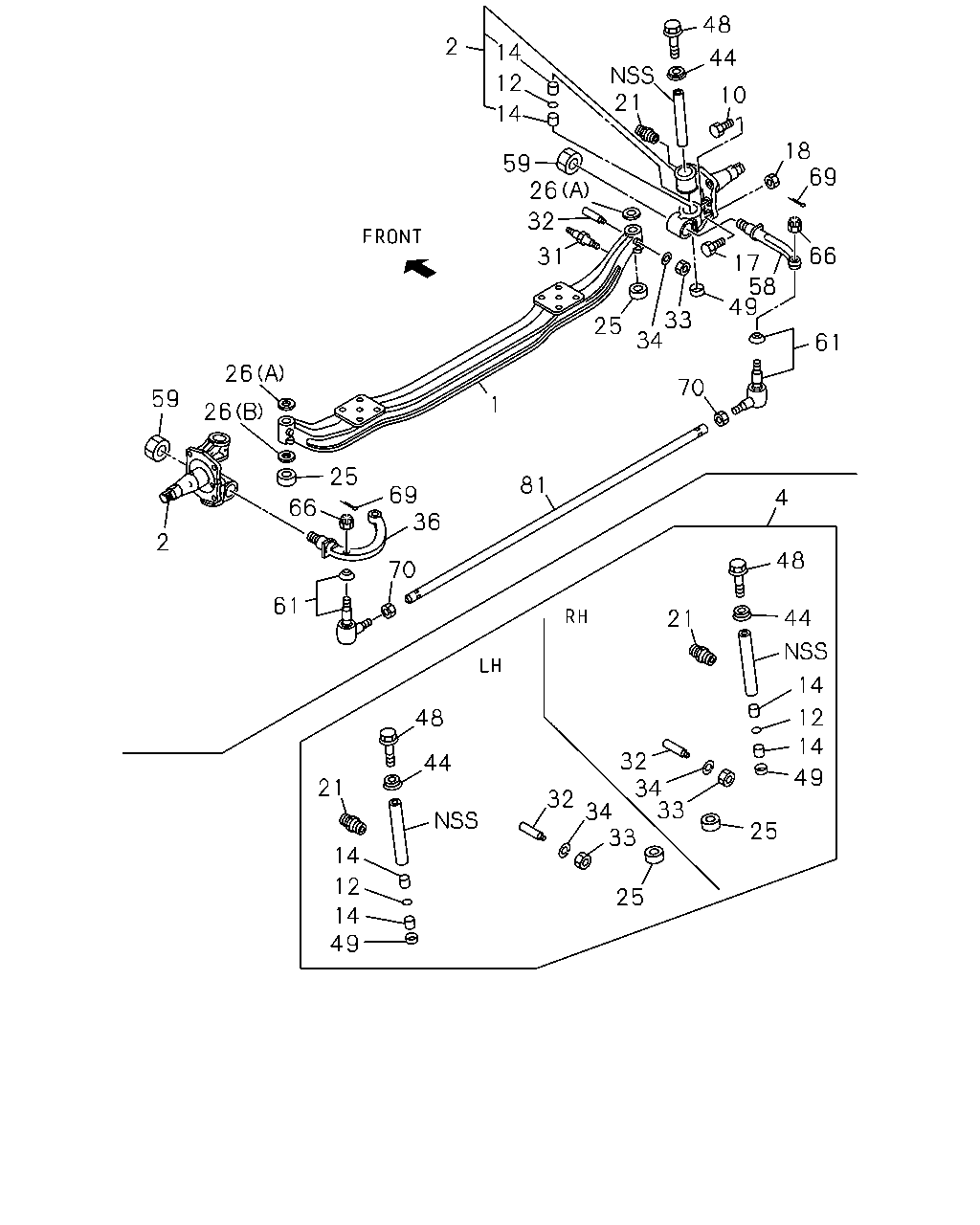

4-10 — FRONT AXLE
(#52249) — 41 parça
Tümü
A - NKC6SC
B - NKC6SF
48
2
14
44
21
12
10
14
18
69
59
26
32
66
31
17
58
49
33
34
25
61
26
70
59
1
26
25
81
69
36
4
66
2
48
70
61
44
21
14
12
48
14
32
34
33
44
49
21
32
34
33
25
14
12
25
14
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
AXLE; FRT
8-97137-585-4
01
1
0707-
●
●
2
KNUCKLE; FRT AXLE
8-97261-550-2
01
1
0707-
●
●
2
KNUCKLE; FRT AXLE
8-97261-549-2
01
1
0707-
●
●
4
KING PIN KIT
5-87832-209-0
01
1
0707-0707
●
●
4
KING PIN KIT
5-87832-220-2
01
1
0708-
●
●
10
PLUG; PLATE,KNUCKLE
8-97360-117-0
01
1
0707-
●
●
12
GASKET; KNUCKLE
9-09561-230-0
02
1
0707-0707
●
●
12
GASKET; KNUCKLE
8-98084-500-0
02
1
0708-
●
●
14
BUSHING; KING PIN
DAIDO WO/NOTCH
8-94107-672-3
04
1
0707-
●
●
14
BUSHING; KING PIN
JBK
8-94127-925-2
04
1
0707-0809
●
●
17
BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT
8-97360-059-0
03
1
0707-
●
●
18
NUT; STOPPER BOLT,KNUCKLE
M12
0-91111-512-0
03
1
0707-
●
●
21
NIPPLE; GREASE,KING PIN
M6 STRAIGHT
0-90301-406-0
04
1
0707-
●
●
25
BEARING; THRUST,KING PIN
8-94248-883-3
01
1
0707-
●
●
25
BEARING; THRUST,KING PIN
8-97141-943-1
01
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.50
8-94162-574-0
AR
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.55
8-94162-575-0
AR
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.60
8-94162-576-0
AR
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.65
8-94162-577-0
AR
1
0707-
●
●
26
SHIM; KING PIN,BRG
(B) T=1.95
8-94168-490-0
01
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.70
8-94174-352-0
AR
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.80
8-94174-354-0
AR
1
0707-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.90
8-94174-356-0
AR
1
0707-
●
●
31
PIN; S/ABS,LWR
8-97141-944-0
02
1
0707-
●
●
32
BOLT; KEY,KING PIN
8-97141-945-2
02
1
0707-
●
●
33
NUT; KEY BOLT
M10
0-91110-510-0
02
1
0707-
●
●
34
WASHER; LK,KEY BOLT
ID=10.2
0-91510-510-0
02
1
0707-
●
●
36
ARM; KNUCKLE
8-97168-291-4
01
1
0707-
●
●
44
COVER; KING PIN
OD=36
8-97360-023-0
02
1
0707-
●
●
48
BOLT; COVER
M10X12 FLANGE
0-28051-012-0
02
1
0707-
●
●
49
CAP; KNUCKLE
8-97360-024-0
02
1
0707-
●
●
58
ARM; TIE ROD
8-97168-292-0
01
1
0707-
●
●
59
NUT; TIE ROD ARM
8-97360-123-0
02
1
0707-
●
●
61
ROD END; TIE ROD
8-97142-101-1
01
1
0707-
●
●
61
ROD END; TIE ROD
8-97142-100-1
01
1
0707-
●
●
66
NUT; TIE ROD END
M16 SLOTTED
0-91116-516-0
02
1
0707-1204
●
●
66
NUT; TIE ROD END
M16 SLOTTED
8-98049-689-0
02
1
1205-
●
●
69
PIN; SPLIT,TIE ROD END
OD=3.7 L=20
0-81124-020-0
02
1
0707-
●
●
70
NUT; TIE ROD END
M20 LH THREAD
8-94254-726-0
01
1
0707-
●
●
70
NUT; TIE ROD END
M20
8-98043-530-0
01
1
0707-
●
●
81
ROD; TIE
8-97142-023-0
01
1
0707-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
