4-01 — PROPELLER SHAFT (#52248) — 55 parça

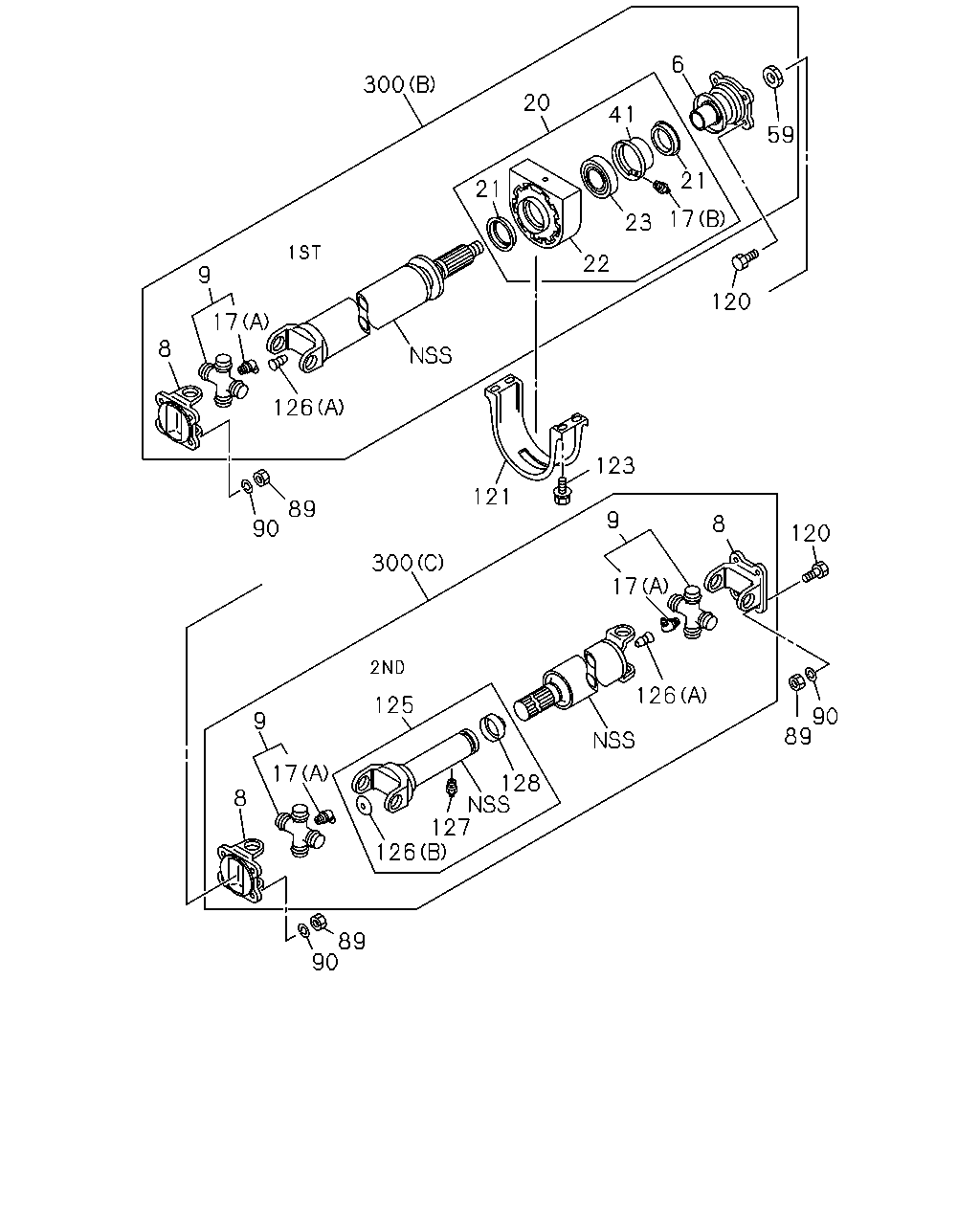

6 300 20 41 59 21 21 17 23 22 9 120 17 8 126 123 121 89 90 9 8 120 300 17 126 125 90 89 9 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0707-	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	02	1	0707-	●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0707-	●
9	JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	0707-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	0707-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0707-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0707-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0707-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0707-	●
21	SEAL; OIL,CENTER BRG ID=49	5-09625-067-1	02	1	0707-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-98020-875-0	01	1	0707-	●
23	BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	0707-	●
41	COVER; CENTER BRG,PROP SHAFT	8-98020-795-0	01	1	0707-	●
59	NUT; RET TO SUPPORT M27 H=25	8-97360-410-0	01	1	0707-	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0707-		●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	0707-	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0707-		●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	0707-	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0707-		●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	0707-	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0707-	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0707-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0707-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0707-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0707-	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0707-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0707-	●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0707-	●	●
300	SHAFT ASM; PROP,RR REAR WIDE TREAD(V4T) (A) L=939	8-97308-052-3	01	1	0707-		●
300	SHAFT ASM; PROP,RR EXC. REAR WIDE TREAD(V4T) (A) L=969	8-97308-053-3	01	1	0707-		●
300	SHAFT ASM; PROP,RR (C) L=1090	8-97364-108-3	01	1	0707-	●
300	SHAFT ASM; PROP,RR (B) L=787	8-98018-869-1	01	1	0707-	●

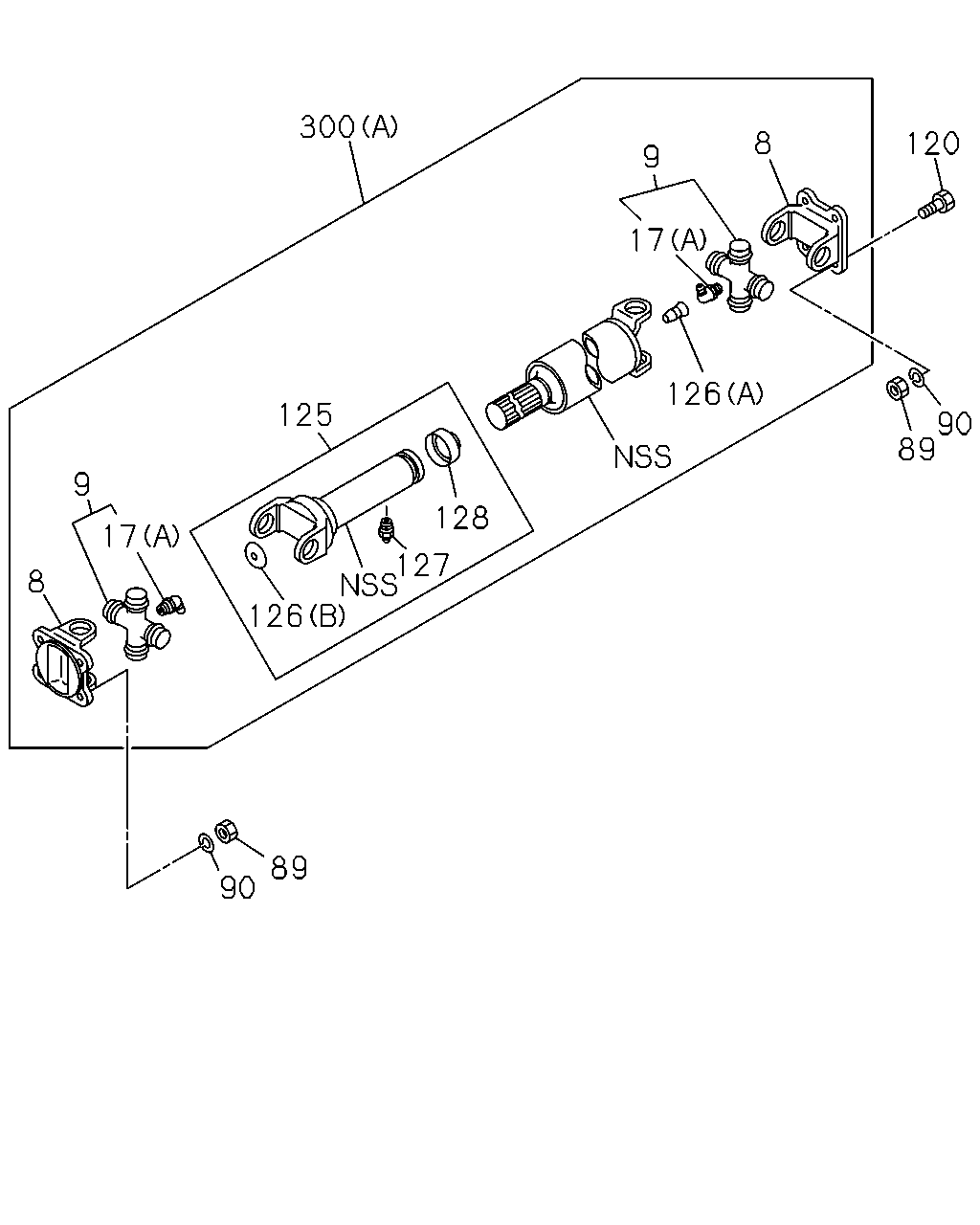

300 8 120 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	02	1	0707-	●	●
8	YOKE; FLANGE,PROP SHAFT	8-97322-663-0	01	1	0707-	●
9	JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	0707-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	0707-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0707-	●	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0707-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0707-	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0707-		●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	0707-	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	08	1	0707-		●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	0707-	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0707-		●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	0707-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0707-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0707-	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0707-	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0707-	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	0707-	●	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	0707-	●	●
300	SHAFT ASM; PROP,RR REAR WIDE TREAD(V4T) (A) L=939	8-97308-052-3	01	1	0707-		●
300	SHAFT ASM; PROP,RR EXC. REAR WIDE TREAD(V4T) (A) L=969	8-97308-053-3	01	1	0707-		●
300	SHAFT ASM; PROP,RR (C) L=1090	8-97364-108-3	01	1	0707-	●
300	SHAFT ASM; PROP,RR (B) L=787	8-98018-869-1	01	1	0707-	●
