3-52 — BRAKE PIPING; OIL,FRONT (#52244) — 25 parça

48 99 46 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	PIPE; BRK,JOINT TO VLV	8-98037-743-0	01	1	0707-	●
46	PIPE; BRK,JOINT TO VLV	8-98085-207-0	01	1	0707-		●
48	PIPE; BRK,BYPASS VLV TO CONN	8-98030-514-0	01	1	0707-	●
48	PIPE; BRK,BYPASS VLV TO CONN	8-98085-208-0	01	1	0707-		●
99	PIPE ASM; 4/5/6 WAY (B) FRONT	8-97363-950-0	01	1	0707-	●	●
99	PIPE ASM; 4/5/6 WAY (A) REAR	8-97363-974-0	01	1	0707-	●	●

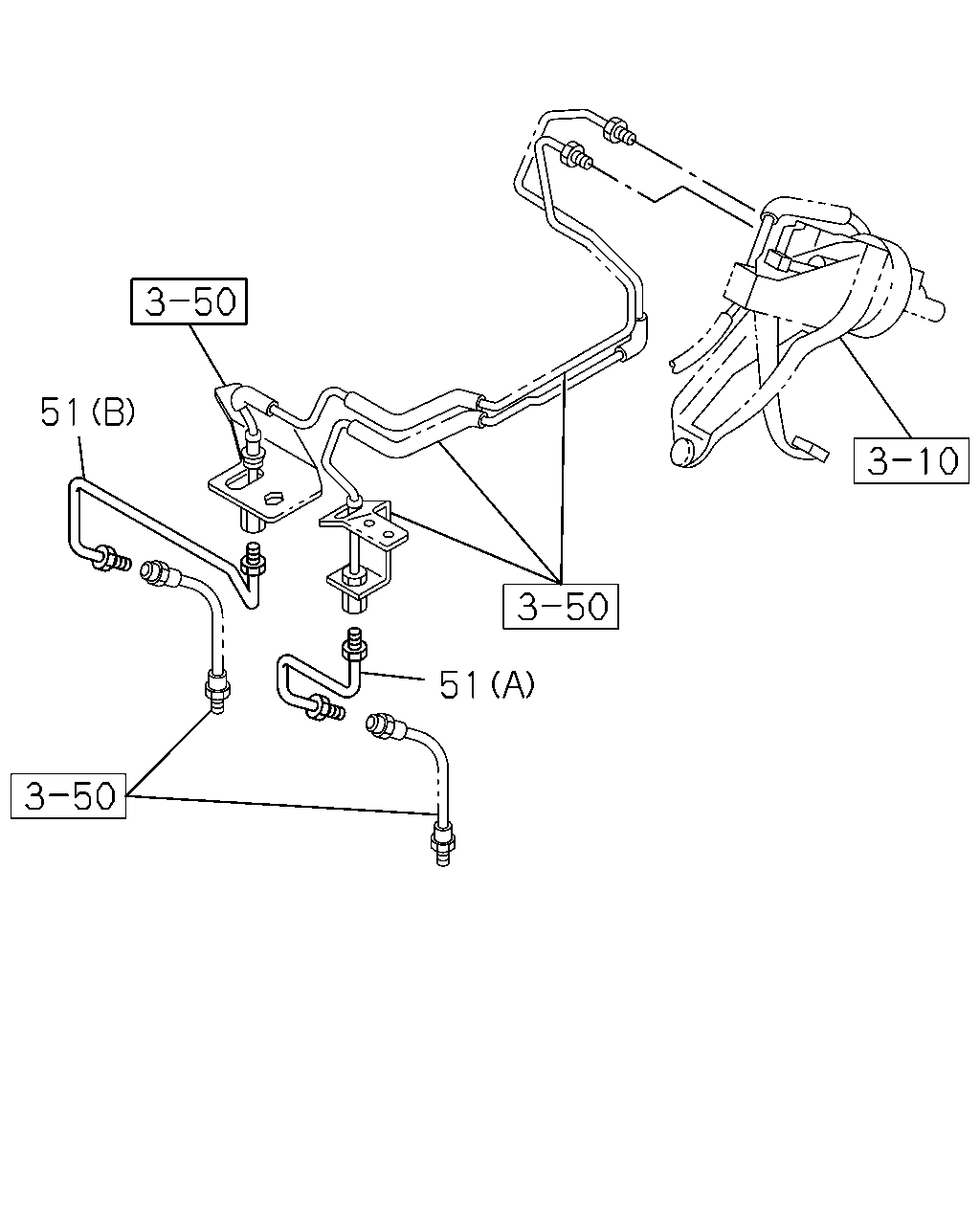

51 51

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	51	PIPE; BRK (B) FRONT	5-47411-763-0	01	1	0707-	●	●
	51	PIPE; BRK (A) REAR	8-97070-296-2	01	1	0707-	●	●

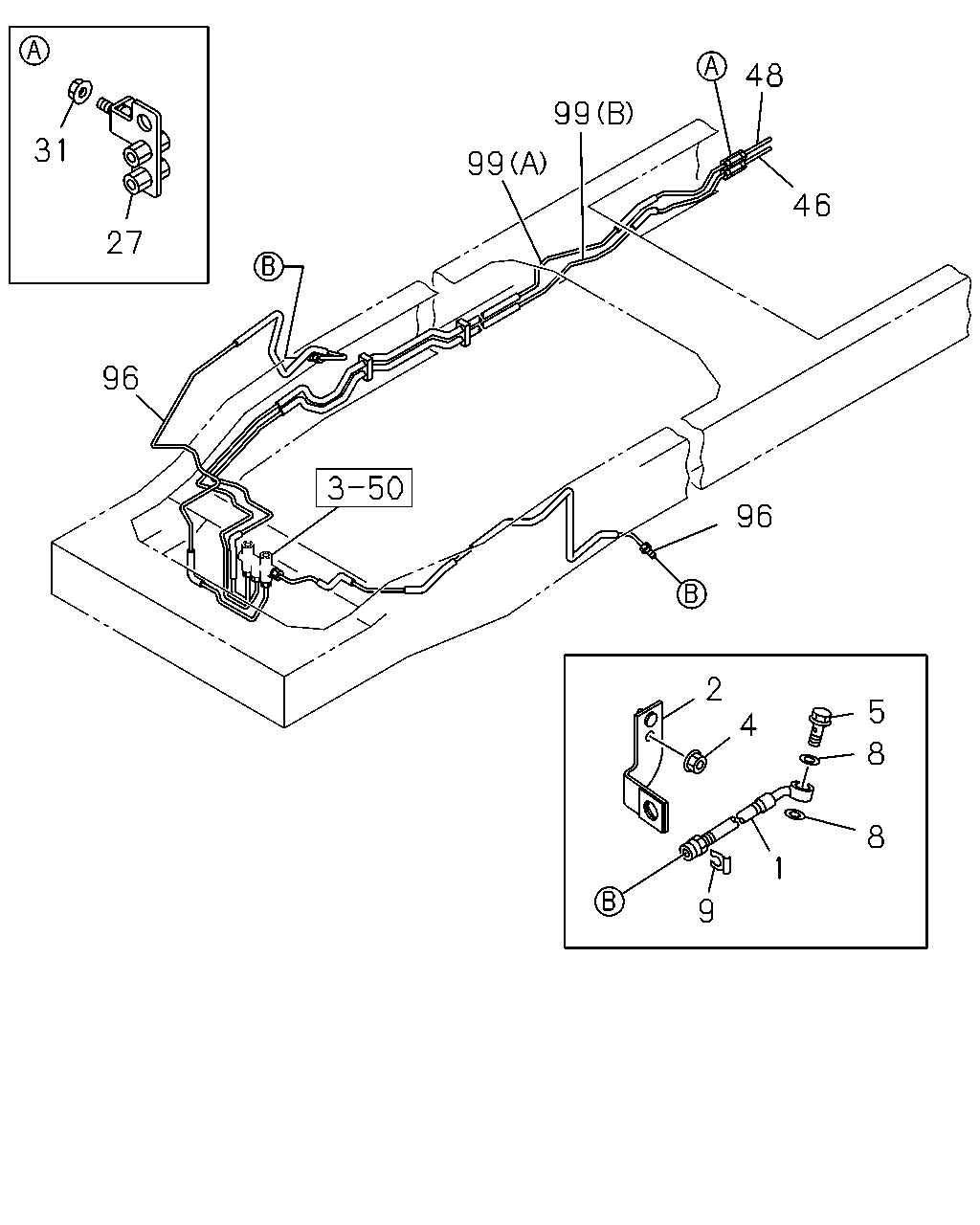

48 99 31 99 46 27 96 96 2 5 4 8 8 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97366-925-1	02	1	0707-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98002-746-0	01	1	0707-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	8-98002-747-0	01	1	0707-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	02	1	0707-	●	●
5	BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0707-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=10.2 OD=16.0	9-09571-410-0	04	1	0707-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0707-	●	●
27	UNION; BRK PIPE	8-97259-943-1	01	1	0707-	●	●
31	NUT; UNION CLIP M6 FLANGE	0-91180-106-0	01	1	0707-	●	●
46	PIPE; BRK,JOINT TO VLV	8-98037-743-0	01	1	0707-	●
46	PIPE; BRK,JOINT TO VLV	8-98085-207-0	01	1	0707-		●
48	PIPE; BRK,BYPASS VLV TO CONN	8-98030-514-0	01	1	0707-	●
48	PIPE; BRK,BYPASS VLV TO CONN	8-98085-208-0	01	1	0707-		●
96	PIPE ASM; 6 WAY	8-98002-749-1	01	1	0707-	●	●
96	PIPE ASM; 6 WAY	8-98027-857-3	01	1	0707-	●	●
99	PIPE ASM; 4/5/6 WAY (B) FRONT	8-97363-950-0	01	1	0707-	●	●
99	PIPE ASM; 4/5/6 WAY (A) REAR	8-97363-974-0	01	1	0707-	●	●
