4-60 — REAR SUSPENSION (#52237) — 42 parça

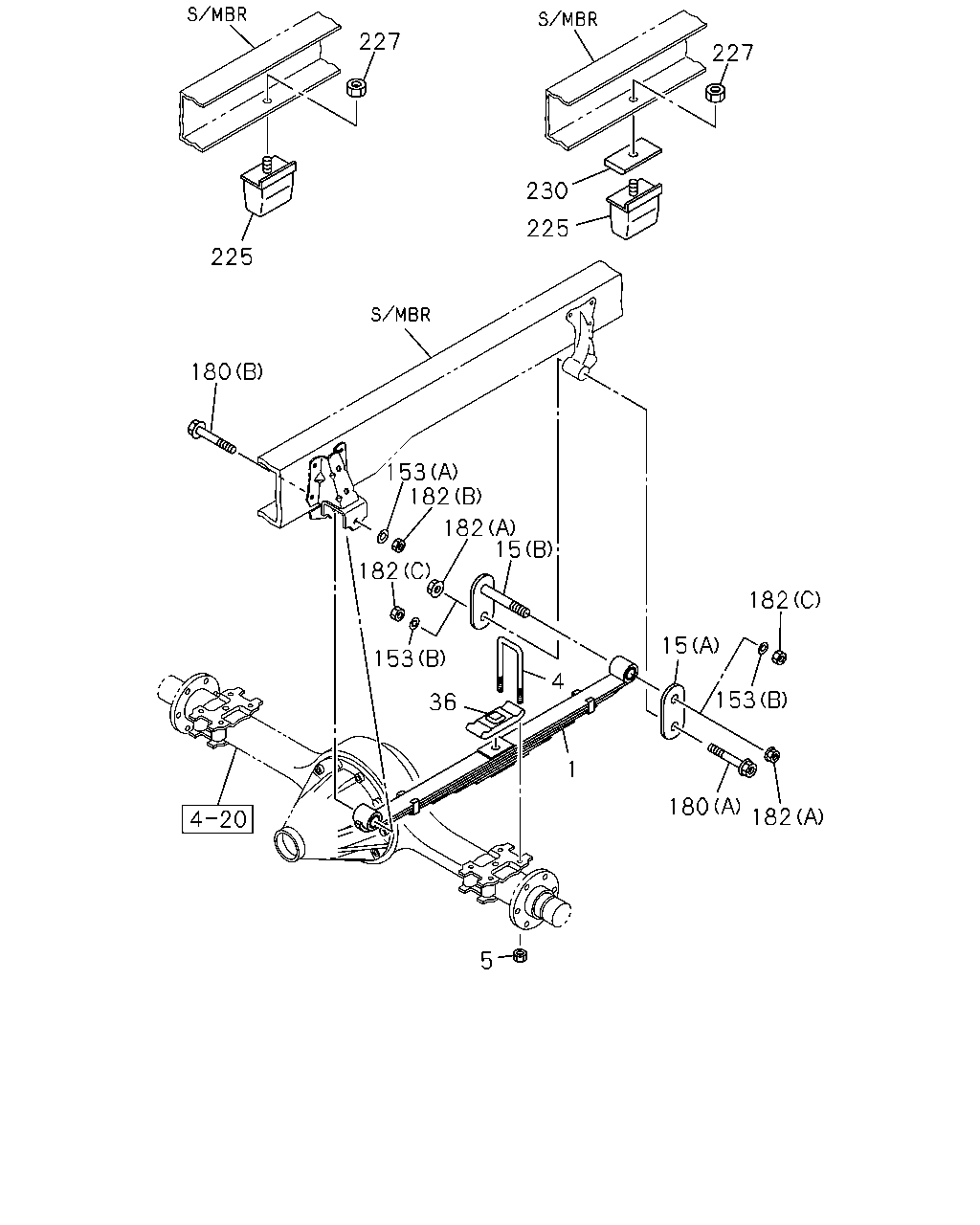

227 227 230 225 225 180 153 182 182 15 182 182 15 153 4 153 36 1 180 182 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF	8-98072-396-0	02	1	0804-
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 13-LEAF	8-98079-902-0	02	1	0804-
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> 10-LEAF	8-98025-060-0	02	1	0804-1105
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> 9-LEAF	8-98190-548-0	02	1	1106-
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 10-LEAF	8-98025-058-0	02	1	0804-1105
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 9-LEAF	8-98190-547-0	02	1	1106-
4	07.516 U-BOLT; RR SPR MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> L=315	1-51371-194-2	04	1	0804-
4	07.516 U-BOLT; RR SPR EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0804-
5	07.529 NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0804-
15	07.523 SHACKLE; RR SPR (A) IDN	8-94118-511-3	02	1	0804-
15	07.523 SHACKLE; RR SPR (B) IDN	8-97360-011-0	02	1	0804-
36	07.529 SEAT; HELPER RUBBER,RR SPR 07.518 IDN	1-51372-059-0	02	1	0804-
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 IDN	8-98011-489-0	04	1	0804-
153	07.529 WASHER; PL,SPRING PIN (A) ID=19 IDN	8-97360-119-0	02	1	0804-
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 IDN	8-98011-487-0	02	1	0804-
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130 IDN	8-98011-488-0	02	1	0804-
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0804-
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0804-
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (C) M16 IDN	0-91110-516-0	04	1	0804-
182	07.529 NUT; PIN,RR SPR (B) M18 IDN	0-91110-518-0	02	1	0804-
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	0804-
225	07.535 RUBBER; CUSHION,RR SPR TIRE SIZE 8.25-16<7QP>	8-98021-554-0	02	1	0804-
225	07.535 RUBBER; CUSHION,RR SPR EXC. TIRE SIZE 8.25-16<7QP>	8-94379-470-1	02	1	0804-1103
225	07.535 RUBBER; CUSHION,RR SPR EXC. TIRE SIZE 8.25-16<7QP>	8-98187-342-0	02	1	1104-
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE IDN	0-91180-112-0	02	1	0804-
230	07.518 SPACER; CUSHION RUBBER TIRE SIZE 8.25-16<7QP>	8-97136-852-0	02	1	0804-

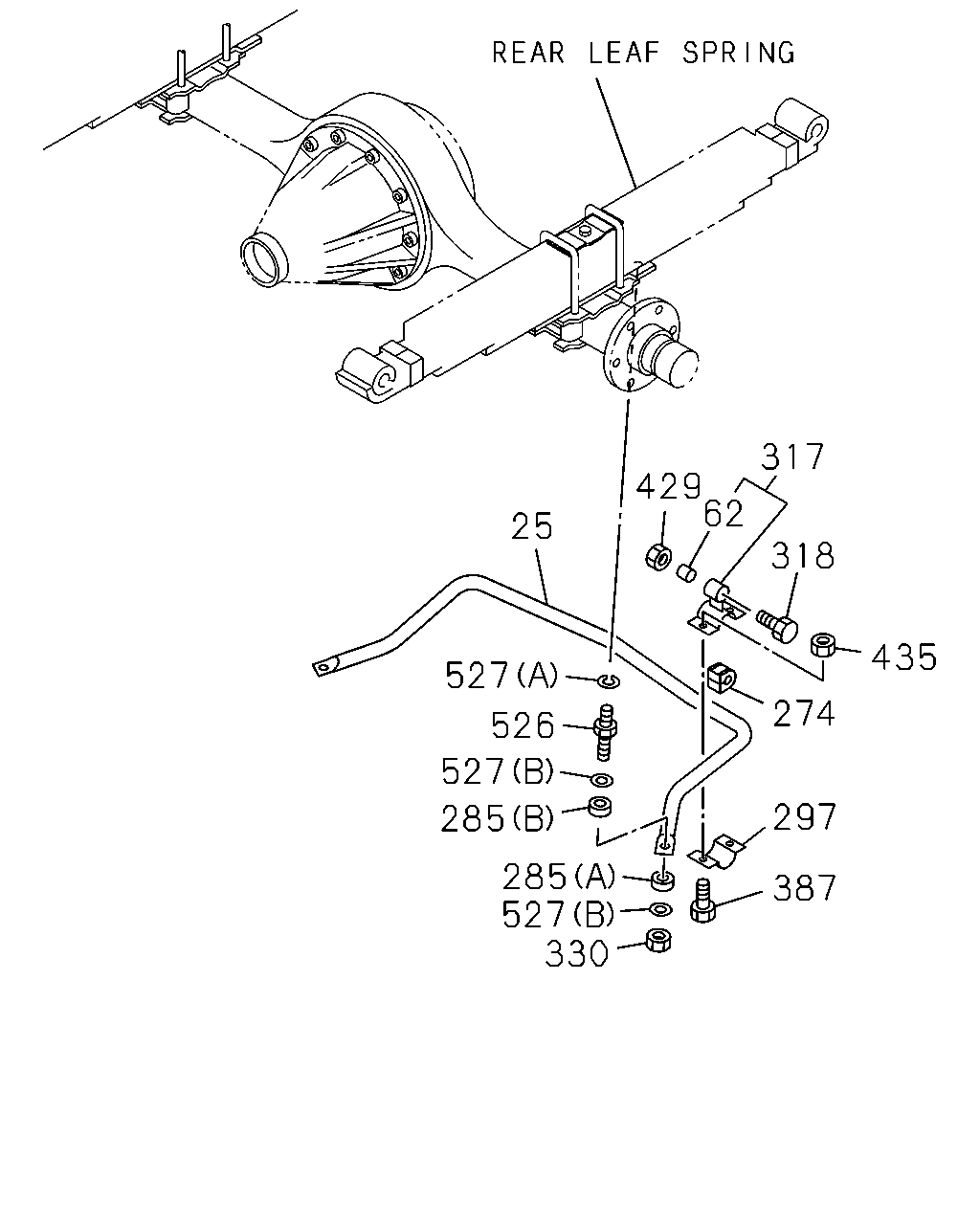

317 429 62 25 318 435 527 274 526 527 297 285 285 527 330 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1>	8-98067-239-0	01	1	0804-
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	0804-
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94440-793-0	02	1	0804-
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (A) L=18	8-97089-556-0	02	1	0804-
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (B) L=29	8-97089-557-0	02	1	0804-
297	07.242 CAP; STAB BAR STABILIZER REAR<GN1>	8-94178-430-2	02	1	0804-
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	0804-
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> M14X70 FLANGE	0-28851-470-0	02	1	0804-
330	07.242 NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	0-91370-012-0	02	1	0804-
387	07.242 BOLT; CAP FIX,STAB BAR STABILIZER REAR<GN1> 00.029 M10X25 FLANGE IDN	0-28651-025-0	04	1	0804-
429	07.242 NUT; LINK STABILIZER REAR<GN1> 06.174 M14 FLANGE	8-97360-124-0	02	1	0804-
435	07.242 NUT; CAP STABILIZER REAR<GN1> 04.085 M10 FLANGE	0-91180-210-0	04	1	0804-1006
435	07.242 NUT; CAP STABILIZER REAR<GN1> 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1007-
526	07.535 STUD; STABILIZER STABILIZER REAR<GN1> 07.242	8-97360-120-0	02	1	0804-
527	07.242 WASHER; STABILIZER STABILIZER REAR<GN1> 05.605 (A) ID=14.2	0-91510-514-0	02	1	0804-
527	07.242 WASHER; STABILIZER STABILIZER REAR<GN1> (B) ID=12.5	8-97360-055-0	04	1	0804-
