0-65 — STARTER (#5223) — 86 parça

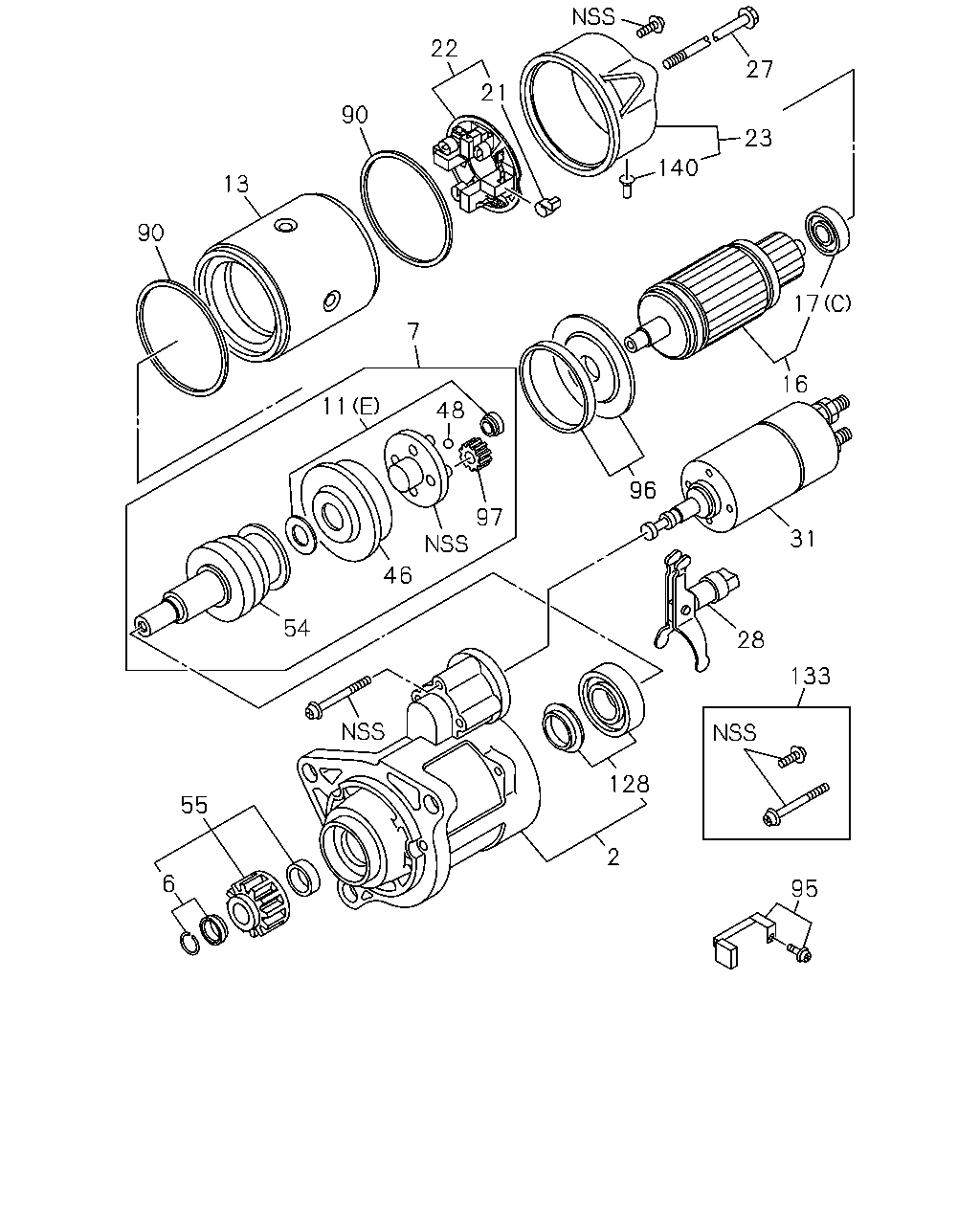

22 27 21 90 23 140 13 90 17 7 16 11 48 96 97 31 46 54 28 133 128 55 2 6 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: C = 1-81100-345-0	1-81123-066-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-687-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: C = 1-81100-345-0	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-689-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 1-81100-345-0	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-592-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (E) ASM PART: C = 1-81100-345-0	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (D) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	5-81129-160-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-695-0	01	1	-
13	YOKE; STARTER ASM PART: C = 1-81100-345-0	1-81129-839-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-345-0	1-81121-067-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-652-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: C = 1-81100-345-0	1-81129-790-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 1-81100-345-0	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-345-0	1-81121-071-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-664-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-345-0	1-81115-233-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-692-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-665-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: C = 1-81100-345-0	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 1-81100-345-0	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-657-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-345-0	1-81151-115-0	01	1	-
46	GEAR; CLU STARTER ASM PART: C = 1-81100-345-0	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER ASM PART: C = 1-81100-345-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-345-0	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER ASM PART: C = 1-81100-345-0	1-81129-838-0	01	1	-
90	GASKET; ARMATURE ASM PART: C = 1-81100-345-0	1-81129-827-0	02	1	-
95	BRUSH ASM; STARTER ASM PART: C = 1-81100-345-0	1-81116-067-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-663-1	04	1	-
96	GASKET; FRT CASE ASM PART: C = 1-81100-345-0	1-81129-796-0	01	1	-
97	GEAR; STARTER ASM PART: C = 1-81100-345-0	1-81123-056-0	04	1	-
128	BEARING; STARTER ASM PART: C = 1-81100-345-0	1-81129-780-0	01	1	-
133	SCREW SET; STARTER ASM PART: C = 1-81100-345-0	1-81129-787-0	01	1	-
140	GROMMET; RR COVER ASM PART: C = 1-81100-345-0	8-97376-389-0	01	1	-

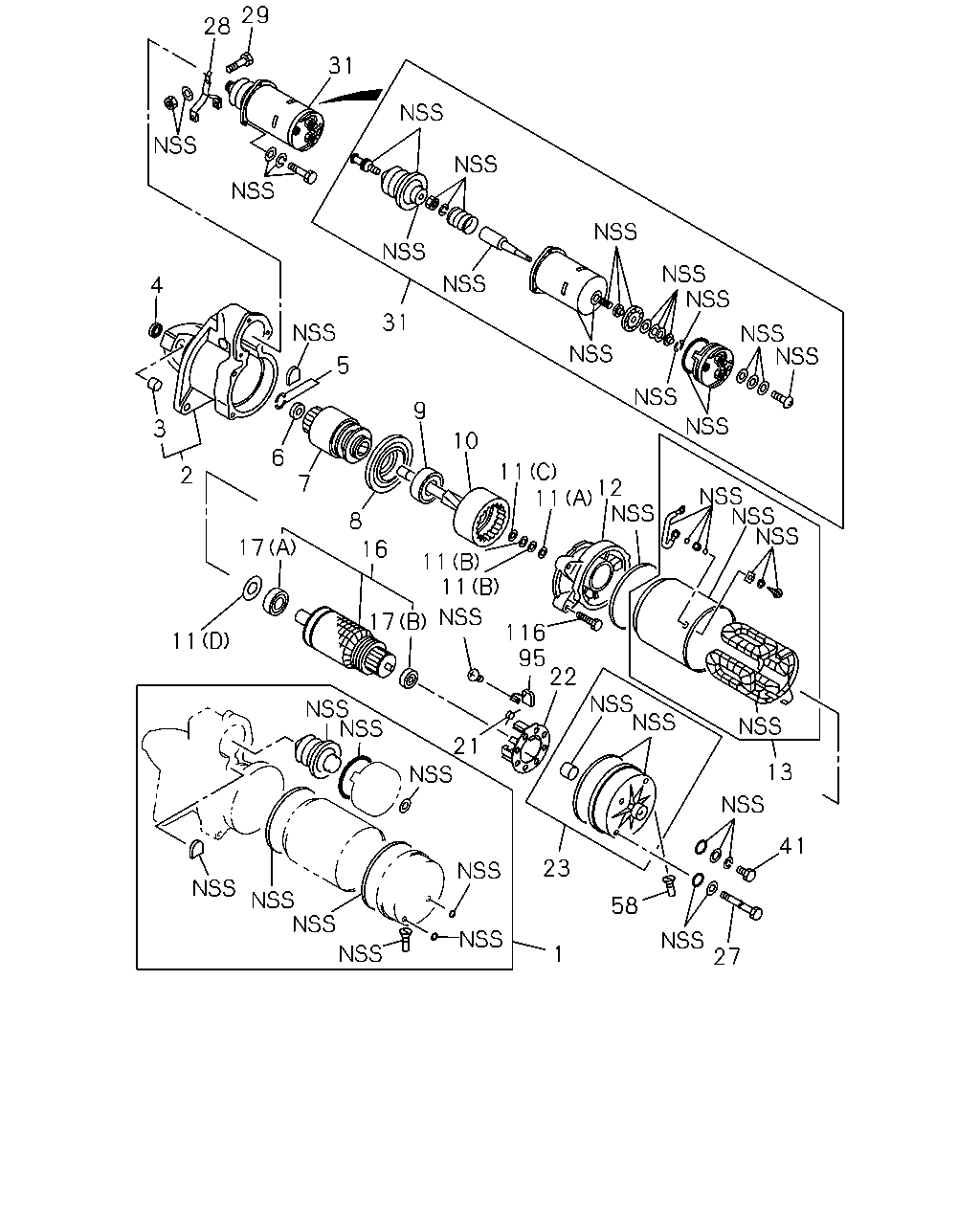

29 28 31 4 31 5 9 3 10 6 11 11 2 7 12 8 16 17 11 11 17 116 95 22 11 21 13 41 23 58 27 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-666-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-345-0	1-81123-066-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-687-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-655-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: C = 1-81100-345-0	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-689-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: C = 1-81100-345-0	1-81129-794-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81113-084-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-658-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81123-047-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-592-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (E) ASM PART: C = 1-81100-345-0	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (D) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-660-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-695-0	01	1	-
13	YOKE; STARTER ASM PART: C = 1-81100-345-0	1-81129-839-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-345-0	1-81121-067-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-652-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: C = 1-81100-345-0	1-81129-790-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 1-81100-345-0	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 1-81100-345-0	1-81121-071-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-664-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-345-0	1-81115-233-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-692-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-665-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: C = 1-81100-345-0	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 1-81100-345-0	1-81129-783-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-185-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-657-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-345-0	1-81151-115-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-641-0	02	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 1-81100-327-0	1-81129-756-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: C = 1-81100-345-0	1-81116-067-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-663-1	04	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-302-0, B = 1-81100-327-0	1-81129-661-0	03	1	-
