4-10 — FRONT AXLE (#52223) — 77 parça

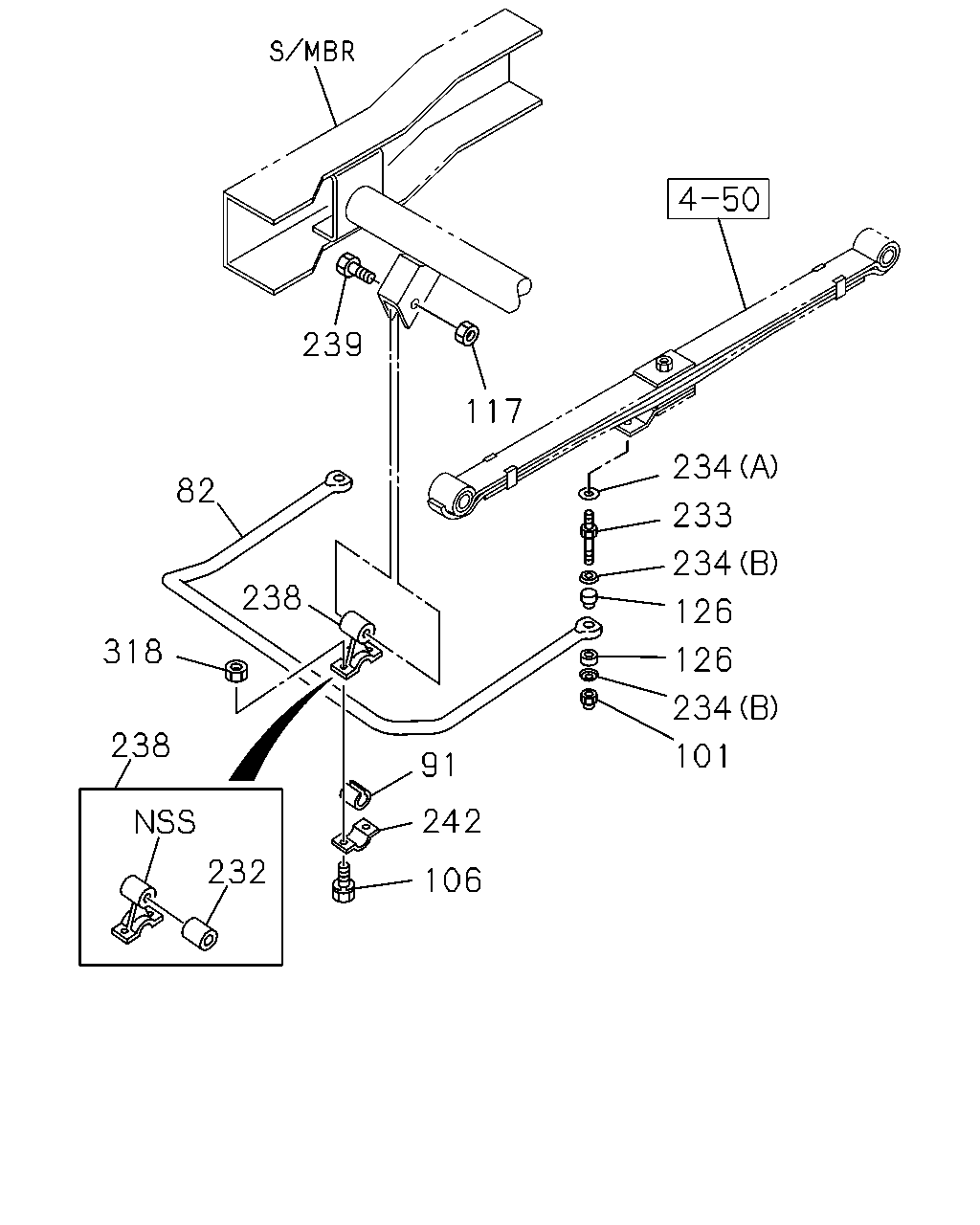

239 117 234 82 233 234 238 126 318 126 234 238 101 91 242 232 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98006-957-0	01	1	0804-0907
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>	8-98006-957-0	01	1	0908-
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV>	8-98150-721-0	01	1	0908-
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-187-0	02	1	0804-0907
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV>	8-94342-187-0	02	1	0908-
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV>	8-94440-790-0	02	1	0908-
101	07.242 NUT; STAB BAR FRONT STABILIZER SHAFT<F59> M12 LOCK NUT	0-91370-012-0	02	1	0804-
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE IDN	0-28651-025-0	04	1	0804-
117	06.174 NUT; STAB BAR BUSHING FRONT STABILIZER SHAFT<F59> M14 FLANGE	8-97360-124-0	02	1	0804-
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94342-083-0	04	1	0804-
232	07.243 BUSHING; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97239-911-0	02	1	0804-
233	07.242 STUD; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97360-120-0	02	1	0804-
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> 05.605 (A) ID=14.2	0-91510-514-0	02	1	0804-
234	07.242 WASHER; STAB FRONT STABILIZER SHAFT<F59> (B) ID=12.5	8-97360-055-0	04	1	0804-
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97239-907-0	02	1	0804-
239	07.242 BOLT; LINK ROD FRONT STABILIZER SHAFT<F59> M14X70 FLANGE	0-28851-470-0	02	1	0804-
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-94178-430-2	02	1	0804-
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE	0-91180-210-0	04	1	0804-1006
318	07.242 NUT; CAP FIX FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1007-

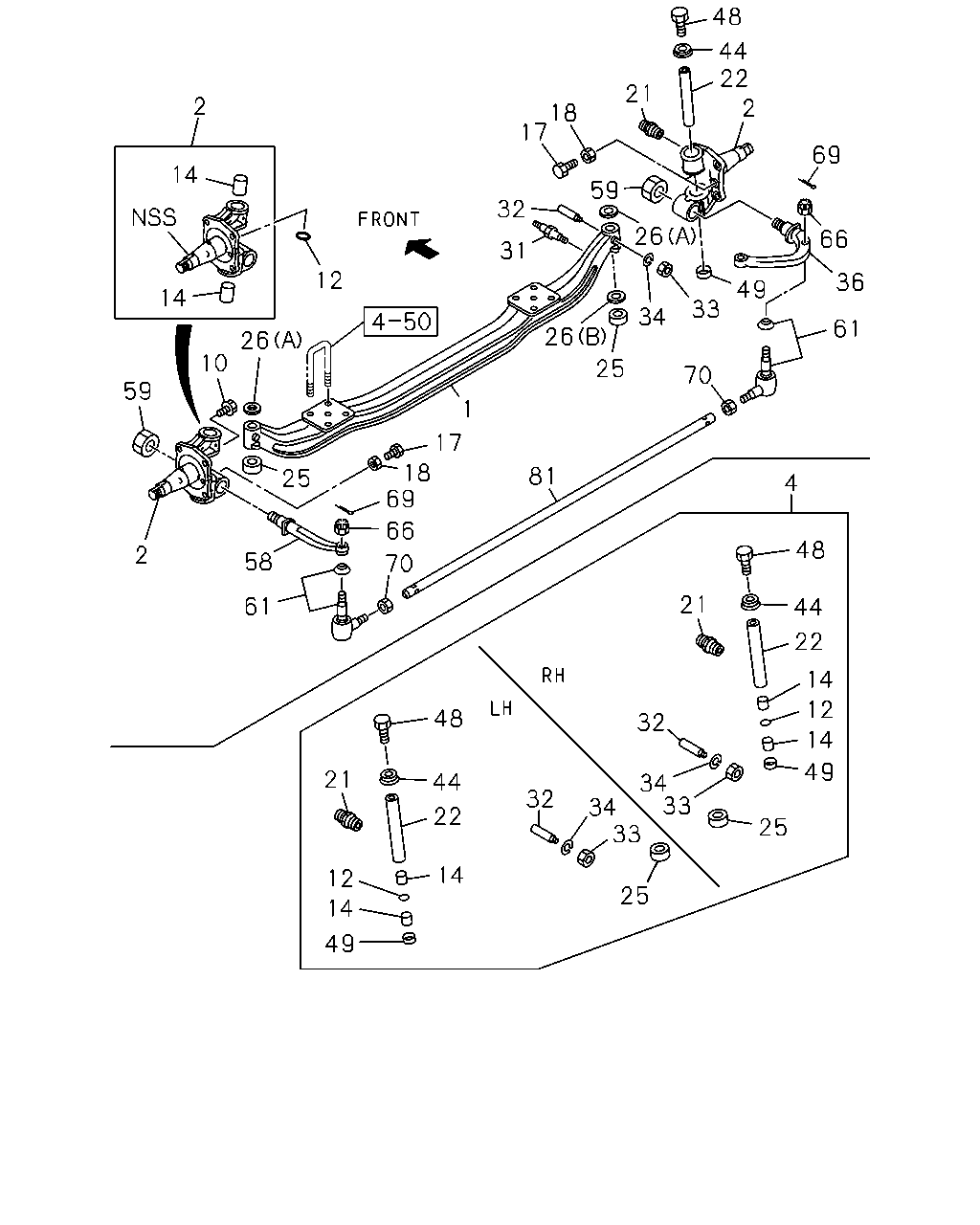

48 44 22 2 21 2 18 17 69 4 59 32 26 66 31 12 26 36 49 14 33 34 61 26 10 25 70 59 1 17 18 69 81 25 4 66 48 2 58 70 21 61 44 22 14 12 48 32 14 49 21 44 34 33 32 34 33 22 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.008 AXLE; FRT	8-98038-384-0	01	1	0804-0903
1	06.008 AXLE; FRT EXC. FRONT WIDE TREAD<7GV>	8-98038-384-3	01	1	0904-
1	06.008 AXLE; FRT FRONT WIDE TREAD<7GV>	8-98141-521-1	01	1	0904-
2	06.020 KNUCKLE; FRT AXLE	8-97261-549-2	01	1	0804-
2	06.020 KNUCKLE; FRT AXLE	8-97261-550-2	01	1	0804-
4	06.203 KING PIN KIT	5-87832-219-2	01	1	0804-1402
4	06.203 KING PIN KIT	5-87832-220-2	01	1	1403-
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0804-
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0804-
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0804-
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0804-0809
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) M12X24 EYE-BOLT	8-97360-059-0	03	1	0804-0804
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) M12X24 EYE-BOLT	8-97360-059-0	03	1	0804-0809
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M12X24 EYE-BOLT	8-97360-059-0	03	1	0810-0903
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) EXC. FRONT WIDE TREAD<7GV> M12X24 EYE-BOLT	8-97360-059-0	03	1	0904-0904
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M12X24 EYE-BOLT	8-97360-059-0	03	1	0905-
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) M12X27.5	8-98016-968-0	03	1	0804-0809
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) M12X27.5	8-98016-968-0	03	1	0810-0903
17	06.009 BOLT; STOPPER KNUCKLE FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT (CUZ) EXC. FRONT WIDE TREAD<7GV> M12X27.5	8-98016-968-0	03	1	0904-
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0804-
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT IDN	0-90301-406-0	04	1	0804-
22	06.203 PIN; KING,FRT AXLE	8-94360-792-2	02	1	0804-
25	06.210 BEARING; THRUST,KING PIN OD=51.6 ID=30.5 T=15.6	8-97141-943-1	01	1	1403-
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-2	02	1	0804-1402
25	06.210 BEARING; THRUST,KING PIN 06.021 OD=54 ID=30.2 T=13.8	8-94248-883-3	01	1	1403-
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0804-
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0804-
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0804-
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0804-
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	02	1	0804-1402
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	1403-
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0804-
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0804-
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0804-
31	07.347 PIN; S/ABS,LWR	8-97145-460-0	02	1	0804-
32	06.216 BOLT; KEY,KING PIN	8-97141-945-2	02	1	0804-
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0804-
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0804-
36	06.103 ARM; KNUCKLE	8-97202-776-3	01	1	0804-0903
36	06.103 ARM; KNUCKLE EXC. FRONT WIDE TREAD<7GV>	8-97202-776-5	01	1	0904-
36	06.103 ARM; KNUCKLE FRONT WIDE TREAD<7GV>	8-98135-281-2	01	1	0904-
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0804-
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0804-
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0804-
58	06.103 ARM; TIE ROD	8-97138-304-2	01	1	0804-
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0804-
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0804-1310
61	06.233 ROD END; TIE ROD	8-97107-348-2	01	1	1311-
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0804-1310
61	06.233 ROD END; TIE ROD	8-97107-349-2	01	1	1311-
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0804-1204
66	06.234 NUT; TIE ROD END 06.216 M16 SLOTTED	8-98049-689-0	02	1	1205-
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0804-
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0804-
70	06.234 NUT; TIE ROD END M20 RH THREAD	8-98043-530-0	01	1	0804-
81	06.230 ROD; TIE	8-97061-869-0	01	1	0804-0903
81	06.230 ROD; TIE EXC. FRONT WIDE TREAD<7GV>	8-97061-869-0	01	1	0904-
81	06.230 ROD; TIE FRONT WIDE TREAD<7GV>	8-98137-615-0	01	1	0904-
