3-60 — BRAKE PIPING; VACUUM (#52221) — 164 parça

122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV (B)	8-98057-425-1	01	1	0804-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98070-194-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (F)	8-97386-589-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98041-427-3	01	1	0804-0808
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98129-223-0	01	1	0809-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-613-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0804-1008
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	0804-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE 04.930 ID=16 IDN	8-94238-568-0	02	1	0804-0911
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE 04.930 ID=16 IDN	8-94238-568-0	06	1	0804-0911
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	0912-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	0804-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-

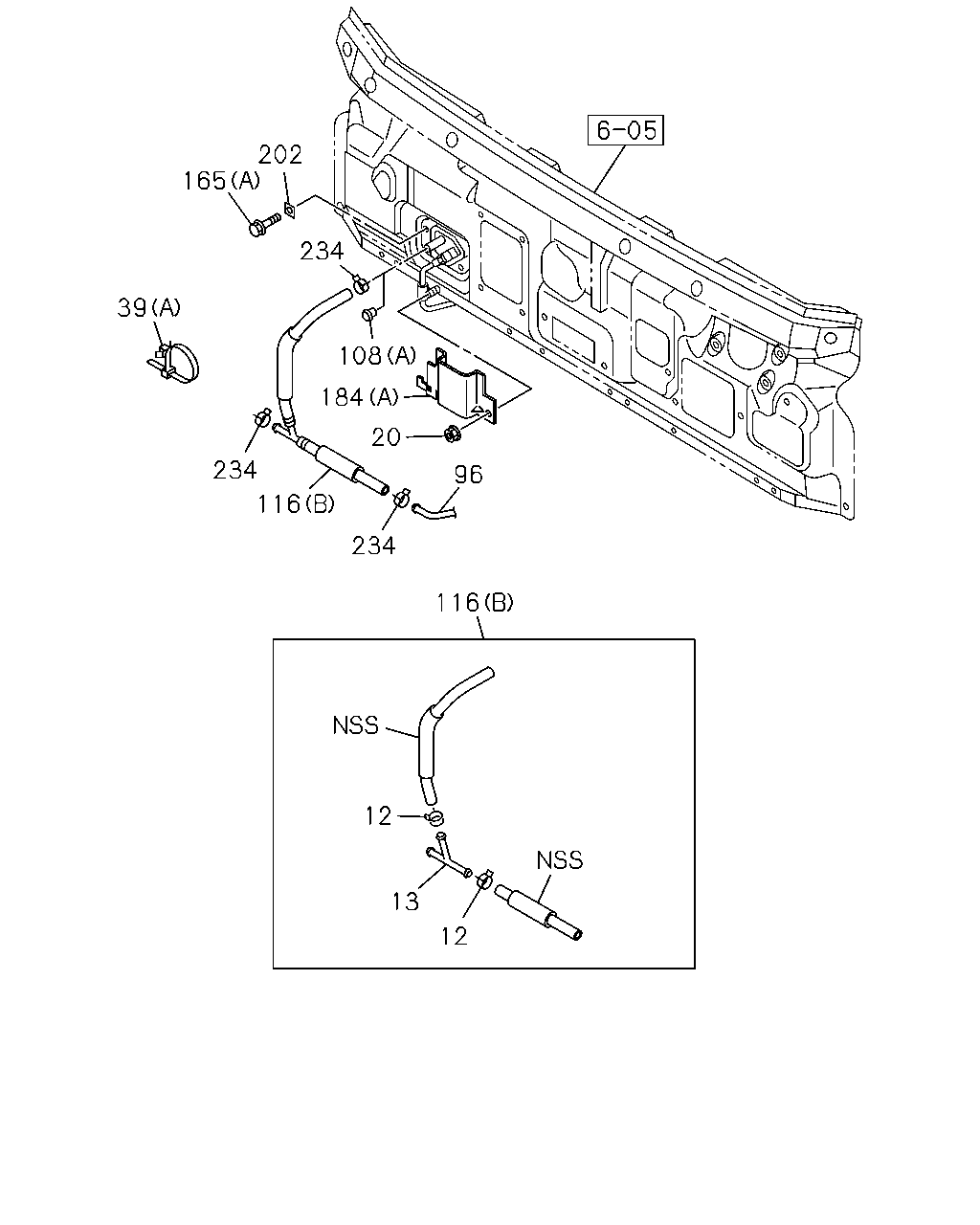

202 165 234 39 108 184 20 234 96 116 234 116 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (B) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 04.686 (C) ID=11-19.5	8-94426-597-0	08	1	0804-1005
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98046-550-0	01	1	0804-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1206-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC (D)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	0912-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A) IDN	8-98017-628-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (B)	8-98041-992-2	01	1	0804-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98041-992-2	01	1	1002-1102
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-470-1	01	1	1103-1103
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98193-144-0	01	1	1104-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-539-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D) IDN	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-991-0	01	1	1002-1102
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-472-1	01	1	1103-1103
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-145-0	01	1	1104-
202	04.686 SEAL 08.845 IDN	8-97856-616-0	02	1	0804-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-

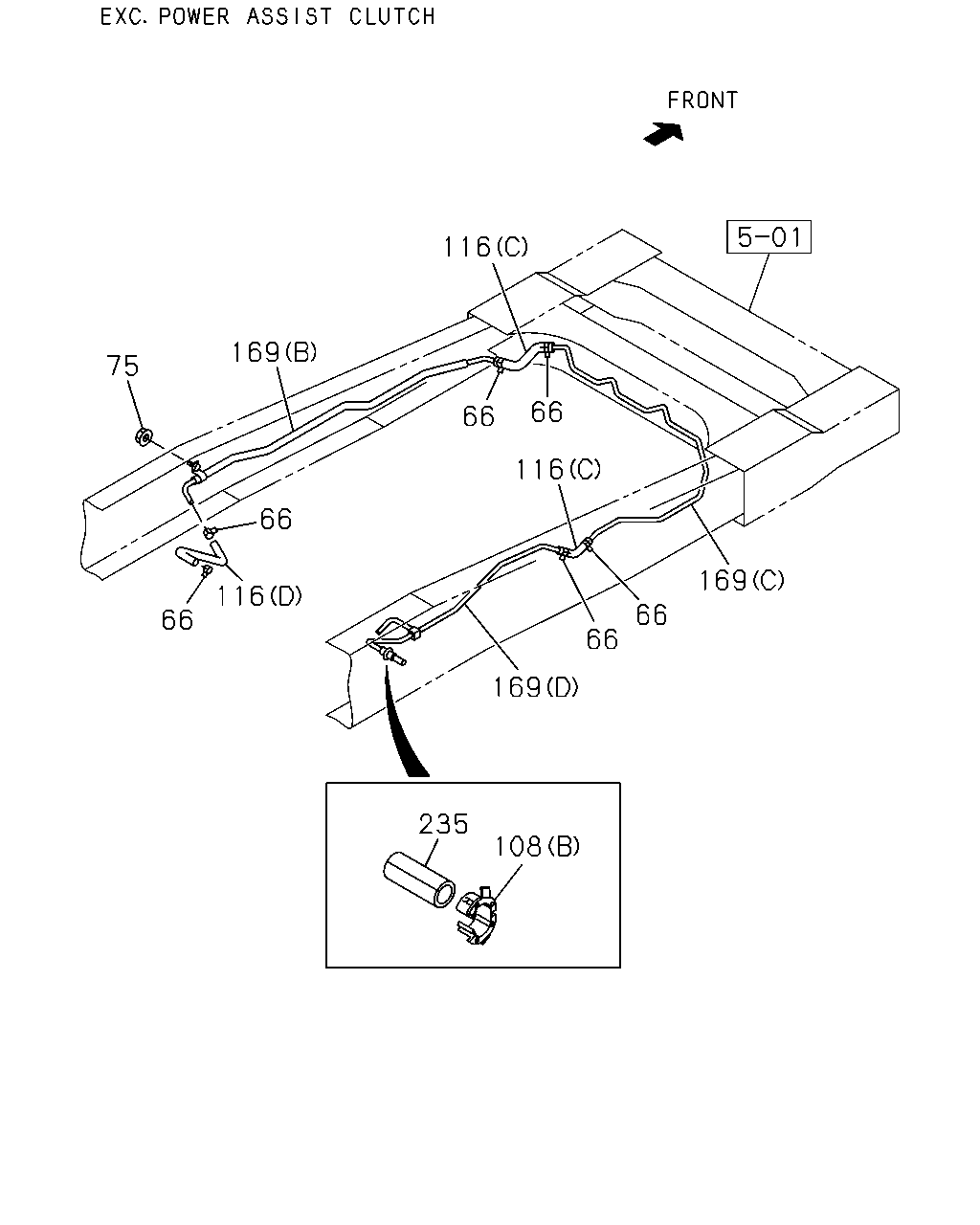

116 169 75 66 66 116 66 169 116 66 66 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	06	1	0804-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	06	1	0912-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC (D)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	0912-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98041-052-2	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	0804-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0804-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0804-

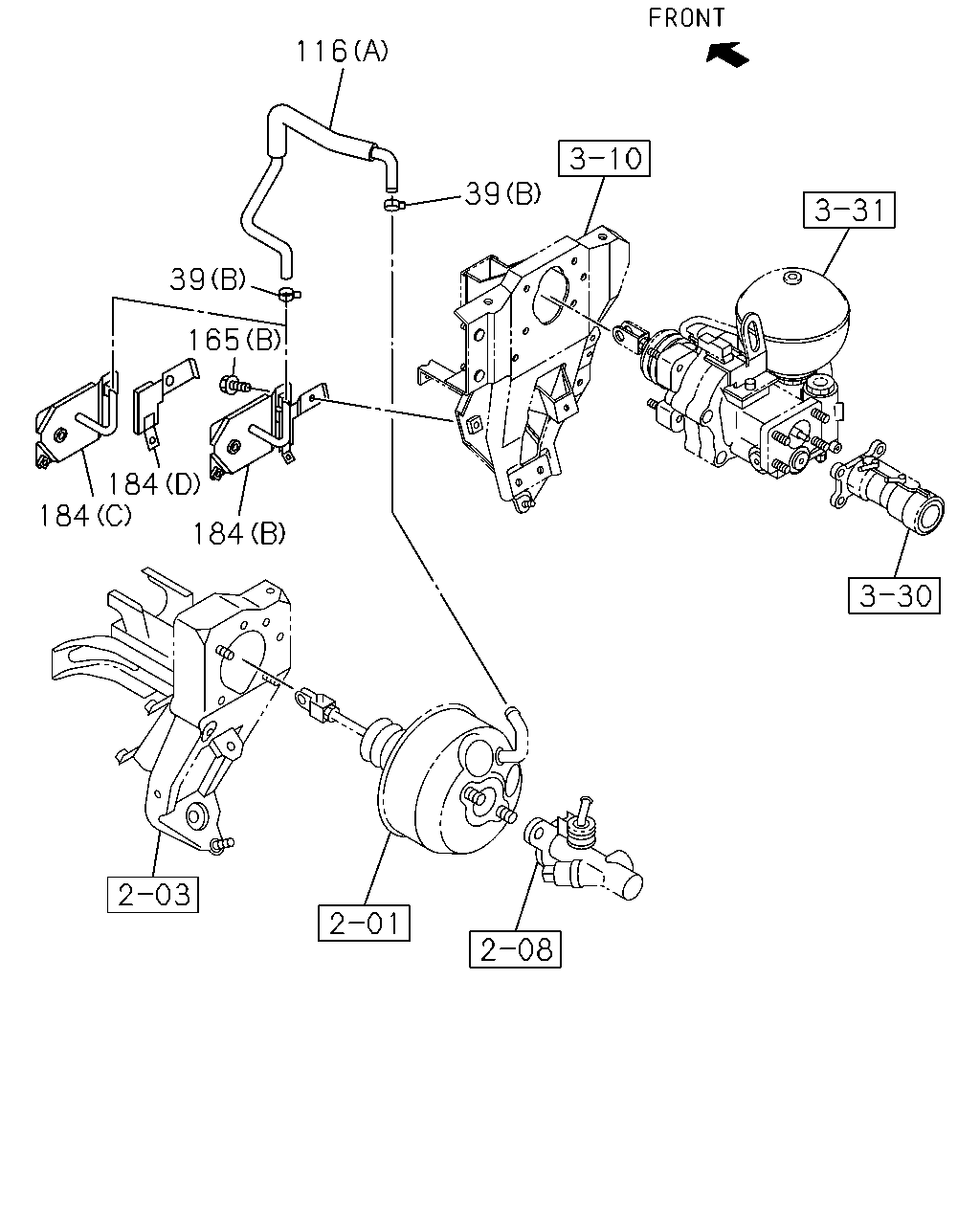

116 39 39 165 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (B) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 04.686 (C) ID=11-19.5	8-94426-597-0	08	1	0804-1005
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC (D)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	0912-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A) IDN	8-98017-628-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (B)	8-98041-992-2	01	1	0804-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98041-992-2	01	1	1002-1102
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-470-1	01	1	1103-1103
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98193-144-0	01	1	1104-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-539-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (D) IDN	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-991-0	01	1	1002-1102
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-472-1	01	1	1103-1103
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98193-145-0	01	1	1104-

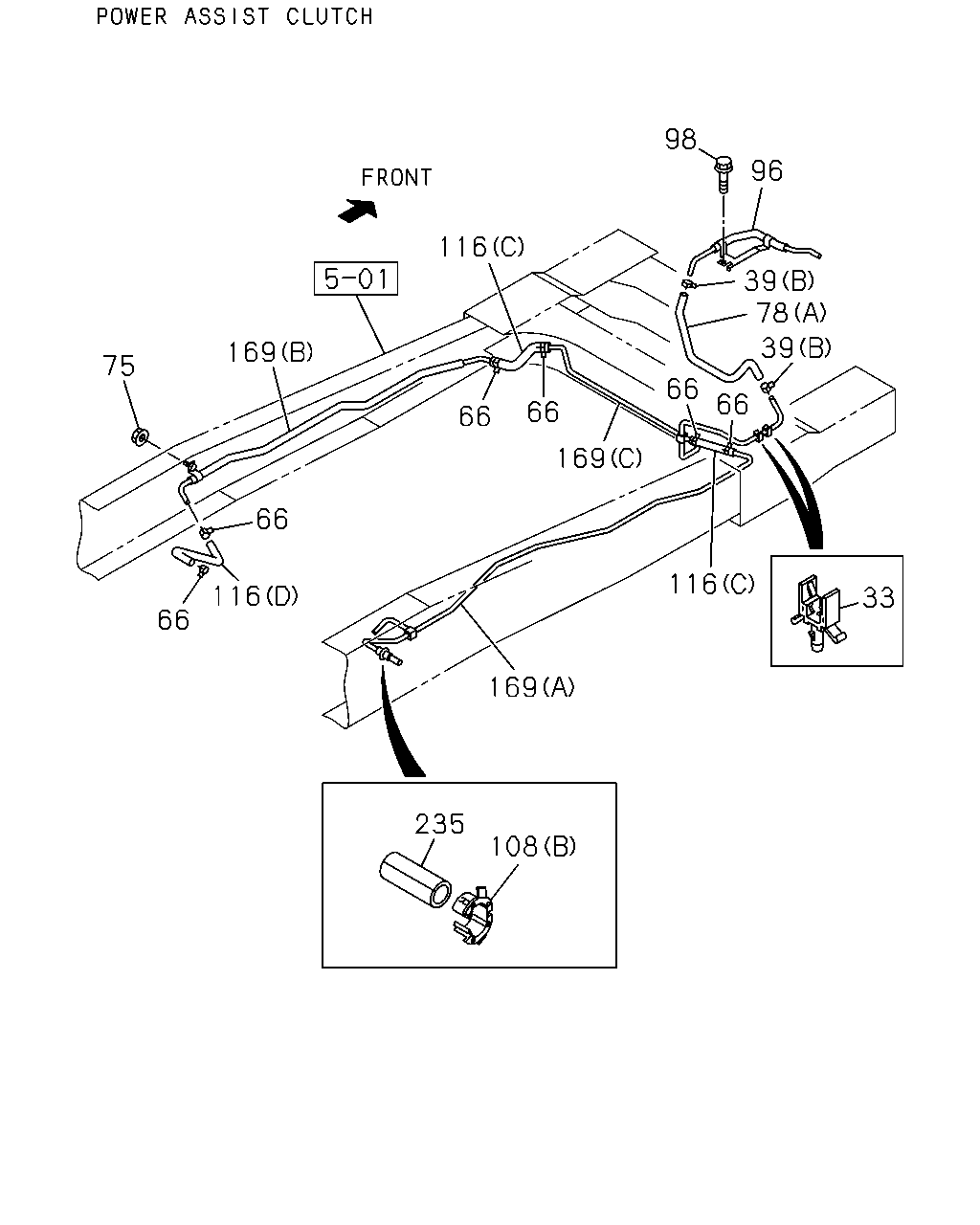

98 96 116 39 78 39 169 75 66 66 66 66 169 66 116 116 33 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40 IDN	8-94462-219-0	02	1	0804-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (B) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 04.686 (C) ID=11-19.5	8-94426-597-0	08	1	0804-1005
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	06	1	0804-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	06	1	0912-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (F)	8-97386-589-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98041-427-3	01	1	0804-0808
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98129-223-0	01	1	0809-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-613-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0804-1008
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98046-550-0	01	1	0804-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1206-
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17 IDN	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) IDN	9-09956-353-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98067-702-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98081-002-2	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC (D)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	0912-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98041-052-2	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C)	8-98048-901-0	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	0804-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0804-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0804-

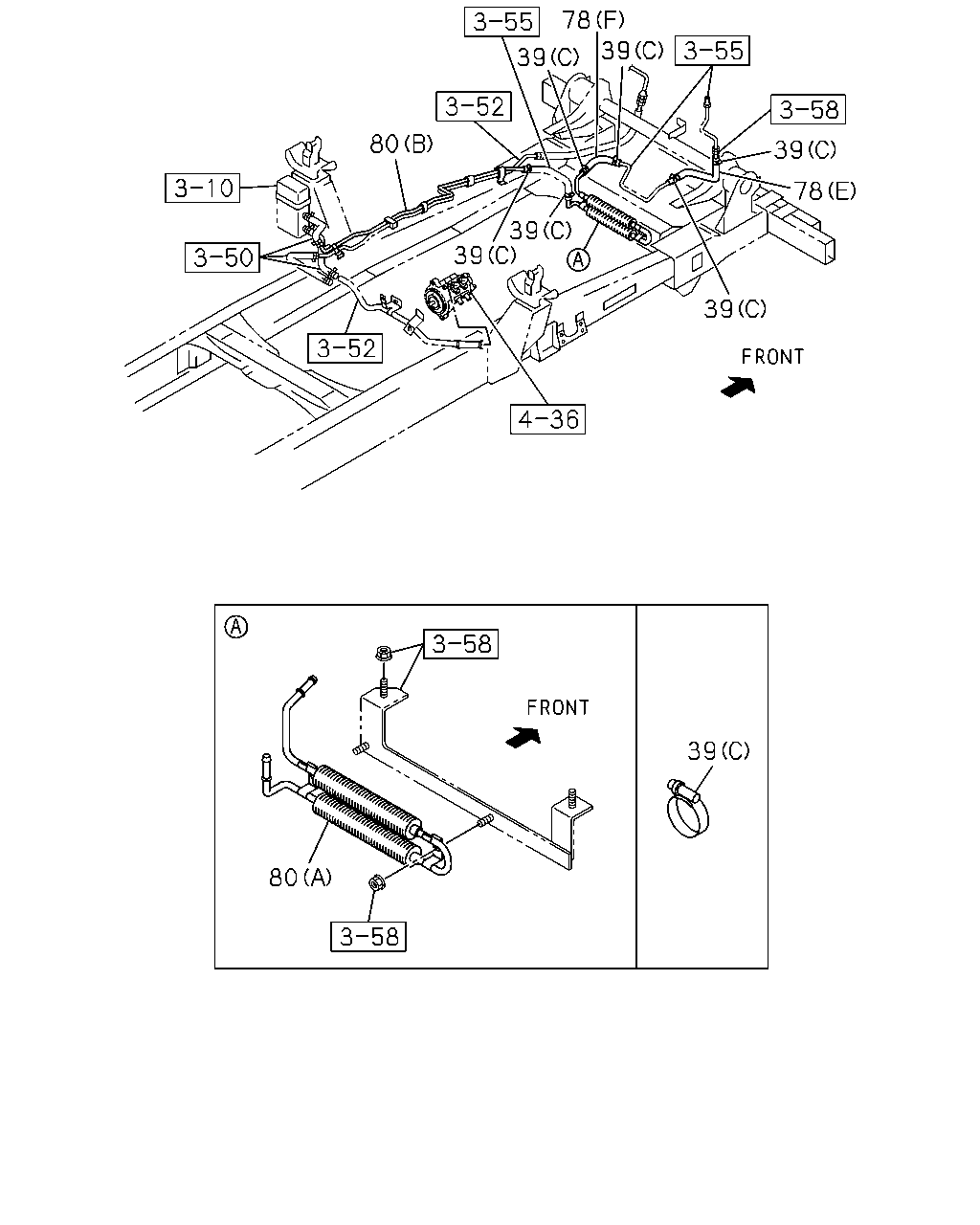

78 39 39 80 39 78 39 39 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-0808
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	0809-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (B) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 04.686 (C) ID=11-19.5	8-94426-597-0	08	1	0804-1005
39	04.681 CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1006-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (F)	8-97386-589-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98057-462-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98112-680-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98041-427-3	01	1	0804-0808
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98129-223-0	01	1	0809-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98136-613-0	01	1	0910-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0804-1008
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-
80	04.930 PIPE; VAC,ENG SIDE 04.685 (A)	8-97386-605-0	01	1	0804-
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98097-788-0	01	1	0804-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
