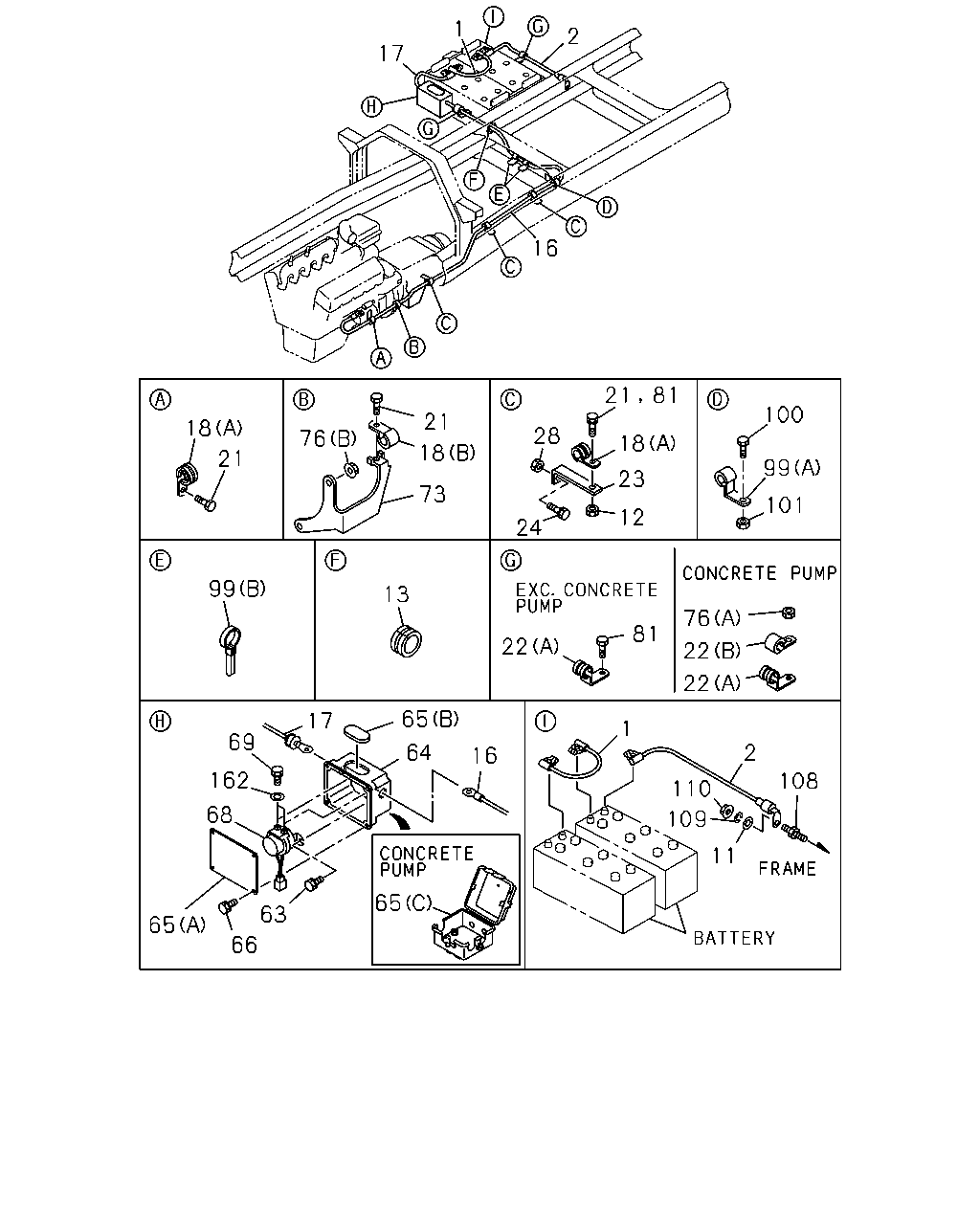

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#5222) — 72 parça

1 2 17 16 21 81 100 21 18 28 76 18 18 21 99 23 73 101 12 24 99 13 76 81 22 22 22 65 17 1 69 64 2 16 162 108 110 68 109 11 65 63 65 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY CONCRETE PUMP<RA5> L=450	1-82650-281-2	01	1	9604-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9604-	●	●
1	CABLE; BATTERY EXC. CONCRETE PUMP<RA5>,BATTERY 145G51 N150<SJ8>, BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9604-	●	●
2	CABLE; BATTERY CONCRETE PUMP<RA5> L=800	1-82650-148-0	01	1	9604-	●	●
2	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=690	1-82650-147-0	01	1	9604-	●	●
11	WASHER; BATTERY CABLE EARTH PLAIN WASHER ID=8.4 OD=22	9-09164-708-0	01	1	9604-	●	●
12	NUT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9604-9606	●
12	NUT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	02	1	9607-9708	●
12	NUT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9709-	●	●
12	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9604-9606	●
12	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	03	1	9607-9708	●
12	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9709-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	9606-	●	●
13	GROMMET; BATTERY CABLE EXC. CONCRETE PUMP<RA5> ID=28 OD=35 T=25	1-09332-011-1	01	1	9604-	●	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5> L=3850	1-82652-601-0	01	1	9604-9608	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5> L=2790	1-82652-634-0	01	1	9609-	●	●
16	CABLE; STARTER TO RELAY CONCRETE PUMP<RA5> L=2350	1-82652-492-1	01	1	9604-	●	●
17	CABLE; BATTERY (+) TO RELAY CONCRETE PUMP<RA5> L=520	1-82650-226-0	01	1	9604-	●	●
17	CABLE; BATTERY (+) TO RELAY EXC. CONCRETE PUMP<RA5> L=390	1-82652-531-0	01	1	9604-	●	●
18	CLIP; BATTERY CABLE (A) ID=18 L=28	1-09701-067-0	01	1	9604-	●	●
18	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	9604-	●	●
18	CLIP; BATTERY CABLE CONCRETE PUMP<RA5> (A) ID=18 L=28	1-09701-067-0	02	1	9604-	●	●
18	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (A) ID=18 L=28	1-09701-067-0	03	1	9604-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●
21	BOLT; CLIP CABLE CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
21	BOLT; CLIP CABLE CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	03	1	9604-9606	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	03	1	9607-	●	●
22	CLIP; BATTERY CABLE CONCRETE PUMP<RA5> (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9604-	●	●
22	CLIP; BATTERY CABLE CONCRETE PUMP<RA5> (B) ID=16 L=40	9-09525-576-0	01	1	9604-	●	●
22	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9604-	●	●
23	BRACKET; CABLE CLIP TO FRAME CONCRETE PUMP<RA5> L=95	1-82699-085-0	02	1	9604-	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. CONCRETE PUMP<RA5> L=95	1-82699-085-0	03	1	9604-	●	●
24	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●
24	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
24	BOLT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9604-9606	●
24	BOLT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	03	1	9607-	●	●
28	NUT; BRKT TO FRAME CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9604-9606	●
28	NUT; BRKT TO FRAME CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
28	NUT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9604-9606	●
28	NUT; BRKT TO FRAME EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9607-	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9604-	●	●
64	BOX; BATTERY RELAY EXC. CONCRETE PUMP<RA5>	1-82699-352-2	01	1	9604-9611	●
64	BOX; BATTERY RELAY EXC. CONCRETE PUMP<RA5>	1-82699-947-0	01	1	9612-	●	●
65	COVER; BATTERY RELAY EXC. CONCRETE PUMP<RA5> (B)	1-82699-354-2	01	1	9604-9611	●
65	COVER; BATTERY RELAY EXC. CONCRETE PUMP<RA5> (B)	1-82699-980-0	01	1	9612-	●	●
65	COVER; BATTERY RELAY CONCRETE PUMP<RA5> (C)	1-81809-011-2	01	1	9604-	●	●
65	COVER; BATTERY RELAY EXC. CONCRETE PUMP<RA5> (A)	1-82699-353-1	01	1	9604-	●	●
66	BOLT; COVER,BATTERY RELAY EXC. CONCRETE PUMP<RA5> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9604-	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9604-9711	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9712-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9604-	●	●
73	BRACKET; BATTERY CABLE	1-82699-822-0	01	1	9604-9903	●
73	BRACKET; BATTERY CABLE	1-82698-139-0	01	1	9904-	●	●
76	NUT; BATTERY CABLE (B) M10 FLANGE	0-91150-110-0	02	1	9604-9606	●
76	NUT; BATTERY CABLE (B) M10 FLANGE	0-91150-210-0	02	1	9607-	●	●
76	NUT; BATTERY CABLE CONCRETE PUMP<RA5> (A) M8	9-09110-408-0	01	1	9604-9609	●
76	NUT; BATTERY CABLE CONCRETE PUMP<RA5> (A) M8 FLANGE	0-91150-108-0	01	1	9610-	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9604-9606	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9604-	●	●
99	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (B) ID=20 L=50	9-09917-430-0	02	1	9604-	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9604-9606	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	01	1	9604-9606	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
108	STUD; EARTH BATTERY CABLE M6,M8 L=42 M6X14,M8X17 L=42	5-09309-006-1	01	1	9604-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-508-0	01	1	9604-9810	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9811-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9604-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9604-	●	●
