◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#52219) — 14 parça

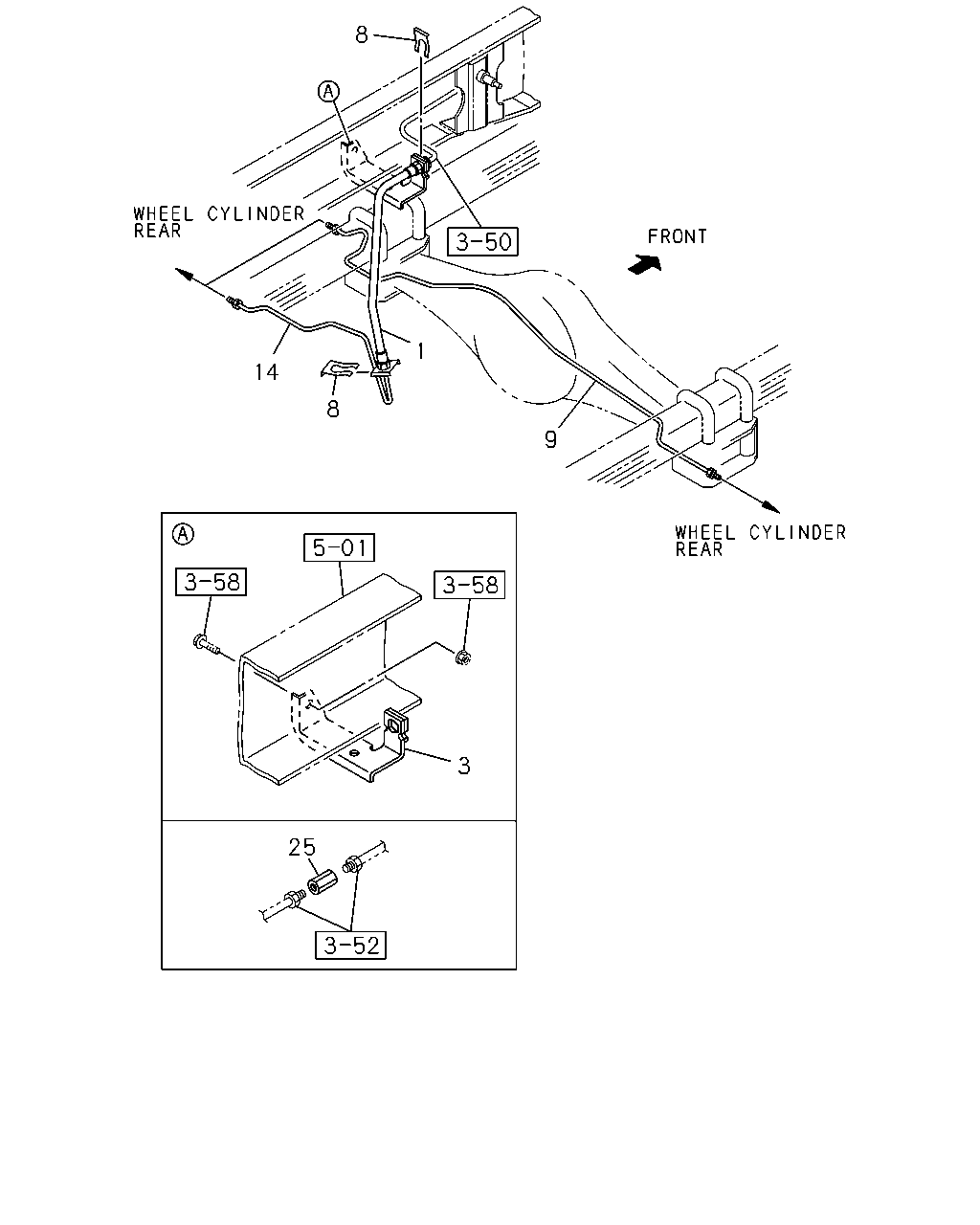

çizim 149659
8 1 14 8 9 3 25
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 0804-
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0804-
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0804-
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 0804-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0804-
25 04.686 CONNECTOR
M10 STRAIGHT IDN 		0-92107-005-0 01 1 0804-

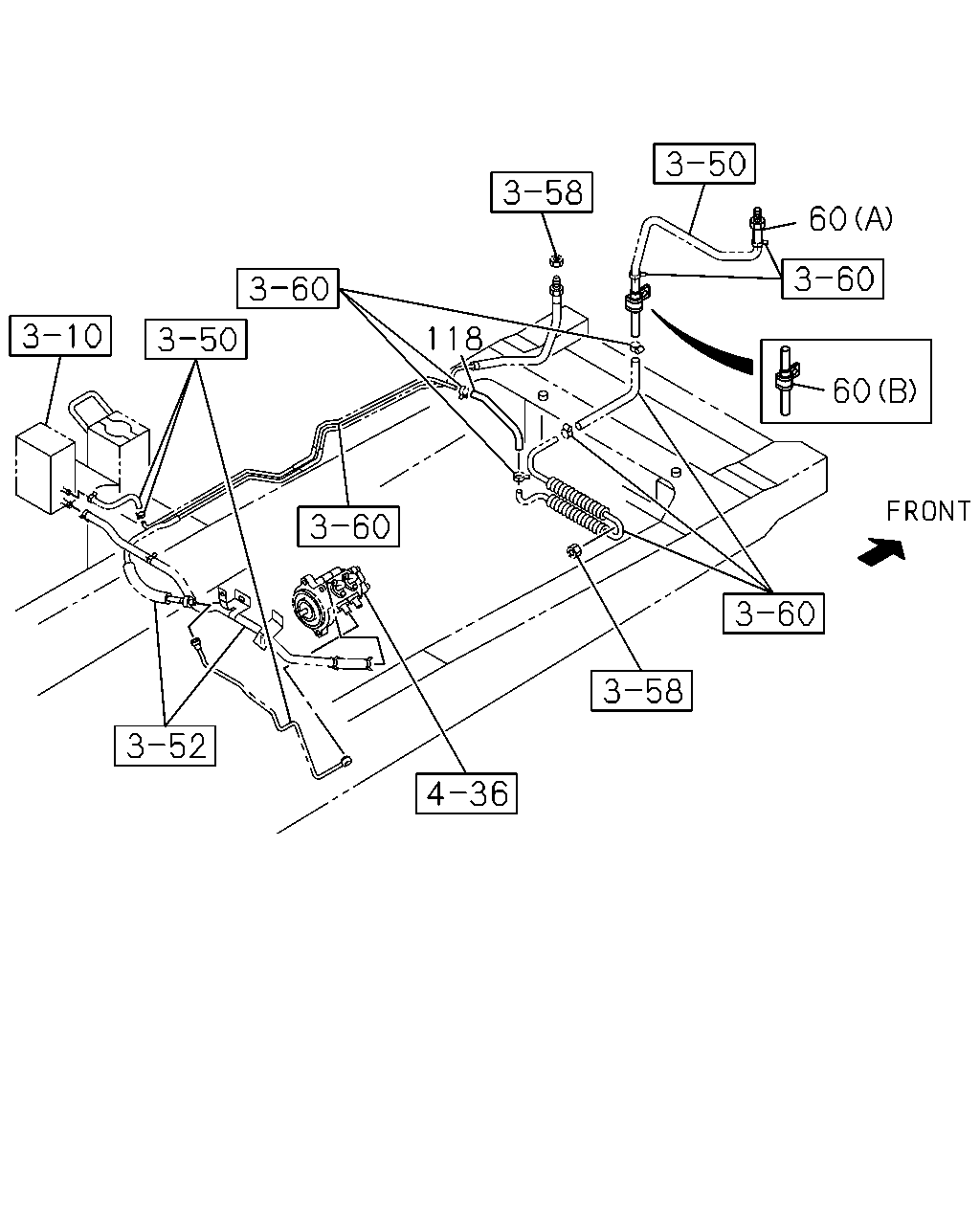

çizim 149667
60 118 60
BalonParca AdiParca NoAdetTipApplied Date
60 04.685 PIPE ASM; BRK
(C) 		8-98041-326-1 01 1 0804-
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0804-
60 04.685 PIPE ASM; BRK
(B) 		8-98088-313-1 01 1 0804-
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0804-1001
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1002-

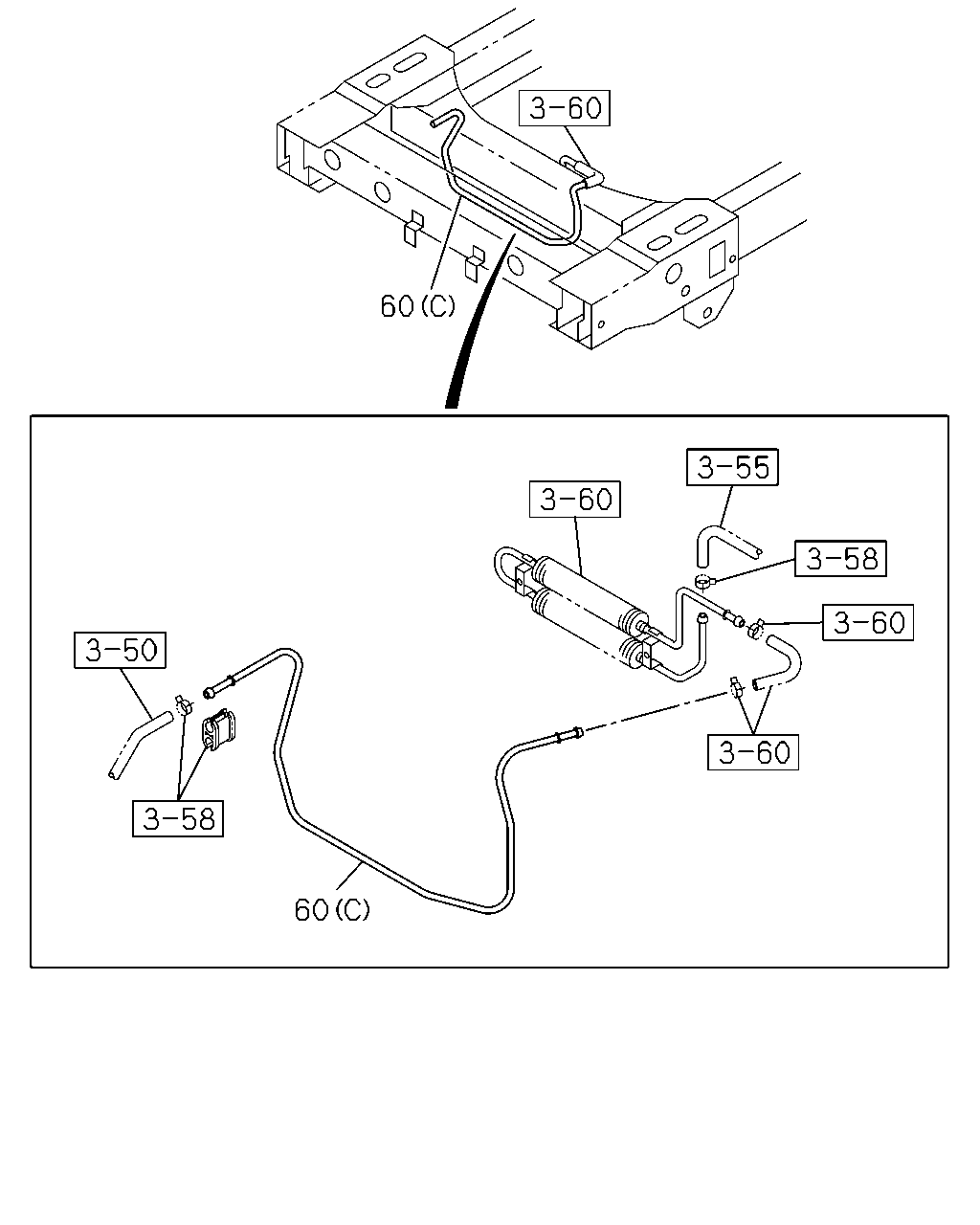

çizim 149669
60 60
BalonParca AdiParca NoAdetTipApplied Date
60 04.685 PIPE ASM; BRK
(C) 		8-98041-326-1 01 1 0804-
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0804-
60 04.685 PIPE ASM; BRK
(B) 		8-98088-313-1 01 1 0804-
