◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#52218) — 20 parça

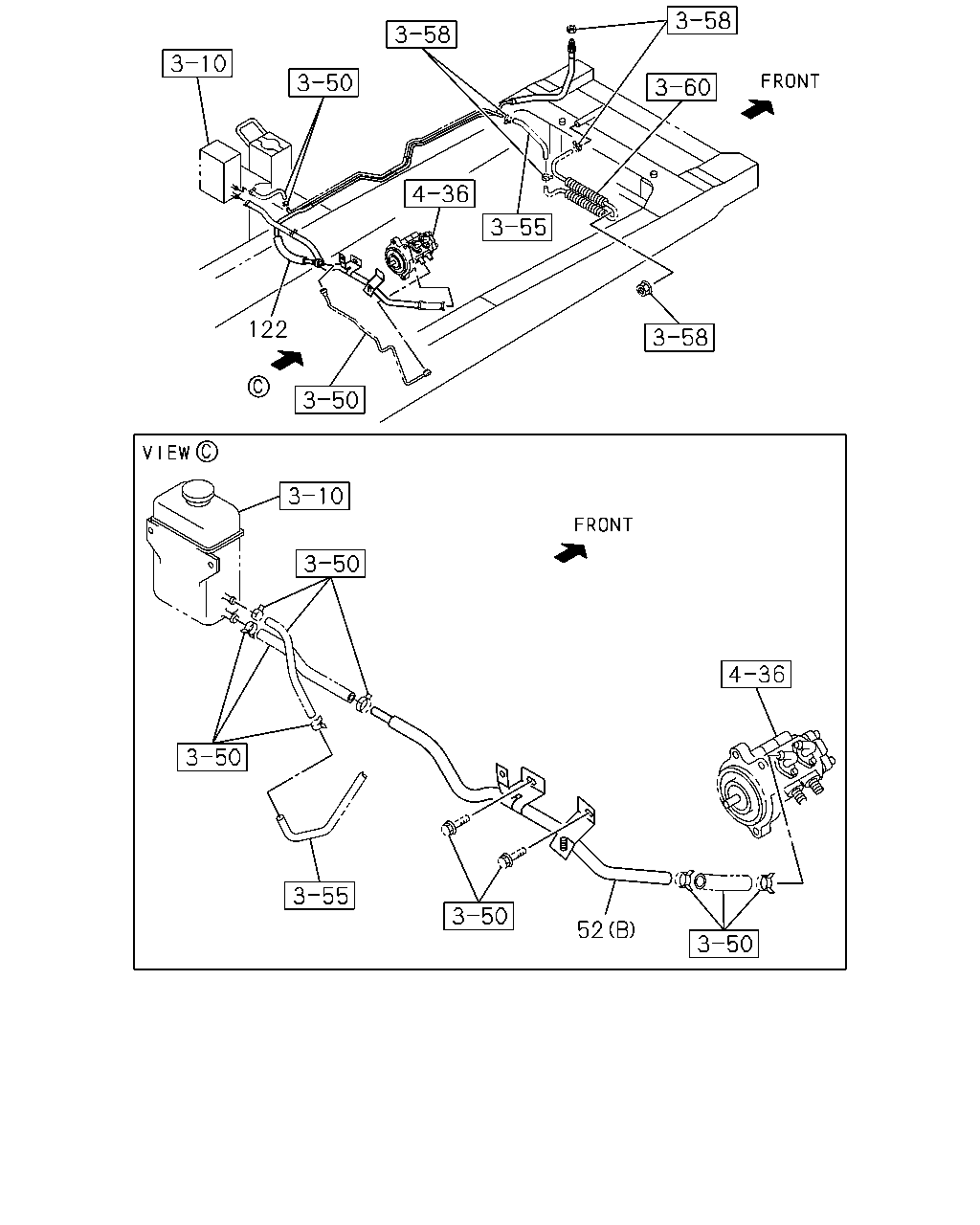

çizim 149657
122 52
BalonParca AdiParca NoAdetTipApplied Date
52 04.685 PIPE; BRK
(B) 		8-98036-162-0 01 1 0804-
52 04.685 PIPE; BRK
(A) 2WAY TO REAR 		8-98057-264-0 01 1 0804-
122 04.685 PIPE ASM; BRK,2 WAY 8-98041-325-3 01 1 0804-0909
122 04.685 PIPE ASM; BRK,2 WAY
L=1839 		8-98136-573-0 01 1 0910-

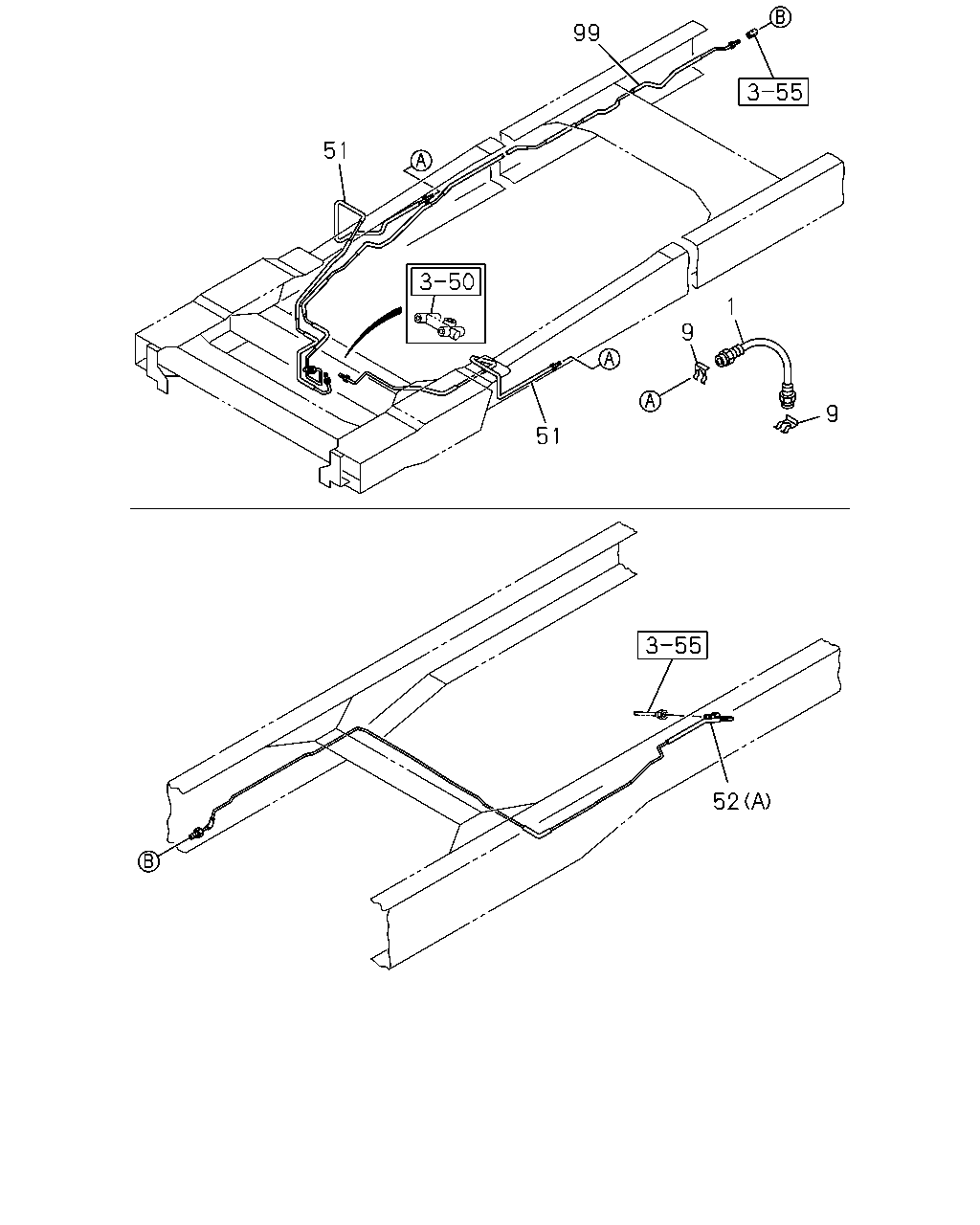

çizim 149661
99 51 1 9 9 51 52
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0804-0903
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 0904-
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 0905-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804-
51 04.685 PIPE; BRK
BRAKE SYSTEM,FRT RR 5/6WAY TO FRONT 		8-98065-765-1 01 1 0804-0905
51 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> BRAKE SYSTEM,FRT RR 5/6WAY TO FRONT 		8-98065-765-1 01 1 0906-
51 04.685 PIPE; BRK
BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0804-0905
51 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0906-
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 0906-
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98136-044-0 01 1 0906-
52 04.685 PIPE; BRK
(B) 		8-98036-162-0 01 1 0804-
52 04.685 PIPE; BRK
(A) 2WAY TO REAR 		8-98057-264-0 01 1 0804-
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0804-

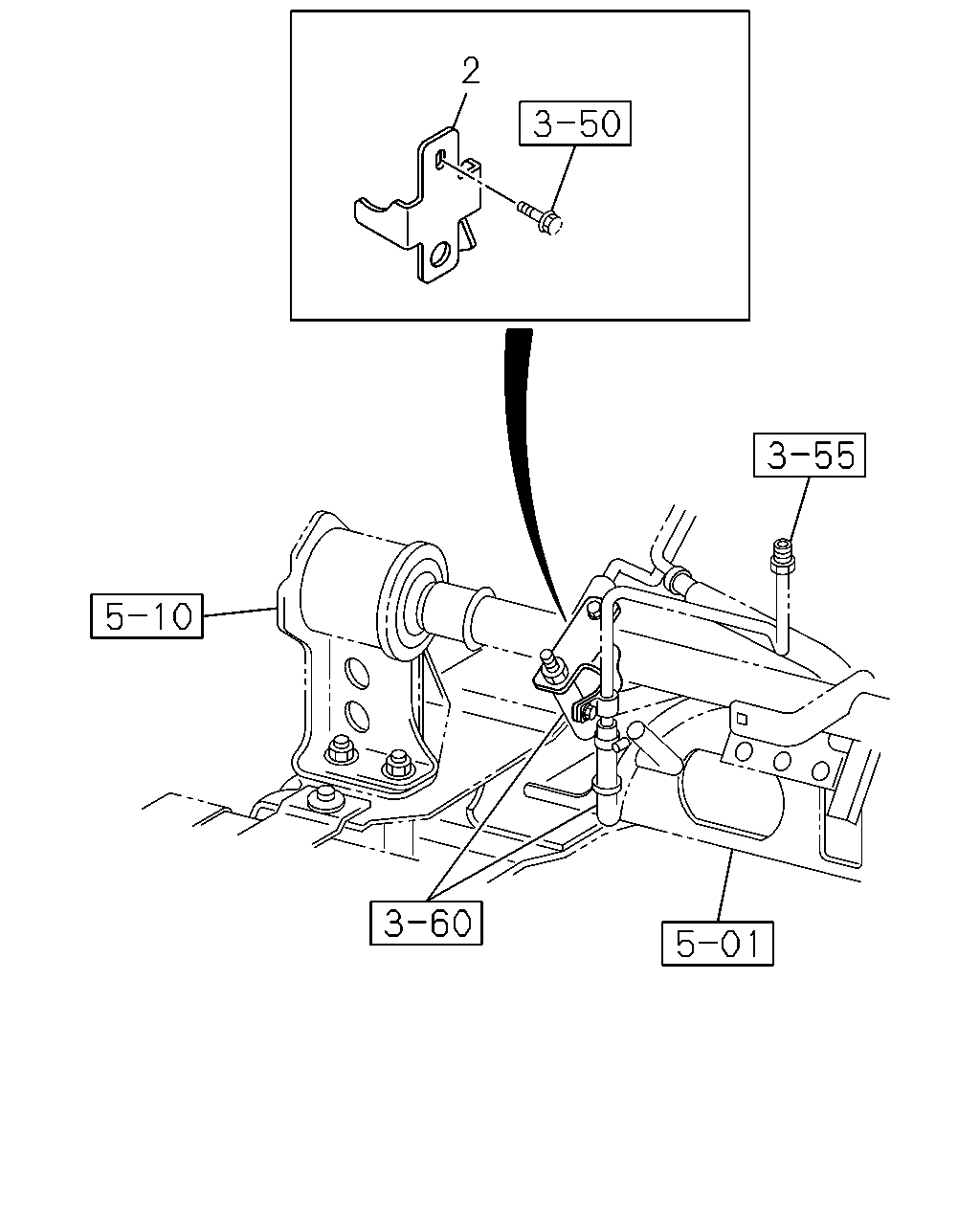

çizim 149665
2
BalonParca AdiParca NoAdetTipApplied Date
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98042-478-1 01 1 0804-0909
2 04.681 BRACKET; FLEX HOSE,FRT BRK
IDN 		8-98136-577-0 01 1 0910-
