2-30 — GEAR SHIFTER AND QUADRANT BOX (#52204) — 53 parça

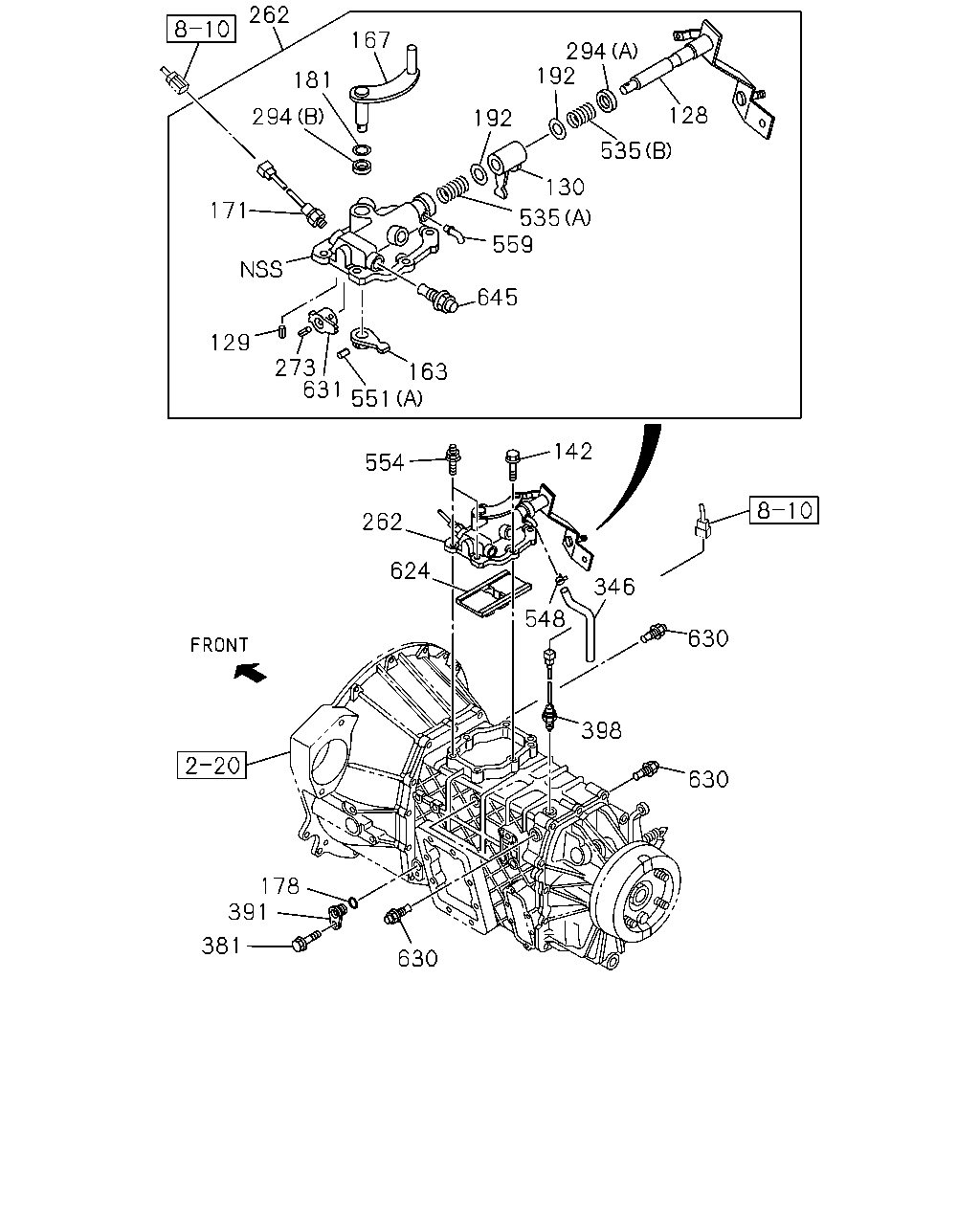

çizim 149633
262 167 294 192 181 128 294 192 535 130 171 535 559 645 129 273 631 163 551 142 554 262 624 346 548 630 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date
128 04.030 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 0804-
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0804-
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0804-
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0804-
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0804-
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 0804-
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0804-1312
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0804-
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0804-
192 04.309 WASHER; PL 8-97305-661-0 02 1 0804-
262 04.105 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 0804-1312
262 04.105 BOX ASM; SHIFT CONT 8-98240-994-2 01 1 1401-
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 0804-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0804-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0804-
346 04.545 HOSE; AIR 8-97309-855-0 01 1 0804-
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0804-
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 0804-
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0804-1106
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1107-1311
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1312-
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 0804-
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 0804-
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0804-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0804-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0804-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0804-
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0804-
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 0804-
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0804-
630 04.307 DETENT ASM 8-98019-536-0 04 1 0804-
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 0804-
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 0804-

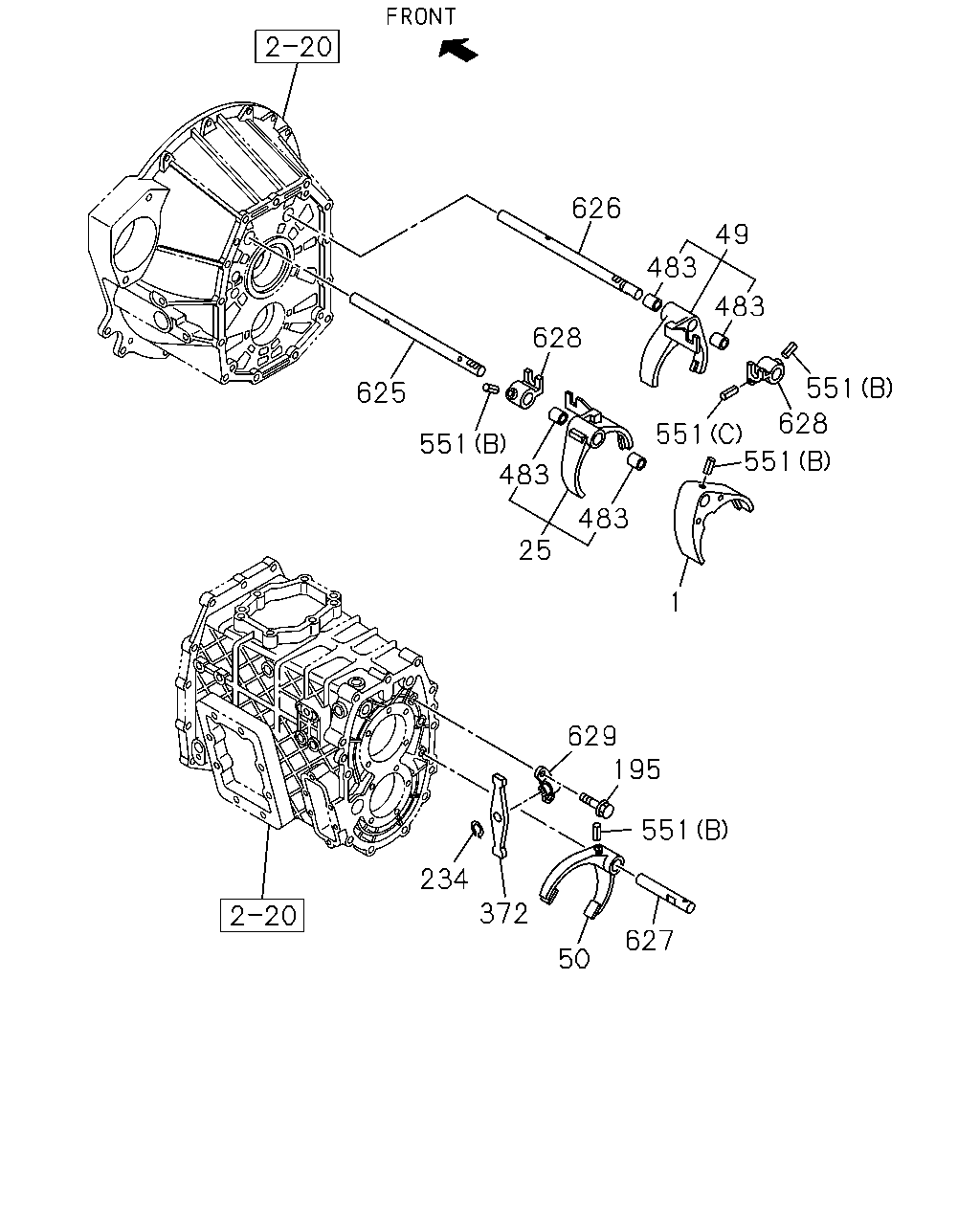

çizim 149645
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0804-
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0804-1407
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408-
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 0804-
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 0804-
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0804-
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0804-
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 0804-
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0804-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0804-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0804-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0804-
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0804-
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 0804-
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0804-0805
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806-
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0804-
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0804-
