◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#52193) — 12 parça
çizim 149617
5 1 5 8
BalonParca AdiParca NoAdetTipApplied Date
1 03.632 BRAKE UNIT; EXH 8-98056-673-0 01 1 0804-1407
1 03.632 BRAKE UNIT; EXH 8-98288-176-0 01 1 1408-1509
1 03.632 BRAKE UNIT; EXH 8-98332-039-0 01 1 1510-1510
1 03.632 BRAKE UNIT; EXH 8-98333-421-0 01 1 1511-
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 0804-
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER IDN 		8-97581-234-0 04 1 0804-

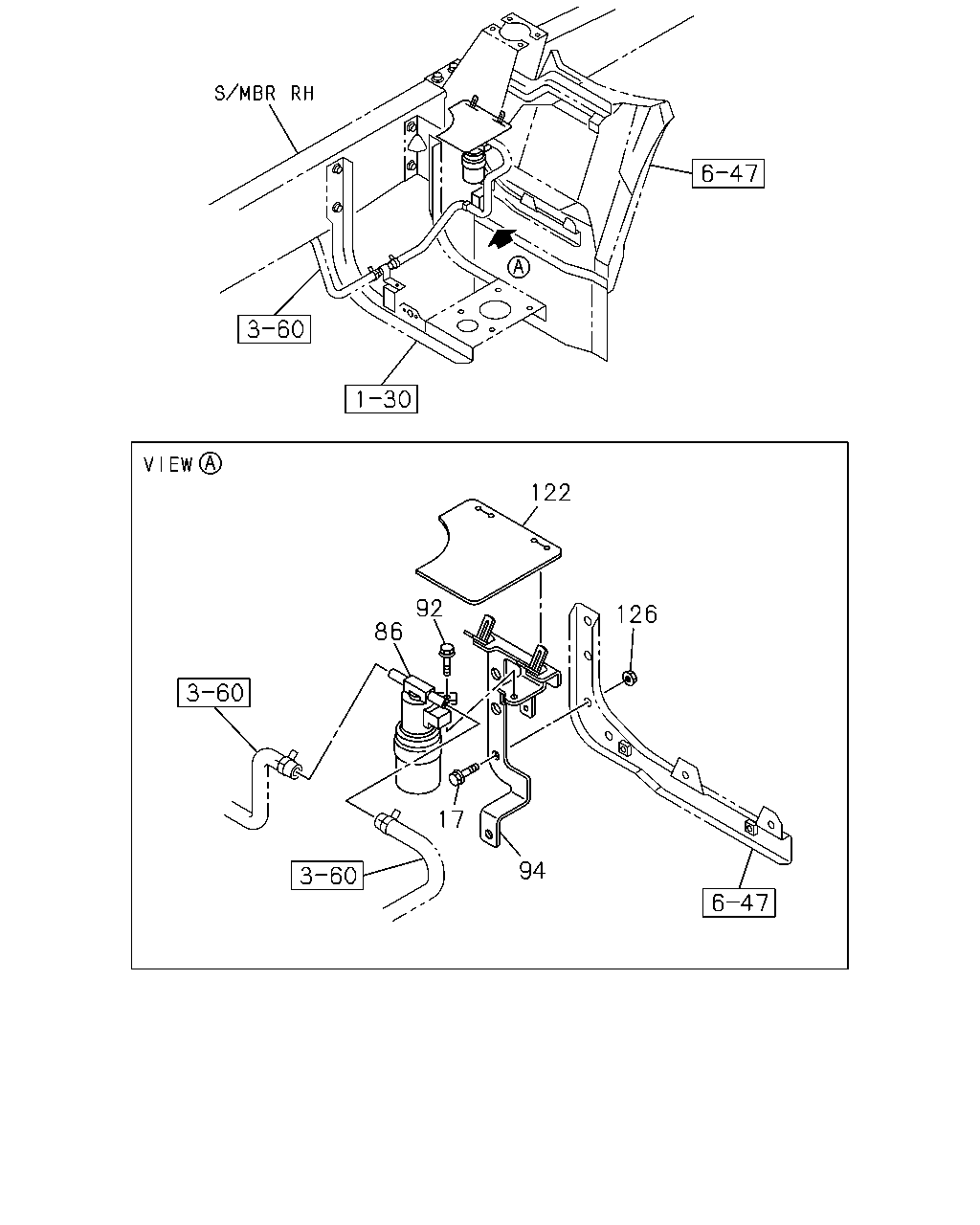

çizim 149622
122 92 126 86 17 94
BalonParca AdiParca NoAdetTipApplied Date
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804-
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 0804-
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804-
94 03.634 BRACKET; MAG VLV,EXH BRAKE 8-98034-053-3 01 1 0804-
122 03.640 PROTECTOR; MAG VLV 8-98087-988-0 01 1 0804-
126 03.634 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804-
