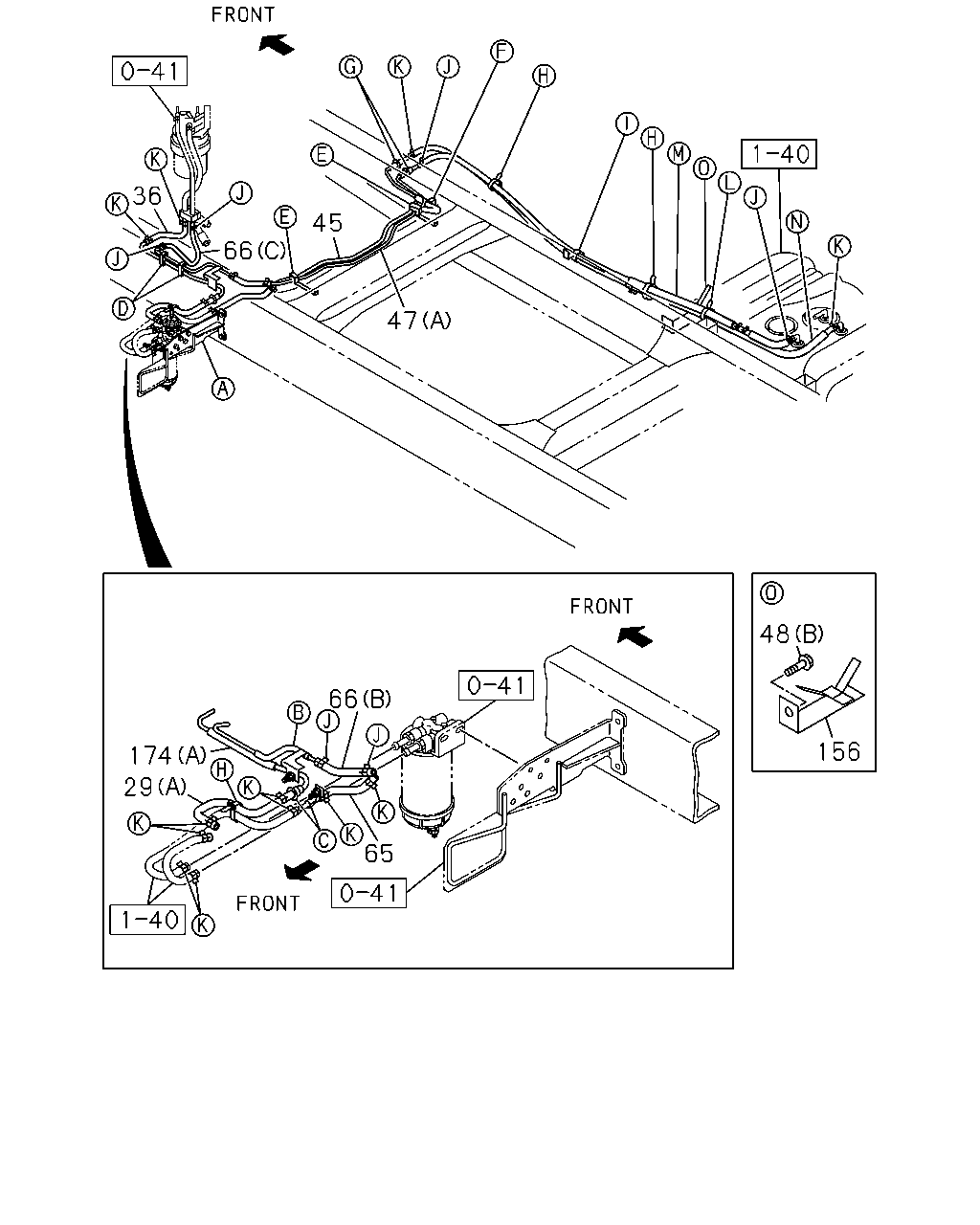

1-41 — FUEL PIPING; CHASSIS (#52190) — 100 parça

66 124 47 124 29 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0804-
29	03.163 HOSE; FUEL (A)	8-98099-502-0	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0804-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98067-566-2	01	1	0804-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98093-616-0	01	1	0804-
124	03.162 CLIP; HOSE 01.219 (A) ID=13 IDN	8-94238-571-0	01	1	0804-0911
124	03.162 CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	0912-
124	03.162 CLIP; HOSE (B) ID=12	8-97358-961-0	01	1	0804-1002
124	03.162 CLIP; HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	1003-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0906
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0906
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0906
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	04	1	0804-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13 IDN	8-94238-571-0	01	1	0804-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12 IDN	8-94238-610-0	01	1	0804-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	0804-

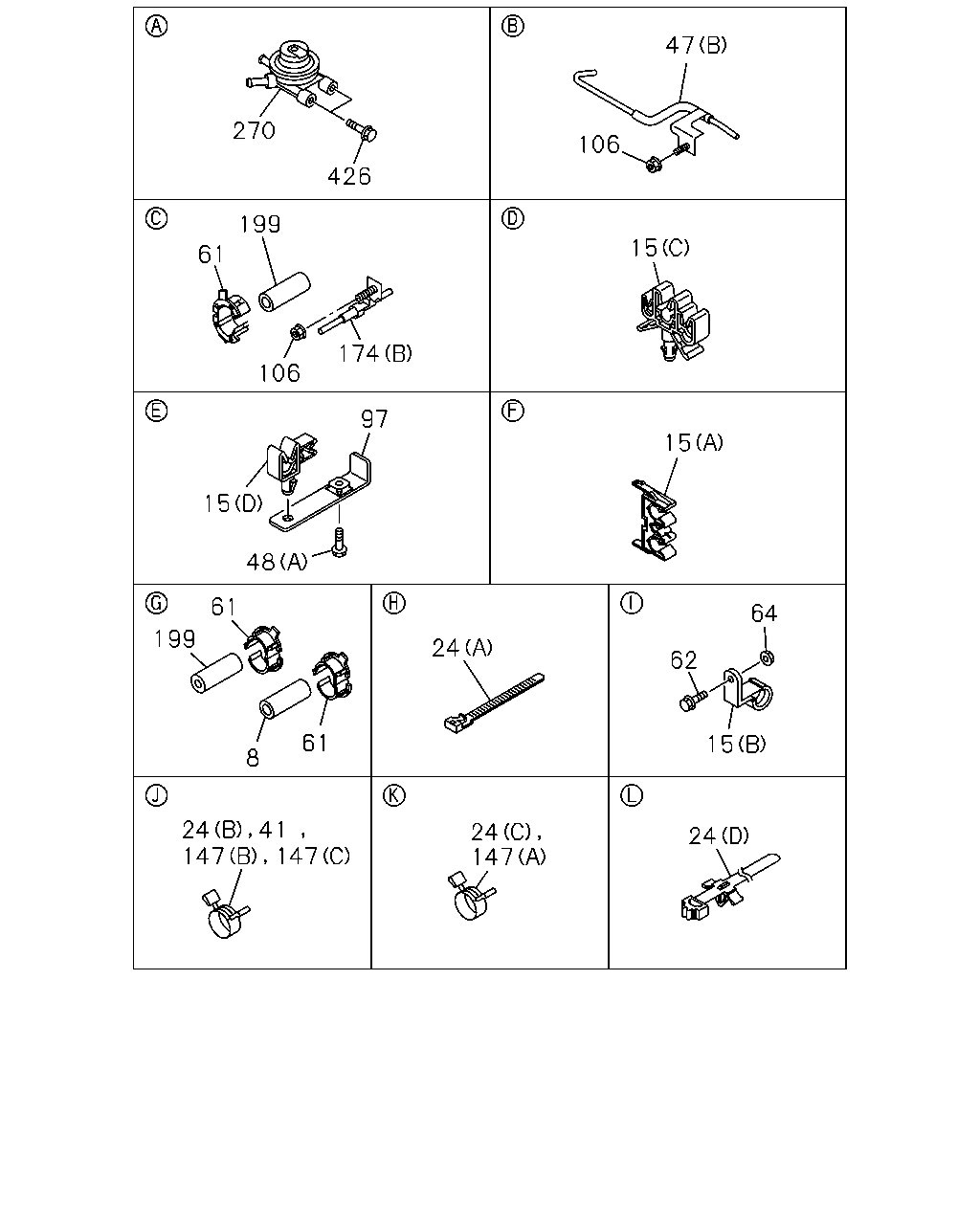

47 270 106 426 199 15 61 174 106 97 15 15 48 61 64 199 24 62 61 15 8 147 147 24 147 24 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG OD=17 L=50 IDN	8-94157-054-1	01	1	0804-
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0804-
15	03.162 CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	0804-
15	03.162 CLIP; FUEL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0804-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0804-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0804-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	01	1	0804-
24	03.162 CLIP; FUEL HOSE (A) L=140 IDN	5-09707-031-1	02	1	0804-
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-0911
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12 IDN	8-94238-610-0	02	1	0804-0911
24	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.219 ID=12 IDN	8-94238-610-0	02	1	0804-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 01.240 ID=12	8-98150-358-0	02	1	0912-
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0804-
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	01	1	0804-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17 IDN	8-94128-319-2	02	1	0804-
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-
64	03.162 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-
64	03.162 NUT; CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-
97	03.162 BRACKET; CLIP	8-98041-203-0	02	1	0804-
106	03.162 NUT; FUEL PIPE M10 FLANGE IDN	0-91180-110-0	01	1	0804-
106	03.162 NUT; FUEL PIPE M10 FLANGE IDN	0-91180-110-0	01	1	0804-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0906
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0906
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0906
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	04	1	0804-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13 IDN	8-94238-571-0	01	1	0804-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12 IDN	8-94238-610-0	01	1	0804-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0804-
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0804-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50 IDN	8-97077-629-0	01	1	0804-
199	03.162 PROTECTOR; FUEL PIPE OD=15 L=50 IDN	8-97077-629-0	01	1	0804-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0804-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0804-

36 45 66 47 48 66 156 174 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL (B)	8-98067-563-4	01	1	0804-
29	03.163 HOSE; FUEL (A)	8-98099-502-0	01	1	0804-
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98093-615-0	01	1	0804-1008
36	03.163 HOSE; FUEL,FILTER TO TANK	8-98171-618-0	01	1	1009-
45	03.163 PIPE; FUEL,DELIVERY	8-98043-681-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	0804-
48	03.162 BOLT; BRKT 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-
48	03.162 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0804-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-
66	03.163 HOSE; FUEL,RETURN PIPE (A)	8-98067-566-2	01	1	0804-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98093-616-0	01	1	0804-
156	03.162 BRACKET; FUEL HOSE	8-98041-250-2	01	1	0804-
174	03.163 PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	0804-
174	03.163 PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	0804-
