Isuzu WW
▶
TRUCKS
▶
NQR
▶
51399 - NQR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#52185) — 20 parça
◀

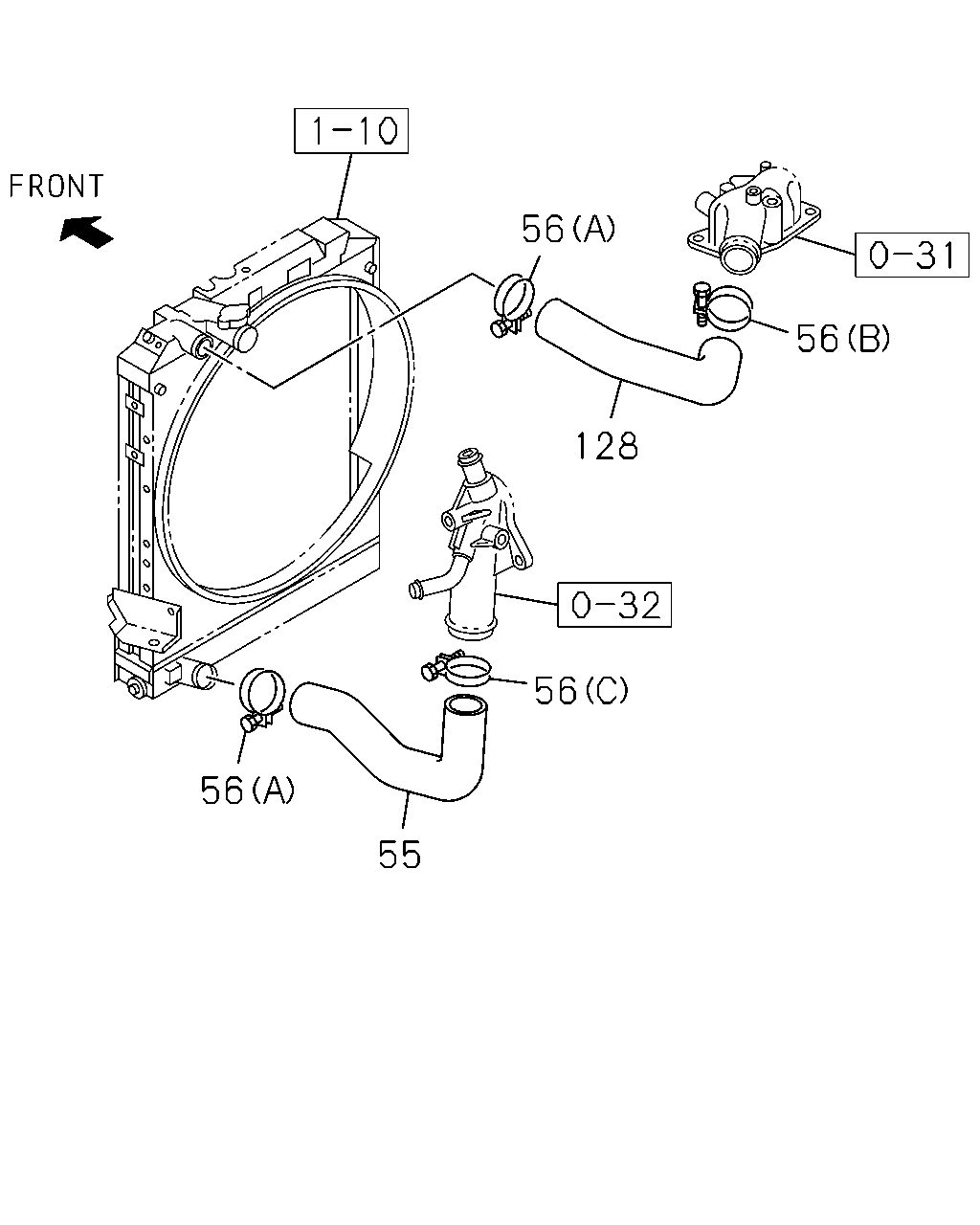

[111A] RADIATOR HOSE (8 parça)

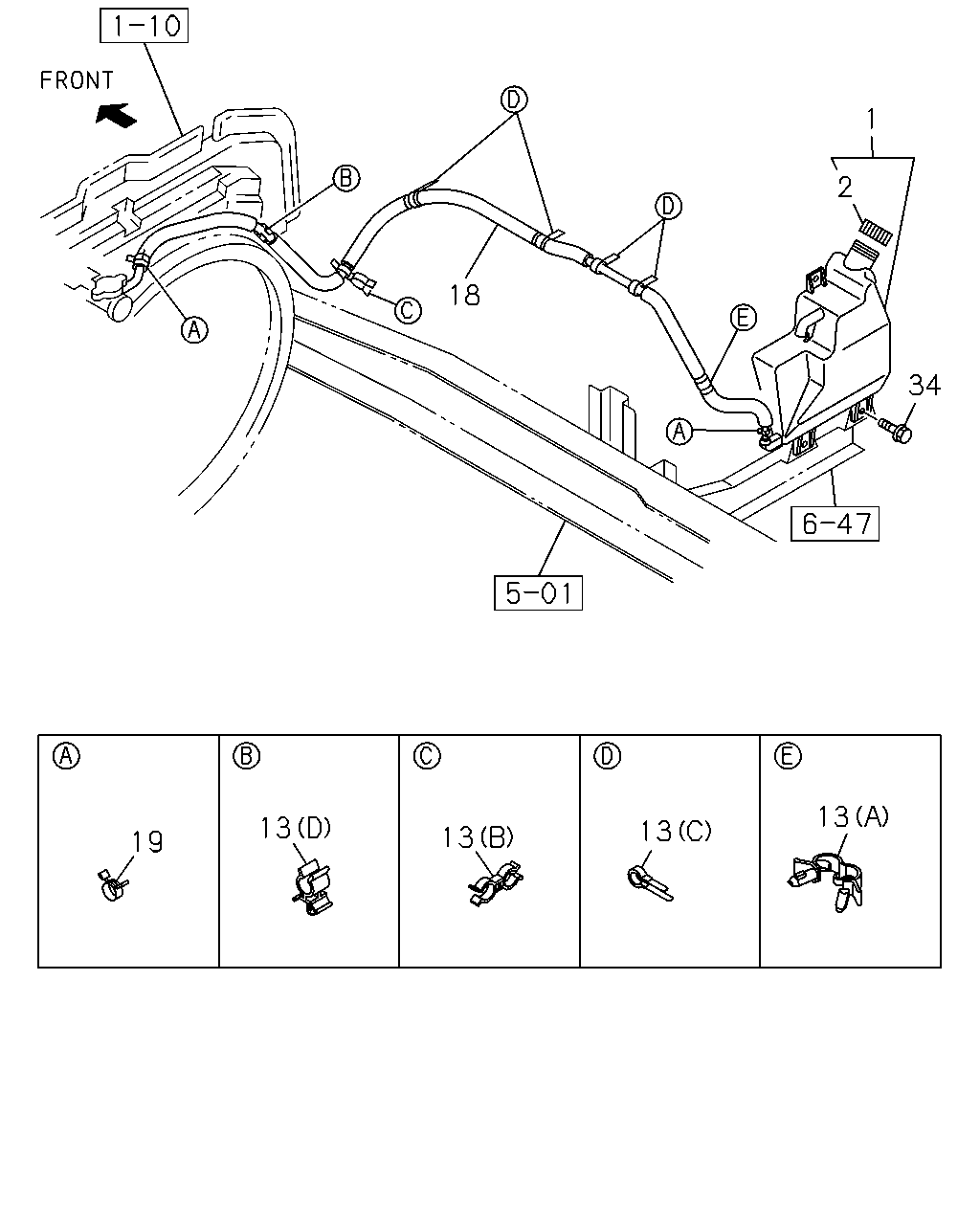

[111A] SURGE TANK (12 parça)
▶
56
56
128
56
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
01.173 HOSE; WATER,RAD OUTLET
8-98006-453-0
01
1
0804-
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=48
8-98036-282-0
02
1
0804-0901
56
01.166 CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
0902-
56
01.166 CLIP; WATER HOSE,RAD
(B) ID=52
8-98036-283-0
01
1
0804-0901
56
01.166 CLIP; WATER HOSE,RAD
00.413 (B) ID=52
1-09704-057-0
01
1
0902-
56
01.166 CLIP; WATER HOSE,RAD
(C) ID=62
8-98036-284-0
01
1
0804-0901
56
01.166 CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
0902-
128
01.159 HOSE; WATER,RAD INL
8-98006-452-0
01
1
0804-
1
2
18
34
13
13
13
13
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 TANK; SURGE,RAD
8-97387-632-1
01
1
0804-1010
1
01.219 TANK; SURGE,RAD
8-98178-179-0
01
1
1011-
2
01.203 CAP; SURGE TANK
8-97217-796-0
01
1
0804-1010
2
01.203 CAP; SURGE TANK
8-98178-074-0
01
1
1011-
13
01.240 CLIP; HOSE,SURGE TANK
03.162 (A) ID=13-18 L=14.5
1-09709-290-0
01
1
0804-
13
01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 IDN
5-09700-319-0
04
1
0804-
13
01.240 CLIP; HOSE,SURGE TANK
02.559 (B) ID=10 & 11
8-94438-996-0
01
1
0804-
13
01.240 CLIP; HOSE,SURGE TANK
(D) ID=12
8-98029-256-0
01
1
0804-
18
01.240 HOSE; RAD TO SURGE TANK
L=1690
8-98006-525-0
01
1
0804-
19
01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 IDN
8-94238-610-0
02
1
0804-0911
19
01.240 CLIP; HOSE,SURGE TANK
ID=12
8-98150-358-0
02
1
0912-
34
01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
0804-
