0-42 — FUEL PUMP AND PIPE (#5217) — 154 parça

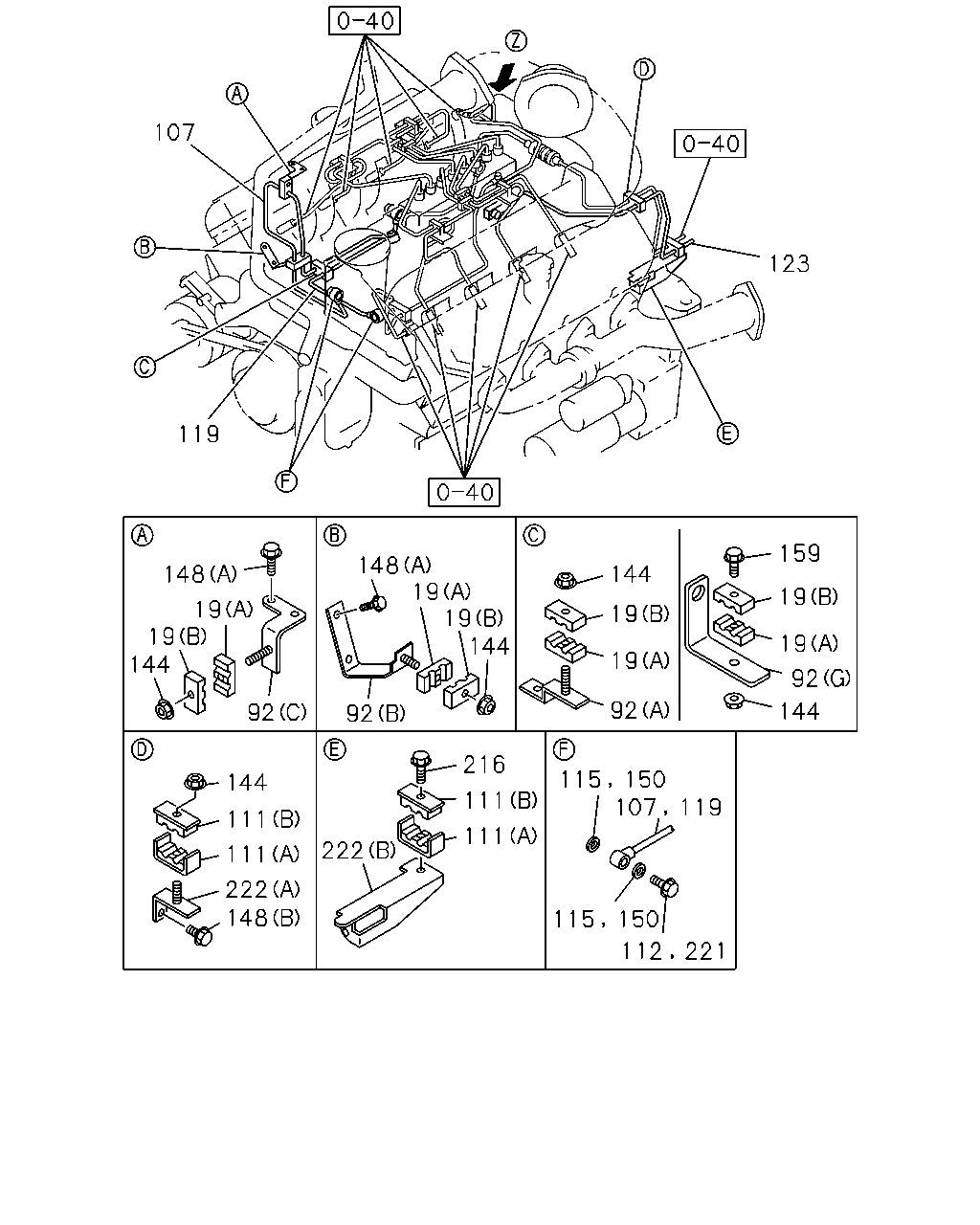

107 123 119 159 148 19 19 144 148 144 19 19 19 144 19 19 19 92 92 144 92 92 216 115 150 107 144 111 119 111 111 222 111 222 148 115 150 112 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9604-9904	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9604-9904	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9905-	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9604-	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9904	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE CONCRETE PUMP<RA5> (G)	1-15419-465-0	01	1	9905-	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-		●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9604-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9905-		●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9604-9904	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9604-9904	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9905-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-9904	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-9904	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-007-0	01	1	9604-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP CONCRETE PUMP<RA5>	1-15416-007-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-643-0	01	1	9604-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. CONCRETE PUMP<RA5>	1-15415-643-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	9905-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-660-1	01	1	9604-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	9905-		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9604-	●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9604-9904	●
144	NUT; CLIP EXC. CONCRETE PUMP<RA5> M6 FLANGE	0-91150-106-0	01	1	9905-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9905-		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9702	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●
148	BOLT; BRKT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9706	●
148	BOLT; BRKT EXC. GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●
148	BOLT; BRKT EXC. CONCRETE PUMP<RA5> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904	●
148	BOLT; BRKT CONCRETE PUMP<RA5> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9905-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-9904	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9604-9904	●
159	BOLT; CLIP CONCRETE PUMP<RA5> M6X30 FLANGE	0-28080-630-0	01	1	9905-	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9604-9904	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9604-9904	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9604-9904	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9604-9904	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9905-	●	●

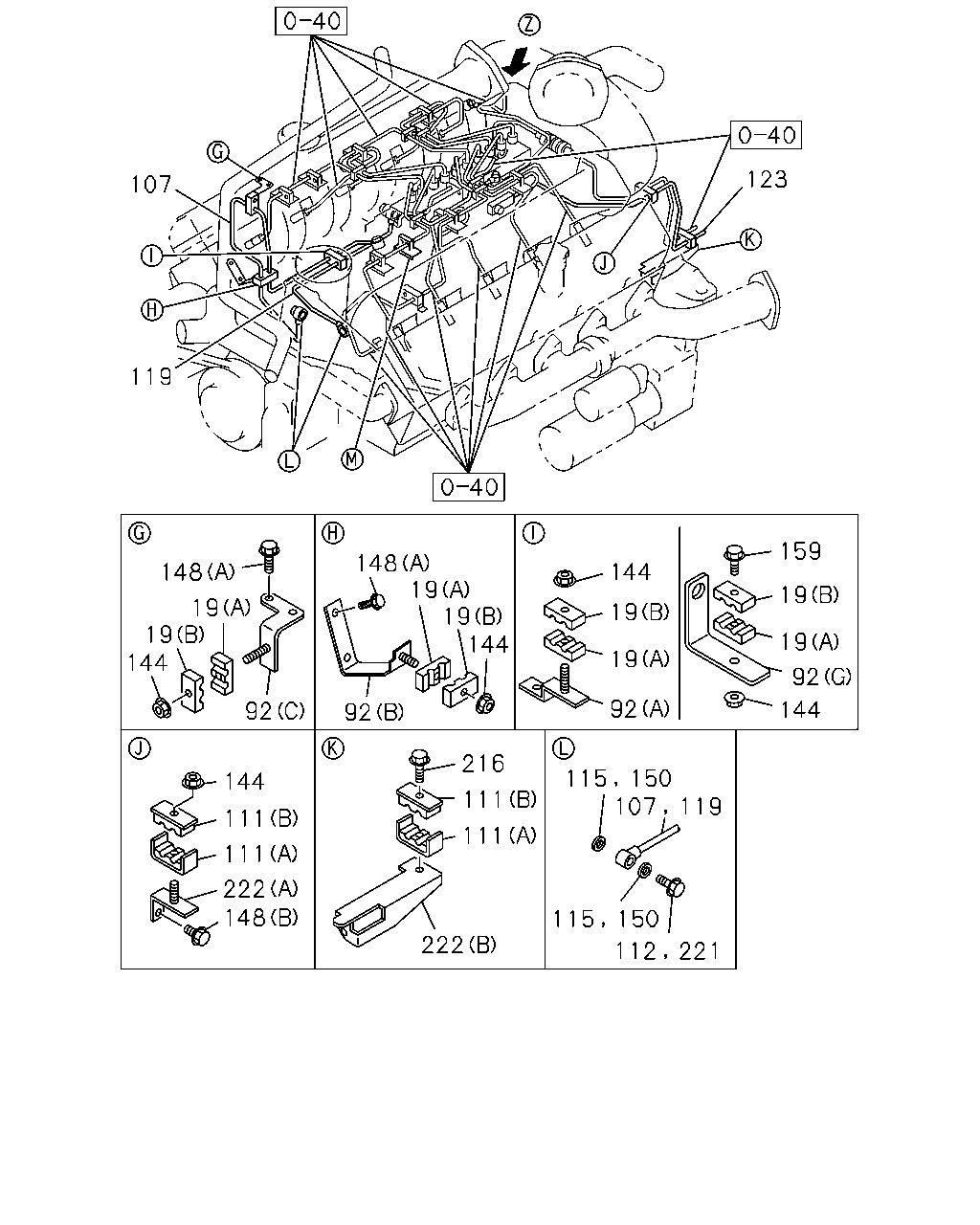

123 107 119 159 148 19 19 144 148 144 19 19 19 144 19 19 19 92 92 144 92 92 216 115 150 144 111 111 111 111 222 148 115 150 222 112 221 107 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9604-9904	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9604-9904	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9905-	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9604-	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9904	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE CONCRETE PUMP<RA5> (G)	1-15419-465-0	01	1	9905-	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-		●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9604-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9905-		●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9604-9904	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9604-9904	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9905-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9604-9904	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-9904	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-007-0	01	1	9604-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP CONCRETE PUMP<RA5>	1-15416-007-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-643-0	01	1	9604-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. CONCRETE PUMP<RA5>	1-15415-643-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	9905-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-660-1	01	1	9604-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	9905-		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9604-	●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9604-9904	●
144	NUT; CLIP EXC. CONCRETE PUMP<RA5> M6 FLANGE	0-91150-106-0	01	1	9905-	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9905-		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9702	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●
148	BOLT; BRKT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9706	●
148	BOLT; BRKT EXC. GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●
148	BOLT; BRKT EXC. CONCRETE PUMP<RA5> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904	●
148	BOLT; BRKT CONCRETE PUMP<RA5> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9905-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-9904	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9604-9904	●
159	BOLT; CLIP CONCRETE PUMP<RA5> M6X30 FLANGE	0-28080-630-0	01	1	9905-	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9604-9904	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9604-9904	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9604-9904	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9604-9904	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9905-	●	●

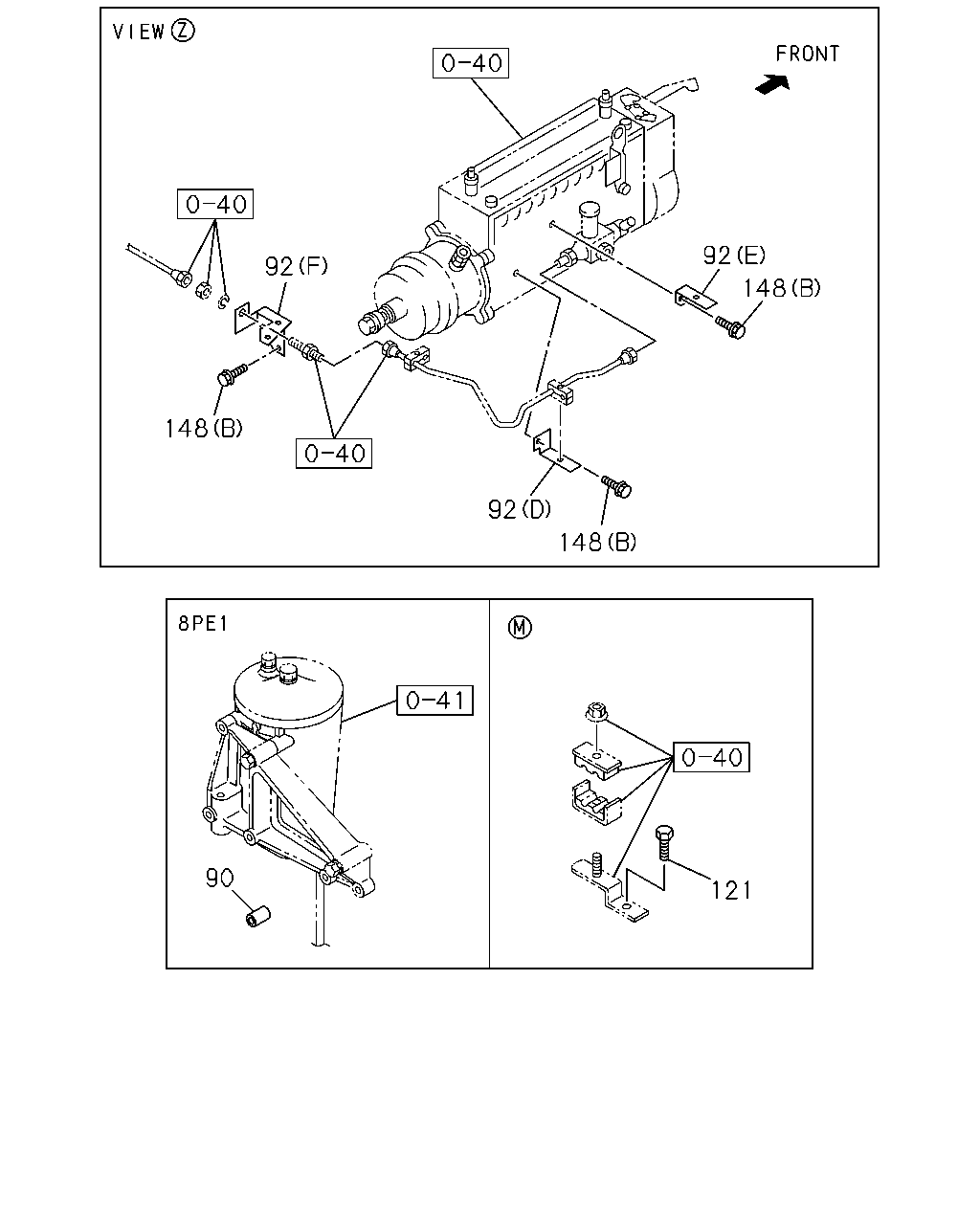

92 92 148 148 92 148 90 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	TUBE; DIST	1-13219-121-0	01	1	9604-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9604-	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9904	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE CONCRETE PUMP<RA5> (G)	1-15419-465-0	01	1	9905-	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9604-9904	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-		●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9905-		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9702	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●
148	BOLT; BRKT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9706	●
148	BOLT; BRKT EXC. GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●
148	BOLT; BRKT EXC. CONCRETE PUMP<RA5> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904	●
148	BOLT; BRKT CONCRETE PUMP<RA5> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
