◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51399 - NQR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#52165) — 26 parça
çizim 149545
36 144 147 147
BalonParca AdiParca NoAdetTipApplied Date
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0804-
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0804-
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-102-0 01 1 0804-
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-101-0 01 1 0804-
144 01.060 TENSIONER; DRIVE BELT
GENERATOR 24V80A(7YN) 09.180 1-GROOVE 		8-98031-811-1 01 1 0804-
147 01.060 BOLT; BELT TENSIONER
GENERATOR 24V80A(7YN) 03.417 M10X20 FLANGE 		0-28151-020-0 03 1 0804-

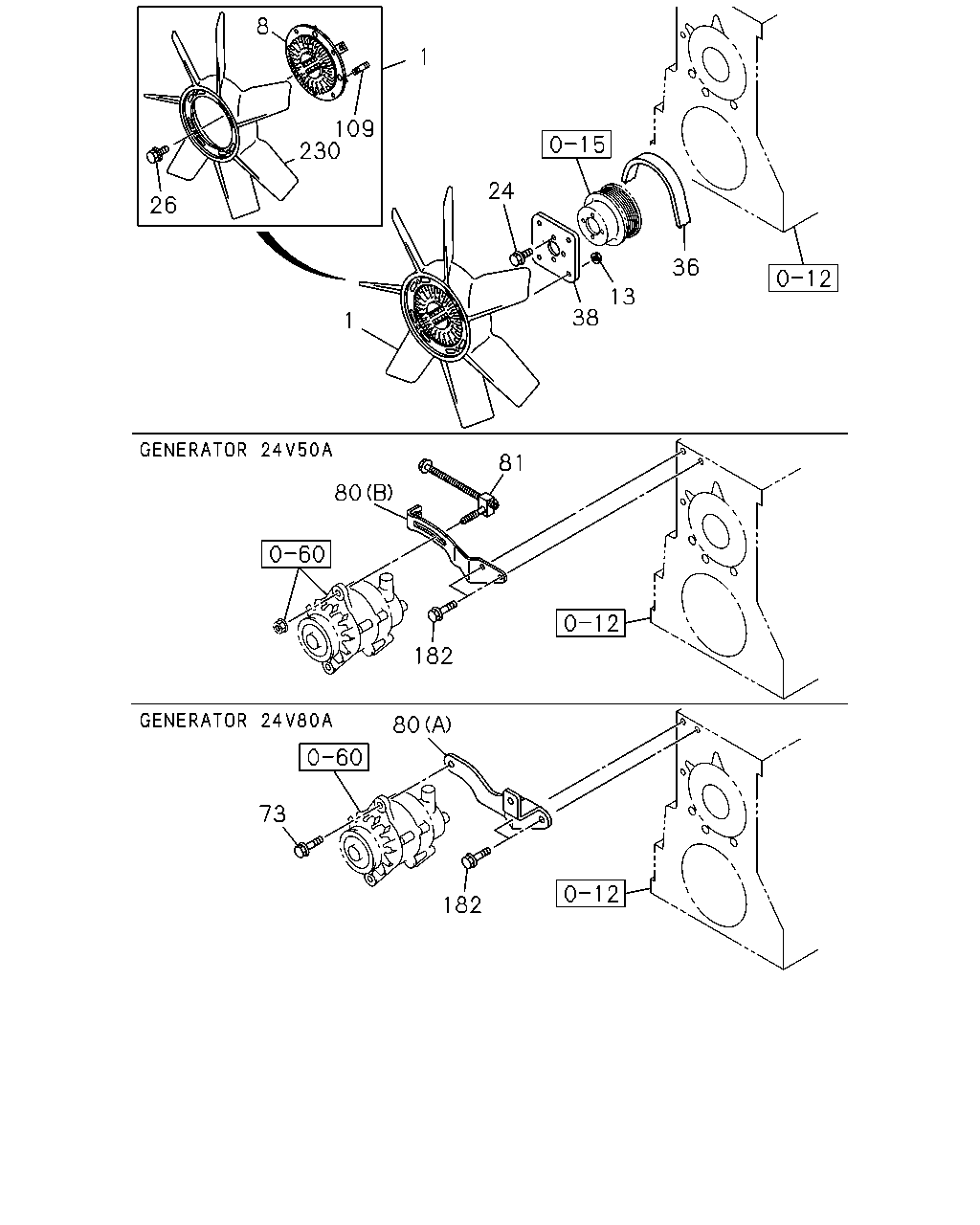

çizim 149571
8 1 109 230 24 26 36 13 38 1 81 80 182 80 73 182
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
OD=510 		8-98003-191-0 01 1 0804-1108
1 01.064 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109-
8 01.064 CLUTCH; COOLING FAN 8-98019-743-0 01 1 0804-
13 01.062 NUT; COOLING FAN
M8 FLANGE IDN 		0-91180-108-0 04 1 0804-
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0804-
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0804-
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1121 		8-98038-423-0 01 1 0804-
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0804-
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-102-0 01 1 0804-
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) BEST VALUE PARTS 		5-87610-101-0 01 1 0804-
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0804-
73 02.277 BOLT; GEN TO ADJ PLATE
GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0804-
80 02.317 PLATE; ADJ
GENERATOR 24V50A(6QN) (B) 		8-98035-085-1 01 1 0804-
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 02.277 (A) 		8-98036-550-1 01 1 0804-1507
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) (A) 		8-98288-436-1 01 1 1508-
81 02.317 PIECE; SLIDING
EXC. GENERATOR 24V80A(7YN) 		8-98075-762-0 01 1 0804-
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0804-
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0804-
230 01.055 FAN; COOLING 8-97367-381-0 01 1 0804-1108
230 01.055 FAN; COOLING 8-98190-058-0 01 1 1109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
