Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#52160) — 259 parça

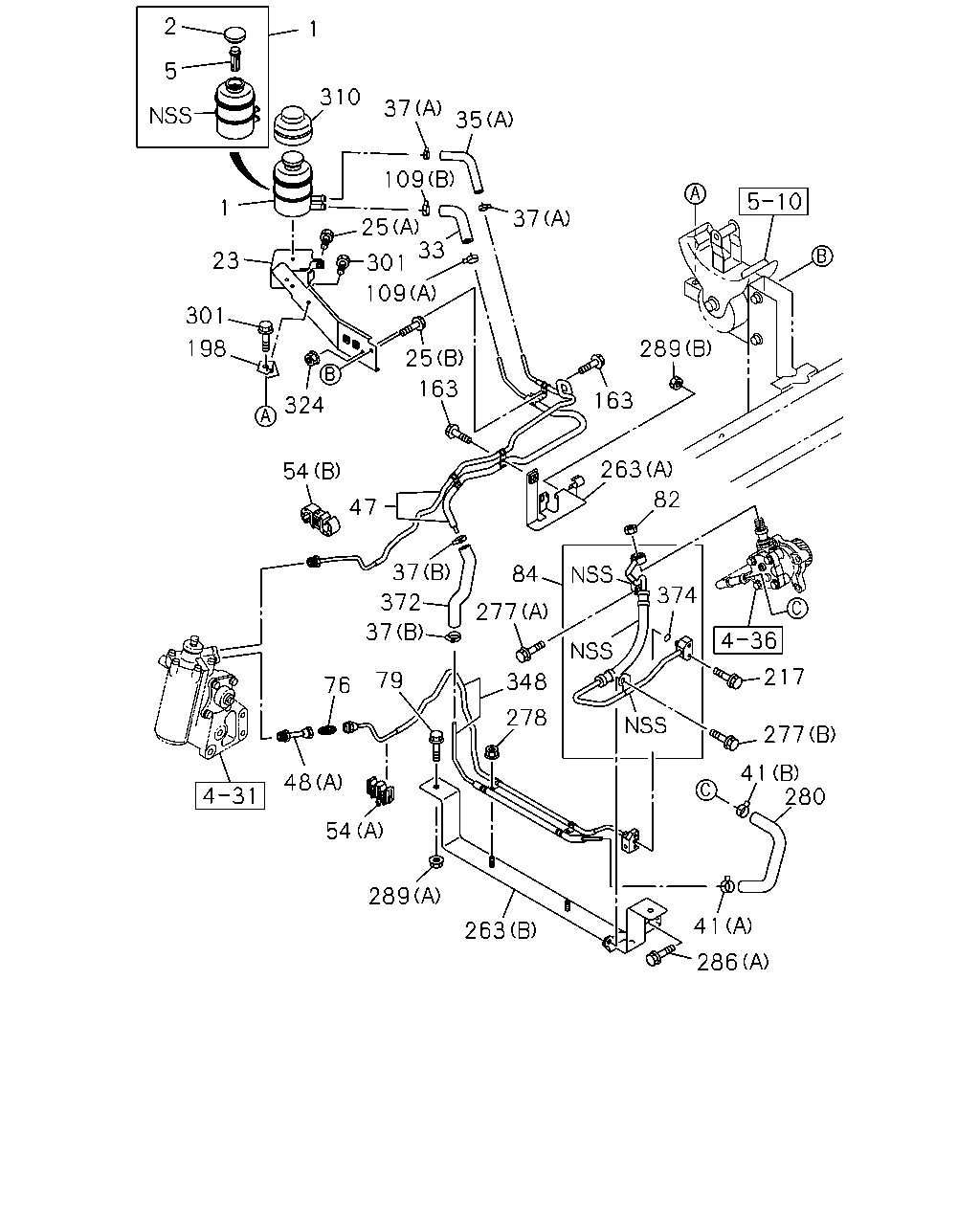

2 5 1 310 37 109 37 25 301 109 1 23 301 198 324 25 163 54 47 289 163 263 82 277 348 278 374 217 277 41 280 41 286 263 289 54 48 76 79 37 372 37 84 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0907-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0907-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0907-
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0907-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0907-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0907-
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	1311-
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98117-895-0	01	1	1004-1310
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	1311-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0907-1011
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	1004-1005
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0907-0911
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	0907-
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	1004-1011
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-
47	06.671 PIPE; RETURN	8-98054-227-0	01	1	0907-1003
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	1004-1011
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	0907-1003
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	1004-
54	06.672 CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0907-1003
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	1004-
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0907-1003
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1004-
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	0907-1003
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1004-
79	06.672 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1004-
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1004-
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	0907-1003
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1004-
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0907-
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1004-
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	0907-1003
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1004-1312
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0910-
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0907-0909
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0910-
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0907-
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1004-
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1004-
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0907-
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0907-1003
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1004-1312
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-1311
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1312-
277	06.672 BOLT; HOSE CLIP 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0907-1002
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1003
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-1312
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1004-
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-1003
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1004-
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1004-
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0907-1003
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1004-
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0907-
289	06.673 NUT; BRKT,POWER STRG 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0907-1310
289	06.673 NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0907-1003
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1004-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0907-
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98027-337-2	01	1	1004-1012
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1101-
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0907-1003
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1004-1312
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	0907-1312
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0907-

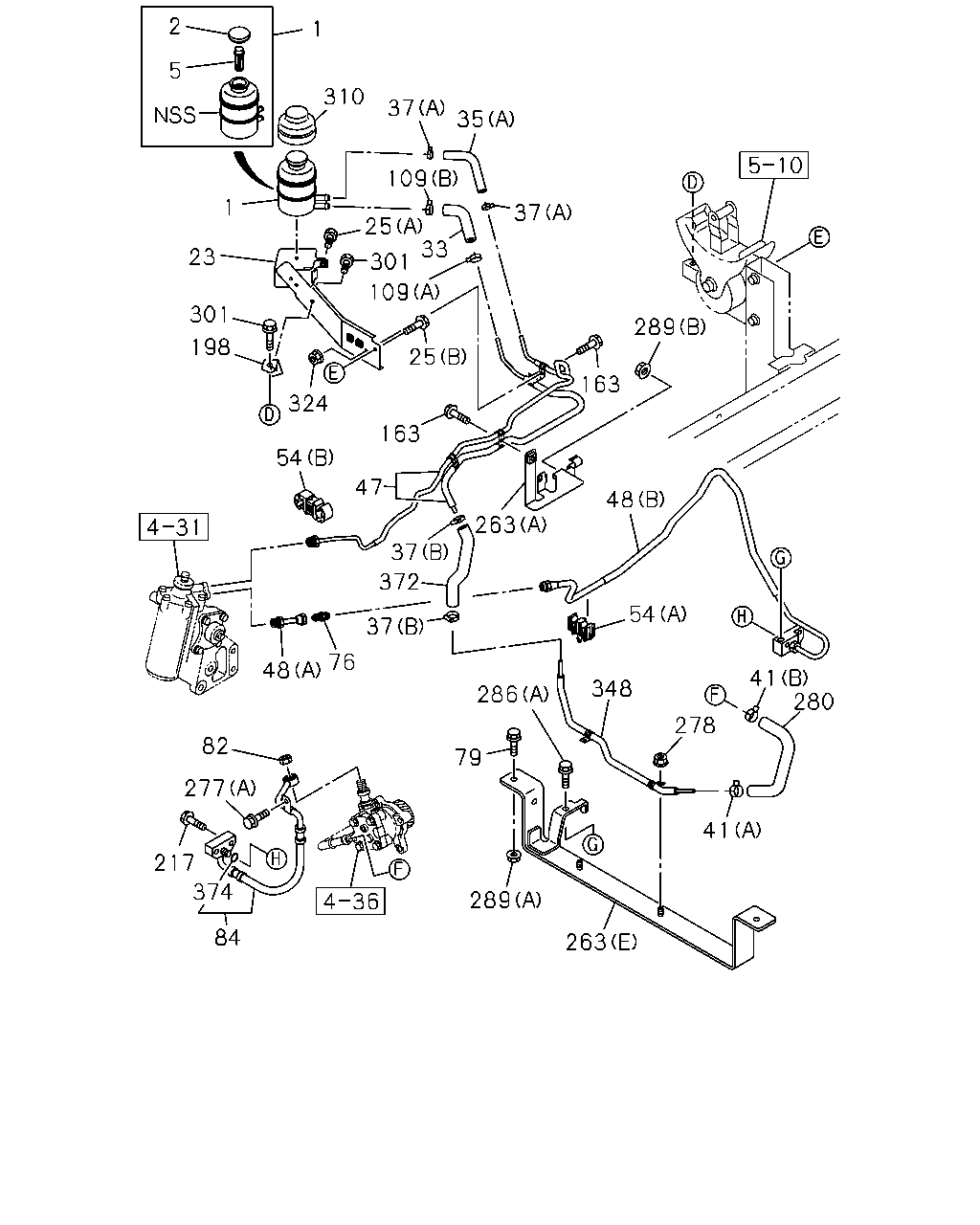

5 2 1 310 37 35 37 109 25 1 23 301 198 324 25 109 33 301 289 163 48 54 41 280 278 41 263 289 79 286 348 37 37 372 263 47 163 54 76 48 82 277 217 374 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0907-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0907-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0907-
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0907-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0907-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0907-
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	1311-
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98117-895-0	01	1	1004-1310
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	1311-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0907-1011
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	1004-1005
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0907-0911
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	0907-
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	1004-1011
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-
47	06.671 PIPE; RETURN	8-98054-227-0	01	1	0907-1003
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	1004-1011
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98250-105-0	01	1	1401-
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98041-027-0	01	1	0907-1003
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98041-027-0	01	1	1004-
54	06.672 CLIP; OIL PIPE (B) ID=12 & 12	1-09709-280-1	01	1	0907-1003
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=12 & 12	1-09709-280-1	01	1	1004-
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0907-1003
54	06.672 CLIP; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1004-
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	0907-1003
76	06.673 UNION; OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 STRAIGHT L=42	0-92123-010-0	01	1	1004-
79	06.672 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1004-
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1004-
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	0907-1003
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1004-
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0907-
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1004-
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	0907-1003
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1004-1312
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0910-
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0907-0909
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0910-
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0907-
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1004-
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1004-
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0907-
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0907-1003
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1004-1312
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-1311
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1312-
277	06.672 BOLT; HOSE CLIP 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0907-1002
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1003
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-1312
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1004-
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-1003
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1004-
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1004-
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0907-1003
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1004-
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0907-
289	06.673 NUT; BRKT,POWER STRG 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0907-1310
289	06.673 NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0907-1003
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1004-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0907-
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98027-337-2	01	1	1004-1012
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1101-
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0907-1003
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1004-1312
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	0907-1312
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0907-

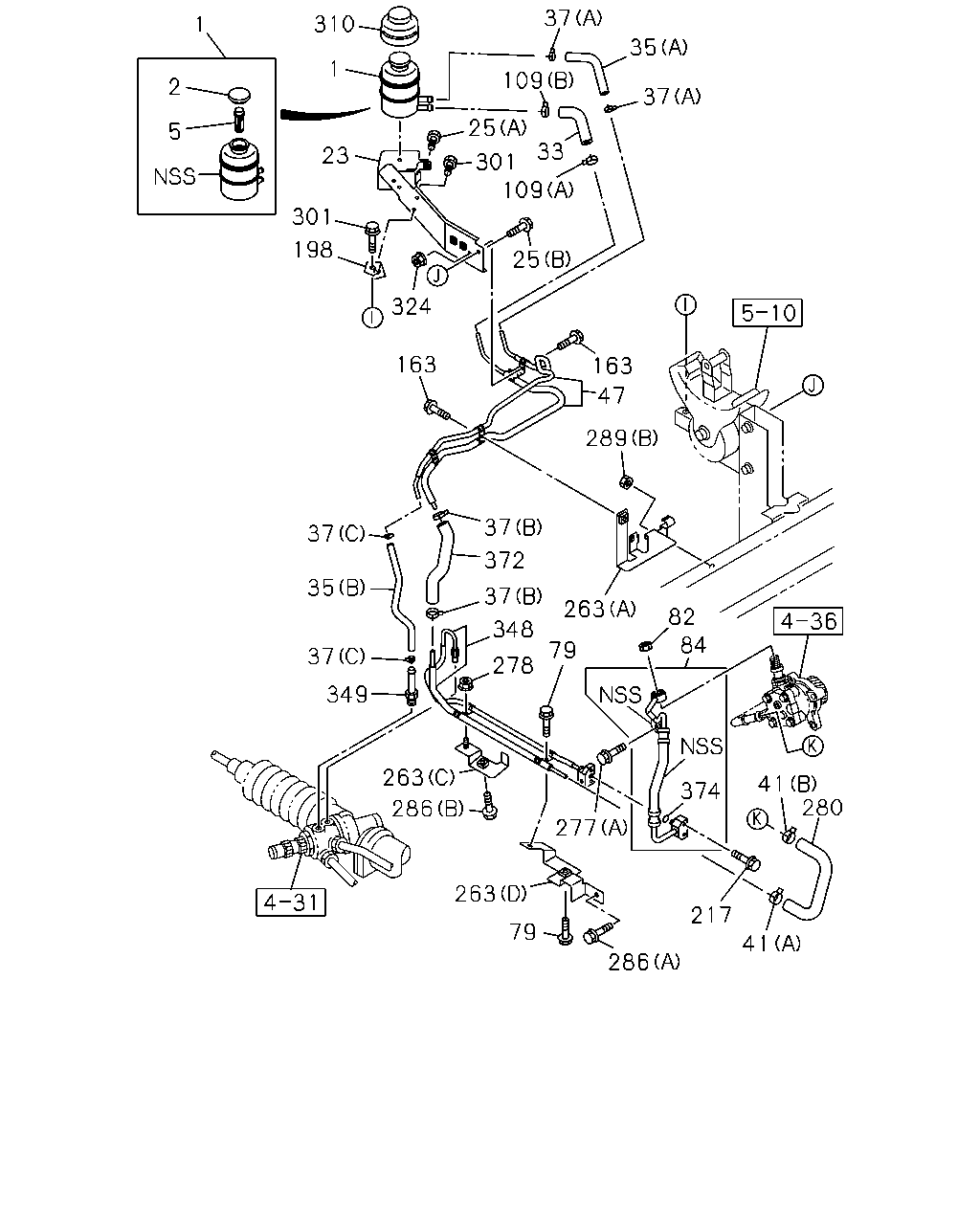

1 2 5 310 1 23 301 198 37 35 37 109 25 301 33 109 25 324 163 163 47 289 37 35 37 349 37 372 37 348 278 263 79 82 84 263 286 263 79 277 374 217 41 280 41 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0907-
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0907-
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0907-
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	0907-
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0907-
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0907-
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98054-272-1	01	1	1311-
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98117-895-0	01	1	1004-1310
35	06.671 HOSE; RETURN,P/S TANK FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98117-895-0	01	1	1311-
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0907-1011
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	1004-1005
37	01.762 CLIP; HOSE,P/S FRT INDEPENDENT SUSPENSION(FF0) 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0907-0911
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0907-0911
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	0907-
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98054-224-0	01	1	1004-1011
47	06.671 PIPE; RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98173-324-0	01	1	1012-
47	06.671 PIPE; RETURN	8-98054-227-0	01	1	0907-1003
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98054-227-0	01	1	1004-1011
47	06.671 PIPE; RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98173-325-0	01	1	1012-
79	06.672 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1311-
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1004-
79	06.672 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1004-
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	0907-1003
79	06.672 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1004-
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0907-
84	06.670 HOSE; FLEX,P/S FRT INDEPENDENT SUSPENSION(FF0)	8-98027-970-3	01	1	1004-
84	06.670 HOSE; FLEX,P/S	8-98032-376-4	01	1	0907-1003
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98032-376-4	01	1	1004-1312
84	06.670 HOSE; FLEX,P/S EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-111-0	01	1	1401-
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0907-0911
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0907-1003
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
198	06.672 STAY; OIL TANK,POWER STEERING AUSTRALIA EQUIPMENT(B13)	8-98082-763-0	01	1	0910-
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	0907-0909
198	06.672 STAY; OIL TANK,POWER STEERING EXC. AUSTRALIA EQUIPMENT(B13)	8-98011-885-1	01	1	0910-
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0907-
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98028-334-2	01	1	1004-
263	06.672 BRACKET; P/S PIPE FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98028-335-2	01	1	1004-
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	0907-
263	06.672 BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	0907-1003
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-325-2	01	1	1004-1312
263	06.672 BRACKET; P/S PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98250-108-0	01	1	1401-
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-1311
277	06.672 BOLT; HOSE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1312-
277	06.672 BOLT; HOSE CLIP 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	0907-1002
277	06.672 BOLT; HOSE CLIP 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1003-1003
277	06.672 BOLT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-1312
278	06.670 NUT; HOSE CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1004-
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-1003
278	06.670 NUT; HOSE CLIP EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1004-
280	06.672 HOSE; P/S OIL PUMP,INL FRT INDEPENDENT SUSPENSION(FF0)	8-98027-972-0	01	1	1004-
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	0907-1003
280	06.672 HOSE; P/S OIL PUMP,INL EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98041-245-2	01	1	1004-
286	06.672 BOLT; CLIP,P/S HOSE FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-
286	06.672 BOLT; CLIP,P/S HOSE 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0907-
289	06.673 NUT; BRKT,POWER STRG 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0907-1310
289	06.673 NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-
289	06.673 NUT; BRKT,POWER STRG 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	0907-1003
289	06.673 NUT; BRKT,POWER STRG EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 (A) M12 FLANGE	0-91180-112-0	01	1	1004-
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0907-
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98027-337-2	01	1	1004-1012
348	06.671 PIPE; OIL,P/S PRESS FRT INDEPENDENT SUSPENSION(FF0)	8-98156-804-0	01	1	1101-
348	06.671 PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	0907-1003
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98085-486-1	01	1	1004-1312
348	06.671 PIPE; OIL,P/S PRESS EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98250-107-0	01	1	1401-
349	06.671 PIPE; OIL,P/S RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-98008-162-1	01	1	1004-
372	06.673 HOSE; RUBBER EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	0907-1312
372	06.673 HOSE; RUBBER FRT INDEPENDENT SUSPENSION(FF0)	8-98054-269-0	01	1	1401-
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
