◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#52158) — 61 parça

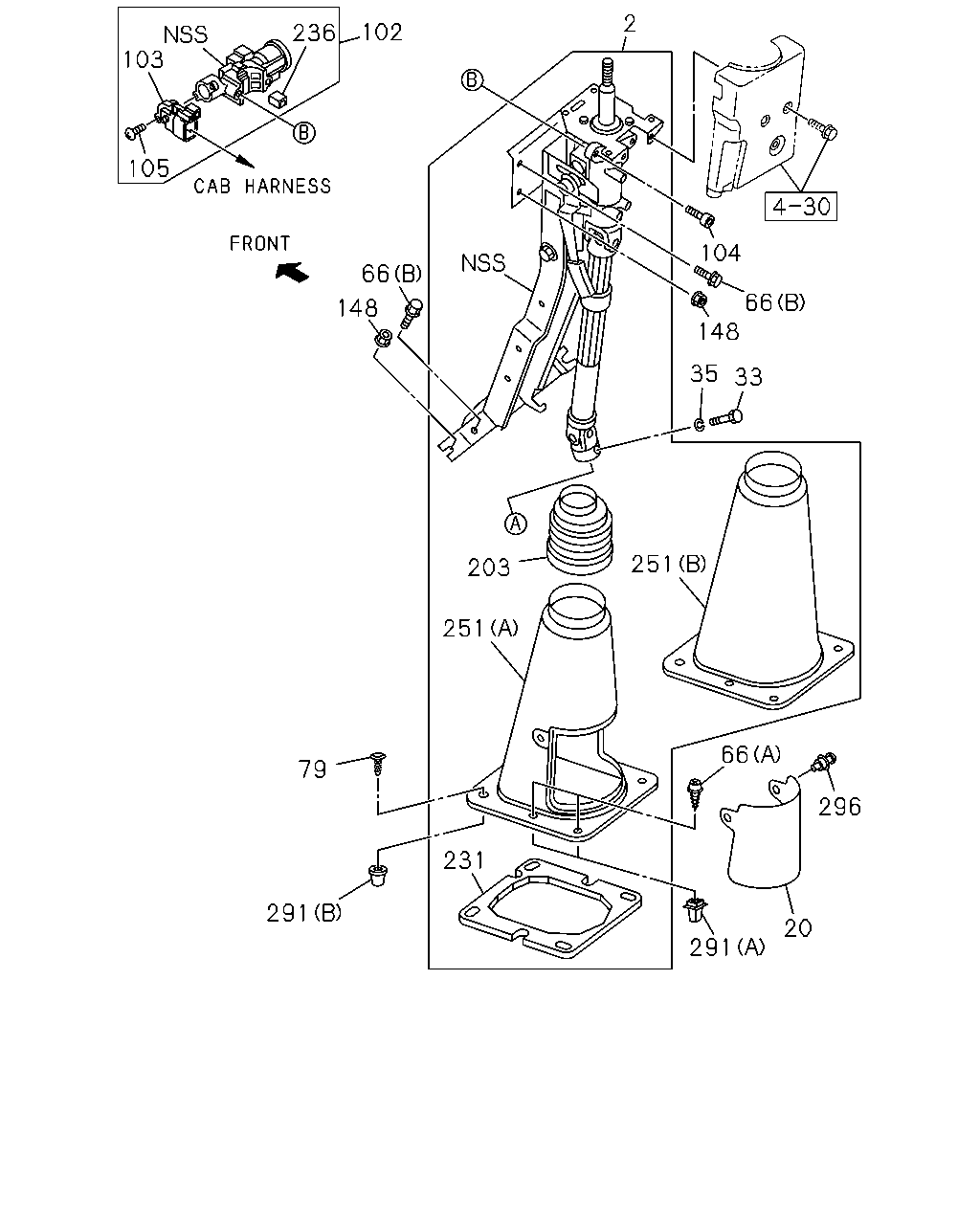

çizim 159700
102 2 104 66 148 35 33 251 203 251 66 296 20 291 231 291 79 148 66 105 103 236
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
FRT INDEPENDENT SUSPENSION(FF0) EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1008-
2 06.518 SHAFT ASM; STRG
FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97406-375-6 01 1 1004-1007
2 06.518 SHAFT ASM; STRG
FRT INDEPENDENT SUSPENSION(FF0) MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1008-
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(FF0) BLACK 		8-97418-801-2 01 1 1008-
2 06.518 SHAFT ASM; STRG
BLACK 		8-97405-355-6 01 1 0907-1007
2 06.518 SHAFT ASM; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0), MANUAL TILT CAB<RWZ> BLACK 		8-97405-355-8 01 1 1008-
20 06.525 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 0907-1007
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1008-
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0907-
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 0907-
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 0907-
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0907-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 0907-
102 06.500 LOCK ASM; STRG 8-97387-036-0 01 1 0907-
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 0907-
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0907-
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 0907-
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 0907-
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0907-
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0907-
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0907-
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1008-
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0907-1007
251 06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1008-
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 0907-
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 0907-
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0907-1007
296 06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1008-

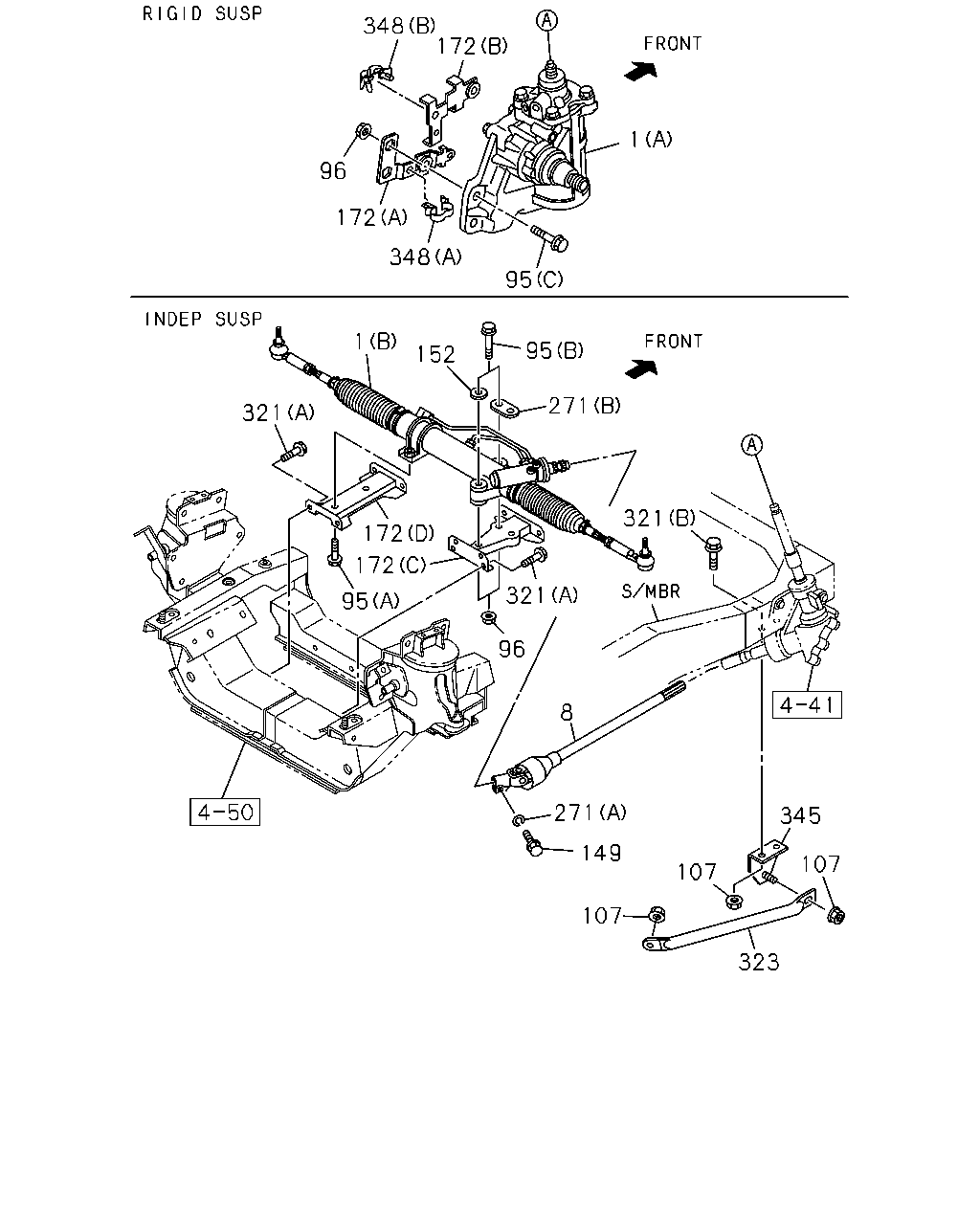

çizim 159813
348 96 172 172 348 95 95 271 152 1 321 172 172 321 96 8 271 149 107 107 345 107 321 95 1 323
BalonParca AdiParca NoAdetTipApplied Date
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-416-3 01 1 1004-
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. (A) 		8-98110-217-1 01 1 0907-1003
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98110-217-1 01 1 1004-1010
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98101-297-3 01 1 1011-
8 06.525 JOINT; UNIVERSAL
FRT INDEPENDENT SUSPENSION(FF0) 		8-98115-712-0 01 1 1004-
95 06.509 BOLT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 07.874 (A) M14X30 FLANGE 		0-28651-430-0 02 1 1004-
95 06.509 BOLT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 06.525 (B) M14X80 FLANGE 		0-28851-480-0 03 1 1004-
95 06.509 BOLT; STRG UNIT
(C) M12X47 FLANGE 		8-98055-055-0 04 1 0907-1003
95 06.509 BOLT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M12X47 FLANGE 		8-98055-055-0 04 1 1004-
96 06.509 NUT; STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 00.429 M14 FLANGE 		0-91180-214-0 03 1 1004-
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 02 1 0907-1003
96 06.509 NUT; STRG UNIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) M12 FLANGE 		8-97359-618-0 02 1 1004-
107 06.514 NUT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 05.816 M12 FLANGE 		0-91180-212-0 08 1 1004-
149 06.525 BOLT; GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) M8X30 		8-97359-615-0 02 1 1004-
152 00.796 WASHER; LK,STRG UNIT
FRT INDEPENDENT SUSPENSION(FF0) 03.704 ID=15 OD=40 		9-09851-995-0 01 1 1004-
172 06.509 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98034-269-1 01 1 1004-
172 06.509 BRACKET; STRG
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98034-270-2 01 1 1004-
172 06.509 BRACKET; STRG
(B) 		8-98055-061-0 01 1 0907-1003
172 06.509 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98055-061-0 01 1 1004-
172 06.509 BRACKET; STRG
(A) 		8-98078-803-0 01 1 0907-1003
172 06.509 BRACKET; STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98078-803-0 01 1 1004-
271 06.514 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) 02.559 (A) ID=8.2 		0-91510-808-0 02 1 1004-
271 06.514 WASHER; LK,GEAR BOX
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97354-092-0 01 1 1004-
321 06.514 BOLT; BRKT,STRG
FRT INDEPENDENT SUSPENSION(FF0) 07.395 (A) M12X30 FLANGE 		0-28651-230-0 10 1 1004-
321 06.514 BOLT; BRKT,STRG
FRT INDEPENDENT SUSPENSION(FF0) 06.509 (B) M12X30 FLANGE 		0-28661-230-0 04 1 1004-
323 06.518 ROD; GUARD,STRG SHAFT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98033-649-0 02 1 1004-
345 06.509 BRACKET; ROD
FRT INDEPENDENT SUSPENSION(FF0) 06.518 		8-98033-651-0 02 1 1004-
348 06.525 CLIP; BRKT,STRG
(A) ID=5-12 L=18 		1-09709-287-0 01 1 0907-1003
348 06.525 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=5-12 L=18 		1-09709-287-0 01 1 1004-
348 06.525 CLIP; BRKT,STRG
(B) ID=5-12 L=22 		1-09709-288-0 01 1 0907-1003
348 06.525 CLIP; BRKT,STRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) ID=5-12 L=22 		1-09709-288-0 01 1 1004-
