◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶

4-30 — STEERING WHEEL AND COWL (#52157) — 48 parça

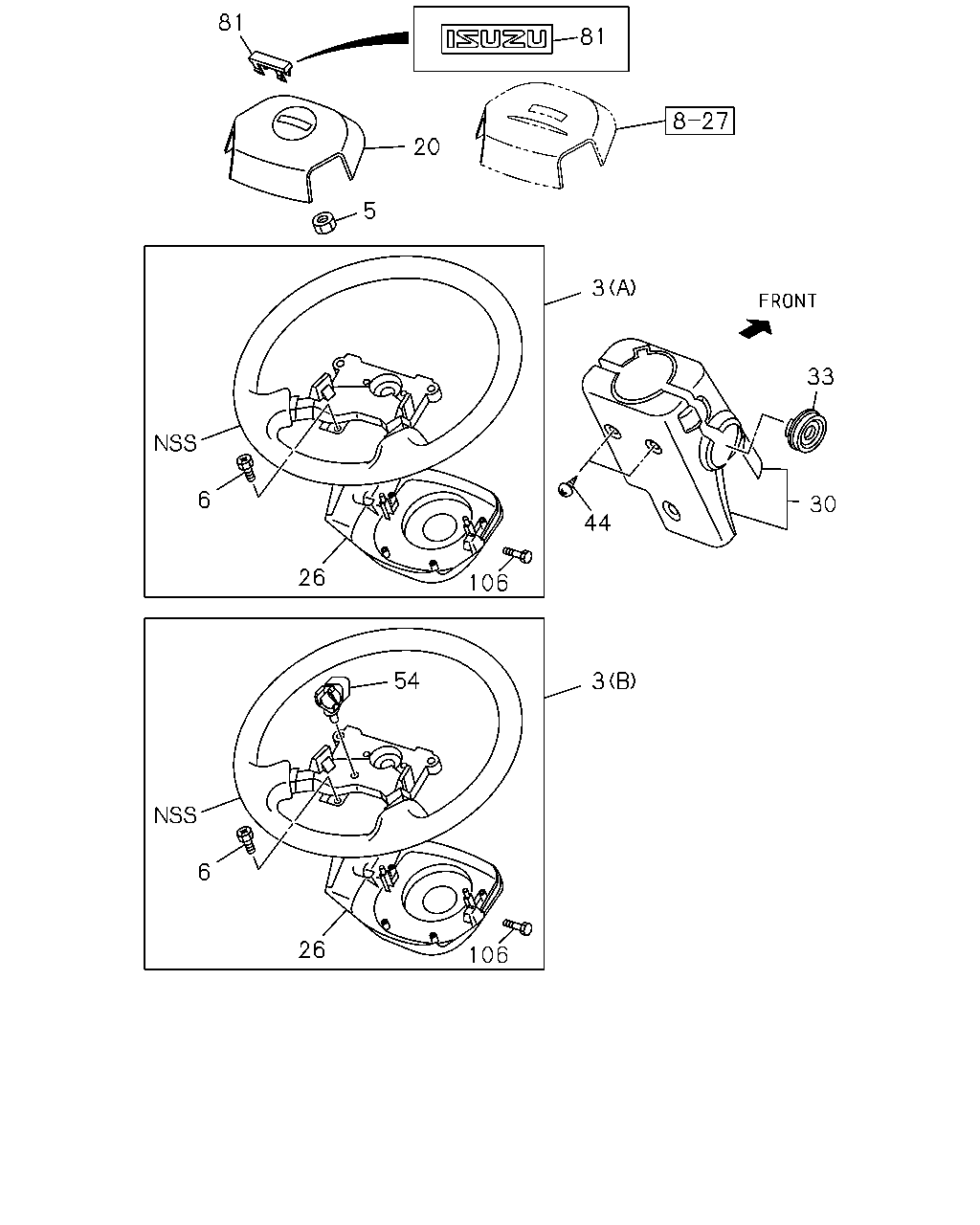

81 81 20 5 3 33 30 44 3 106 26 6 54 106 26 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97428-464-5	01	1	1407-
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0907-1006
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1007-1210
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-1406
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97423-997-0	01	1	1407-
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0907-1406
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (A) DARK GRAY	8-97412-556-1	01	1	1407-
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0907-1406
5	06.515 NUT; STRG WHEEL TO SHAFT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M14	0-91111-514-0	01	1	1407-
5	06.515 NUT; STRG WHEEL TO SHAFT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> M14	0-91111-514-0	01	1	1407-
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0907-1406
6	02.820 SCREW; HORN SPR CONTACT EXC. SPECIAL PACKAGE<7BB> M4X12	8-97167-588-0	04	1	1407-
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0907-1406
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97405-985-1	01	1	1407-
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0907-1006
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1007-1406
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-978-0	01	1	1407-
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0907-1406
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1407-
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0907-1110
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0907-0909
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	0910-
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0907-
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-1406
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB>	8-98165-703-0	01	1	1407-
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-986-0	01	1	0907-1406
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97405-986-0	01	1	1407-
106	05.453 BOLT; TORX	8-98231-397-0	02	1	0907-1406
106	05.453 BOLT; TORX EXC. SPECIAL PACKAGE<7BB>	8-98231-397-0	02	1	1407-

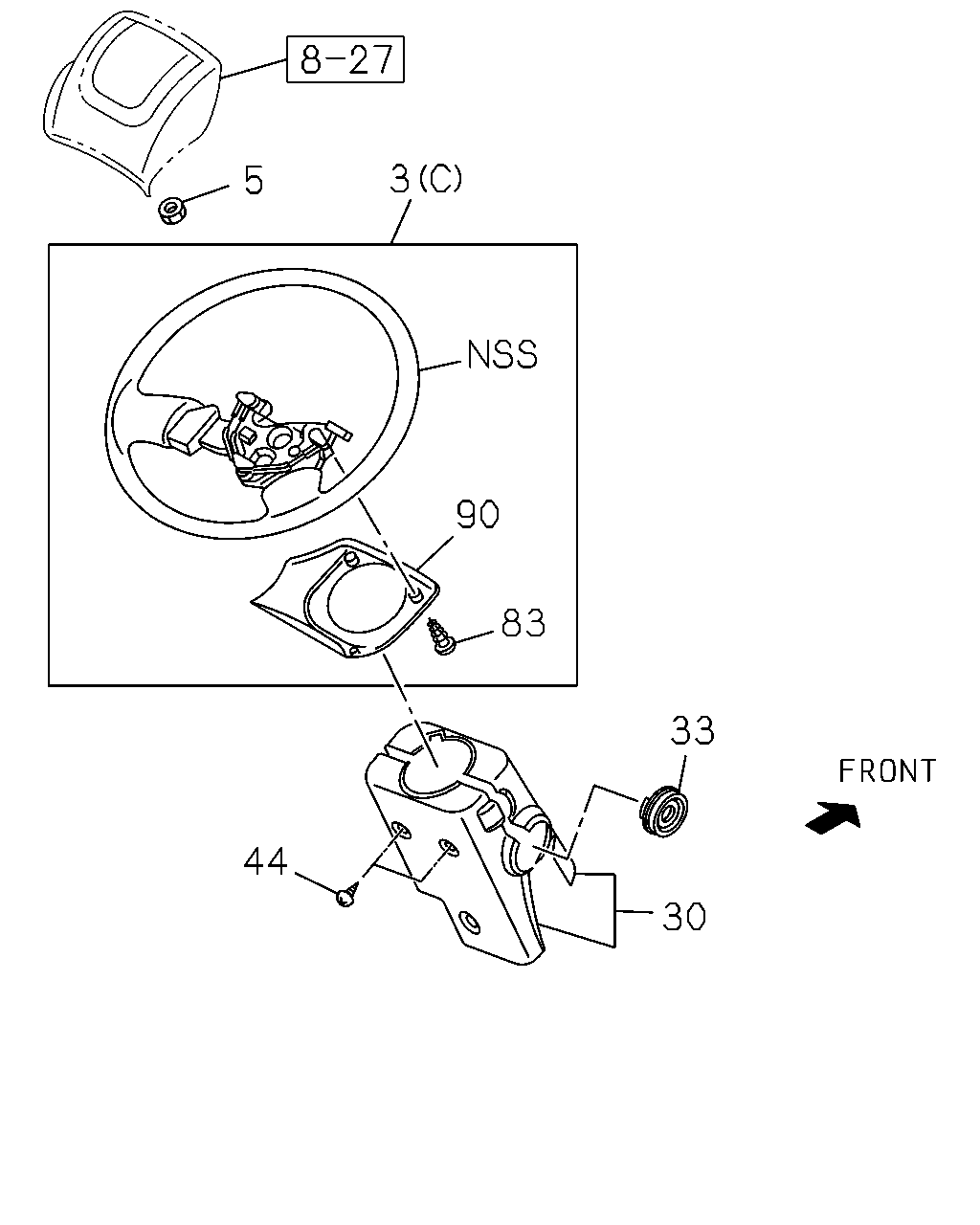

5 3 90 83 33 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97428-464-5	01	1	1407-
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0907-1006
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1007-1210
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-1406
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97423-997-0	01	1	1407-
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0907-1406
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (A) DARK GRAY	8-97412-556-1	01	1	1407-
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0907-1406
5	06.515 NUT; STRG WHEEL TO SHAFT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M14	0-91111-514-0	01	1	1407-
5	06.515 NUT; STRG WHEEL TO SHAFT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> M14	0-91111-514-0	01	1	1407-
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0907-1110
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	0907-0909
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	0910-
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0907-
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1407-1503
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> M4X10 TAPPING	8-98319-680-0	03	1	1504-
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> DARK GRAY	8-97465-726-2	01	1	1407-
