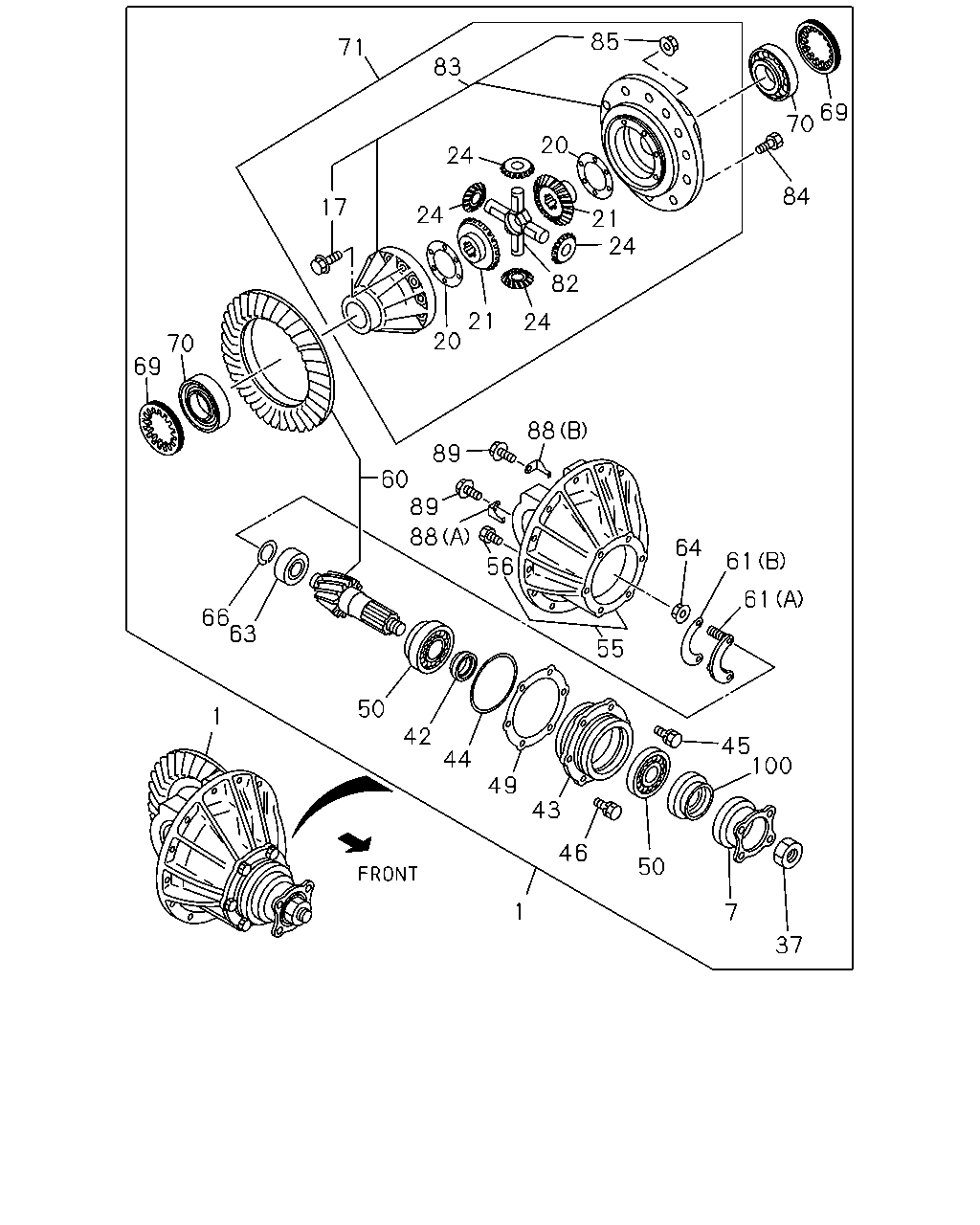

4-25 — REAR FINAL DRIVE (#52156) — 70 parça

85 83 71 69 17 24 24 20 21 24 70 84 82 24 21 20 70 69 89 88 60 89 88 66 63 56 55 64 61 61 45 100 37 7 50 46 43 49 44 42 50 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98015-136-0	01	1	1311-
1	05.505 DRIVE ASM; FINAL,RR EXC. REAR WIDE TREAD(V4T) 43/9	8-98015-138-0	01	1	1004-1007
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 43/9	8-98015-138-0	01	1	1008-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98015-137-0	01	1	0911-1003
1	05.505 DRIVE ASM; FINAL,RR 41/8	8-98015-139-0	01	1	0907-0910
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98015-139-0	01	1	0911-1003
1	05.505 DRIVE ASM; FINAL,RR REAR WIDE TREAD(V4T) 41/8	8-98015-139-0	01	1	1004-1007
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) REAR WIDE TREAD(V4T) 41/8	8-98015-139-0	01	1	1008-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0907-
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0907-
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	0907-
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0907-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0907-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0907-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0907-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0907-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0907-0909
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0907-0909
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0907-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0907-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0907-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0907-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0907-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97319-155-0	01	1	1311-1311
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1312-
60	05.529 GEAR SET; FINAL DRIVE,RR EXC. REAR WIDE TREAD(V4T) 43/9	8-97319-157-0	01	1	1004-1007
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 43/9	8-97319-157-0	01	1	1008-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	0911-1003
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97319-158-0	01	1	0907-0910
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0911-1003
60	05.529 GEAR SET; FINAL DRIVE,RR REAR WIDE TREAD(V4T) 41/8	8-97319-158-0	01	1	1004-1007
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) REAR WIDE TREAD(V4T) 41/8	8-97319-158-0	01	1	1008-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0907-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0907-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0907-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0907-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0907-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0907-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0907-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. REAR WIDE TREAD(V4T)	8-98015-181-1	01	1	1004-1310
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	1311-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6)	8-98015-181-0	01	1	0911-1003
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-0	01	1	0907-0910
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-98015-182-0	01	1	0911-1003
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR WIDE TREAD(V4T)	8-98015-182-0	01	1	1004-1007
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) REAR WIDE TREAD(V4T)	8-98015-182-1	01	1	1008-
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0907-
83	05.510 CAGE ASM; DIFF EXC. REAR WIDE TREAD(V4T)	8-97319-398-1	01	1	1004-1310
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	1311-
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/9(HC6)	8-97319-398-1	01	1	0911-1003
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	0907-0910
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-97319-396-1	01	1	0911-1003
83	05.510 CAGE ASM; DIFF REAR WIDE TREAD(V4T)	8-97319-396-1	01	1	1004-1007
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) REAR WIDE TREAD(V4T)	8-97319-396-1	01	1	1008-
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0907-
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	0907-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0907-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0907-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0907-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0907-
