4-10 — FRONT AXLE (#52153) — 87 parça

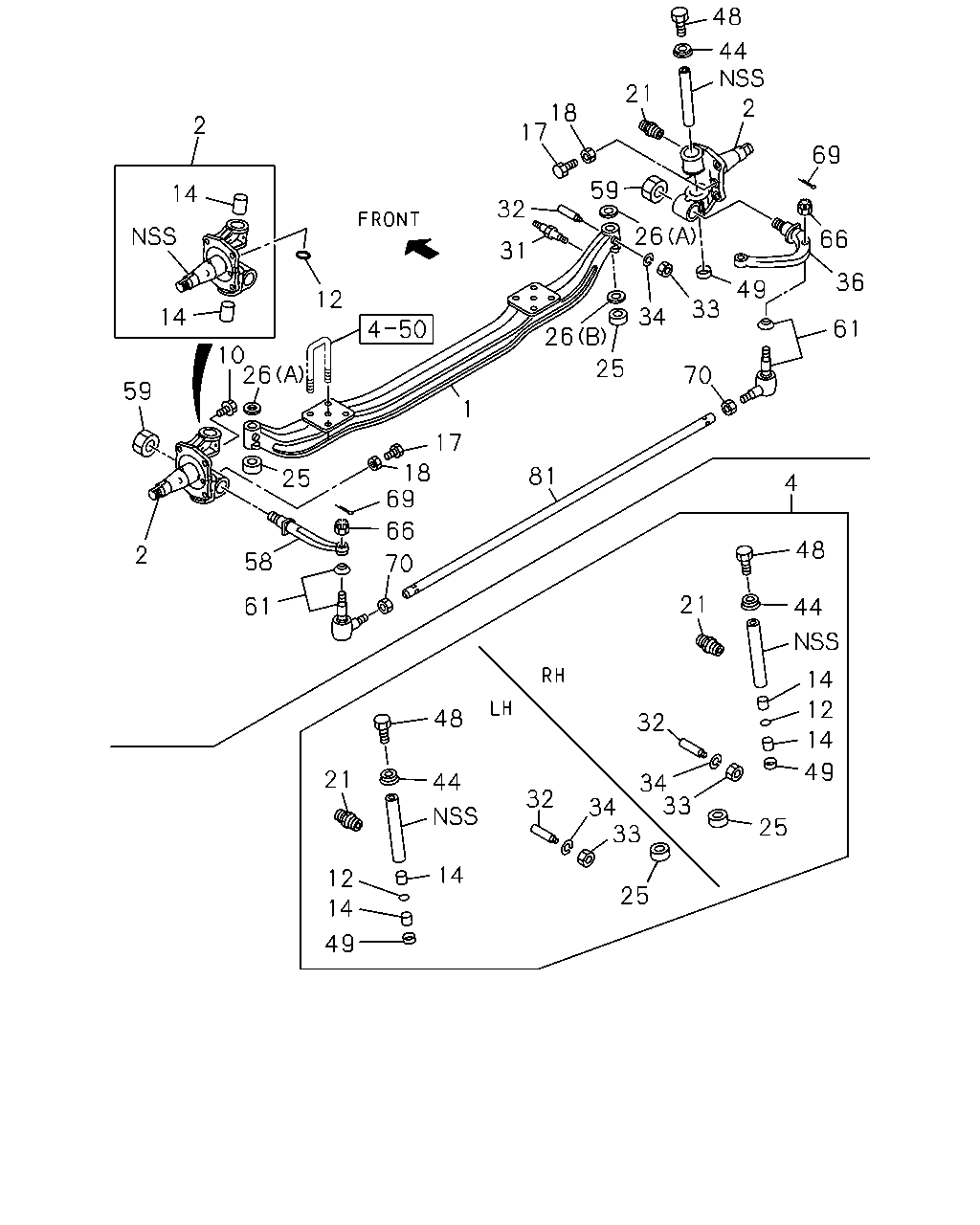

çizim 159714
48 44 2 21 18 17 31 31 59 26 69 66 36 61 49 33 34 70 4 48 44 21 14 12 14 49 25 33 34 32 48 44 21 12 14 49 14 32 34 33 25 81 17 1 26 25 12 2 14 14 59 2 61 58 25 26 10 18 69 66 70
BalonParca AdiParca NoAdetTipApplied Date
1 06.008 AXLE; FRT 8-97262-000-2 01 1 0907-1003
1 06.008 AXLE; FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97262-000-4 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98001-154-0 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98001-155-0 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0907-1003
2 06.020 KNUCKLE; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97261-549-2 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0907-1003
2 06.020 KNUCKLE; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97261-550-2 01 1 1004-
4 06.203 KING PIN KIT 5-87832-220-1 01 1 0907-1003
4 06.203 KING PIN KIT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		5-87832-220-2 01 1 1004-
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0907-1003
10 06.009 PLUG; PLATE,KNUCKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-117-0 01 1 1004-
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 0907-1003
12 06.021 GASKET; KNUCKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98084-500-0 02 1 1004-
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0907-1003
14 06.021 BUSHING; KING PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) DAIDO WO/NOTCH 		8-94107-672-3 04 1 1004-
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0907-1003
17 06.009 BOLT; STOPPER KNUCKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1004-
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 0907-1003
18 06.216 NUT; STOPPER BOLT,KNUCKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.439 M12 		0-91111-512-0 03 1 1004-
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 0907-1003
21 06.166 NIPPLE; GREASE,KING PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1004-
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 0907-1003
25 06.210 BEARING; THRUST,KING PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1004-
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-0 01 1 0907-1003
25 06.210 BEARING; THRUST,KING PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.50 		8-94162-574-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.55 		8-94162-575-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.60 		8-94162-576-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.65 		8-94162-577-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) 05.460 (B) T=1.95 		8-94168-490-0 01 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.70 		8-94174-352-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.80 		8-94174-354-0 AR 1 1004-
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0907-1003
26 06.022 SHIM; KING PIN,BRG
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) T=0.90 		8-94174-356-0 AR 1 1004-
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 0907-1003
31 07.347 PIN; S/ABS,LWR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97141-944-0 02 1 1004-
32 06.216 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0907-1003
32 06.216 BOLT; KEY,KING PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97141-945-2 02 1 1004-
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 0907-1003
33 06.216 NUT; KEY BOLT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.833 M10 		0-91110-510-0 02 1 1004-
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 0907-1003
34 06.216 WASHER; LK,KEY BOLT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.606 ID=10.2 		0-91510-510-0 02 1 1004-
36 06.103 ARM; KNUCKLE 8-97253-712-2 01 1 0907-1003
36 06.103 ARM; KNUCKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97253-712-4 01 1 1004-
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0907-1003
44 06.225 COVER; KING PIN
EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=36 		8-97360-023-0 02 1 1004-
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0907-1003
48 06.225 BOLT; COVER
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X12 FLANGE 		0-28051-012-0 02 1 1004-
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 0907-1003
49 06.225 CAP; KNUCKLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-024-0 02 1 1004-
58 06.103 ARM; TIE ROD 8-97138-303-0 01 1 0907-1003
58 06.103 ARM; TIE ROD
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97138-303-1 01 1 1004-
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 0907-1003
59 06.104 NUT; TIE ROD ARM
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97360-123-0 02 1 1004-
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0907-1003
61 06.233 ROD END; TIE ROD
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97142-101-1 01 1 1004-1309
61 06.233 ROD END; TIE ROD
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97107-349-2 01 1 1310-
61 06.233 ROD END; TIE ROD 8-97255-705-0 01 1 0907-1003
61 06.233 ROD END; TIE ROD
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97255-705-0 01 1 1004-1309
61 06.233 ROD END; TIE ROD
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98251-954-0 01 1 1310-
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0907-1003
66 06.234 NUT; TIE ROD END
EXC. FRT INDEPENDENT SUSPENSION(FF0) M16 SLOTTED 		0-91116-516-0 02 1 1004-1204
66 06.234 NUT; TIE ROD END
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205-
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0907-1003
69 06.255 PIN; SPLIT,TIE ROD END
EXC. FRT INDEPENDENT SUSPENSION(FF0) OD=3.7 L=20 		0-81124-020-0 02 1 1004-
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0907-1003
70 06.234 NUT; TIE ROD END
EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 LH THREAD 		8-94254-726-0 01 1 1004-
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 0907-1003
70 06.234 NUT; TIE ROD END
EXC. FRT INDEPENDENT SUSPENSION(FF0) M20 RH THREAD 		8-98043-530-0 01 1 1004-
81 06.230 ROD; TIE 8-97142-024-0 01 1 0907-1003
81 06.230 ROD; TIE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97142-024-0 01 1 1004-
çizim 159809
86 2 132
BalonParca AdiParca NoAdetTipApplied Date
2 06.020 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98001-154-0 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98001-155-0 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0907-1003
2 06.020 KNUCKLE; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97261-549-2 01 1 1004-
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0907-1003
2 06.020 KNUCKLE; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97261-550-2 01 1 1004-
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98088-329-0 02 1 1004-
132 07.436 COLLAR; TORSION BAR
FRT INDEPENDENT SUSPENSION(FF0) 06.234 M24 		0-91111-524-0 02 1 1004-
