Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#52151) — 677 parça

116 165 39 184 165 184 165 184 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0907-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0907-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0907-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0907-

116 39 39 39 165 184 165 184 165 184 184 120 203 12 13 12 13 12 12 157 157 157 157 12 39 116 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1112-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0907-1007
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1008-1012
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0911-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0907-1007
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1008-1012
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0907-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0907-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0907-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0907-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0907-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0907-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0907-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0907-

120 203 12 13 12 15 116 96 20 184 108 173 234 202 165 39 234 234 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1112-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0907-1007
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1008-1012
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0911-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0907-1007
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1008-1012
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0907-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0907-
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0907-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0907-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0907-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0907-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0907-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0907-1012
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0907-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0907-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0907-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0907-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0907-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0907-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0907-

80 122 136 136 66 85 66 80 78 197 98 116 39 78 96 39 39 39 78 158 136 136 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0907-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0907-1003
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1004-1309
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1004-1309
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
78	04.931 HOSE; VAC,PIPE TO PIPE HEAVY DUTY FRAME<6WB> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-

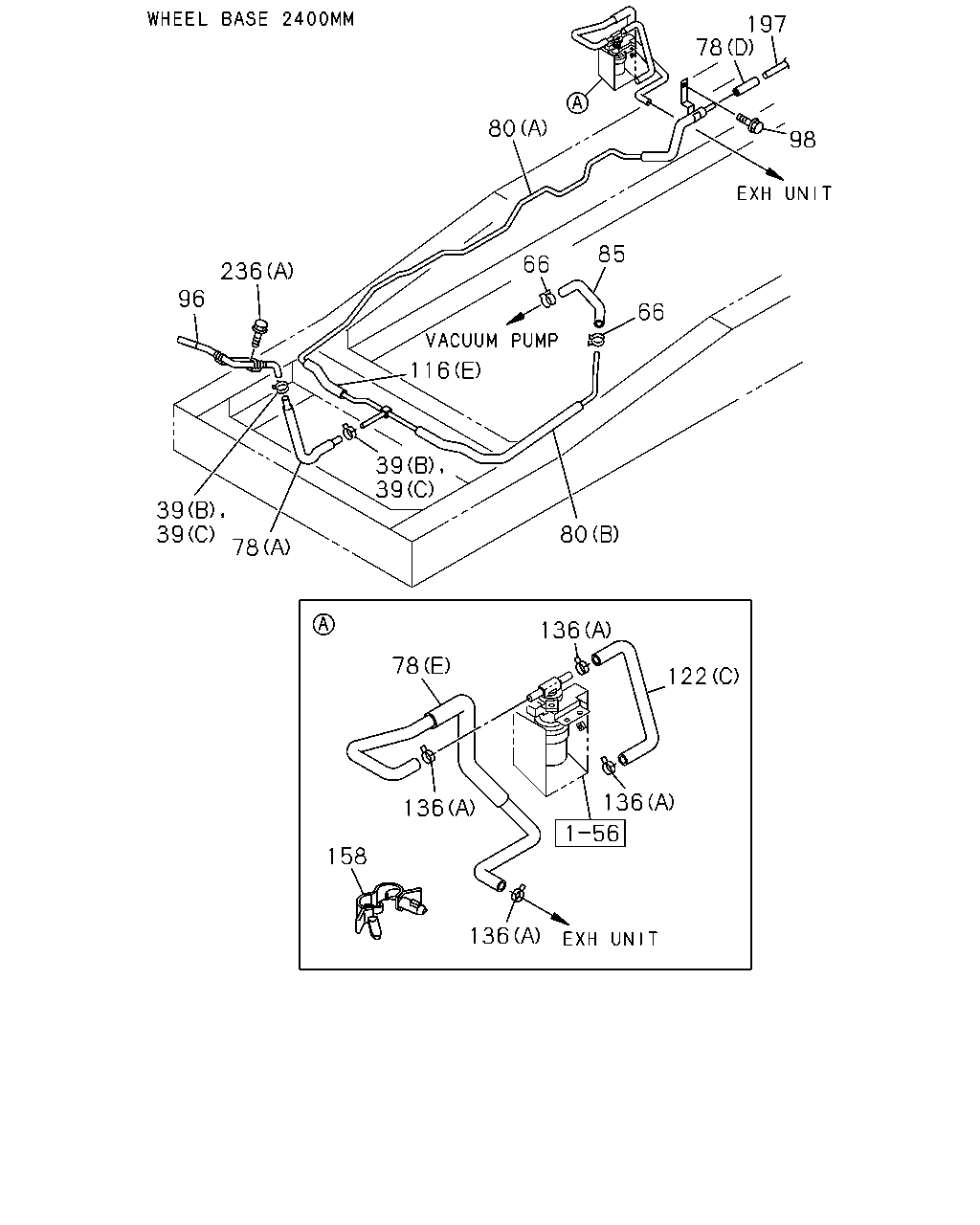

78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (E)	8-98098-174-0	01	1	0907-

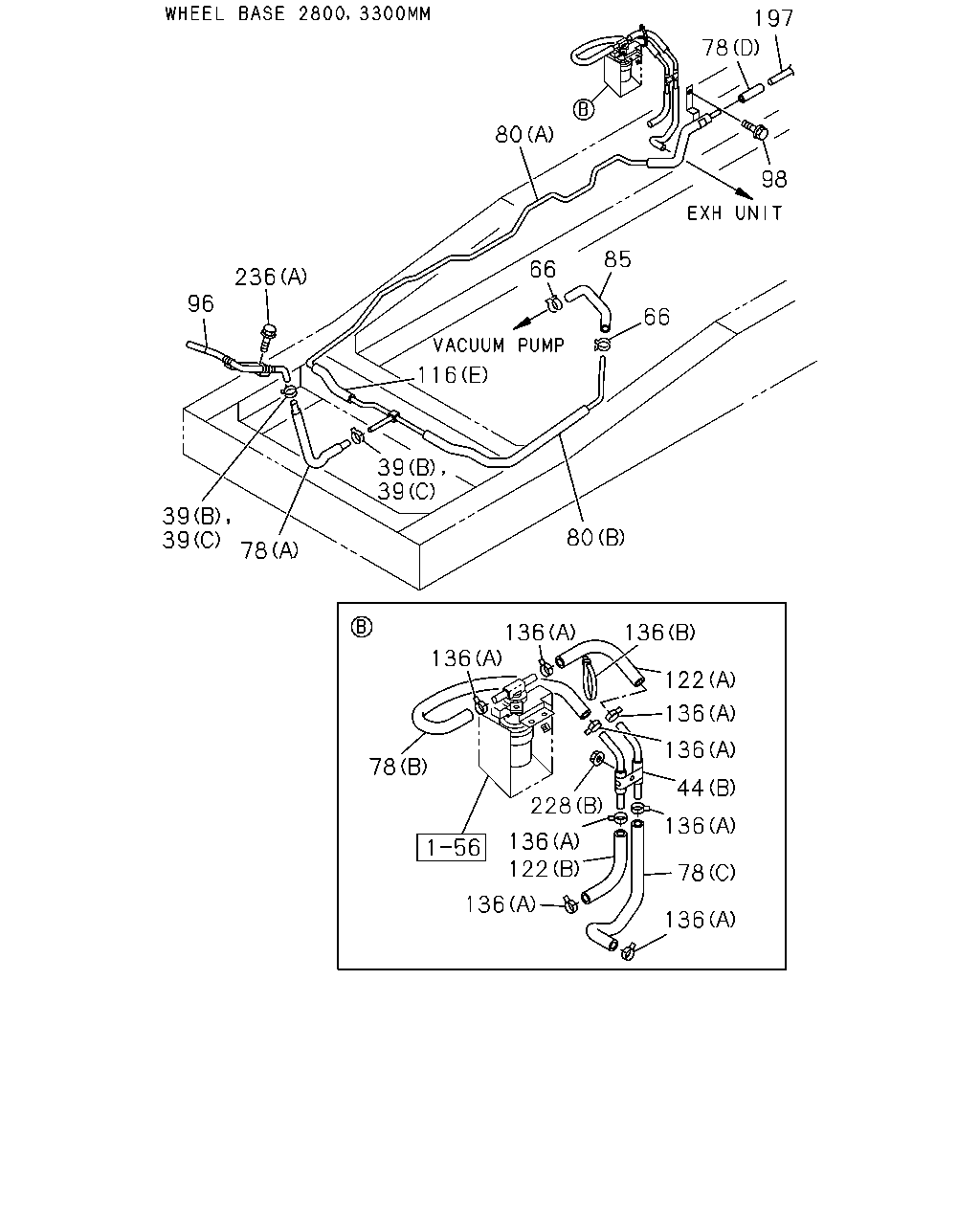

78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	0907-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	0911-1003
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1004-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-1111
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1112-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	0907-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	0911-1003
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1004-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-1111
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1112-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0907-1003
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1004-1309
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	1205-
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	0907-1003
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1004-1309
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1004-1309
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	0907-1204
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	1205-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-565-3	01	1	0907-1003
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-565-3	01	1	1004-1309
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98064-565-3	01	1	1310-
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	1205-
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	0907-1204
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	1205-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0907-
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1205-
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	0907-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	0911-1003
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1004-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-1111
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1112-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	0907-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	0911-1003
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1004-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-1111
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1112-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0911-0911
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0907-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1003
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1004-1111
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1112-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0907-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 04.930 (A) ID=16	8-94238-568-0	04	1	0907-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1003
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1004-1111
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1112-
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	0907-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98145-534-0	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-728-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	0911-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1112-
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0911-1003
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0907-

234 173 12 12 173 116 234 234 39 234 96 157 12 13 12 203 120 116 184 20 163 202 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1112-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0907-1007
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1008-1012
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-

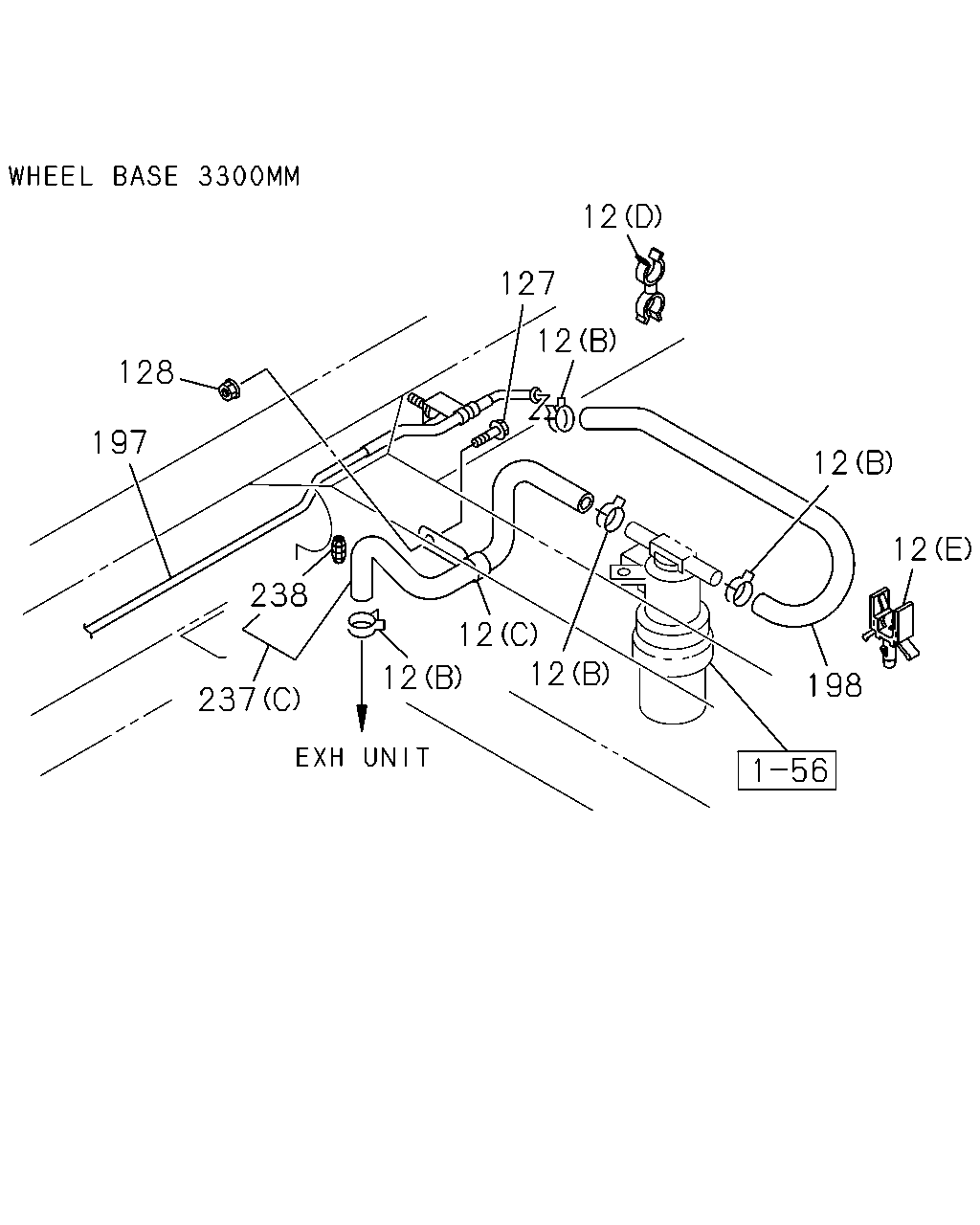

12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0911-1003

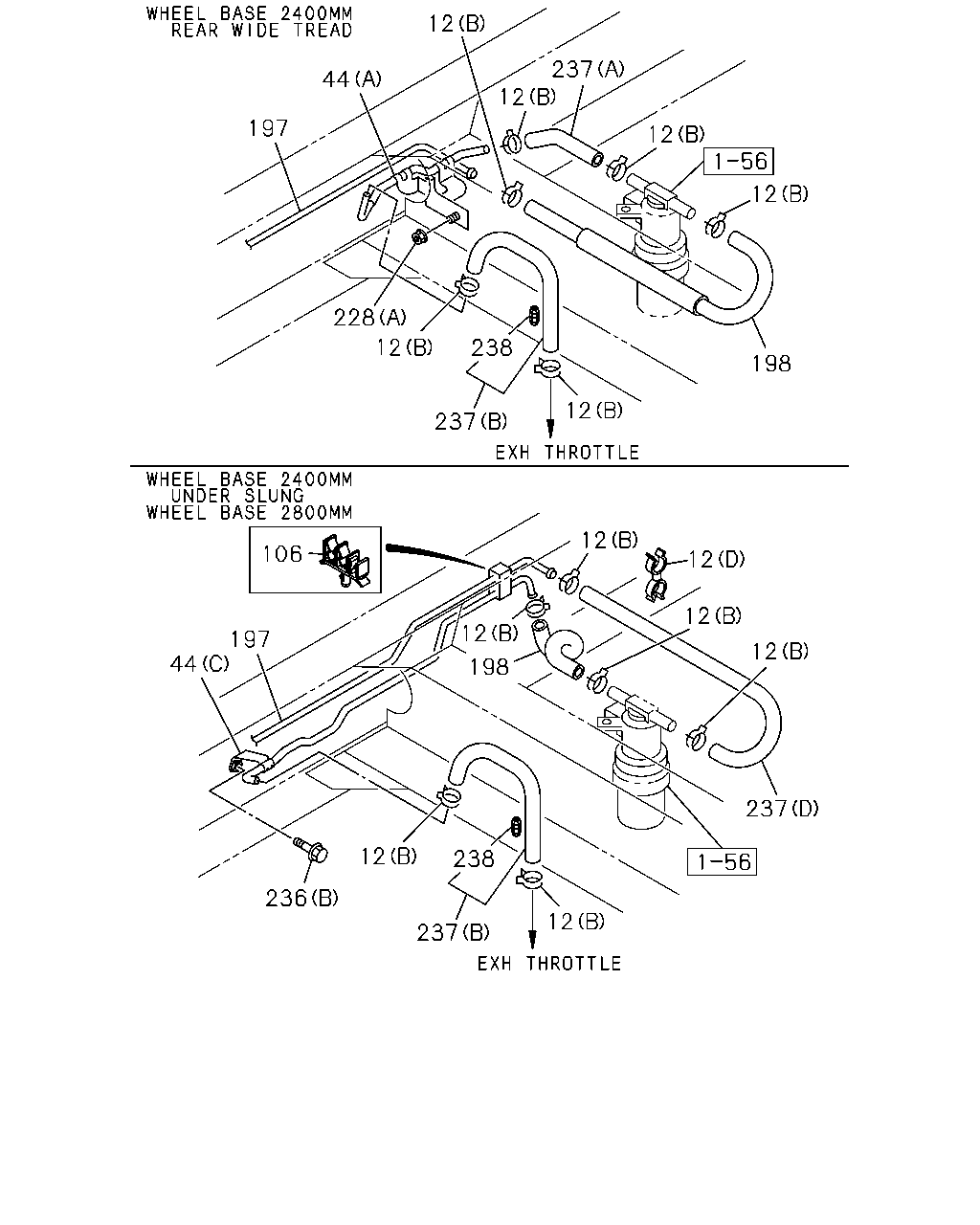

12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0907-1007
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1008-1012
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-

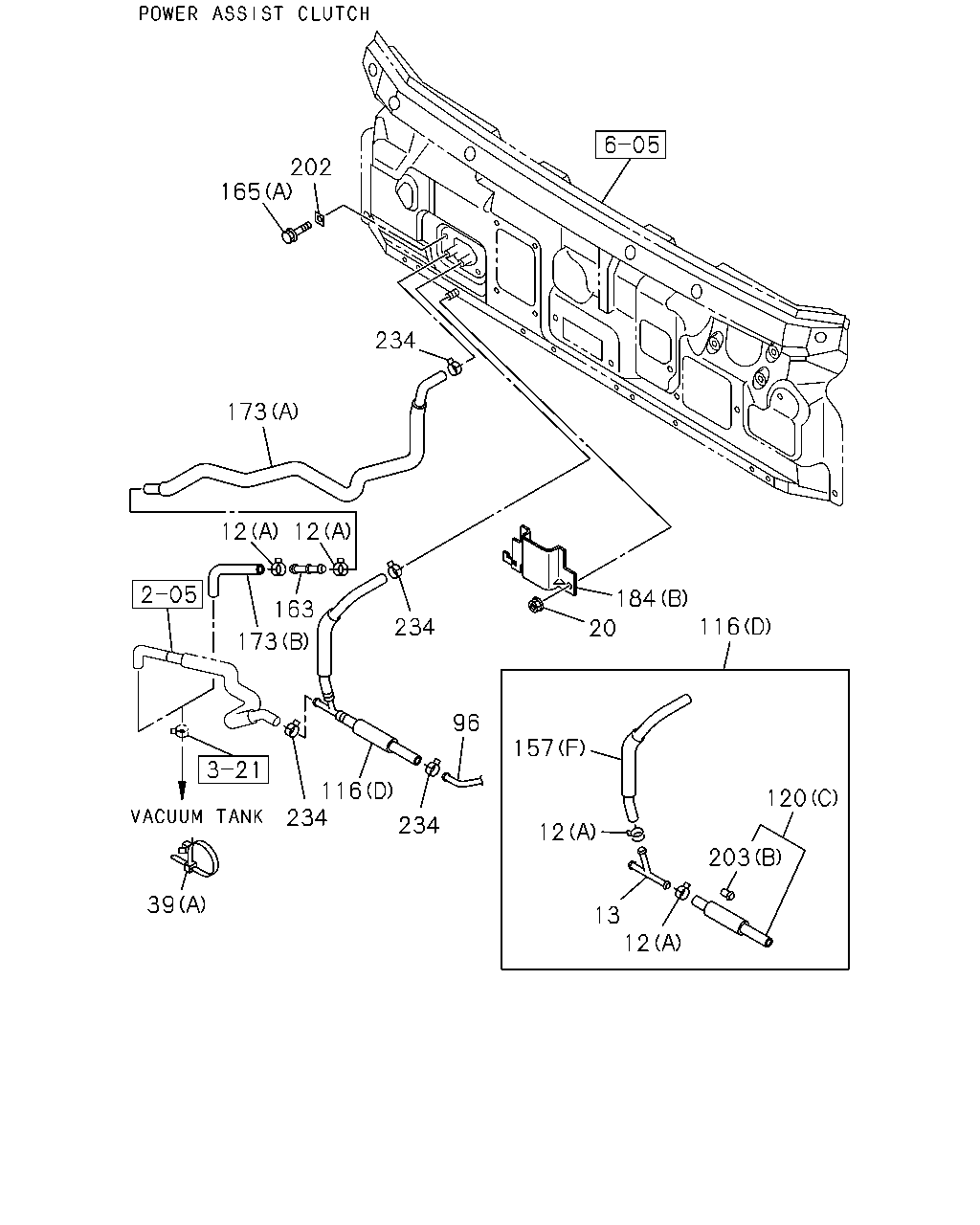

13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0907-

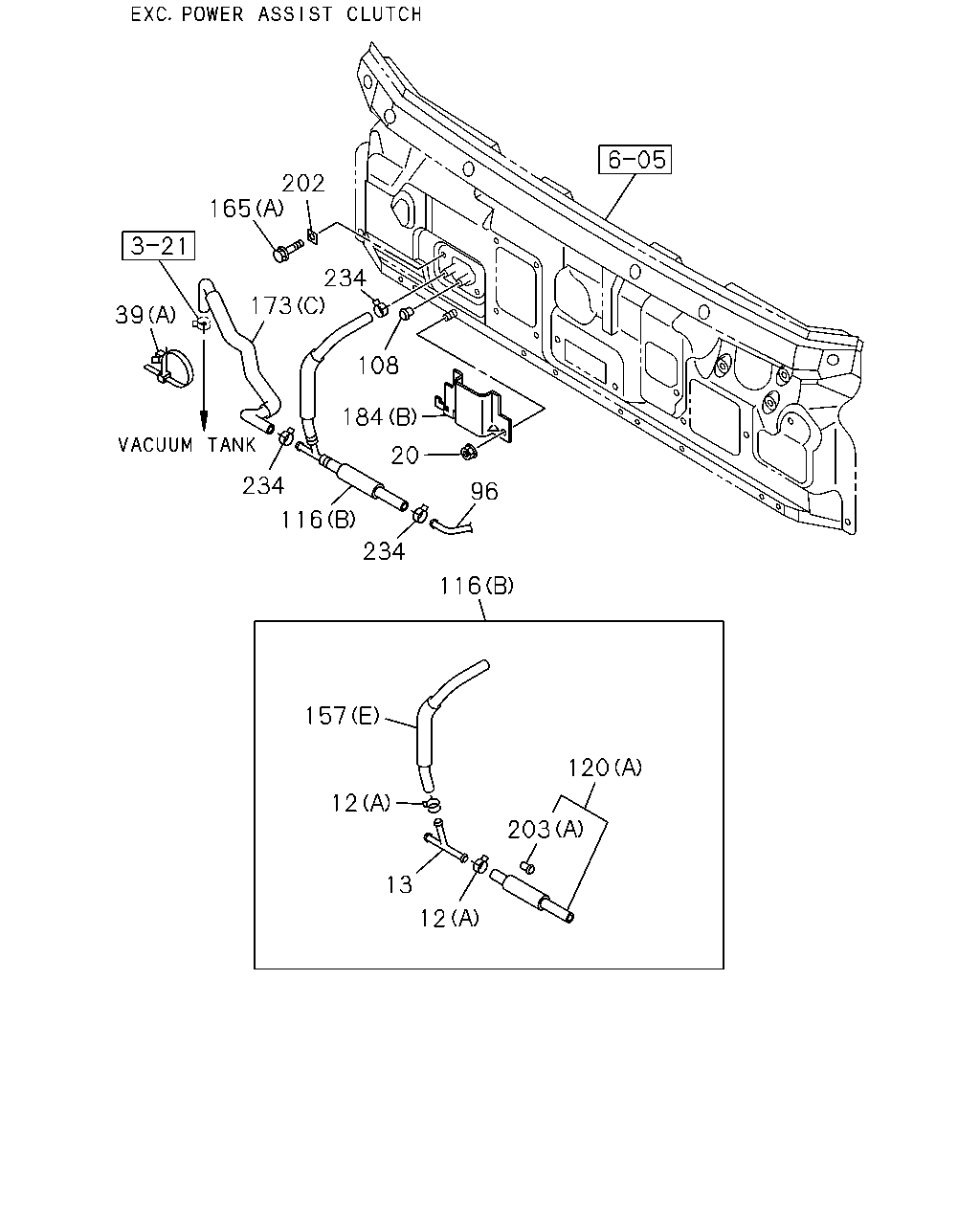

13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0907-
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-

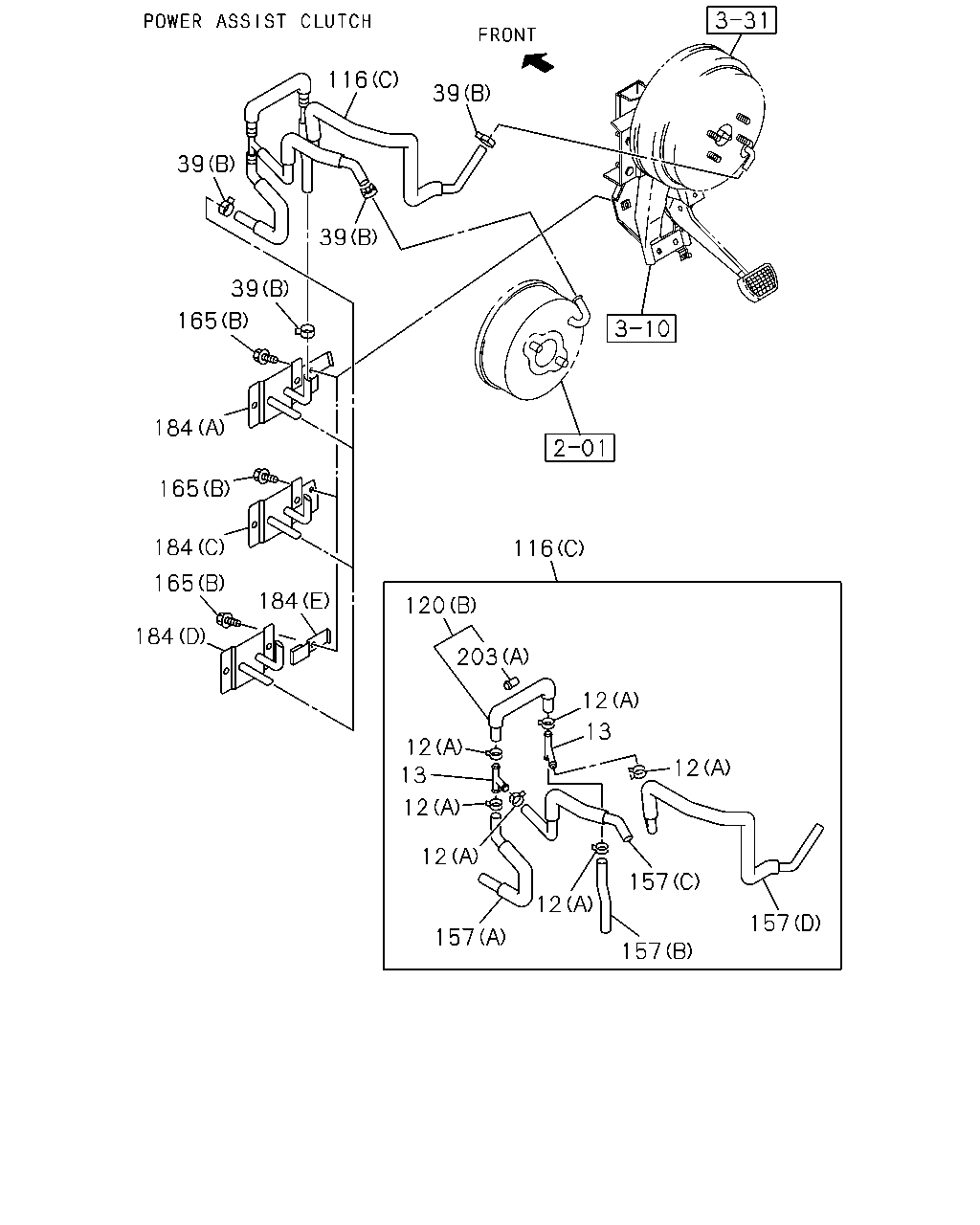

39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0907-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0907-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0907-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0907-
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0907-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0907-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0907-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0907-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0907-1012
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0907-1001
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0907-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0907-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0907-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0907-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0907-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0907-

122 136 136 136 78 136 44 228 136 122 136 78 136 136 136 80 39 39 78 39 39 96 236 116 66 85 66 78 197 80 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0907-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0907-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	1112-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	0911-1003
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98039-807-1	01	1	1004-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (A)	8-98039-806-0	01	1	0907-0909
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0910-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	0907-0910
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	0911-1003
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	1004-1111
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	1112-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0907-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0907-1003
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1004-1309
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1004-1309
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
78	04.931 HOSE; VAC,PIPE TO PIPE HEAVY DUTY FRAME<6WB> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (E)	8-98098-174-0	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	0907-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	0911-1003
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-690-1	01	1	1004-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1105-1111
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1112-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	0907-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	0911-1003
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98042-691-2	01	1	1004-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1105-1111
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1112-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0907-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0907-1003
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1004-1309
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	1205-
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	0907-1003
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1004-1309
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	1004-1309
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	0907-1204
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	1205-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-565-3	01	1	0907-1003
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-565-3	01	1	1004-1309
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98064-565-3	01	1	1310-
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	1205-
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	0907-1204
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	1205-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0907-
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1205-
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0907-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	0907-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	0907-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	0911-1003
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98042-689-2	01	1	1004-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1105-1111
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1112-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	0907-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	0911-1003
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98089-657-0	01	1	1004-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1105-1111
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1112-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0911-0911
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0907-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1003
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1004-1111
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1112-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0907-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 04.930 (A) ID=16	8-94238-568-0	04	1	0907-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1003
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1004-1111
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1112-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98145-534-0	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-728-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	0911-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0907-0909
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0910-1003
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1004-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1004-
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-0910
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-1003
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1004-1111
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1112-
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1112-
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0911-1003
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0907-

198 12 237 12 238 228 197 44 12 12 237 12 12 12 12 12 12 237 12 12 198 238 237 12 236 44 106 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1112-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0907-1007
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1008-1012
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0911-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0907-1007
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1008-1012
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	1112-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	0911-1003
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98039-807-1	01	1	1004-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (A)	8-98039-806-0	01	1	0907-0909
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0910-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	0907-0910
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	0911-1003
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	1004-1111
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98042-654-0	01	1	1112-
106	04.930 CLIP; PIPE WHEEL BASE 2800MM(28W) ID=10X2 & 4.76	8-97170-259-0	01	1	0911-1003
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1004-1111
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1112-
106	04.930 CLIP; PIPE WHEEL BASE 2800MM(28W) ID=10X2 & 4.76	8-97170-259-0	01	1	1112-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98145-534-0	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-728-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	0911-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	0911-1003
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1004-1111
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1112-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	1112-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	0907-0909
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	0910-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	0907-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0907-0909
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0910-1003
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1004-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1004-
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0907-0910
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-1003
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1004-1111
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1112-
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1112-
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0911-1003
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0907-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	0911-1003
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1004-1111
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0907-0909
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0910-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	0907-0909
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0910-0910
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0911-1003
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (B)	8-98034-429-0	01	1	0911-1003
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1004-1111
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1004-1111
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98039-792-0	01	1	0907-1008
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1009-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0907-0909
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0910-0910
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0910-0910
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0911-1003
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0911-1003
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	1004-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1004-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1004-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-1111
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-1111
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1112-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1112-

12 198 12 12 127 12 12 12 12 238 237 197 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	08	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0911-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1112-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0907-1007
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	14	1	1008-1012
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0907-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0907-0910
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0911-1003
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1004-1111
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1112-
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0907-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0907-1007
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1008-1012
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1101-
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-803-1	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98145-534-0	01	1	1112-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-728-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	0911-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0907-0909
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0910-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0907-1003
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	1004-1309
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	0911-1003
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1004-1111
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1112-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	1112-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	0907-0909
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	0910-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	0907-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	0911-1003
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1004-1111
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0907-0909
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0910-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	0907-0909
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0910-0910
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0911-1003
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (B)	8-98034-429-0	01	1	0911-1003
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1004-1111
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1004-1111
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1112-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98039-792-0	01	1	0907-1008
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1009-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0907-0909
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0910-0910
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0910-0910
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0911-1003
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0911-1003
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	1004-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1004-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1004-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-1111
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-1111
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1112-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
