◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#52150) — 79 parça

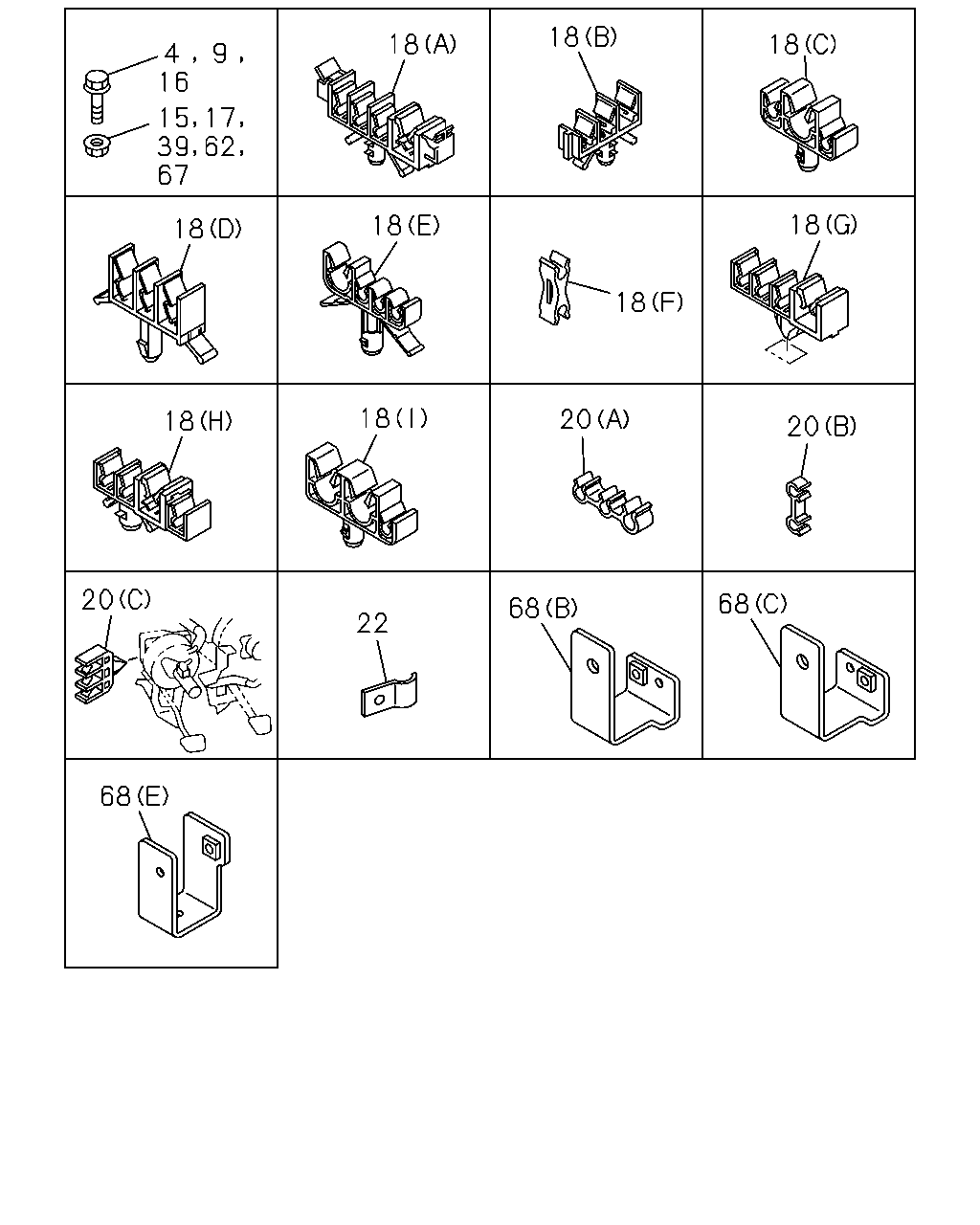

çizim 159663
18 18 20 68 22 68 68 20 20 18 18 18 18 18 18 18 4 9 16 39 17 15 67 62
BalonParca AdiParca NoAdetTipApplied Date
4 04.686 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907-
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907-1003
4 04.686 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907-1003
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1004-
4 04.686 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1004-
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-0909
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0907-0909
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0910-
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0910-
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-1003
15 04.686 NUT; CLIP,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1004-
16 04.686 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1004-
17 04.686 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-0909
17 04.686 NUT; BRKT TO FRAME
DISC BRAKE FRT<J52> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910-1003
17 04.686 NUT; BRKT TO FRAME
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (I) ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 1311-
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2800MM(28W) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1112-
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2800MM(28W) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 0911-1003
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 0907-
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 0907-1003
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1004-1309
18 04.686 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1004-1309
18 04.686 CLIP; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-
18 04.686 CLIP; BRK PIPE
FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-
18 04.686 CLIP; BRK PIPE
HEAVY DUTY FRAME<6WB> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 03 1 0907-
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0907-
18 04.686 CLIP; BRK PIPE
04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 0907-0909
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (F) ID=4.6X2 		8-94241-454-0 01 1 0910-
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0907-
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 07 1 0907-
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0907-0909
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0910-
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 02 1 0907-
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0907-0909
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0907-0909
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0910-1310
18 04.686 CLIP; BRK PIPE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0910-1310
18 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1311-
18 04.686 CLIP; BRK PIPE
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1311-
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 OR 12 & 6.35X2 & 4.76 		8-97326-156-2 01 1 0907-
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 04 1 0907-
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0907-
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0907-
20 04.686 CLIP; BRK PIPE
(B) 		8-94338-104-0 01 1 0907-
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 0907-1003
22 04.686 CLIP; PIPE TO FRAME
EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.785 B=14 L=16 		9-09916-996-0 02 1 1004-
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-0909
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-0909
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0910-
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 0910-
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0907-
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1003
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0907-
68 04.686 BRACKET; CLIP
(D) 		8-98136-287-1 01 1 0907-
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 0907-1003
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-870-2 01 1 1004-
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98090-213-1 01 1 0907-1003
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98090-213-1 01 1 1004-1009
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98178-046-0 01 1 1010-

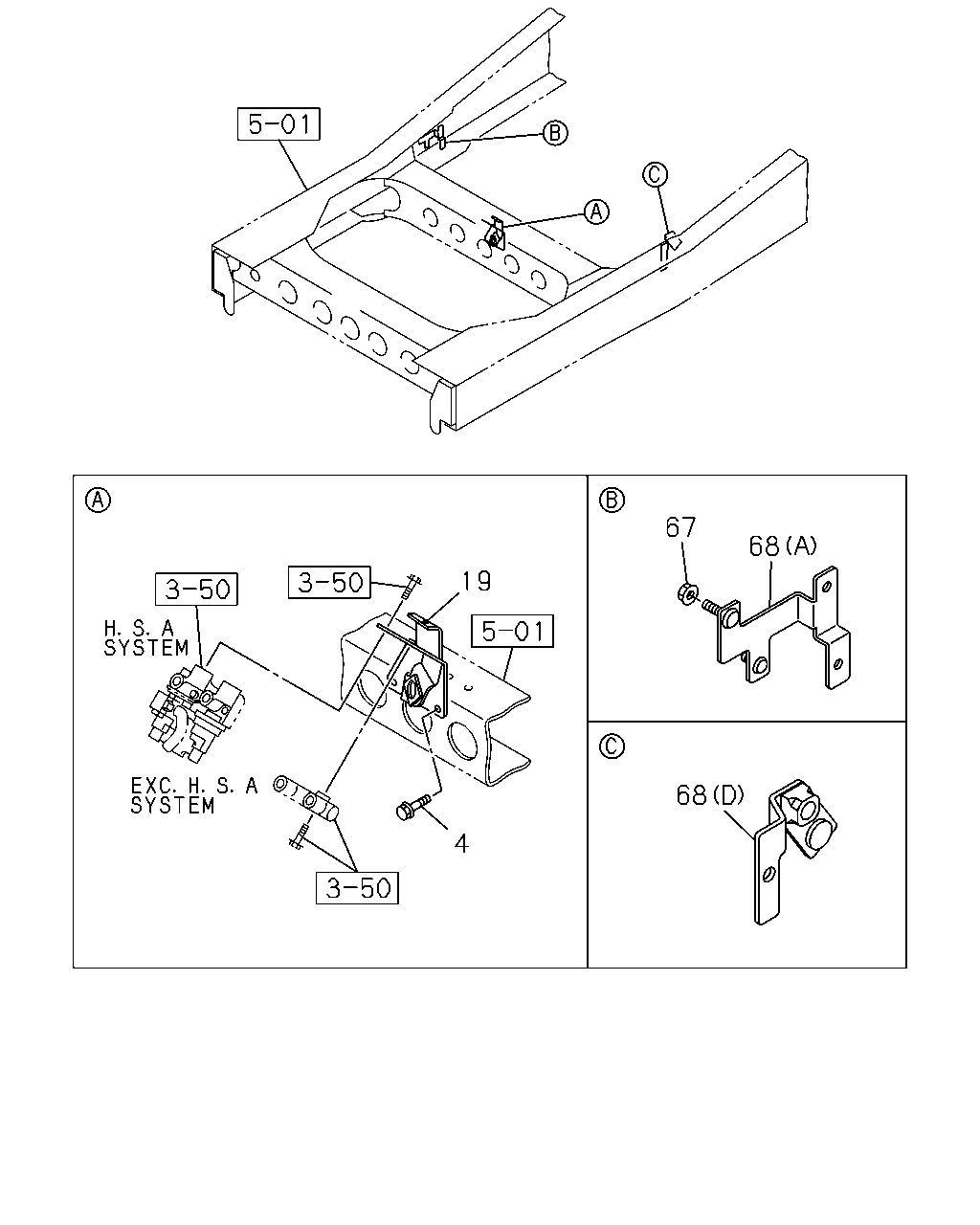

çizim 159705
19 4 67 68 68
BalonParca AdiParca NoAdetTipApplied Date
4 04.686 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0907-
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907-1003
4 04.686 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0907-1003
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1004-
4 04.686 BOLT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1004-
19 04.686 BRACKET; OIL PIPE 8-98009-117-2 01 1 0907-1006
19 04.686 BRACKET; OIL PIPE 8-98162-759-0 01 1 1007-
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1003
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1004-
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0907-
68 04.686 BRACKET; CLIP
(D) 		8-98136-287-1 01 1 0907-
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98060-870-2 01 1 0907-1003
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98060-870-2 01 1 1004-
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98090-213-1 01 1 0907-1003
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-98090-213-1 01 1 1004-1009
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98178-046-0 01 1 1010-
