3-52 — BRAKE PIPING; OIL,FRONT (#52148) — 70 parça

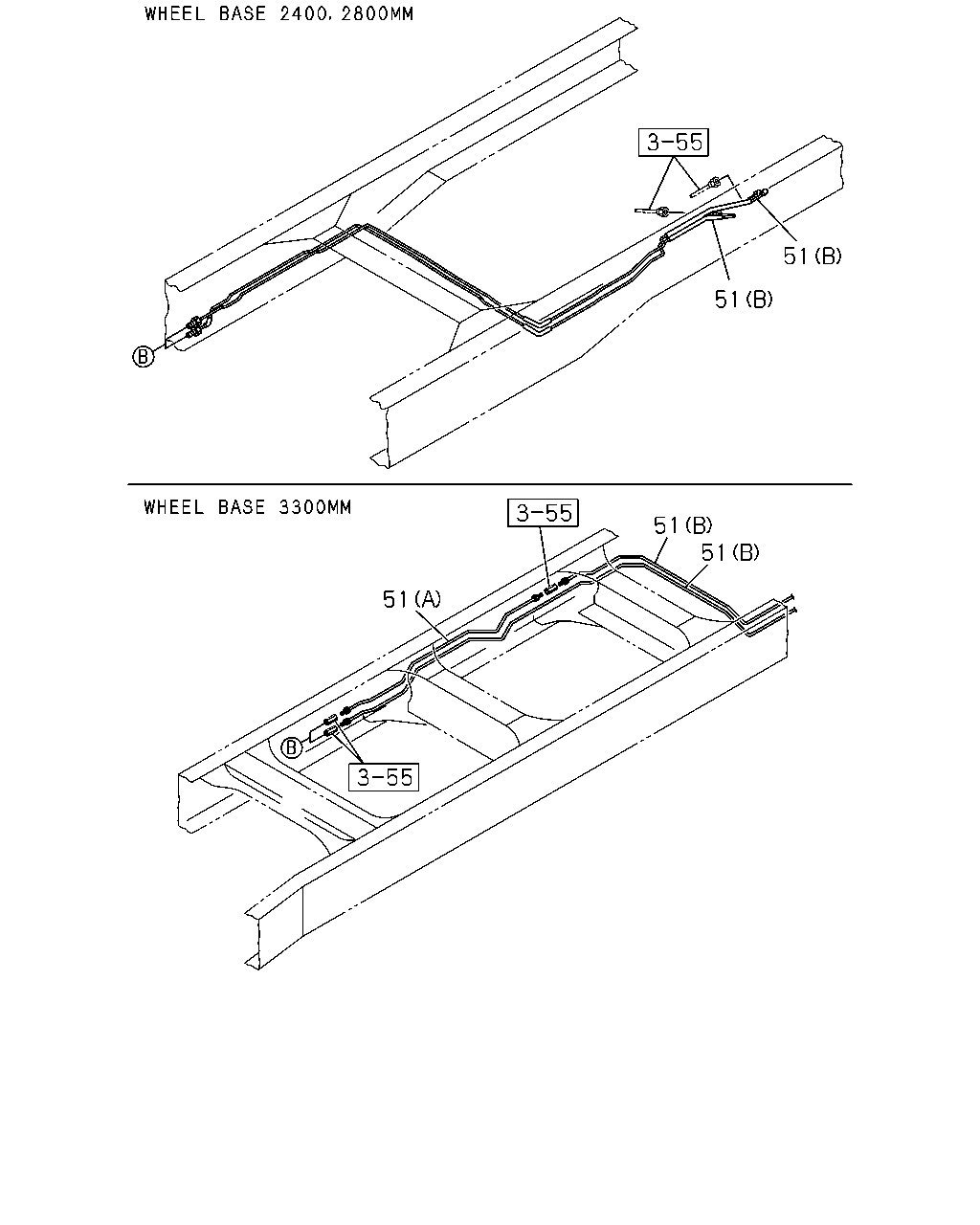

51 51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-516-1	01	1	1112-
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-529-1	01	1	1112-
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-97389-516-1	01	1	0911-1003
51	04.685 PIPE; BRK WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-97389-529-1	01	1	0911-1003
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98012-844-1	01	1	0907-0909
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98012-844-1	01	1	0910-
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98012-845-1	01	1	0907-0909
51	04.685 PIPE; BRK WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98012-845-1	01	1	0910-
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR	8-98061-505-0	01	1	0907-0909
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR	8-98061-505-0	01	1	0910-
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98061-506-0	01	1	0907-0909
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR	8-98061-506-0	01	1	0910-
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) (A) 2WAY TO 2WAY	8-98061-507-0	01	1	0907-0909
51	04.685 PIPE; BRK WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO 2WAY	8-98061-507-0	01	1	0910-

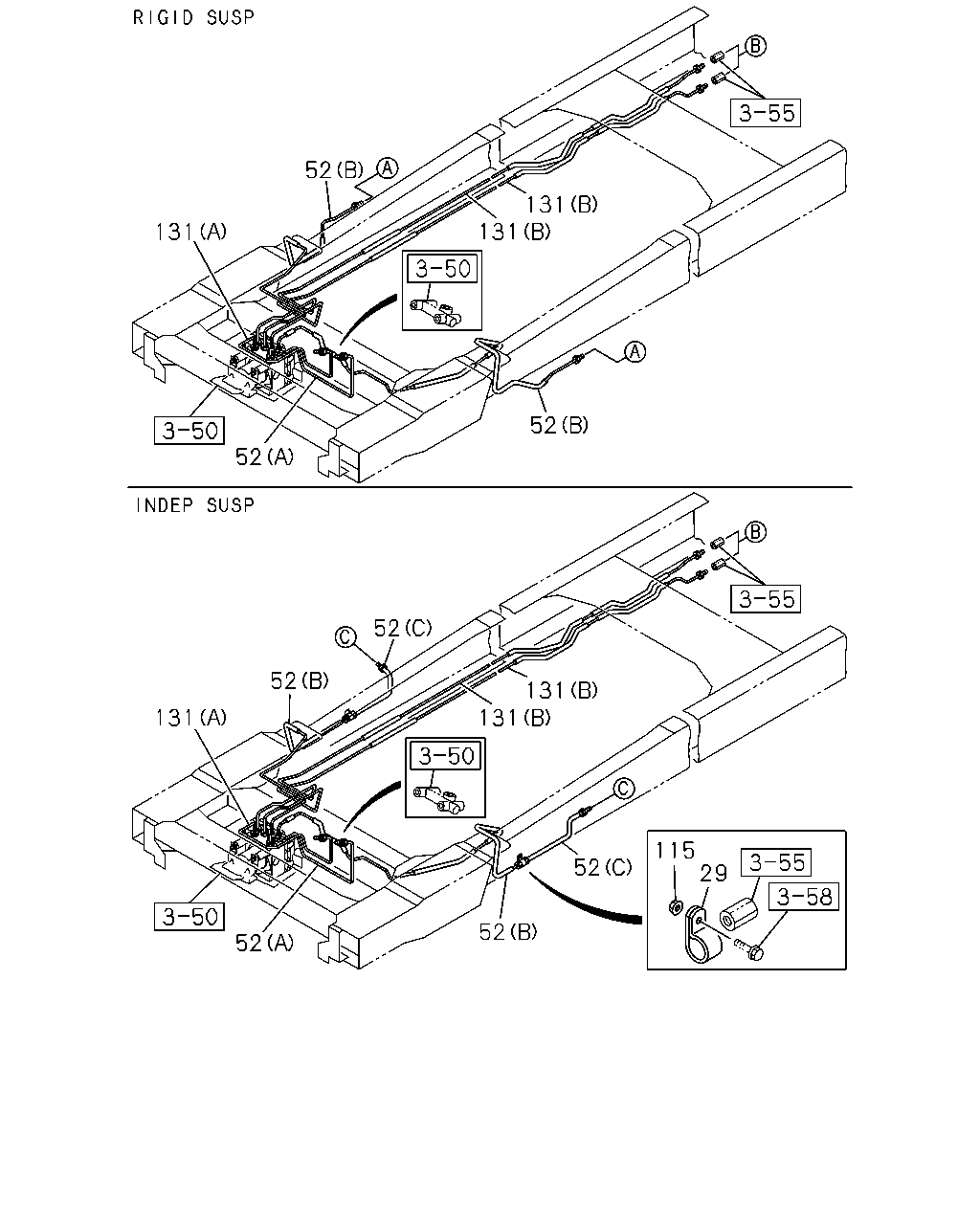

52 131 131 131 52 52 52 52 131 131 52 52 115 29 52 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	04.686 CLIP; UNION FRT INDEPENDENT SUSPENSION(FF0) ID=16 L=20	0-95235-532-0	02	1	1004-
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE	8-98026-082-1	01	1	1004-
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE	8-98026-083-0	01	1	1004-
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-97389-381-0	01	1	1004-
52	04.685 PIPE; BRK FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98074-270-0	01	1	1004-
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-368-1	01	1	0907-0909
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT	8-97389-368-1	01	1	0910-
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-97389-374-1	01	1	0907-0909
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-97389-374-1	01	1	0910-1003
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-97389-374-1	01	1	1004-
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98046-753-0	01	1	0907-0909
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98046-753-0	01	1	0910-1003
52	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98046-753-0	01	1	1004-
115	04.680 NUT; CLIP FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE	0-91180-106-0	02	1	1004-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	0907-0909
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	0910-1003
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	1004-1309
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	1004-1309
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-97389-417-1	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	0907-0909
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	0910-1003
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	1004-1309
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	1004-1309
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVYDUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT HEAVY DUTY FRAME<6WB> 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-97389-422-1	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-97389-371-0	01	1	0907-0909
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR	8-97389-371-0	01	1	0910-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98140-423-0	01	1	0907-0909
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98140-423-0	01	1	0910-1003
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98140-423-0	01	1	1004-1309
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98140-423-0	01	1	1310-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98140-424-0	01	1	0907-0909
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98140-424-0	01	1	0910-1003
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98140-424-0	01	1	1004-1012
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98187-028-0	01	1	1101-1309
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98187-028-0	01	1	1310-

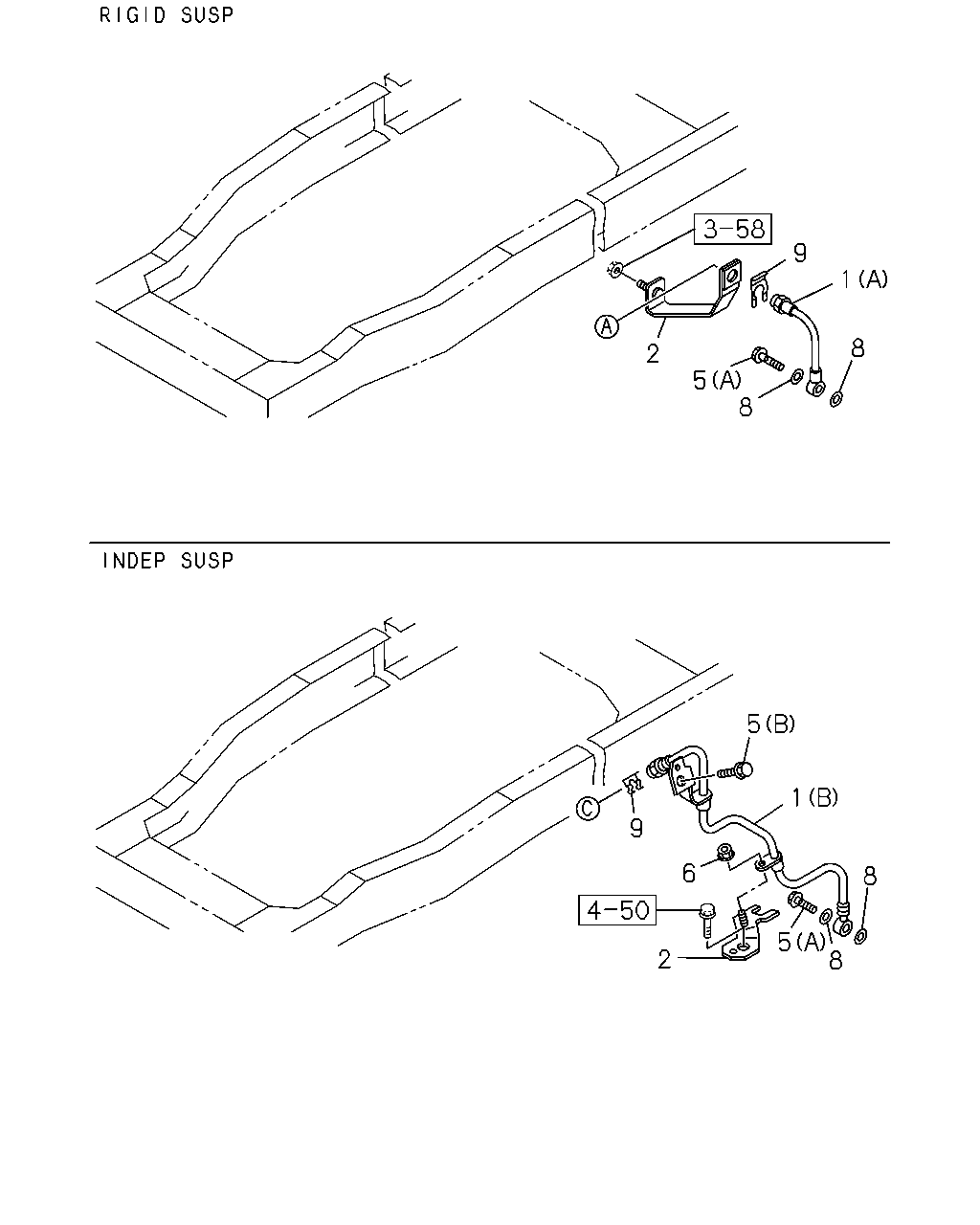

9 8 1 2 5 8 5 1 8 8 5 6 9 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97358-770-3	01	1	1004-
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97358-771-3	01	1	1004-
1	04.680 HOSE; FLEX,FRT BRK (A)	8-97366-925-0	02	1	0907-1003
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97366-925-1	02	1	1004-
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 04.686	8-97369-635-1	01	1	1004-
2	04.681 BRACKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 04.686	8-97369-636-1	01	1	1004-
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97389-691-1	01	1	0907-0909
2	04.681 BRACKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52>	8-97389-691-1	01	1	0910-1003
2	04.681 BRACKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-691-1	01	1	1004-
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97389-692-1	01	1	0907-0909
2	04.681 BRACKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52>	8-97389-692-1	01	1	0910-1003
2	04.681 BRACKET; FLEX HOSE,FRT BRK DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-692-1	01	1	1004-
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1004-
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK (A) M10X22	8-98014-005-0	02	1	0907-
6	04.686 NUT; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1004-
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0907-
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0907-
