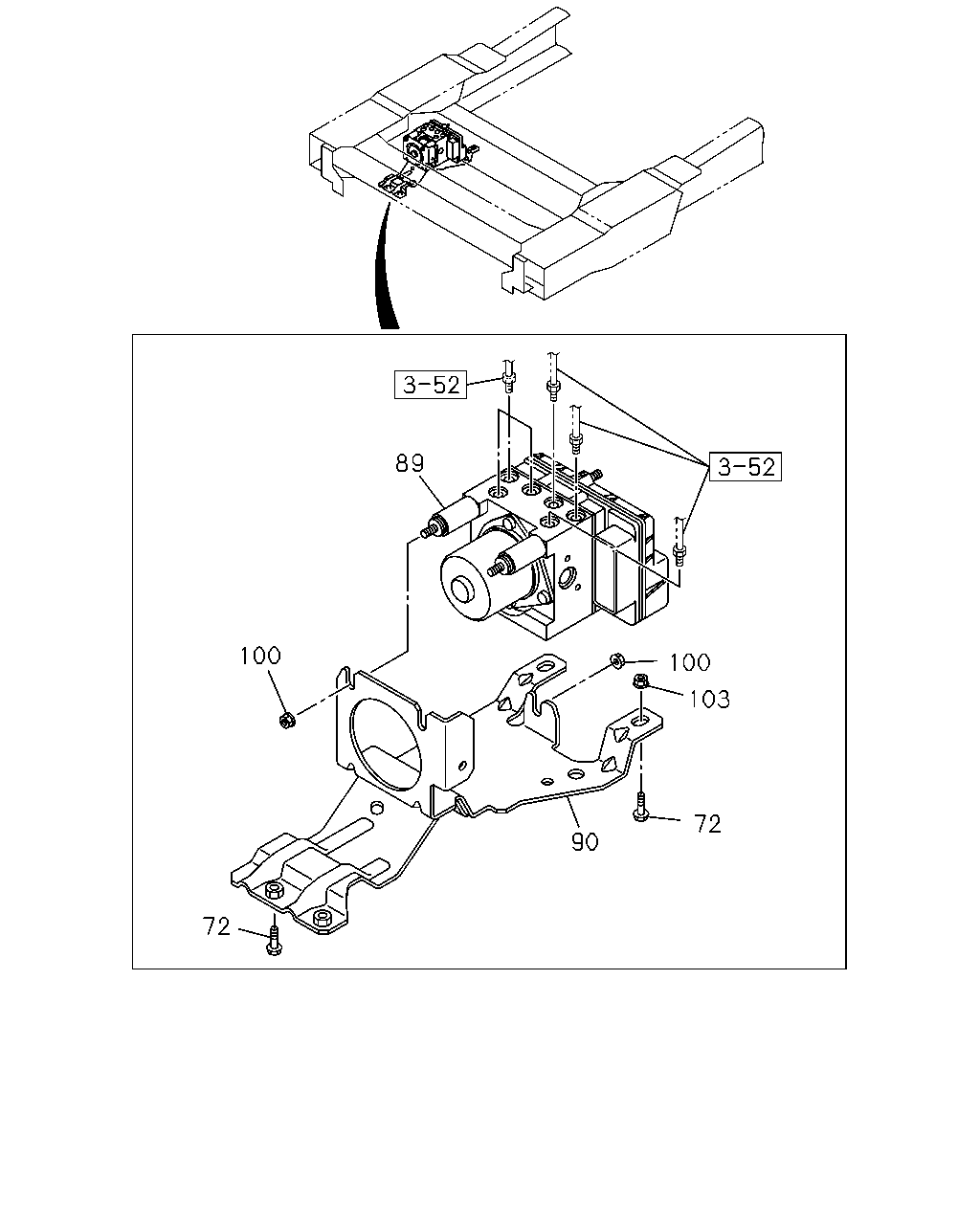

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#52147) — 61 parça

100 103 72 90 72 100 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0907-0909
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0910-
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1011-
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-562-1	01	1	0907-0909
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98081-562-1	01	1	0910-1006
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98158-007-1	01	1	1007-
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97386-355-0	01	1	0907-0909
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97386-355-0	01	1	0910-
100	04.730 NUT; HYDRAULIC UNIT 01.062 M8 FLANGE	0-91180-108-0	03	1	0907-0909
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	03	1	0910-
103	04.730 NUT; HYDRAULIC UNIT BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-0909
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0910-1003
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1004-

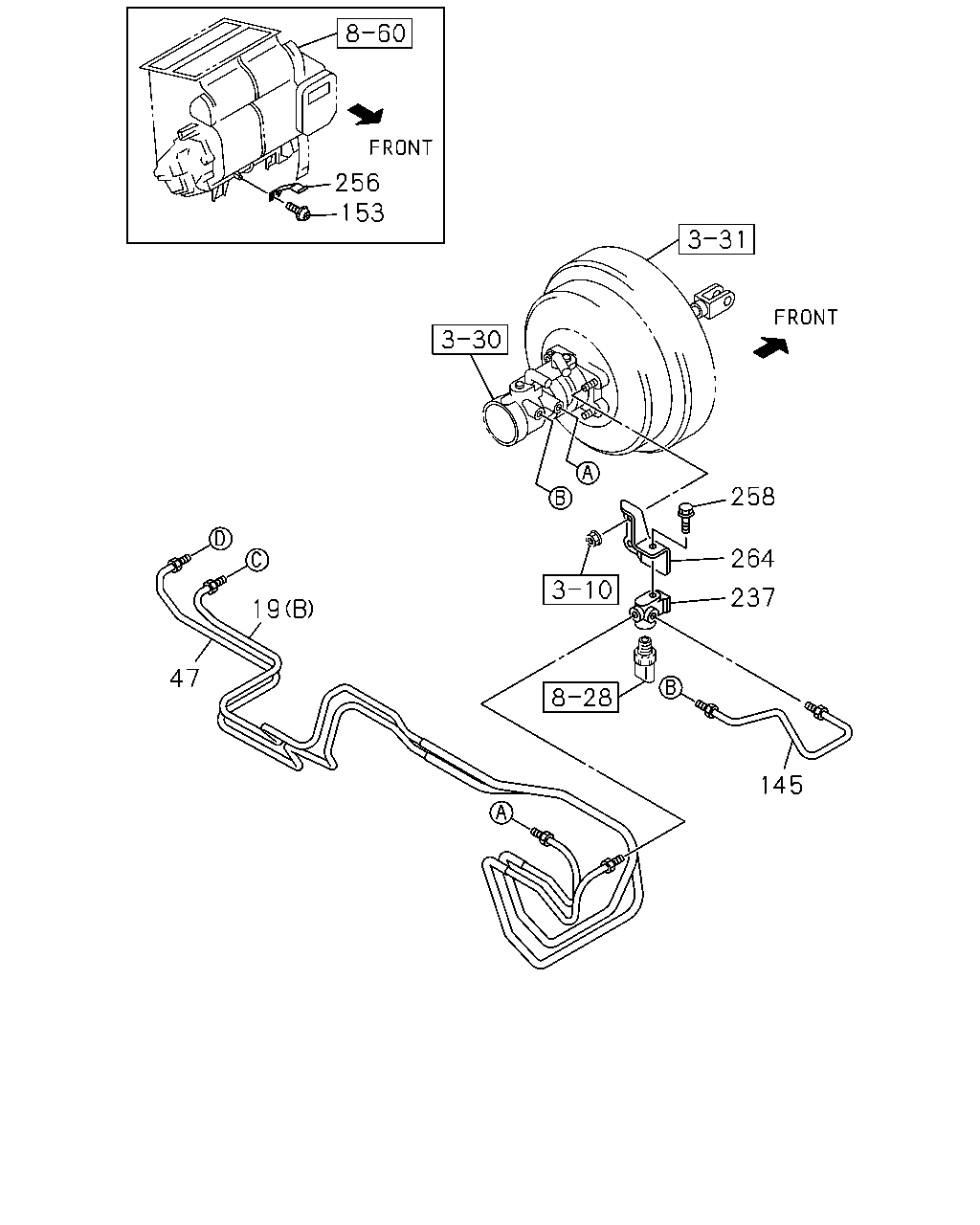

256 153 47 19 237 258 264 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0907-
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0907-
47	04.685 PIPE; OIL,FRT BRK L=1173	8-98133-413-0	01	1	0907-0909
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1173	8-98133-413-0	01	1	0910-
145	04.685 PIPE; BRK,METERING VLV TO UNION L=201	8-98133-407-0	01	1	0907-0909
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> L=201	8-98133-407-0	01	1	0910-
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0907-0909
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0910-1001
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	0907-0909
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	0910-
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98034-784-1	01	1	0907-0909
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98034-784-1	01	1	0910-1001
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98034-784-1	01	1	1002-1005
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0907-0909
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0910-
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0907-0909
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0910-

130 131 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	04.686 BRACKET; SPEED SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98035-633-0	01	1	1004-
130	04.686 BRACKET; SPEED SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98035-634-0	01	1	1004-
130	04.686 BRACKET; SPEED SENSOR (A)	8-97080-060-2	02	1	0907-0909
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	0910-1003
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) (A)	8-97080-060-2	02	1	1004-
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0907-0909
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0910-1003
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1004-

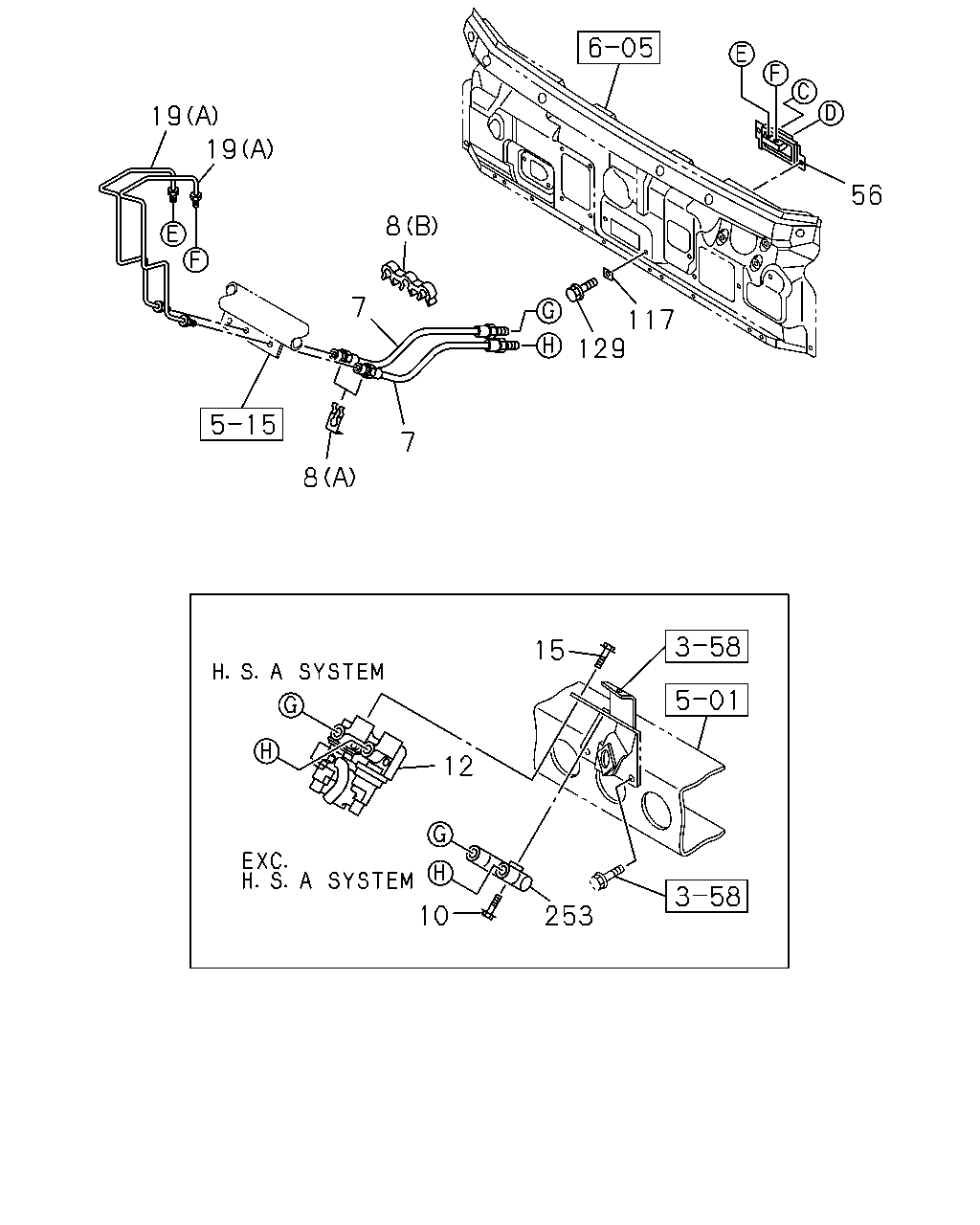

15 12 10 253 8 7 7 19 19 129 117 56 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	0907-
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0907-
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	0907-
10	04.686 BOLT; JOINT EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0907-
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97331-328-2	01	1	0910-1107
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98173-768-0	01	1	1108-
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP>	8-97331-331-2	01	1	0907-0909
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97331-331-2	01	1	0910-1107
12	04.690 VALVE ASM; HSA H.S.A SYSTEM<6EP> 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-364-1	01	1	1108-
15	04.730 BOLT; HSA VALVE H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0907-
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	0907-
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	0907-
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98154-265-1	01	1	1311-
56	04.686 BRACKET; UNION,BRK	8-97389-281-1	01	1	0907-1005
56	04.686 BRACKET; UNION,BRK	8-98154-264-1	01	1	1006-1310
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98154-264-1	01	1	1311-
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0907-
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0907-
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> 04.686	5-47456-009-1	01	1	1109-
253	04.840 JOINT EXC. H.S.A SYSTEM<6EP>	8-97038-940-1	01	1	0907-0909
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP>	8-97038-940-1	01	1	0910-
