3-30 — BRAKE MASTER CYLINDER (#52145) — 63 parça

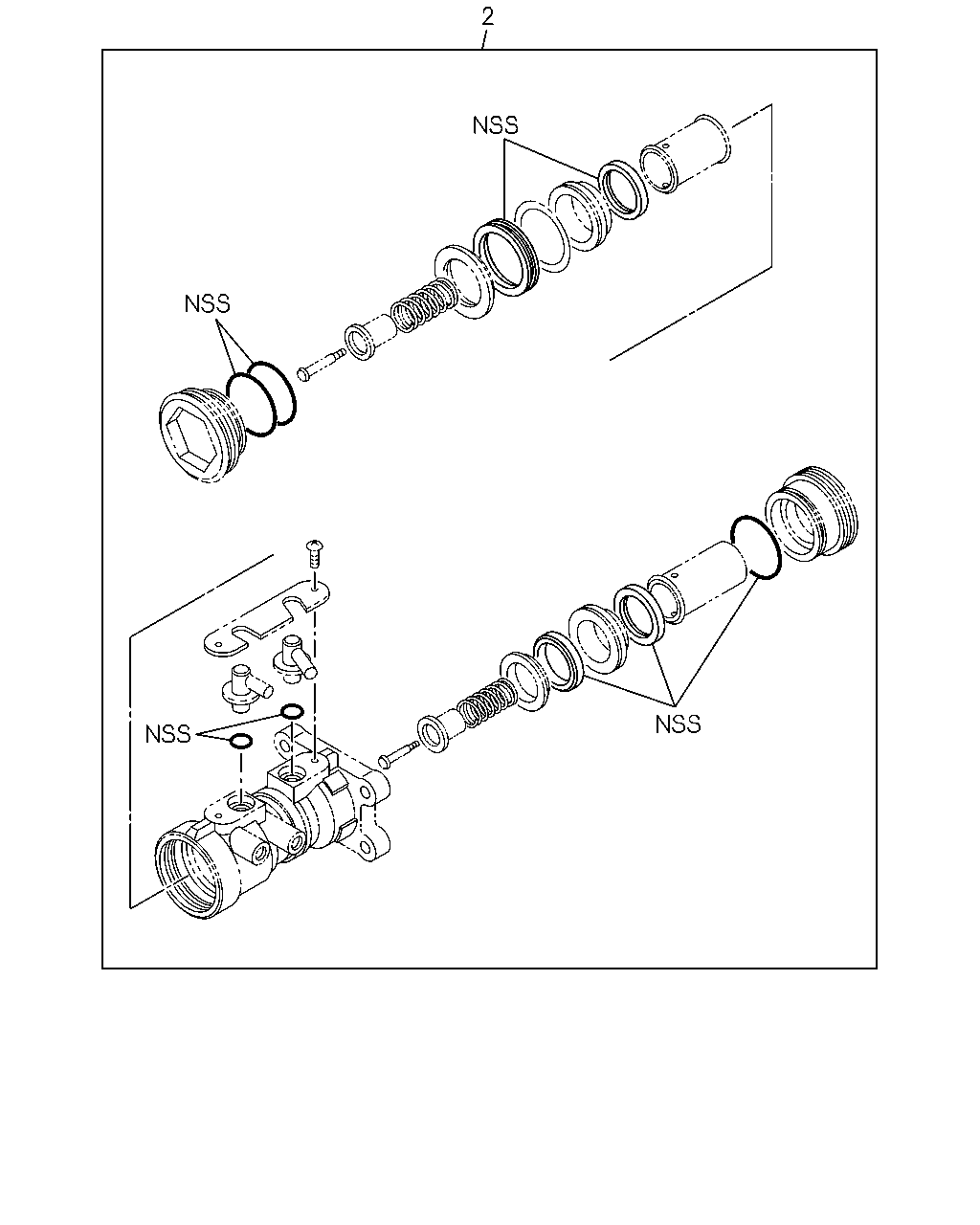

çizim 159699
2
BalonParca AdiParca NoAdetTipApplied Date
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 0910-1003
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 1004-
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0907-0909
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> 		8-97130-471-0 01 1 0910-1003
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97130-471-0 01 1 1004-
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-471-0 01 1 1004-

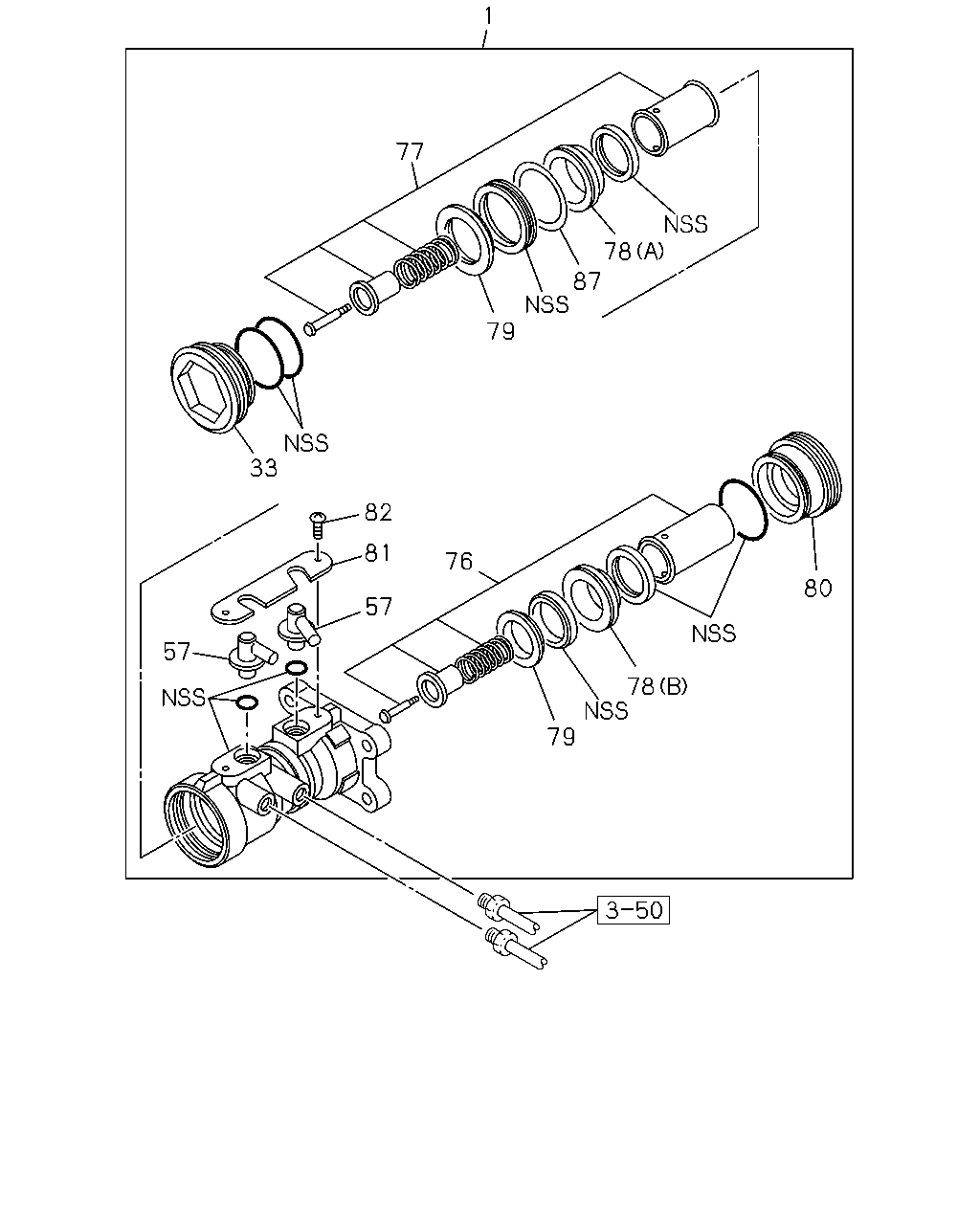

çizim 159718
78 1 77 79 87 80 78 79 76 57 82 33 81 57
BalonParca AdiParca NoAdetTipApplied Date
1 04.650 CYLINDER ASM; BRK MASTER
EXC. DISC BRAKE FRT<J52> 		8-98032-599-0 01 1 0910-1003
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-98032-599-0 01 1 1004-
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-600-0 01 1 0907-0909
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> 		8-98032-600-0 01 1 0910-1003
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-98032-600-0 01 1 1004-
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-600-0 01 1 1004-
33 04.661 PLUG; END,M/CYL
EXC. DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 0910-1003
33 04.661 PLUG; END,M/CYL
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 1004-
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0907-0909
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> 		8-97186-697-0 01 1 0910-1003
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97186-697-0 01 1 1004-
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-697-0 01 1 1004-
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0907-
76 04.653 PISTON ASM; PRIMARY
EXC. DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 0910-1003
76 04.653 PISTON ASM; PRIMARY
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 1004-
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0907-0909
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> 		8-97224-643-0 01 1 0910-1003
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97224-643-0 01 1 1004-
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-643-0 01 1 1004-
77 04.653 PISTON ASM; SECONDARY
EXC. DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 0910-1003
77 04.653 PISTON ASM; SECONDARY
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 1004-
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0907-0909
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> 		8-97224-642-0 01 1 0910-1003
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97224-642-0 01 1 1004-
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-642-0 01 1 1004-
78 04.651 BUSHING; MASTER CYL
EXC. DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 0910-1003
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 1004-
78 04.651 BUSHING; MASTER CYL
EXC. DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 0910-1003
78 04.651 BUSHING; MASTER CYL
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 1004-
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0907-0909
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> (A) 		8-97130-455-0 01 1 0910-1003
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) (A) 		8-97130-455-0 01 1 1004-
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-455-0 01 1 1004-
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0907-0909
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> (B) 		8-97217-312-0 01 1 0910-1003
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) (B) 		8-97217-312-0 01 1 1004-
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-312-0 01 1 1004-
79 04.651 SUPPORTER; CUP
EXC. DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 0910-1003
79 04.651 SUPPORTER; CUP
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 1004-
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0907-0909
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> 		8-97130-463-0 02 1 0910-1003
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97130-463-0 02 1 1004-
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-463-0 02 1 1004-
80 04.651 COVER; MASTER CYL
EXC. DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 0910-1003
80 04.651 COVER; MASTER CYL
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 1004-
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0907-0909
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> 		8-97130-449-0 01 1 0910-1003
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97130-449-0 01 1 1004-
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-449-0 01 1 1004-
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0907-
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0907-
87 04.662 SPACER; CUP
EXC. DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 0910-1003
87 04.662 SPACER; CUP
G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 1004-
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0907-0909
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> 		8-97130-459-0 01 1 0910-1003
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(FF0) G.V.W. 5.5-6.0TON(RPU) 		8-97130-459-0 01 1 1004-
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> G.V.W. 5.0-5.5TON(RPT) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-459-0 01 1 1004-
