◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#52143) — 48 parça

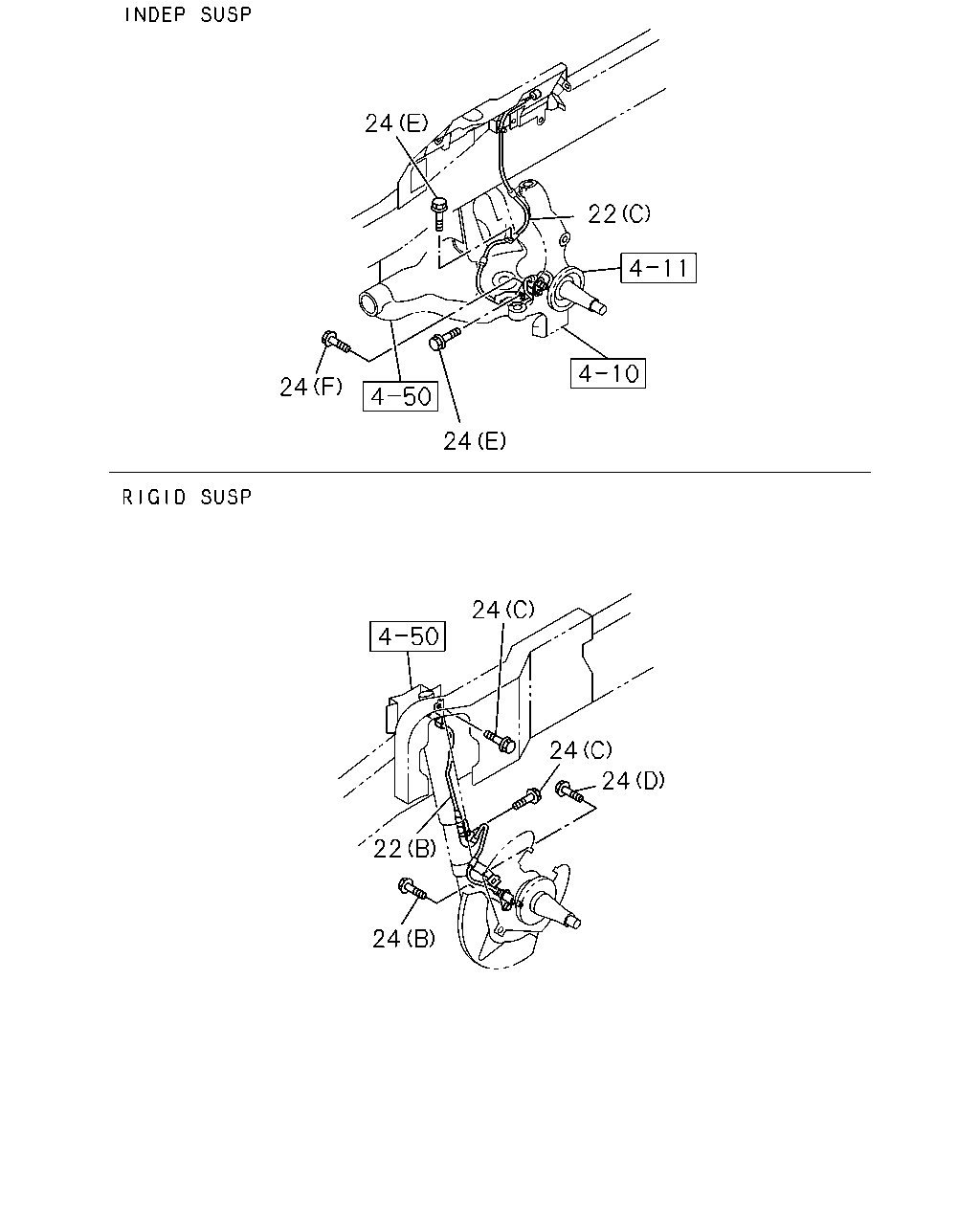

çizim 159652
24 22 24 24 24 24 24 22 24
BalonParca AdiParca NoAdetTipApplied Date
22 04.710 SENSOR; SPEED
EXC. REAR WIDE TREAD(V4T) (A) 		8-98244-877-0 02 1 1402-
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 0907-1401
22 04.710 SENSOR; SPEED
REAR WIDE TREAD(V4T) (A) 		8-98219-351-0 02 1 1402-
22 04.710 SENSOR; SPEED
(B) 		8-98001-127-1 01 1 0907-1003
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-127-1 01 1 1004-
22 04.710 SENSOR; SPEED
(B) 		8-98001-128-1 01 1 0907-1003
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-128-1 01 1 1004-
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C) 		8-98001-470-1 01 1 1004-
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C) 		8-98001-471-2 01 1 1004-
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402-
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1004-1310
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311-
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1004-
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1004-
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1004-
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (E) M8X12 FLANGE 		0-28050-812-0 04 1 1004-
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE 		0-28050-612-0 02 1 1004-1409
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 04.686 (F) M6X14 FLANGE 		0-28080-614-0 02 1 1410-

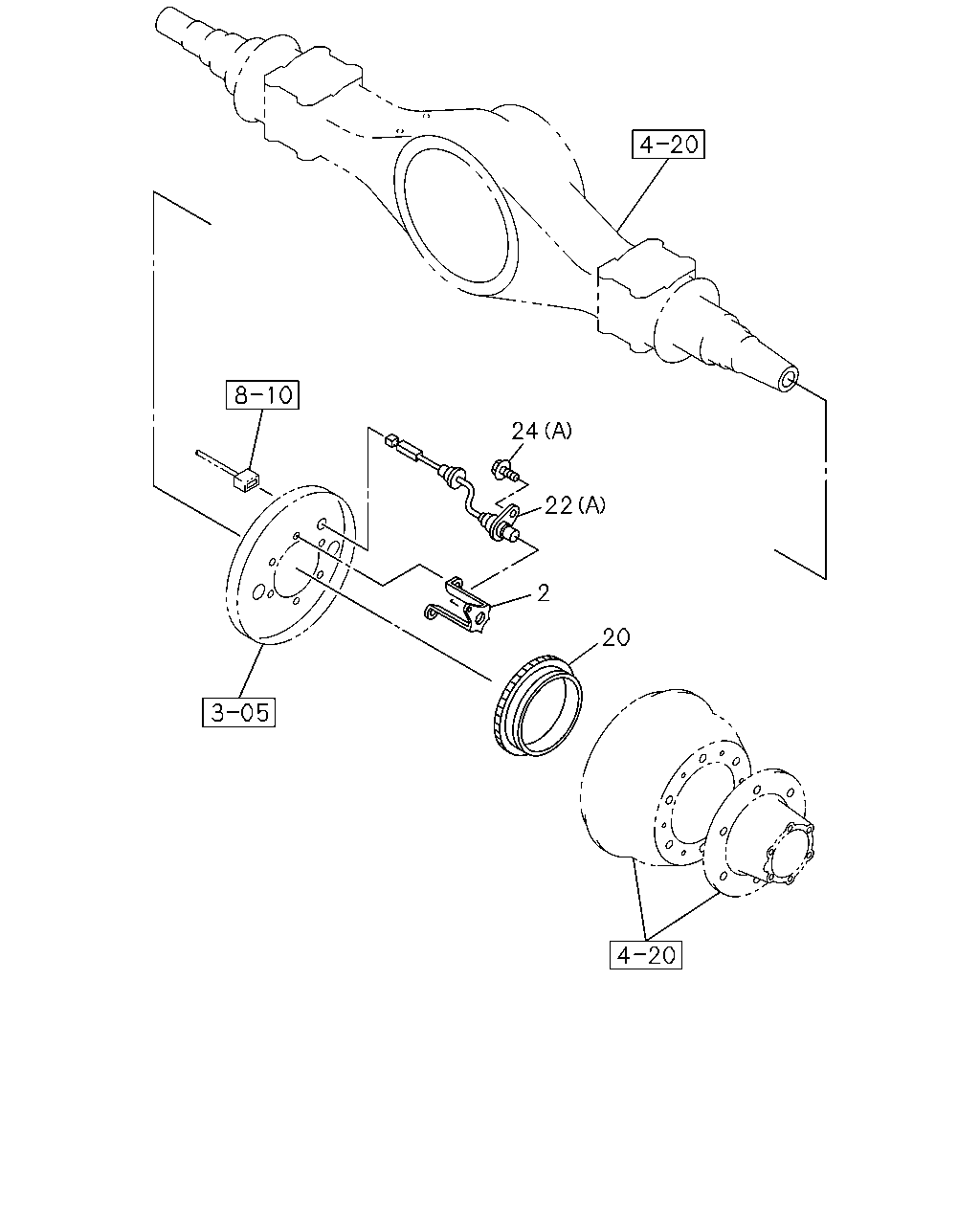

çizim 159668
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date
2 04.730 BRACKET; SENSOR 8-98000-019-2 02 1 0907-
20 04.710 ROTOR; SENSOR 8-97234-459-3 02 1 0907-
22 04.710 SENSOR; SPEED
EXC. REAR WIDE TREAD(V4T) (A) 		8-98244-877-0 02 1 1402-
22 04.710 SENSOR; SPEED
(A) 		8-97388-899-1 02 1 0907-1401
22 04.710 SENSOR; SPEED
REAR WIDE TREAD(V4T) (A) 		8-98219-351-0 02 1 1402-
22 04.710 SENSOR; SPEED
(B) 		8-98001-127-1 01 1 0907-1003
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-127-1 01 1 1004-
22 04.710 SENSOR; SPEED
(B) 		8-98001-128-1 01 1 0907-1003
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98001-128-1 01 1 1004-
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C) 		8-98001-470-1 01 1 1004-
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(FF0) 05.811 (C) 		8-98001-471-2 01 1 1004-
24 04.730 BOLT; SENSOR
03.671 (A) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1401
24 04.730 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 02 1 1402-
24 04.730 BOLT; SENSOR
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1004-1310
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 02 1 1311-
24 04.730 BOLT; SENSOR
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1004-
24 04.730 BOLT; SENSOR
06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (D) M10X12 FLANGE 		0-28051-012-0 02 1 1004-
24 04.730 BOLT; SENSOR
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0907-1003
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1004-
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (E) M8X12 FLANGE 		0-28050-812-0 04 1 1004-
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 03.162 (F) M6X12 FLANGE 		0-28050-612-0 02 1 1004-1409
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 04.686 (F) M6X14 FLANGE 		0-28080-614-0 02 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
