◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#52142) — 87 parça

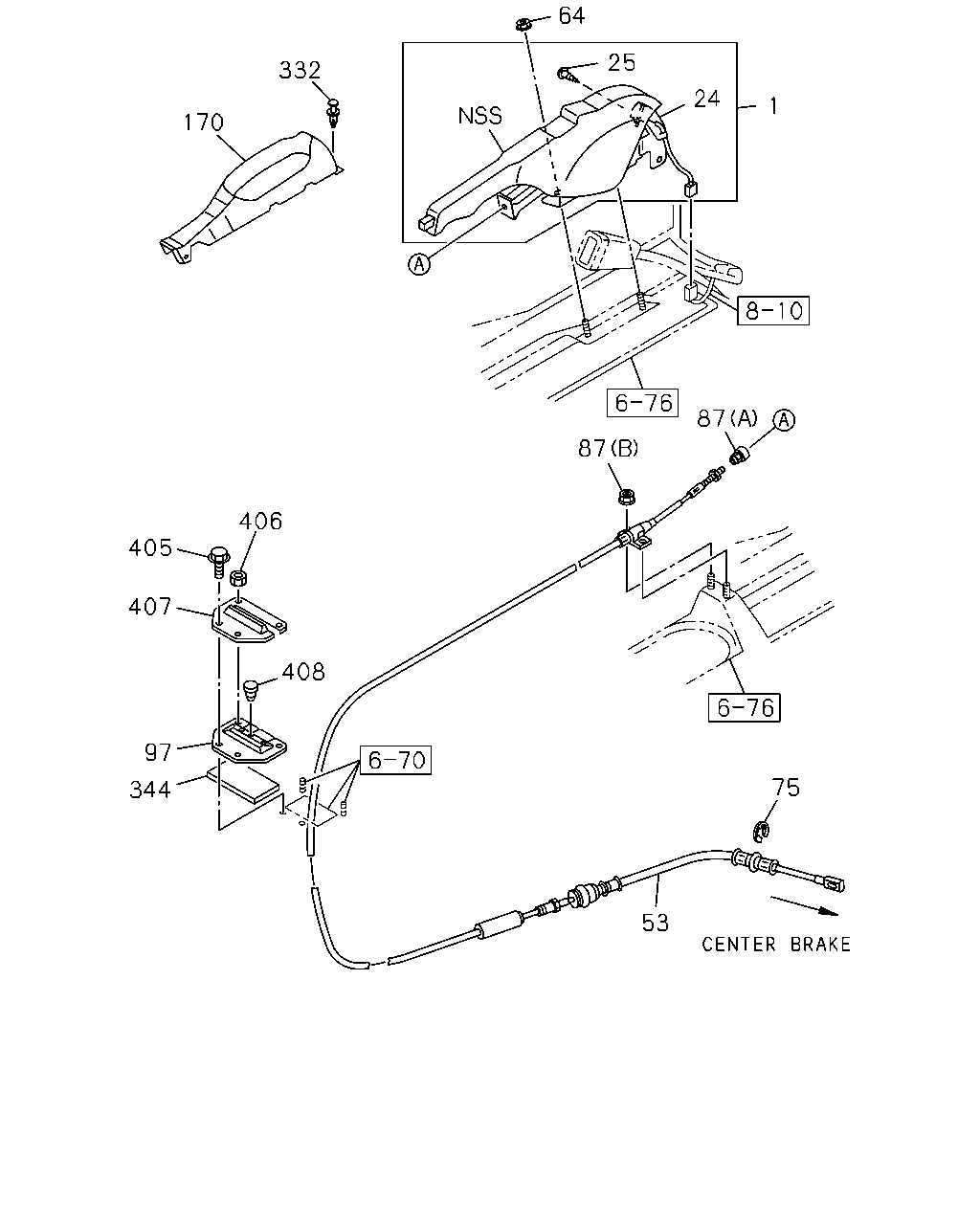

çizim 159649
170 332 64 25 24 1 405 407 406 408 97 344 87 87 75 53
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 0907-1303
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304-
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0907-1303
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304-
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0907-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-832-3 01 1 1311-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-834-3 01 1 1311-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98102-912-0 01 1 0907-1310
53 04.779 CABLE; PARK BRK,FRT LWR 8-98102-912-0 01 1 1311-1311
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98102-912-0 01 1 1311-
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0907-
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0907-
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1311-
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0907-
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0907-
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 0907-
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 0907-
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 0907-
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0907-
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0907-
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0907-
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 1311-

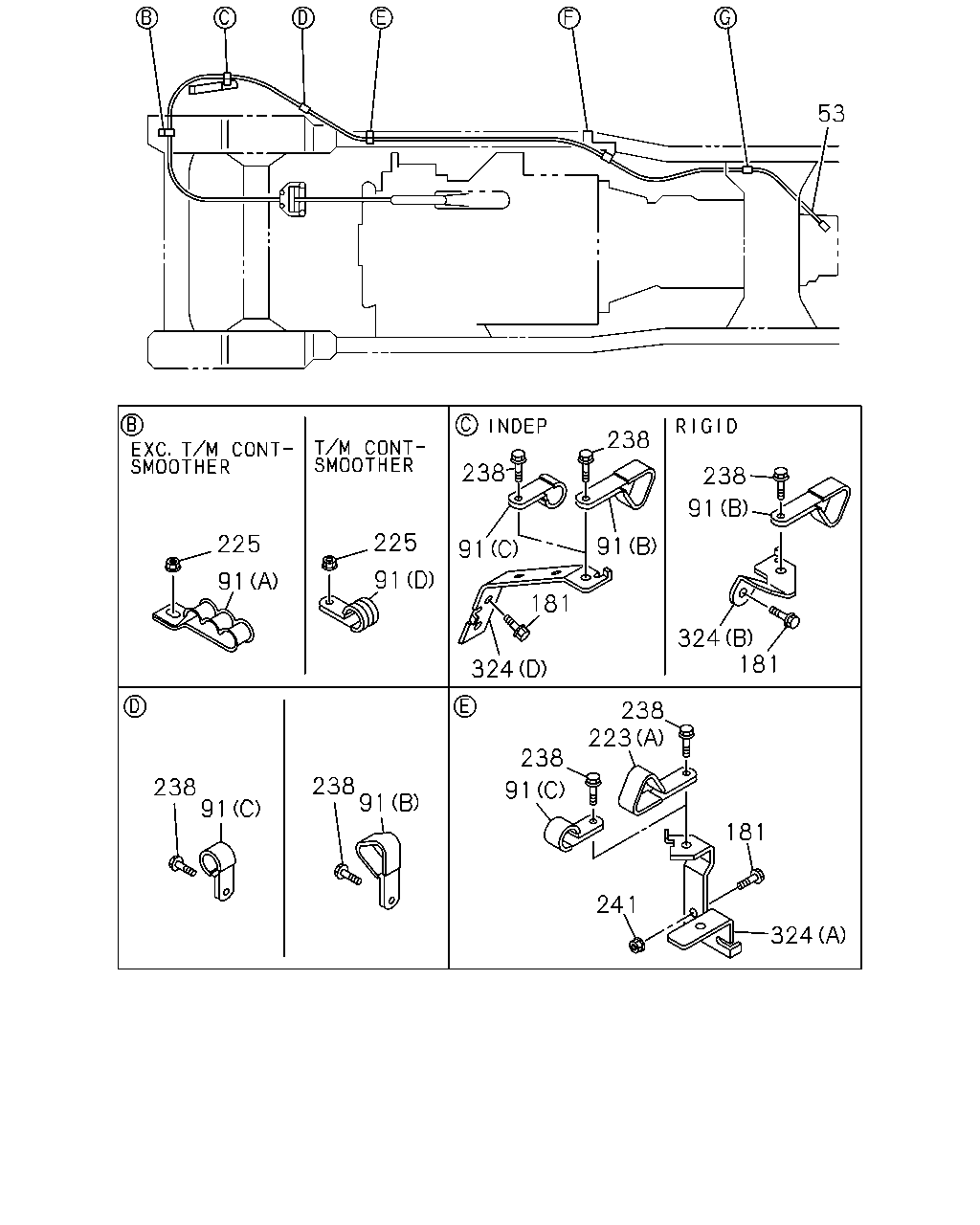

çizim 159656
53 225 91 225 91 238 91 181 324 238 91 238 91 324 181 238 91 238 91 238 91 238 223 181 241 324
BalonParca AdiParca NoAdetTipApplied Date
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-832-3 01 1 1311-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-834-3 01 1 1311-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98102-912-0 01 1 0907-1310
53 04.779 CABLE; PARK BRK,FRT LWR 8-98102-912-0 01 1 1311-1311
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98102-912-0 01 1 1311-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 01 1 1311-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28 		0-95235-255-0 02 1 1311-
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (D) ID=19 L=32 		1-09701-235-0 01 1 1311-
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-333-1 02 1 0907-1310
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-97036-333-1 02 1 1311-
91 04.785 CLIP; PARKING BRK CABLE
(A) 		8-98023-622-0 01 1 0907-1310
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98023-622-0 01 1 1311-
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0907-1003
181 04.785 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1004-
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-1003
181 04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1004-
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1004-
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (B) ID=13 L=20 		1-09701-138-1 01 1 1311-
223 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0907-1310
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1311-
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0907-
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98038-563-0 01 1 1311-
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-783-1 01 1 1004-
324 04.785 BRACKET
(A) 		8-98003-642-1 01 1 0907-
324 04.785 BRACKET
(C) 		8-98026-099-2 01 1 0907-1310
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 1311-
324 04.785 BRACKET
(B) 		8-98034-115-0 01 1 0907-1003
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98034-115-0 01 1 1004-

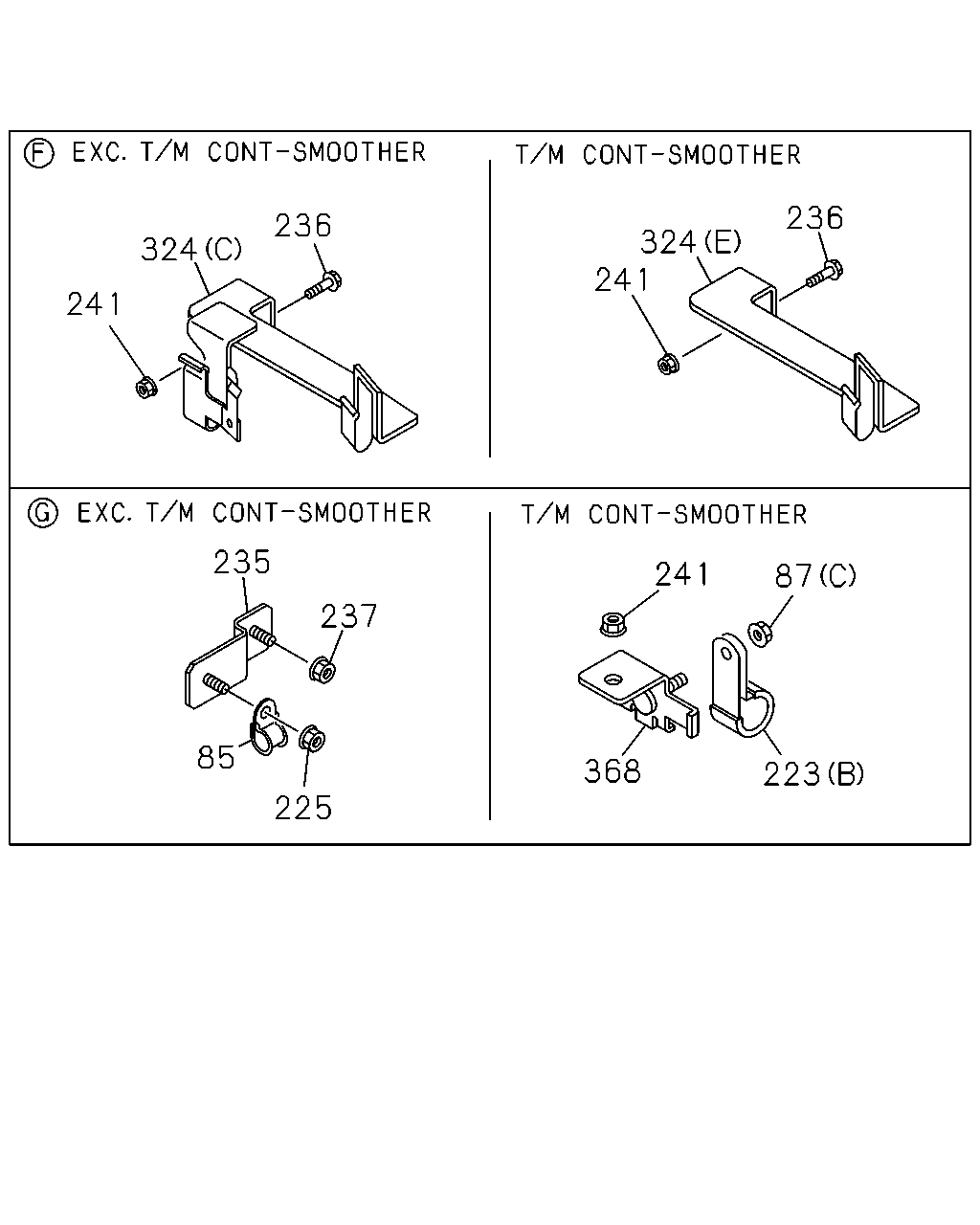

çizim 385528
324 236 241 241 324 236 235 237 85 225 241 87 368 223
BalonParca AdiParca NoAdetTipApplied Date
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0907-1310
85 04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20 		1-09701-012-0 01 1 1311-
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1311-
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0907-
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0907-
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (B) ID=13 L=20 		1-09701-138-1 01 1 1311-
223 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0907-1310
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1311-
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) 		8-98034-352-0 01 1 0907-1310
235 04.785 BRACKET; CONT CABLE TO FRAME 8-98034-352-0 01 1 1311-1311
235 04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98034-352-0 01 1 1311-
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
237 04.785 NUT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1310
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1311-
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98038-563-0 01 1 1311-
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D) 		8-98032-783-1 01 1 1004-
324 04.785 BRACKET
(A) 		8-98003-642-1 01 1 0907-
324 04.785 BRACKET
(C) 		8-98026-099-2 01 1 0907-1310
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98026-099-2 01 1 1311-
324 04.785 BRACKET
(B) 		8-98034-115-0 01 1 0907-1003
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98034-115-0 01 1 1004-
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 1311-
