Isuzu WW
▶
TRUCKS
▶
NMR
▶
51250 - NMR85(RHD)EURO5
▶
3 - Brakes, Brake System
▶

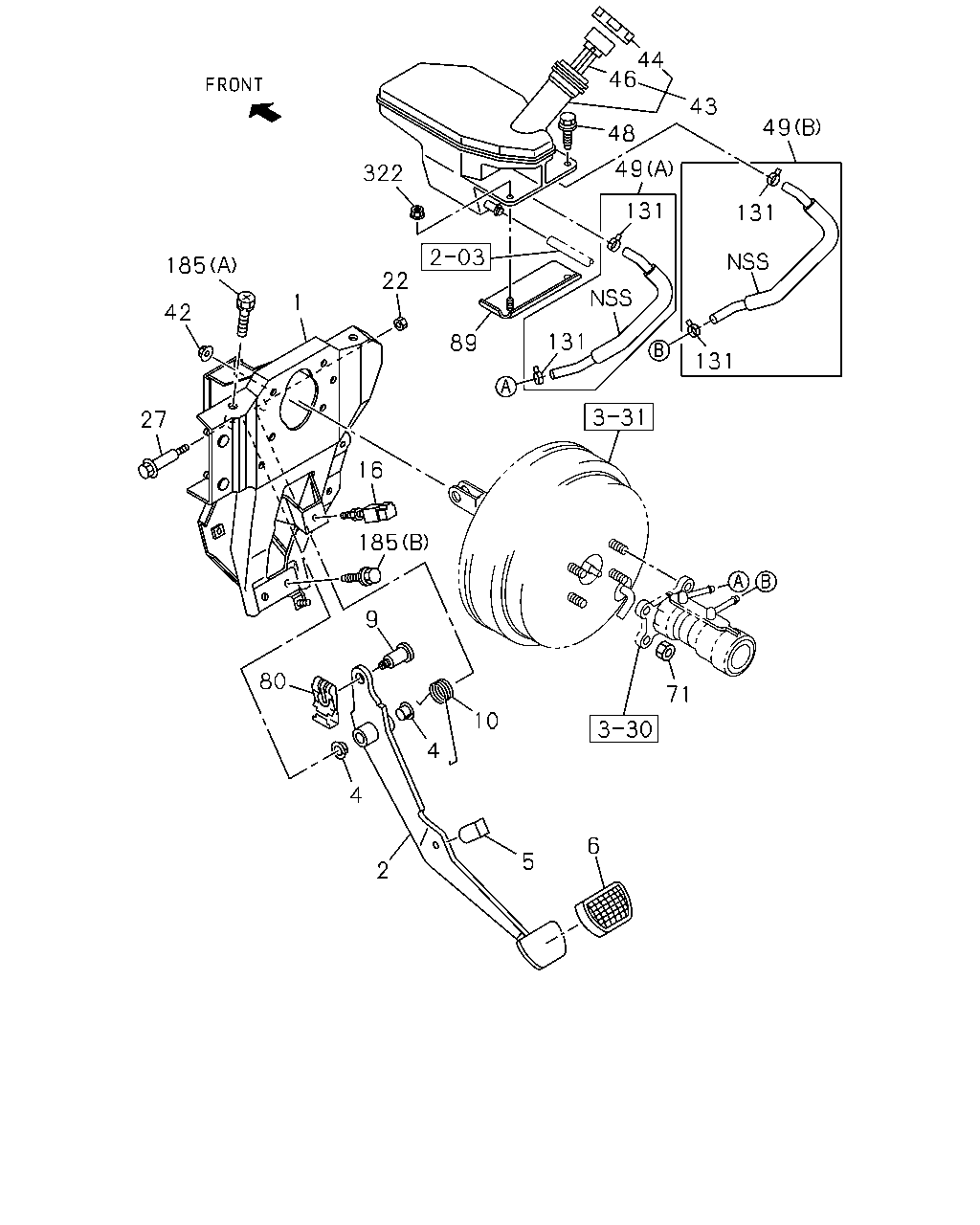

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#52141) — 27 parça
6
5
2
4
4
10
71
131
131
49
43
44
46
48
49
131
322
22
89
185
42
27
1
16
185
9
80
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.634 BRACKET ASM; PEDAL
8-98029-185-1
01
1
0907-
2
04.625 PEDAL; BRK
8-98003-157-0
01
1
0907-
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
0907-
5
04.634 STOPPER; BRK PEDAL
8-98029-187-0
01
1
0907-
6
04.630 COVER; BRK PEDAL
00.829
8-97853-413-2
01
1
0907-
9
04.634 PIN; JAW JOINT
8-97387-230-0
01
1
0907-1007
9
04.634 PIN; JAW JOINT
8-98147-657-0
01
1
1008-
10
04.639 SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0907-
16
02.447 SWITCH; STOP LAMP
8-98000-028-0
01
1
0907-
22
04.634 NUT; SHAFT
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
0907-
27
04.634 SHAFT; BRK PEDAL
8-97866-667-0
01
1
0907-
42
04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
0907-
43
04.651 TANK ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97387-218-3
01
1
1311-
43
04.651 TANK ASM; OIL
8-97387-217-3
01
1
0907-1310
43
04.651 TANK ASM; OIL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97387-217-3
01
1
1311-
44
04.651 CAP; OIL TANK
8-98022-268-0
01
1
0907-
46
04.651 FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
0907-
48
04.651 BOLT; OIL TANK TO BRKT
08.077 M6X20 W/PL WASHER
8-97370-668-0
01
1
0907-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(A)
8-97387-666-1
01
1
0907-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(B)
8-97387-667-1
01
1
0907-
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
0907-
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
0907-
89
04.901 BRACKET; M/CYL
8-98014-337-1
01
1
0907-
131
04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
8-98031-178-0
04
1
0907-
185
04.634 BOLT; BRKT
07.833 (A) M10X25 FLANGE
0-28661-025-0
02
1
0907-
185
04.634 BOLT; BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
02
1
0907-
322
04.651 NUT; OIL TANK
01.062 M6 FLANGE
0-91180-106-0
01
1
0907-
