0-39 — AIR COMPRESSOR; BRAKE (#5214) — 60 parça

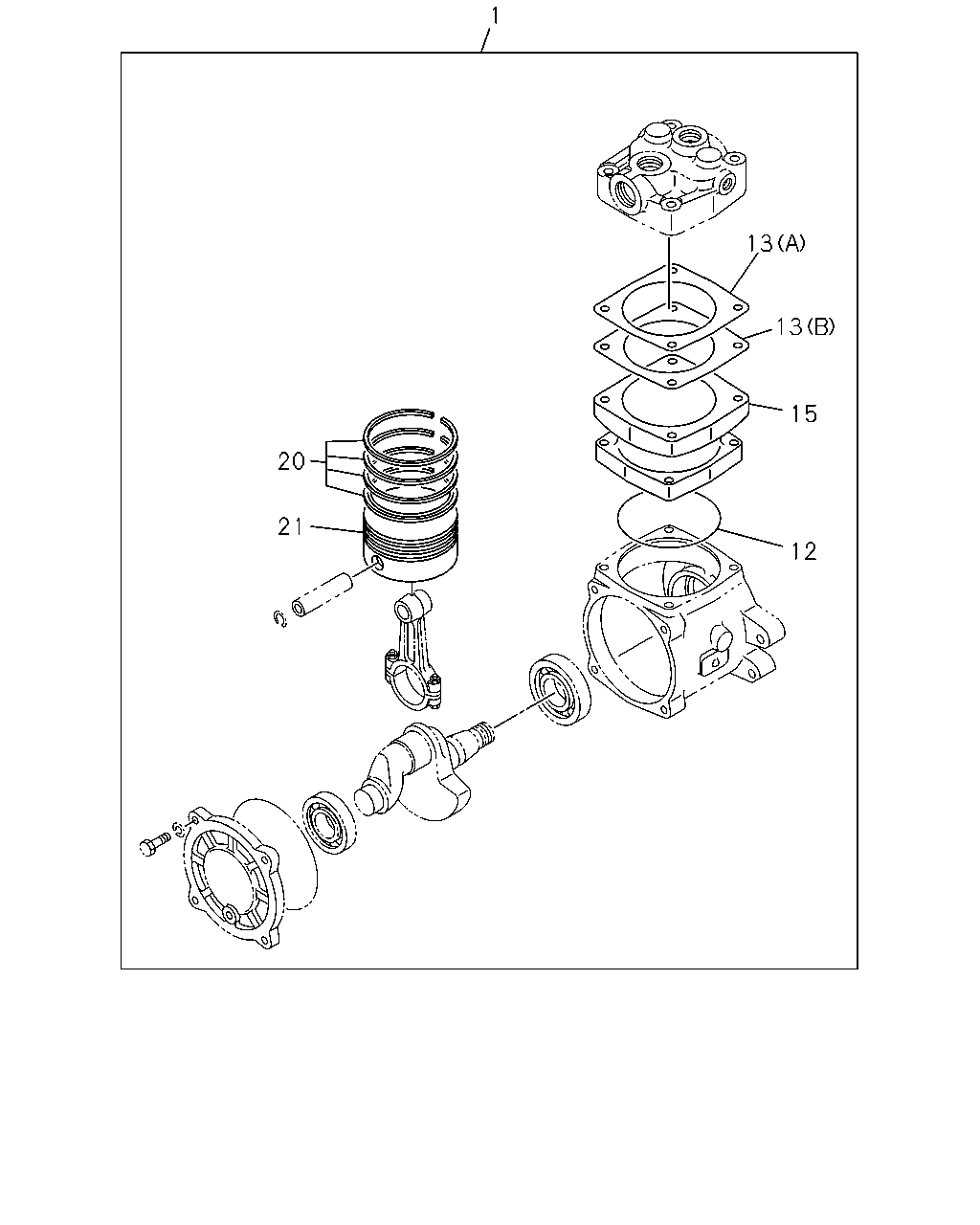

çizim 39695
1 13 13 15 20 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 9604-9904 ●
1 LINER KIT; CYL,AIR CMPR 1-19163-019-0 01 1 9905- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9604-9904 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9905- ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-021-0 02 1 9905- ● ●
13 GASKET; AIR CMPR
(B) CYLINDER SIDE 		1-19139-002-0 01 1 9604-9904 ●
13 GASKET; AIR CMPR
(B) CYLINDER SIDE ID=14.5 		1-19139-003-0 01 1 9905- ● ●
13 GASKET; AIR CMPR
(A) CYLINDER HEAD SIDE T=0.8 		1-19139-004-0 01 1 9604-9904 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9604-9904 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9905- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9604-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-021-0 01 1 9905- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9604-9904 ●
21 PISTON; AIR CMPR 1-19161-009-0 01 1 9905- ● ●

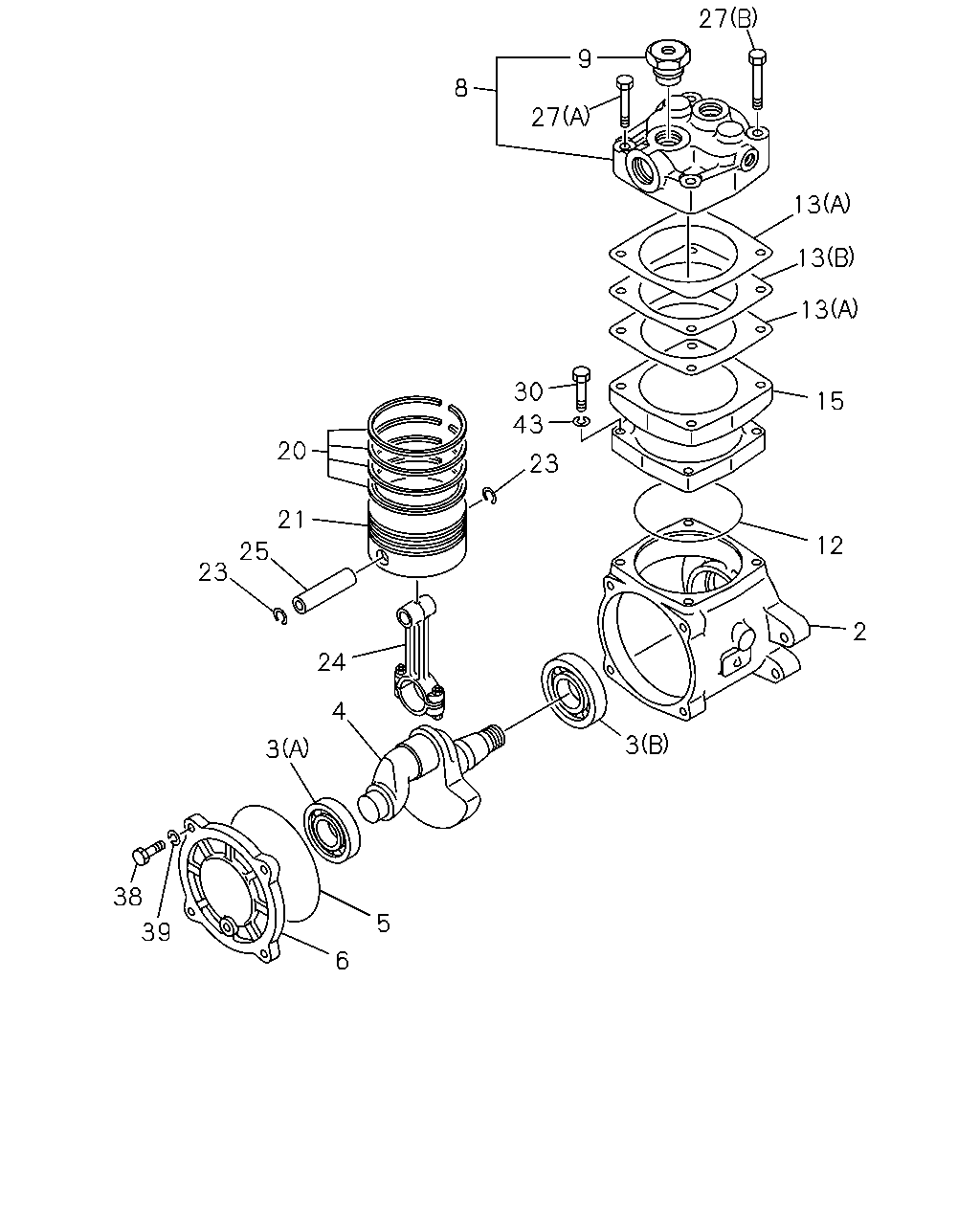

çizim 42347
27 9 8 27 13 13 13 30 15 43 20 23 21 12 25 23 2 24 4 3 3 38 5 39 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-220-0 01 1 9604-9904 ●
2 CRANKCASE; AIR CMPR 1-19151-220-0 01 1 9905- ● ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9604-9904 ●
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 9905- ● ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9604-9904 ●
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 9905- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 9604-9904 ●
4 CRANKSHAFT; AIR CMPR 1-19171-031-0 01 1 9905- ● ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9604-9904 ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 9905- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9604-9904 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 9905- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-048-1 01 1 9604-9904 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-048-1 01 1 9905- ● ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9604-9904 ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 9905- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9604-9904 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9905- ● ●
13 GASKET; AIR CMPR
(A) 		1-19139-021-0 02 1 9905- ● ●
13 GASKET; AIR CMPR
(B) CYLINDER SIDE 		1-19139-002-0 01 1 9604-9904 ●
13 GASKET; AIR CMPR
(B) CYLINDER SIDE ID=14.5 		1-19139-003-0 01 1 9905- ● ●
13 GASKET; AIR CMPR
(A) CYLINDER HEAD SIDE T=0.8 		1-19139-004-0 01 1 9604-9904 ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 9604-9904 ●
15 CYLINDER; AIR CMPR 1-19151-219-0 01 1 9905- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9604-9904 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-021-0 01 1 9905- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9604-9904 ●
21 PISTON; AIR CMPR 1-19161-009-0 01 1 9905- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9604-9904 ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 9905- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9604-9904 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 9905- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9604-9904 ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9905- ● ●
27 BOLT; HD
(A) M10X45 		9-01066-045-0 02 1 9604-9904 ●
27 BOLT; HD
(A) M10X45 		9-01066-045-0 02 1 9905- ● ●
27 BOLT; HD
(B) M10X60 		9-01066-060-0 02 1 9604-9904 ●
27 BOLT; HD
(B) M10X60 		9-01066-060-0 02 1 9905- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9604-9904 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9905- ● ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9604-9904 ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 9905- ● ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9604-9904 ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 9905- ● ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9604-9904 ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9905- ● ●
