◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#52139) — 119 parça

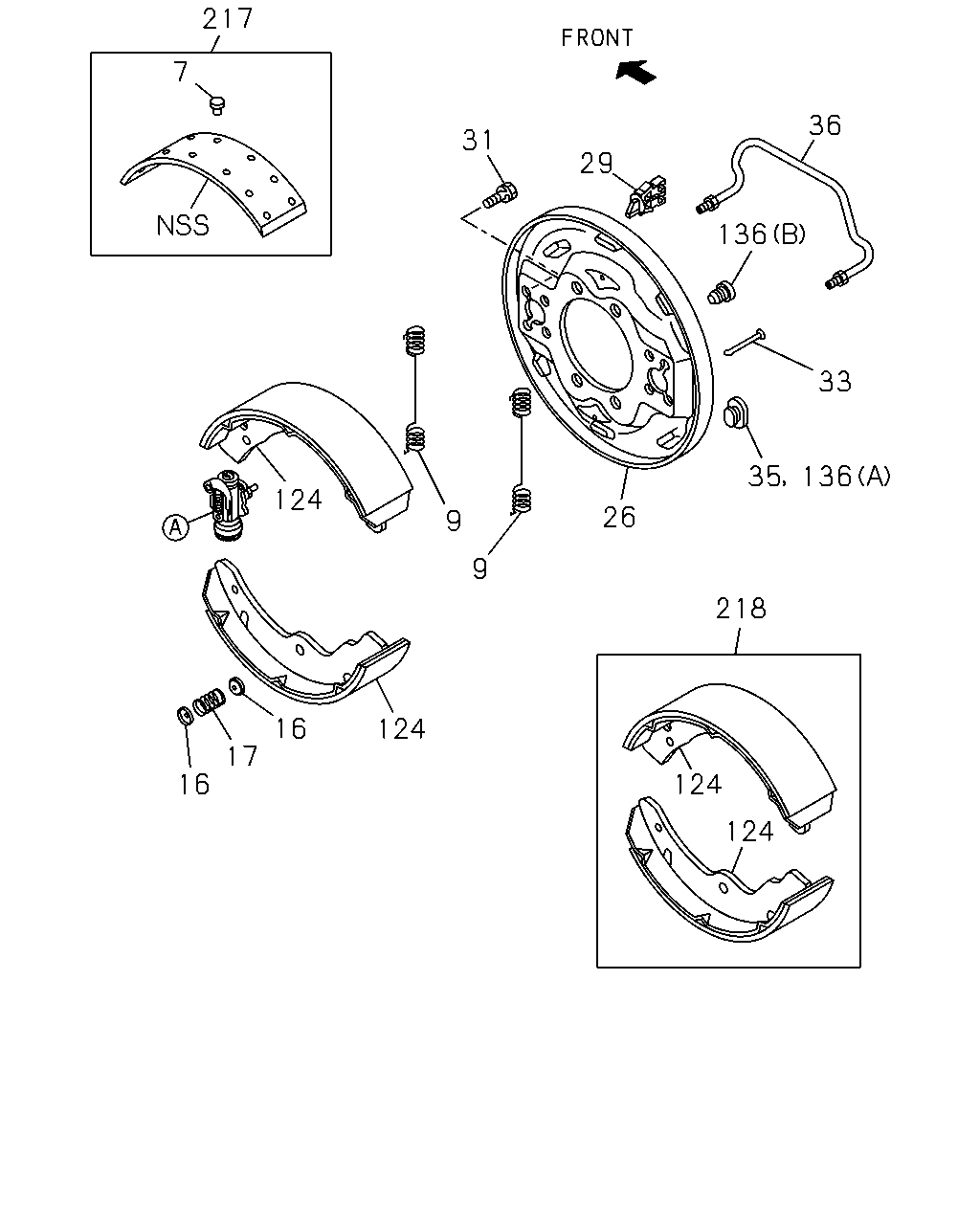

çizim 159650
136 35 33 218 124 124 136 36 29 31 217 7 124 9 9 26 16 17 16 124
BalonParca AdiParca NoAdetTipApplied Date
7 05.019 RIVET; LINING,RR BRK
EXC. REAR WIDE TREAD(V4T) 		1-09732-029-0 48 1 1004-1007
7 05.019 RIVET; LINING,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		1-09732-029-0 48 1 1008-
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 40 1 0907-1003
7 05.019 RIVET; LINING,RR BRK
REAR WIDE TREAD(V4T) 		1-09732-029-0 40 1 1004-
9 05.026 SPRING; RETURN,BRK SHOE
EXC. REAR WIDE TREAD(V4T) 		8-97022-087-0 04 1 1004-1007
9 05.026 SPRING; RETURN,BRK SHOE
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97022-087-0 04 1 1008-
9 05.026 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 0907-1003
9 05.026 SPRING; RETURN,BRK SHOE
REAR WIDE TREAD(V4T) 		5-09583-118-0 04 1 1004-
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0907-
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0907-
26 05.001 PLATE; BACK,RR BRK
EXC. REAR WIDE TREAD(V4T) 		8-97192-080-0 01 1 1004-1007
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97192-080-0 01 1 1008-
26 05.001 PLATE; BACK,RR BRK
EXC. REAR WIDE TREAD(V4T) 		8-97192-081-0 01 1 1004-1007
26 05.001 PLATE; BACK,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97192-081-0 01 1 1008-
26 05.001 PLATE; BACK,RR BRK 8-97079-854-0 01 1 0907-1003
26 05.001 PLATE; BACK,RR BRK
REAR WIDE TREAD(V4T) 		8-97079-854-0 01 1 1004-
26 05.001 PLATE; BACK,RR BRK 8-97079-855-0 01 1 0907-1003
26 05.001 PLATE; BACK,RR BRK
REAR WIDE TREAD(V4T) 		8-97079-855-0 01 1 1004-
29 04.685 CLIP; PIPE,BRK
EXC. REAR WIDE TREAD(V4T) 		8-97022-086-0 02 1 1004-1007
29 04.685 CLIP; PIPE,BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97022-086-0 02 1 1008-
29 04.685 CLIP; PIPE,BRK 8-94128-306-0 02 1 0907-1003
29 04.685 CLIP; PIPE,BRK
REAR WIDE TREAD(V4T) 		8-94128-306-0 02 1 1004-
31 04.665 BOLT; RR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97081-305-0 16 1 1004-1007
31 04.665 BOLT; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97081-305-0 16 1 1008-
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0907-1003
31 04.665 BOLT; RR WHEEL CYL
REAR WIDE TREAD(V4T) 		5-09030-016-1 16 1 1004-
33 05.043 PIN; SHOE HOLD DOWN
EXC. REAR WIDE TREAD(V4T) 		8-97022-089-0 04 1 1004-1007
33 05.043 PIN; SHOE HOLD DOWN
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97022-089-0 04 1 1008-
33 05.043 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 0907-1003
33 05.043 PIN; SHOE HOLD DOWN
REAR WIDE TREAD(V4T) 		5-47162-001-0 04 1 1004-
35 05.002 GROMMET; CHECK HOLE
EXC. REAR WIDE TREAD(V4T) 		8-97017-507-0 02 1 1004-1007
35 05.002 GROMMET; CHECK HOLE
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97017-507-0 02 1 1008-
35 05.002 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0907-1003
35 05.002 GROMMET; CHECK HOLE
REAR WIDE TREAD(V4T) 		8-94171-287-0 02 1 1004-
36 04.685 PIPE; OIL,RR BRK
EXC. REAR WIDE TREAD(V4T) 		8-97192-215-0 02 1 1004-1007
36 04.685 PIPE; OIL,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97192-215-0 02 1 1008-
36 04.685 PIPE; OIL,RR BRK 8-94154-916-0 02 1 0907-1003
36 04.685 PIPE; OIL,RR BRK
REAR WIDE TREAD(V4T) 		8-94154-916-0 02 1 1004-
124 05.017 SHOE ASM; BRK,RR
EXC. REAR WIDE TREAD(V4T) 		8-97201-061-0 04 1 1004-1007
124 05.017 SHOE ASM; BRK,RR
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97201-061-0 04 1 1008-
124 05.017 SHOE ASM; BRK,RR 8-97287-778-0 04 1 0907-1003
124 05.017 SHOE ASM; BRK,RR
REAR WIDE TREAD(V4T) 		8-97287-778-0 04 1 1004-
136 05.002 GROMMET
EXC. REAR WIDE TREAD(V4T) (A) 		8-97017-507-0 04 1 1004-1007
136 05.002 GROMMET
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) (A) 		8-97017-507-0 04 1 1008-
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 0907-
136 05.002 GROMMET
(A) 		8-94171-287-0 04 1 0907-1003
136 05.002 GROMMET
REAR WIDE TREAD(V4T) (A) 		8-94171-287-0 04 1 1004-
217 05.018 LINING KIT; RR BRK
EXC. REAR WIDE TREAD(V4T) 		5-87831-774-0 01 1 1004-1007
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		5-87831-774-0 01 1 1008-
217 05.018 LINING KIT; RR BRK 5-87831-801-0 01 1 0907-1003
217 05.018 LINING KIT; RR BRK
REAR WIDE TREAD(V4T) 		5-87831-801-0 01 1 1004-
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 0907-1003
217 05.018 LINING KIT; RR BRK
REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-121-0 01 1 1004-
217 05.018 LINING KIT; RR BRK
EXC. REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-120-0 01 1 1004-1007
217 05.018 LINING KIT; RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) BEST VALUE PARTS 		5-87610-120-0 01 1 1008-
218 05.017 SHOE KIT; BRK,RR
EXC. REAR WIDE TREAD(V4T) 		5-87831-775-0 01 1 1004-1007
218 05.017 SHOE KIT; BRK,RR
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		5-87831-775-0 01 1 1008-
218 05.017 SHOE KIT; BRK,RR 5-87832-047-0 01 1 0907-1003
218 05.017 SHOE KIT; BRK,RR
REAR WIDE TREAD(V4T) 		5-87832-047-0 01 1 1004-
çizim 159664
102 94 104 96 97 99 102 106 101 108 101 107 95
BalonParca AdiParca NoAdetTipApplied Date
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. REAR WIDE TREAD(V4T) REAR 		8-97349-705-0 01 1 1004-1007
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) REAR 		8-97349-705-0 01 1 1008-
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. REAR WIDE TREAD(V4T) REAR 		8-97349-706-0 01 1 1004-1007
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) REAR 		8-97349-706-0 01 1 1008-
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. REAR WIDE TREAD(V4T) FRONT 		8-97349-707-0 01 1 1004-1007
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) FRONT 		8-97349-707-0 01 1 1008-
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. REAR WIDE TREAD(V4T) FRONT 		8-97349-708-0 01 1 1004-1007
94 04.665 CYLINDER; WHEEL,RR BRK
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) FRONT 		8-97349-708-0 01 1 1008-
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-689-0 01 1 0907-1003
94 04.665 CYLINDER; WHEEL,RR BRK
REAR WIDE TREAD(V4T) REAR 		8-97349-689-0 01 1 1004-
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-690-0 01 1 0907-1003
94 04.665 CYLINDER; WHEEL,RR BRK
REAR WIDE TREAD(V4T) REAR 		8-97349-690-0 01 1 1004-
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-691-0 01 1 0907-1003
94 04.665 CYLINDER; WHEEL,RR BRK
REAR WIDE TREAD(V4T) FRONT 		8-97349-691-0 01 1 1004-
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-692-0 01 1 0907-1003
94 04.665 CYLINDER; WHEEL,RR BRK
REAR WIDE TREAD(V4T) FRONT 		8-97349-692-0 01 1 1004-
95 04.665 CUP SET; RR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		5-87832-070-0 01 1 1004-1007
95 04.665 CUP SET; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		5-87832-070-0 01 1 1008-
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0907-1003
95 04.665 CUP SET; RR WHEEL CYL
REAR WIDE TREAD(V4T) 		5-87831-622-0 01 1 1004-
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 0907-
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0907-
99 04.668 PISTON; RR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97349-729-0 01 1 1004-1007
99 04.668 PISTON; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97349-729-0 01 1 1008-
99 04.668 PISTON; RR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) 		8-97349-730-0 02 1 1004-1007
99 04.668 PISTON; RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97349-730-0 02 1 1008-
99 04.668 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 0907-1003
99 04.668 PISTON; RR WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97349-727-0 02 1 1004-
99 04.668 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 0907-1003
99 04.668 PISTON; RR WHEEL CYL
REAR WIDE TREAD(V4T) 		8-97349-728-0 02 1 1004-
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) (A) 		8-97349-741-0 02 1 1004-1007
101 04.666 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) (A) 		8-97349-741-0 02 1 1008-
101 04.666 SCREW; ADJ,RR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) (A) 		8-97349-742-0 02 1 1004-1007
101 04.666 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) (A) 		8-97349-742-0 02 1 1008-
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0907-1003
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR WIDE TREAD(V4T) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1004-
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0907-1003
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR WIDE TREAD(V4T) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1004-
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0907-
102 04.668 PISTON; REAR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) (B) 		8-97078-045-0 04 1 1004-1007
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) (B) 		8-97078-045-0 04 1 1008-
102 04.668 PISTON; REAR WHEEL CYL
EXC. REAR WIDE TREAD(V4T) (A) 		8-97349-729-0 01 1 1004-1007
102 04.668 PISTON; REAR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) (A) 		8-97349-729-0 01 1 1008-
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-531-1 04 1 0907-1003
102 04.668 PISTON; REAR WHEEL CYL
REAR WIDE TREAD(V4T) (B) D=25.4 		8-94128-531-1 04 1 1004-
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0907-
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0907-
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0907-
107 05.110 GEAR; ADJ,RR W/CYL
EXC. REAR WIDE TREAD(V4T) 		8-97349-738-0 02 1 1004-1007
107 05.110 GEAR; ADJ,RR W/CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97349-738-0 02 1 1008-
107 05.110 GEAR; ADJ,RR W/CYL
EXC. REAR WIDE TREAD(V4T) 		8-97349-740-0 02 1 1004-1007
107 05.110 GEAR; ADJ,RR W/CYL
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97349-740-0 02 1 1008-
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 0907-1003
107 05.110 GEAR; ADJ,RR W/CYL
REAR WIDE TREAD(V4T) 		8-97349-737-0 02 1 1004-
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 0907-1003
107 05.110 GEAR; ADJ,RR W/CYL
REAR WIDE TREAD(V4T) 		8-97349-739-0 02 1 1004-
108 05.110 WASHER; THRUST,GEAR ADJ
EXC. REAR WIDE TREAD(V4T) 		8-97349-736-0 04 1 1004-1007
108 05.110 WASHER; THRUST,GEAR ADJ
FINAL GEAR RATIO 43/9(S2J) EXC. REAR WIDE TREAD(V4T) 		8-97349-736-0 04 1 1008-
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0907-1003
108 05.110 WASHER; THRUST,GEAR ADJ
REAR WIDE TREAD(V4T) 		8-97029-304-0 04 1 1004-
