◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#52138) — 31 parça

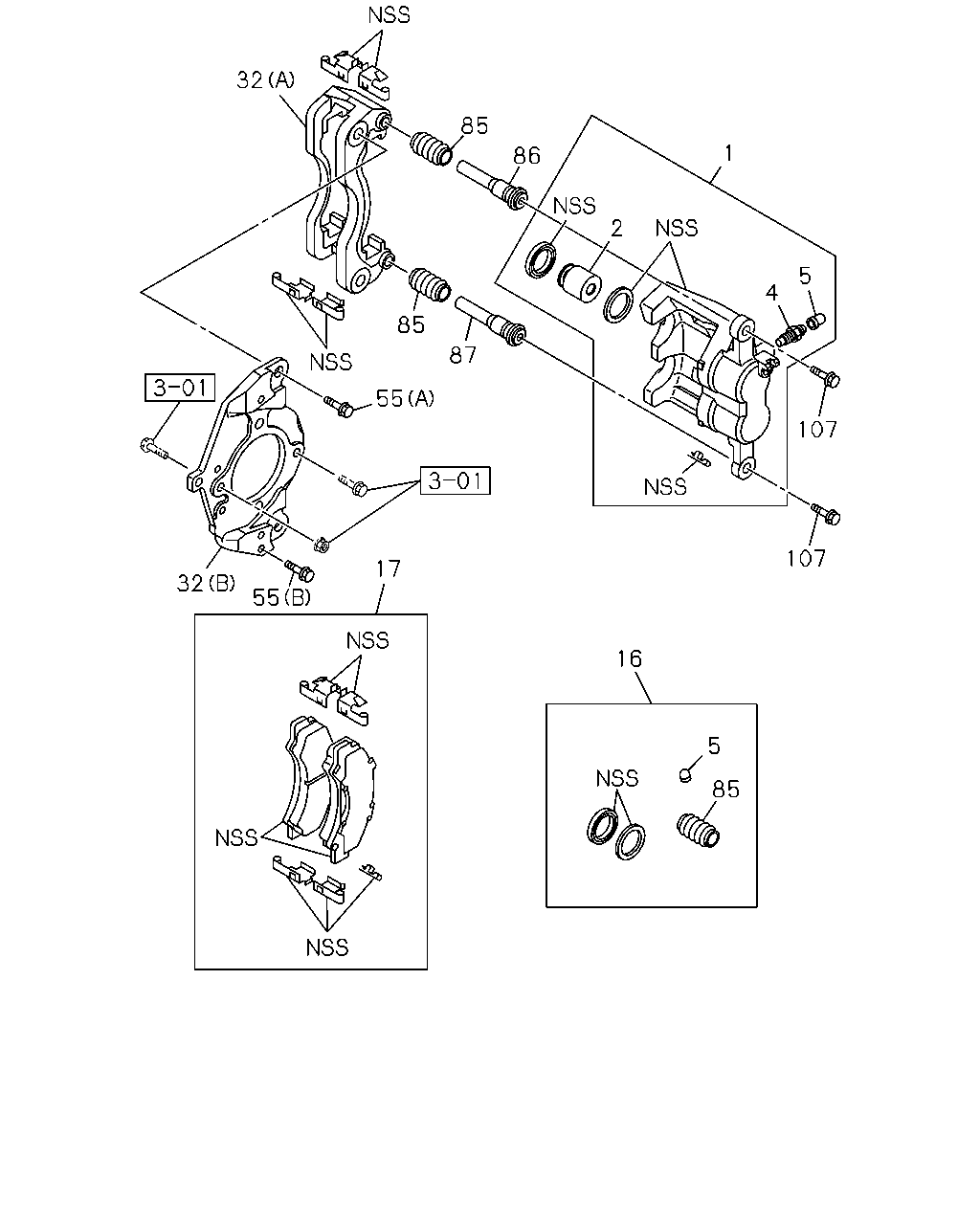

çizim 159646
1 5 4 107 107 16 5 85 17 55 32 55 85 87 85 86 2 32
BalonParca AdiParca NoAdetTipApplied Date
1 04.665 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0907-1310
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1311-
1 04.665 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0907-1310
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1311-
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0907-
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0907-1310
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0907-1310
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 0907-1310
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1311-
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-911-0 01 1 1004-1212
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-924-0 01 1 1301-
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0907-1003
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97329-266-0 01 1 1004-1212
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-922-0 01 1 1301-
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0907-
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 0907-1003
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-726-0 01 1 1004-
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 0907-1003
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-98009-727-0 01 1 1004-
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) M16X48 FLANGE 		8-98033-656-0 04 1 1004-
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
06.225 (B) M10X12 FLANGE 		0-28051-012-0 02 1 0907-1003
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (B) M10X12 FLANGE 		0-28051-012-0 02 1 1004-
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
(A) M16X31 FLANGE 		8-97359-816-0 04 1 0907-1003
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M16X31 FLANGE 		8-97359-816-0 04 1 1004-
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0907-
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0907-
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0907-1310
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1311-
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
