Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#52136) — 183 parça

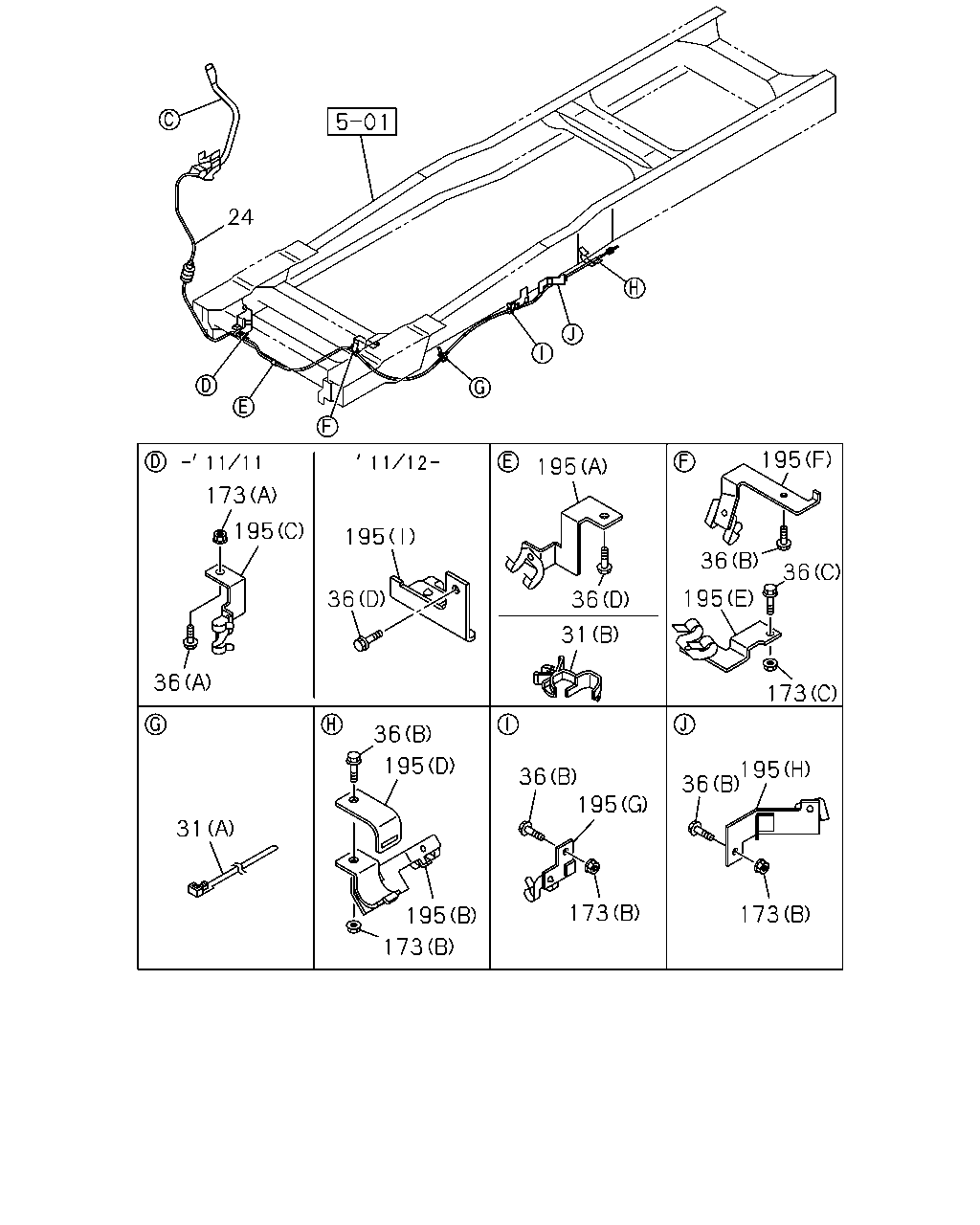

24 173 195 195 36 195 36 31 195 36 195 36 173 36 195 173 173 36 195 195 36 195 173 31 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3655	8-98223-328-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98223-326-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98146-347-0	01	1	1004-1207	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1311-1507	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98328-256-0	01	1	1508-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98071-359-1	01	1	1004-1207	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0907-0909	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0910-1003	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98117-143-1	01	1	1004-1005	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98117-145-1	01	1	0907-0909	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=3372	8-98117-145-1	01	1	0910-1003	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDEN T SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	1004-1005	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	1006-1207	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1311-	●	●
31	04.439 CLIP; BAND,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 (A) L=300	1-09707-001-1	01	1	1004-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0907-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (B) ID=16	8-97040-812-0	01	1	0907-1003	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (B) ID=16	8-97040-812-0	01	1	1004-	●	●
36	04.439 BOLT; PTO BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1004-	●	●
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0907-0909	●	●
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0910-1003	●	●
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	1004-1005	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	0907-1111	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1112-1112	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1112-1112	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	02	1	1112-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (A) M14X30 FLANGE	0-28651-430-0	01	1	0907-1111	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-0909	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-0909	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0910-1003	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0910-1003	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDEN T SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1004-1005	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1004-1005	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1006-	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1006-	●	●
173	04.439 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0907-0909	●	●
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0910-1003	●	●
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	1004-1005	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0907-1003	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	0907-1111	●	●
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (G)	8-98052-321-1	01	1	1004-	●	●
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (H)	8-98146-462-0	01	1	1004-	●	●
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (E)	8-98032-856-1	01	1	0907-0909	●	●
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) (E)	8-98032-856-1	01	1	0910-1003	●	●
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98032-856-1	01	1	1004-1005	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98086-262-0	01	1	0907-1111	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (I)	8-98152-321-0	01	1	1112-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98101-143-0	01	1	0907-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98117-131-0	01	1	0907-1003	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98117-131-0	01	1	1004-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98117-132-0	01	1	0907-1003	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98117-132-0	01	1	1004-	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (F)	8-98086-264-0	01	1	0907-0909	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (F)	8-98086-264-0	01	1	0910-1003	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDEN T SUSPENSION(FF0) (F)	8-98086-264-0	01	1	1004-1005	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98086-264-0	01	1	1006-	●	●

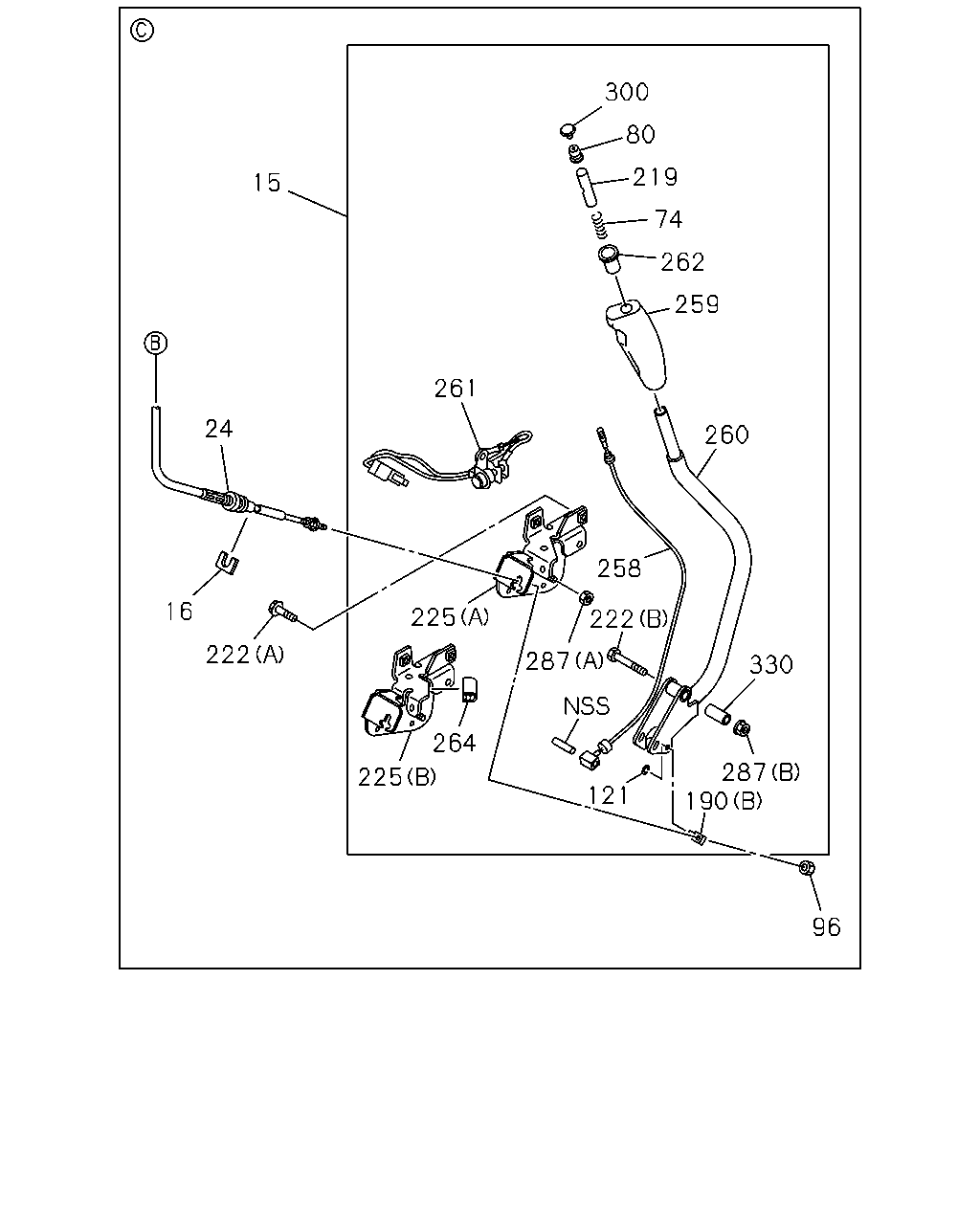

15 24 16 222 261 225 225 264 287 258 222 121 96 190 287 330 260 259 262 74 219 80 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-7	01	1	0907-1204	●	●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1205-	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0907-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3655	8-98223-328-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98223-326-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98146-347-0	01	1	1004-1207	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1311-1507	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98328-256-0	01	1	1508-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98071-359-1	01	1	1004-1207	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0907-0909	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0910-1003	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98117-143-1	01	1	1004-1005	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98117-145-1	01	1	0907-0909	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=3372	8-98117-145-1	01	1	0910-1003	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDEN T SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	1004-1005	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	1006-1207	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1311-	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0907-	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0907-	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0907-	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	0907-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0907-0910	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	0911-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0907-	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0907-	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0907-	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0907-	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98029-873-3	01	1	0907-1204	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98152-960-1	01	1	1205-	●	●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	0907-	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0907-	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	0907-	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	0907-	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0907-	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1205-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0907-	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0907-	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0907-	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0907-	●	●

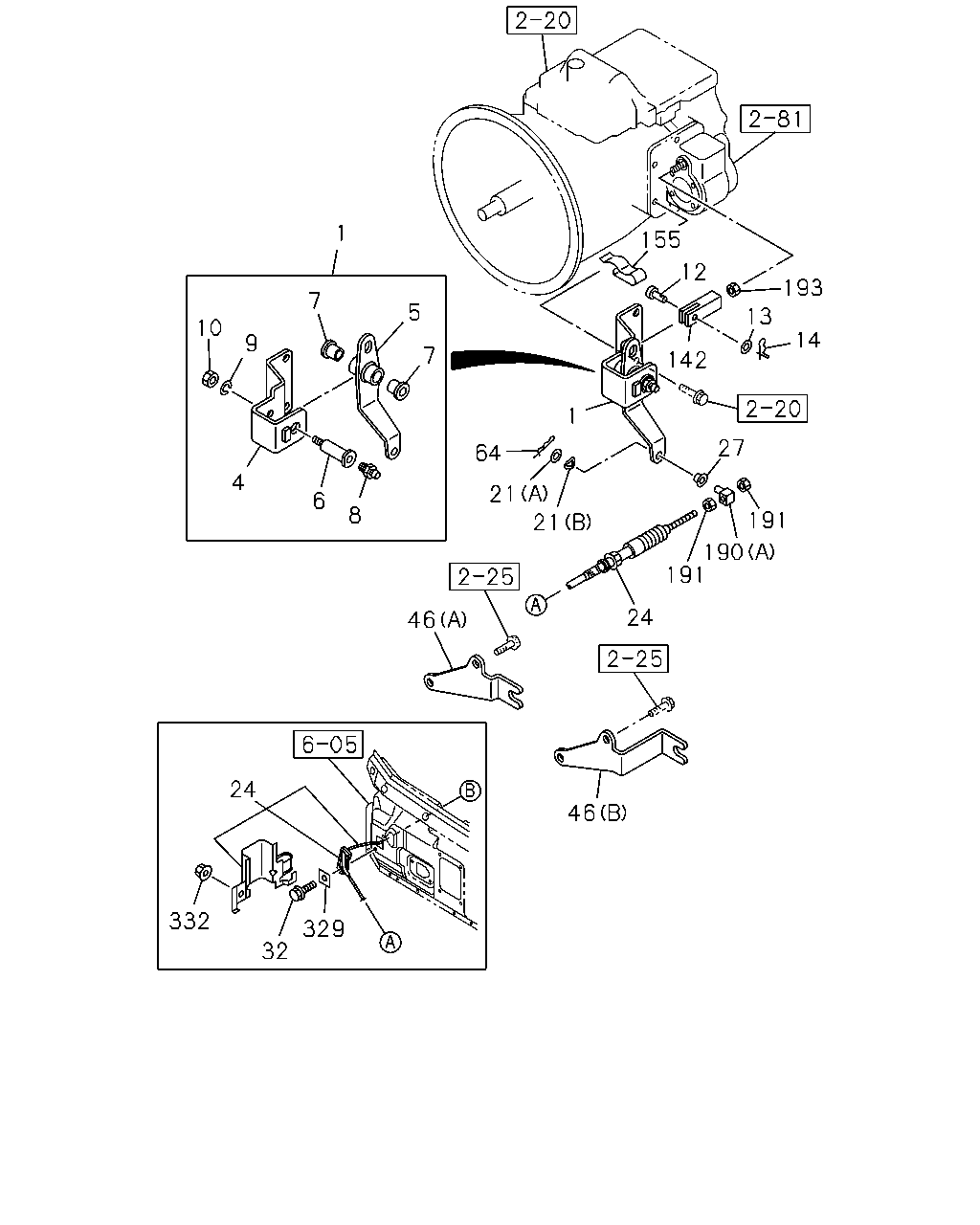

1 10 9 7 5 7 4 6 8 64 21 21 1 142 27 191 190 191 24 46 46 24 332 32 329 14 13 193 12 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0907-1107	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1310	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1311-	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0907-1107	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1310	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1311-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0907-1310	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	1311-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0907-1107	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1310	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1311-	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0907-1310	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	1311-	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0907-1310	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1311-	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0907-1310	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	1311-	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0907-1310	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	1311-	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0907-1310	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	1311-	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0907-1310	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	1311-	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0907-1310	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	1311-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0907-0910	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0911-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0907-0910	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0911-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3655	8-98223-328-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98223-326-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98146-347-0	01	1	1004-1207	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98223-290-0	01	1	1311-1507	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=3445	8-98328-256-0	01	1	1508-	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98071-359-1	01	1	1004-1207	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3577	8-98223-327-0	01	1	1311-	●	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0907-0909	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0910-1003	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98117-143-1	01	1	1004-1005	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=3372	8-98117-145-1	01	1	0907-0909	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=3372	8-98117-145-1	01	1	0910-1003	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDEN T SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	1004-1005	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	1006-1207	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1208-1310	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1311-1311	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1311-	●	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0907-0910	●	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.042	8-94367-367-0	01	1	0911-	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	0907-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98081-815-0	01	1	1311-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) (A)	8-98032-829-2	01	1	0907-0910	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	0911-1310	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	1311-1311	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	1311-	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0907-0910	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	0911-	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0907-1310	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	1311-	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1311-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0907-0910	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	0911-	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0907-	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0907-0910	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	0911-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0907-1310	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	1311-	●	●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	0907-	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
