0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#5213) — 53 parça

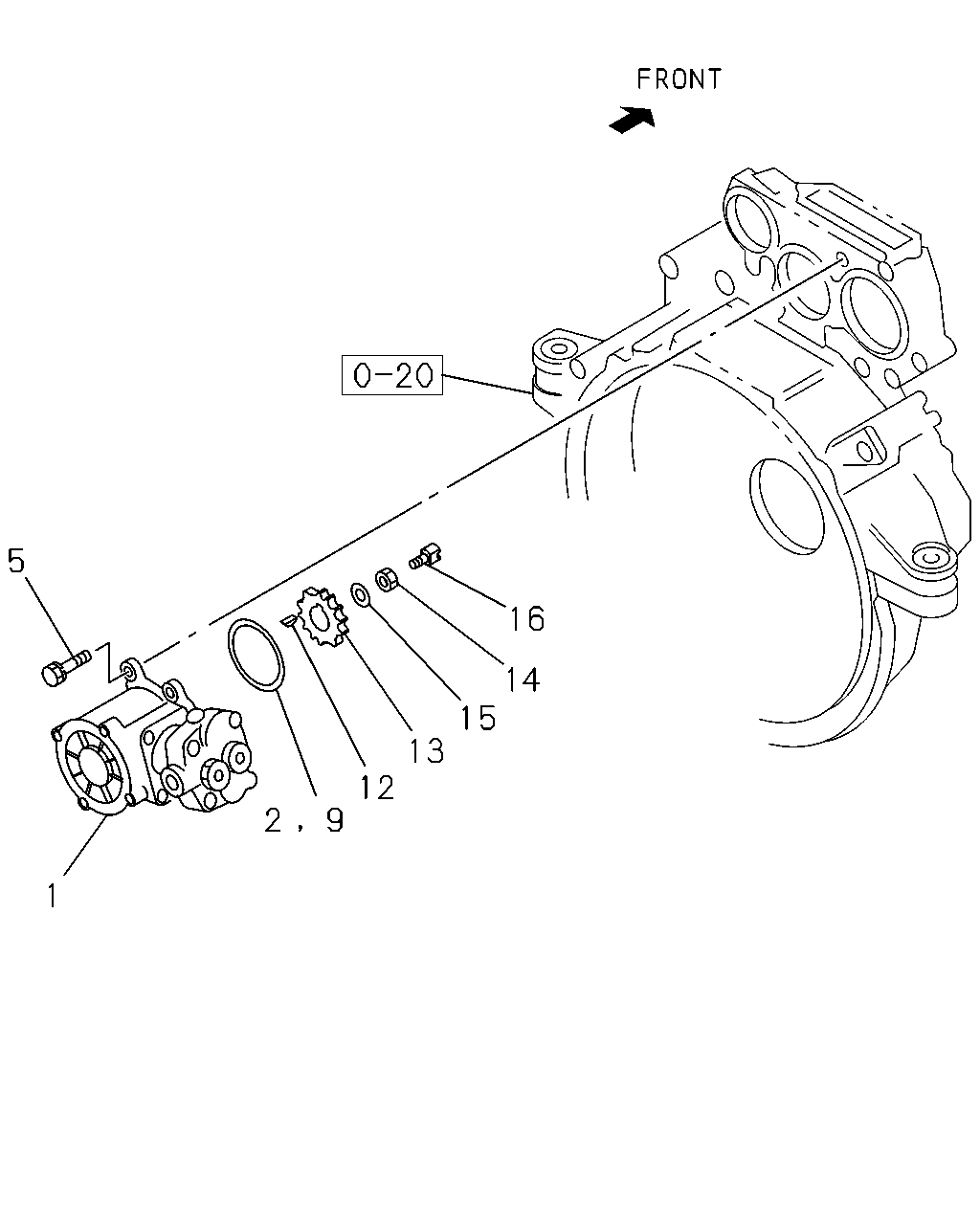

çizim 41542
5 16 14 15 13 12 9 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-234-7 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-177-5 01 1 9905- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 9905- ●
5 BOLT; AIR CMPR FIX
M12X35 FLANGE 		0-28181-235-0 04 1 9905- ● ●
9 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 9604- ●
12 KEY; AIR CMPR GEAR 9-08055-516-0 01 1 9604-9904 ●
12 KEY; AIR CMPR GEAR 9-08055-516-0 01 1 9905- ● ●
13 GEAR; AIR CMPR DRIVE
Z=26 		1-12524-044-0 01 1 9604-9904 ●
13 GEAR; AIR CMPR DRIVE
Z=26 		1-12524-044-1 01 1 9905- ● ●
14 NUT; GEAR
M20 		9-99111-520-0 01 1 9604-9904 ●
14 NUT; GEAR
M20 		9-99111-520-0 01 1 9905- ● ●
15 WASHER; GEAR
ID=21 		9-09164-520-0 01 1 9604-9904 ●
15 WASHER; GEAR
ID=21 		9-09164-520-0 01 1 9905- ● ●
16 ADAPTER 1-12539-010-0 01 1 9604-9904 ●
16 ADAPTER 1-12539-010-0 01 1 9905- ● ●

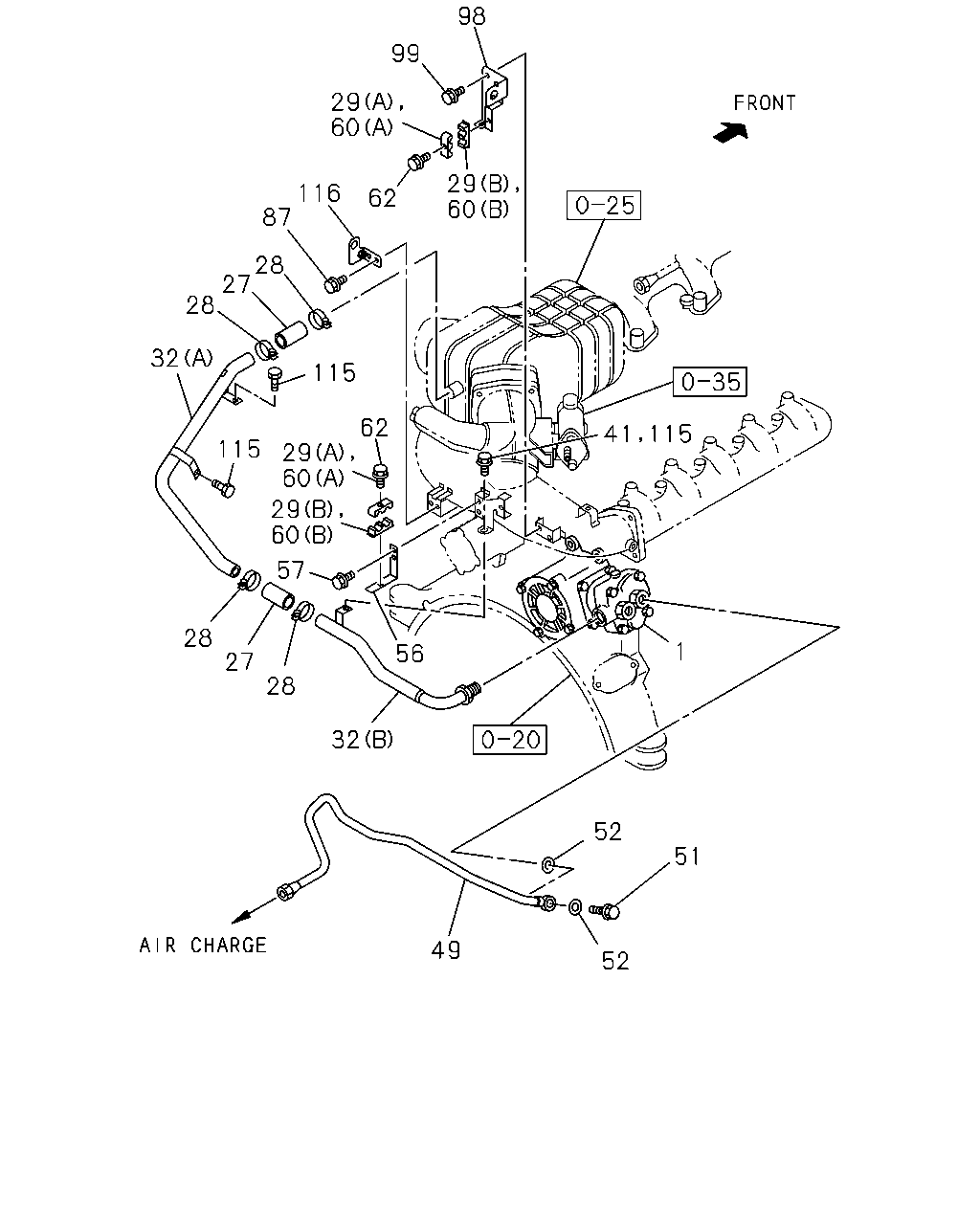

çizim 42967
98 99 29 60 29 60 116 87 62 28 27 28 32 115 62 41 115 115 29 60 29 60 57 28 1 56 27 28 32 52 51 49 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-234-7 01 1 9604-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-177-5 01 1 9905- ● ●
27 HOSE; AIR CMPR,SUCTION
L=55 		1-09360-784-0 02 1 9604-9904 ●
27 HOSE; AIR CMPR,SUCTION
L=55 		1-09360-784-0 02 1 9905- ● ●
28 CLIP; HOSE,AIR CMPR
ID=28.5 		1-09707-150-0 04 1 9604-9904 ●
28 CLIP; HOSE,AIR CMPR
ID=28.5 		1-09707-150-0 04 1 9905- ● ●
29 CLIP; AIR PIPE
(A) 		1-09701-193-1 02 1 9905- ●
29 CLIP; AIR PIPE
(B) 		1-09701-194-1 02 1 9905- ●
32 PIPE; AIR,AIR CMPR
(B) 		1-19192-879-0 01 1 9604-9605 ●
32 PIPE; AIR,AIR CMPR
(B) 		1-19192-982-0 01 1 9606-9904 ●
32 PIPE; AIR,AIR CMPR
(B) 		1-19192-983-0 01 1 9905- ● ●
32 PIPE; AIR,AIR CMPR
(A) 		1-19192-902-0 01 1 9604-9904 ●
32 PIPE; AIR,AIR CMPR
(A) 		1-19192-902-0 01 1 9905- ● ●
41 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 03 1 9604- ●
49 PIPE; AIR,CHARGE 1-19192-883-0 01 1 9604-9904 ●
49 PIPE; AIR,CHARGE 1-19192-928-0 01 1 9905- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-1 01 1 9604-9904 ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-1 01 1 9905- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9604-9904 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 9905- ● ●
56 BRACKET; AIR PIPE FIX 1-19199-228-0 01 1 9604-9904 ●
56 BRACKET; AIR PIPE FIX 1-19199-228-0 01 1 9905- ● ●
57 BOLT; BRKT,AIR PIPE
M6X12 FLANGE 		0-28080-612-0 02 1 9604-9904 ●
57 BOLT; BRKT,AIR PIPE
M6X12 FLANGE 		0-28080-612-0 02 1 9905- ● ●
60 CLIP; AIR PIPE
(A) 		1-09701-193-1 02 1 9604- ●
60 CLIP; AIR PIPE
(B) 		1-09701-194-1 02 1 9604- ●
62 BOLT; CLIP
M6X35 FLANGE 		0-28080-635-0 02 1 9604-9904 ●
62 BOLT; CLIP
M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ●
87 BOLT; BRKT FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
87 BOLT; BRKT FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ●
98 BRACKET; AIR & OIL PIPE 1-19199-227-0 01 1 9604-9904 ●
98 BRACKET; AIR & OIL PIPE 1-19199-227-0 01 1 9905- ● ●
99 BOLT; BRKT AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9604-9904 ●
99 BOLT; BRKT AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ●
115 BOLT; AIR PIPE
M6X12 FLANGE 		0-28080-612-0 03 1 9604-9904 ●
115 BOLT; AIR PIPE
M6X12 FLANGE 		0-28080-612-0 03 1 9905- ● ●
116 BRACKET; AIR PIPE 1-22196-326-1 01 1 9604-9904 ●
116 BRACKET; AIR PIPE 1-22196-326-1 01 1 9905- ● ●
