◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#52127) — 88 parça

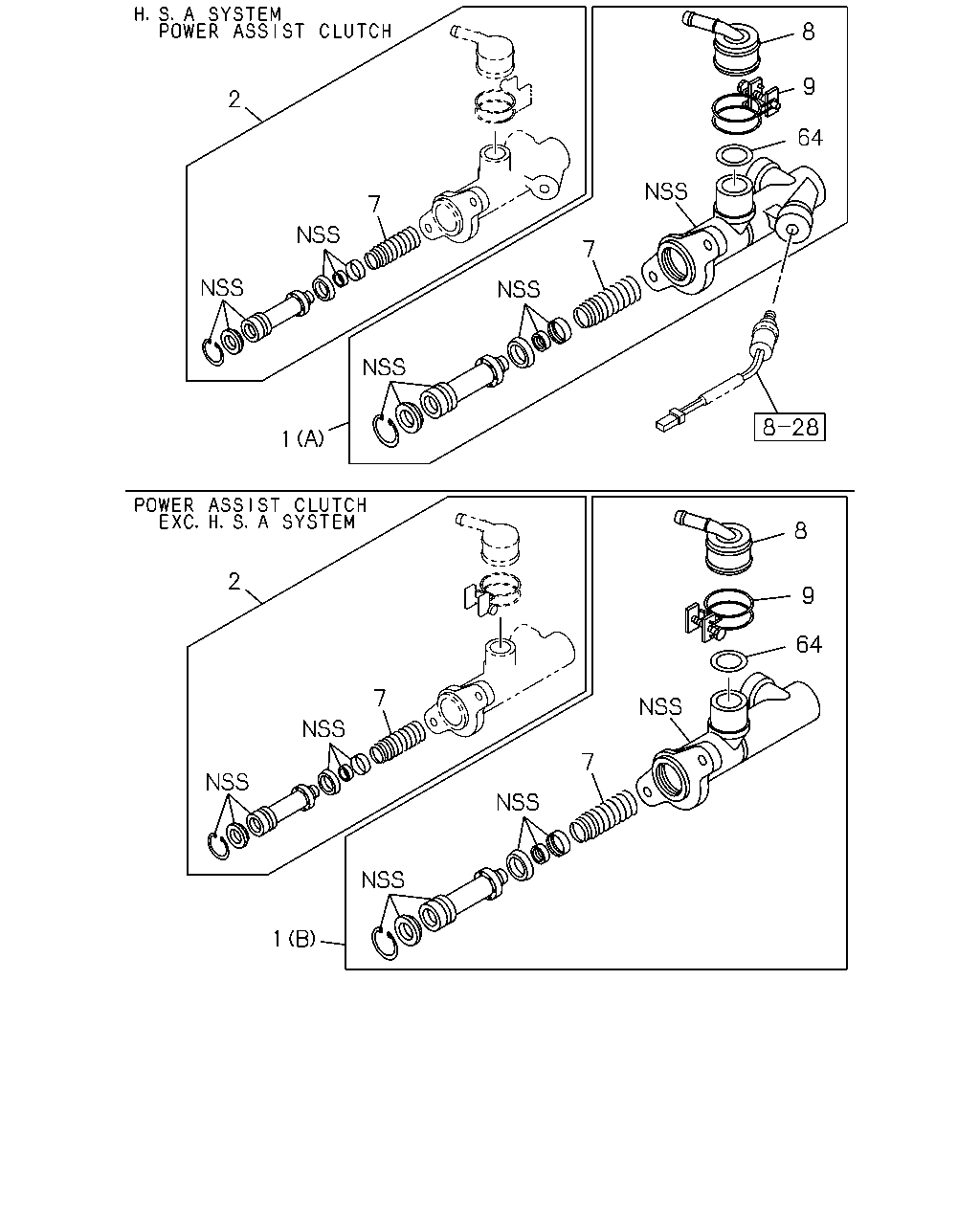

çizim 159617
8 9 64 7 7 2 1 1 7 2 7 8 9 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. H.S.A SYSTEM<6EP> (B) 		8-98098-250-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (B) 		8-98098-250-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98098-249-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-249-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> (B) 		8-98062-277-0 01 1 0907-0909 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (A) 		8-98062-276-0 01 1 0907-0909 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98062-276-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98062-276-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C) 		8-98117-641-0 01 1 0907-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C) 		8-98117-641-0 01 1 1311- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0907-1310 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1311- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		5-87832-226-0 01 1 0907-1310 ●
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		5-87832-226-0 01 1 1311- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0907-1310 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1311- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-780-0 01 1 0907-1310 ●
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-780-0 01 1 1311- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0907-0909 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. H.S.A SYSTEM<6EP> 		8-97163-191-0 01 1 0907-0909 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97163-191-0 01 1 0910-1310 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0910-1310 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97163-191-0 01 1 1311- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1311- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0907-0909 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. H.S.A SYSTEM<6EP> 		8-97167-773-0 01 1 0907-0909 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-773-0 01 1 0910-1310 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0910-1310 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-773-0 01 1 1311- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1311- ● ●
64 00.777 GASKET; CONNECTOR
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0907-0909 ●
64 00.777 GASKET; CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		8-97167-767-0 01 1 0907-0909 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-767-0 01 1 0910-1310 ●
64 00.777 GASKET; CONNECTOR
POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0910-1310 ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-767-0 01 1 1311- ● ●
64 00.777 GASKET; CONNECTOR
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1311- ● ●

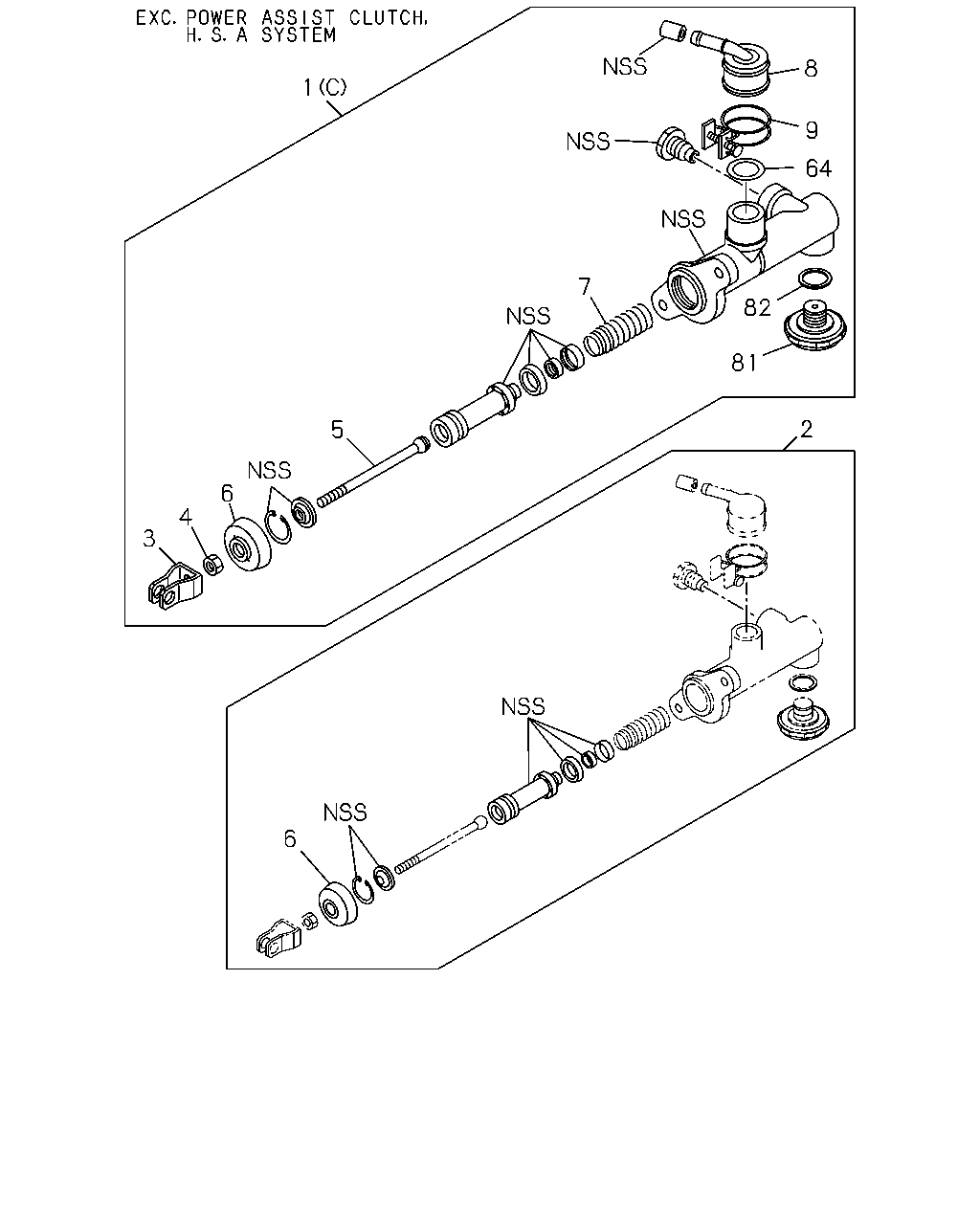

çizim 159674
1 5 6 4 3 7 81 82 2 64 9 8 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> EXC. H.S.A SYSTEM<6EP> (B) 		8-98098-250-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (B) 		8-98098-250-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98098-249-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-249-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> (B) 		8-98062-277-0 01 1 0907-0909 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) (A) 		8-98062-276-0 01 1 0907-0909 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98062-276-0 01 1 0910-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98062-276-0 01 1 1311- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C) 		8-98117-641-0 01 1 0907-1310 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C) 		8-98117-641-0 01 1 1311- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0907-1310 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1311- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		5-87832-226-0 01 1 0907-1310 ●
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		5-87832-226-0 01 1 1311- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-770-0 01 1 0907-1310 ●
3 00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-770-0 01 1 1311- ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> M8 		0-91111-508-0 01 1 0907-1310 ●
4 00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> M8 		0-91111-508-0 01 1 1311- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-768-0 01 1 0907-1310 ●
5 00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-768-0 01 1 1311- ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-94412-200-0 01 1 0907-1310 ●
6 00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-94412-200-0 01 1 1311- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0907-1310 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1311- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-780-0 01 1 0907-1310 ●
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-780-0 01 1 1311- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0907-0909 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. H.S.A SYSTEM<6EP> 		8-97163-191-0 01 1 0907-0909 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97163-191-0 01 1 0910-1310 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0910-1310 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97163-191-0 01 1 1311- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1311- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0907-0909 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. H.S.A SYSTEM<6EP> 		8-97167-773-0 01 1 0907-0909 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-773-0 01 1 0910-1310 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0910-1310 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-773-0 01 1 1311- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1311- ● ●
64 00.777 GASKET; CONNECTOR
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0907-0909 ●
64 00.777 GASKET; CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		8-97167-767-0 01 1 0907-0909 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-767-0 01 1 0910-1310 ●
64 00.777 GASKET; CONNECTOR
POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0910-1310 ●
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97167-767-0 01 1 1311- ● ●
64 00.777 GASKET; CONNECTOR
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1311- ● ●
81 00.777 DAMPER; MASTER CYL
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97190-913-0 01 1 0907-1310 ●
81 00.777 DAMPER; MASTER CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97190-913-0 01 1 1311- ● ●
82 00.777 GASKET; DAMPER
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97191-396-0 01 1 0907-1310 ●
82 00.777 GASKET; DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-97191-396-0 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
