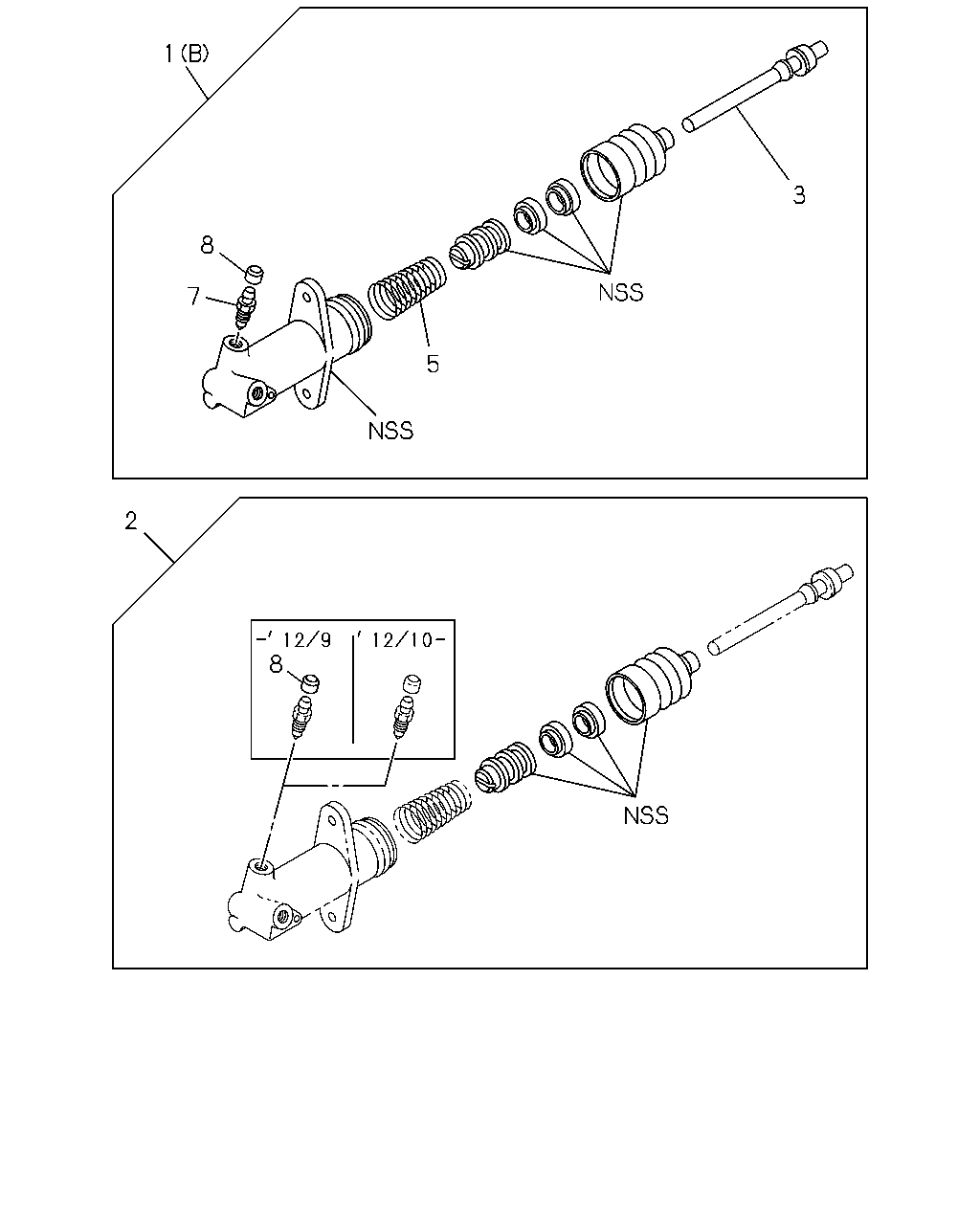

2-06 — CLUTCH SLAVE CYLINDER (#52125) — 44 parça

1 2 3 5 7 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG> (B)	8-97310-989-1	01	1	0907-1310	●
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97310-989-1	01	1	1311-	●	●
1	00.780 CYLINDER; SLAVE,CLU EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98040-043-1	01	1	0907-1310	●
1	00.780 CYLINDER; SLAVE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98040-043-1	01	1	1311-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-364-0	01	1	0907-1209	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87832-285-0	01	1	1210-1310	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-87832-285-0	01	1	1311-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-302-0	01	1	0907-1007	●
2	00.780 REPAIR KIT; CLU SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-204-0	01	1	1008-1310	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-204-0	01	1	1311-	●	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97255-517-0	01	1	0907-1310	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-517-0	01	1	1311-	●	●
3	00.780 ROD; PUSH,SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-98061-132-0	01	1	0907-1310	●
3	00.780 ROD; PUSH,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-98061-132-0	01	1	1311-	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97160-570-0	01	1	0907-1310	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97160-570-0	01	1	1311-	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X10	8-98020-477-0	01	1	0907-1310	●
7	00.780 SCREW; BLEEDER,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X10	8-98020-477-0	01	1	1311-	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	0907-1209	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10	8-97940-638-0	01	1	1210-1310	●
8	00.780 CAP; BLEEDER,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10	8-97940-638-0	01	1	1311-	●	●

1 2 3 4 6 7 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG> (B)	8-97310-989-1	01	1	0907-1310	●
1	00.780 CYLINDER; SLAVE,CLU CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97310-989-1	01	1	1311-	●	●
1	00.780 CYLINDER; SLAVE,CLU EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98040-043-1	01	1	0907-1310	●
1	00.780 CYLINDER; SLAVE,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A)	8-98040-043-1	01	1	1311-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-364-0	01	1	0907-1209	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87832-285-0	01	1	1210-1310	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-87832-285-0	01	1	1311-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-302-0	01	1	0907-1007	●
2	00.780 REPAIR KIT; CLU SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-204-0	01	1	1008-1310	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	5-87831-204-0	01	1	1311-	●	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97255-517-0	01	1	0907-1310	●
3	00.780 ROD; PUSH,SLAVE CYL CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-517-0	01	1	1311-	●	●
3	00.780 ROD; PUSH,SLAVE CYL EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-98061-132-0	01	1	0907-1310	●
3	00.780 ROD; PUSH,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-98061-132-0	01	1	1311-	●	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-98061-149-0	01	1	0907-1310	●
4	00.780 NUT; ADJ,SLAVE CYL PUSH ROD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-98061-149-0	01	1	1311-	●	●
6	00.787 NUT; LK,ROD END EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10	0-91111-510-0	01	1	0907-1310	●
6	00.787 NUT; LK,ROD END TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10	0-91111-510-0	01	1	1311-	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X10	8-98020-477-0	01	1	0907-1310	●
7	00.780 SCREW; BLEEDER,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X10	8-98020-477-0	01	1	1311-	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	0907-1209	●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=10	8-97940-638-0	01	1	1210-1310	●
8	00.780 CAP; BLEEDER,SLAVE CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10	8-97940-638-0	01	1	1311-	●	●
