2-03 — CLUTCH PEDAL AND CONTROL (#52123) — 74 parça

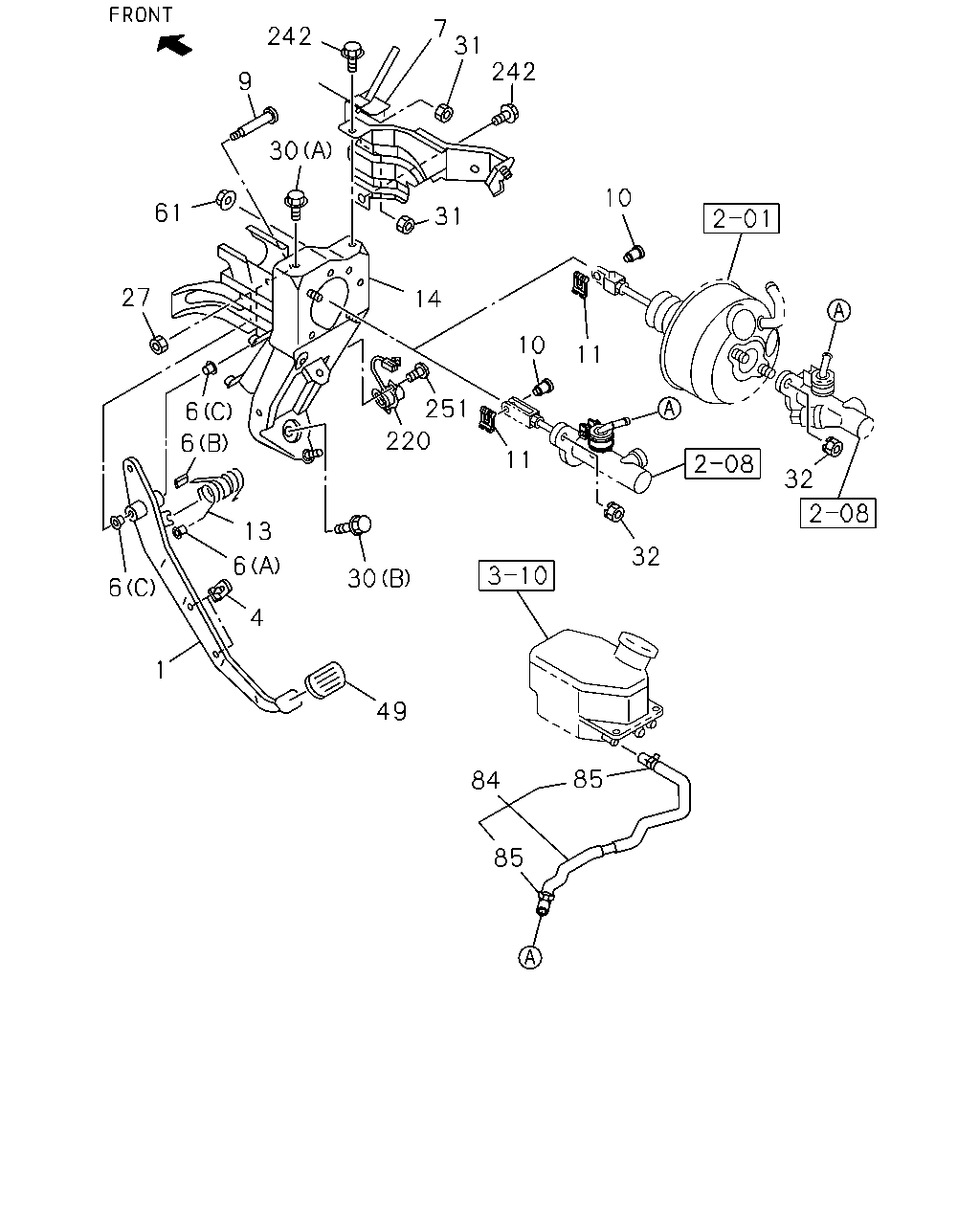

çizim 159680
242 9 30 61 27 6 6 6 1 4 6 13 30 220 7 31 242 31 14 251 49 84 85 85 32 11 10 11 10 32
BalonParca AdiParca NoAdetTipApplied Date
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> 		8-98002-484-0 01 1 0907-1310
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98002-484-0 01 1 1311-
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-98002-485-0 01 1 0907-1310
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-485-0 01 1 1311-
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-753-0 01 1 0907-1310
1 00.830 PEDAL; CLU
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-753-0 01 1 1311-1407
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-752-0 01 1 0907-1310
1 00.830 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-752-0 01 1 1311-
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0907-1310
4 00.829 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-534-1 02 1 1311-
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0907-1310
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.792 (C) 		8-94238-596-0 02 1 1311-
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0907-1310
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1311-1407
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (A) 		8-97853-619-0 02 1 1408-
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0907-1310
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1311-1407
6 00.831 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (B) 		8-97853-620-0 01 1 1408-
7 00.829 BRACKET; CLU PEDAL 8-98029-186-4 01 1 0907-1310
7 00.829 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-186-4 01 1 1311-
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0907-1310
9 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-97866-667-0 01 1 1311-
10 00.833 PIN; CLU PEDAL
04.634 		8-97387-230-0 01 1 0907-1007
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1008-1310
10 00.833 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 		8-98147-657-0 01 1 1311-
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 0907-1310
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1311-
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 0907-1310
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1311-
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 0907-1310
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1311-1407
13 00.844 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-014-0 01 1 1408-
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) EXC. H.S.A SYSTEM<6EP> 		8-98002-482-4 01 1 0907-1310
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98002-482-4 01 1 1311-
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) 		8-98002-483-4 01 1 0907-1310
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-483-4 01 1 1311-
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-751-0 01 1 0907-1310
14 00.829 BRACKET ASM; CLU PEDAL MTG
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-751-0 01 1 1311-1407
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-750-0 01 1 0907-1310
14 00.829 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> 		8-98034-750-0 01 1 1311-
27 00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0907-1310
27 00.833 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1311-
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 0907-1310
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1311-1409
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1410-
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907-1310
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1311-1409
30 00.829 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1410-
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0907-1310
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1311-1409
31 01.153 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1410-
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0907-1310
32 00.777 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 02 1 1311-
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0907-1310
49 00.829 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97853-413-2 01 1 1311-
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0907-1310
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER 		8-94279-050-0 04 1 1311-
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98023-510-4 01 1 0907-1208
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-205-1 01 1 1209-1310
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-205-1 01 1 1311-
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-422-1 01 1 0907-1208
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-207-1 01 1 1209-1310
84 00.785 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-207-1 01 1 1311-
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-98031-178-0 02 1 0907-1208
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1209-1310
85 00.785 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1311-
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 0907-1310
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1311-1407
220 04.329 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1408-
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0907-1310
242 00.785 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 1311-
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> 02.500 M6X16 		0-52000-616-0 02 1 0907-1310
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16 		0-52000-616-0 02 1 1311-1407
251 04.054 BOLT; SENSOR
H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.500 M6X16 		0-52000-616-0 02 1 1408-
