◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#52122) — 43 parça

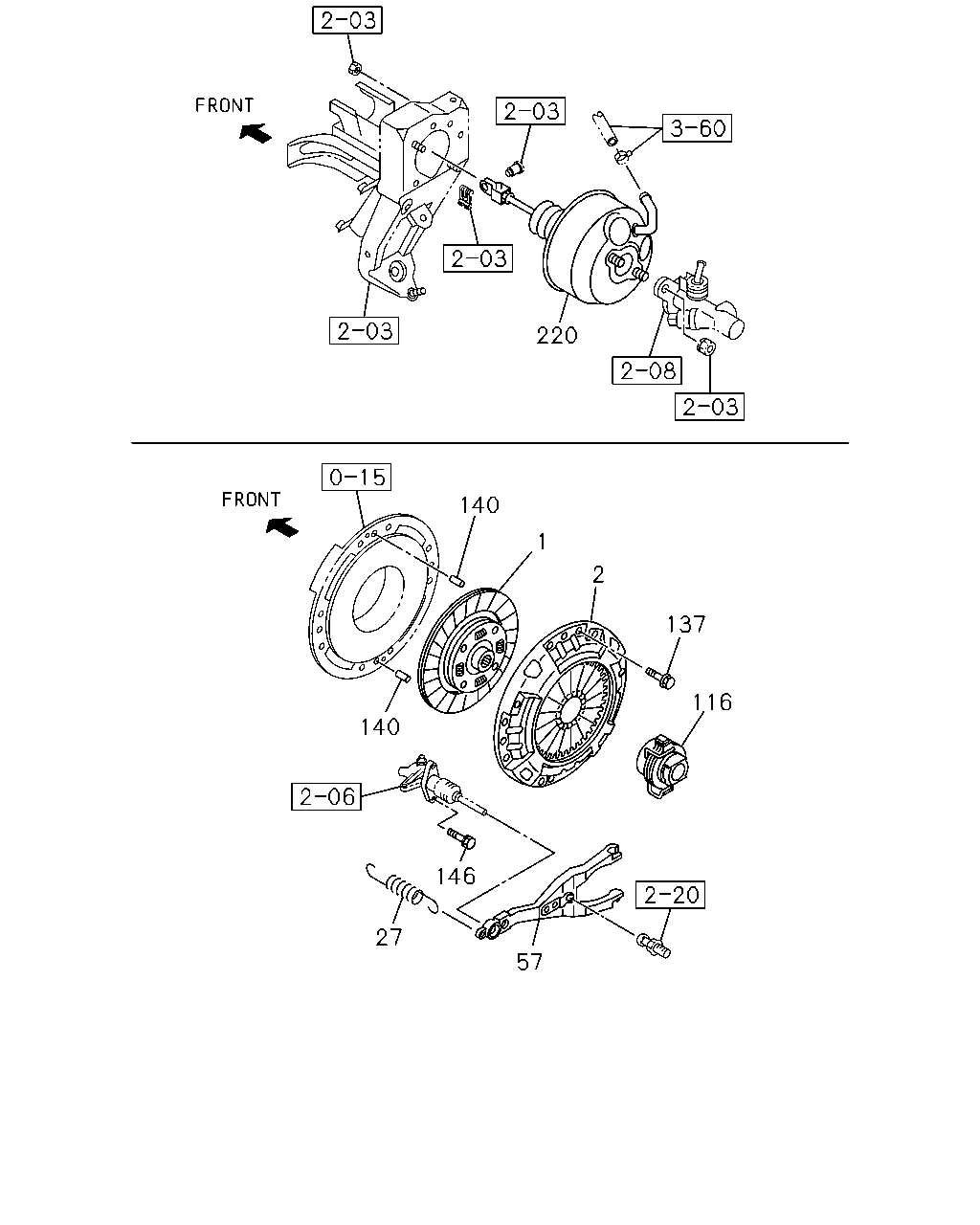

çizim 159707
220 140 2 137 116 146 57 140 27 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH 8-98037-004-2 01 1 0907-1310 ●
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 1311-1401 ● ●
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-139-1 01 1 1402- ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-077-0 01 1 0907-1310 ●
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-0 01 1 1311-1401 ● ●
1 00.886 DISC; CLUTCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-077-1 01 1 1402- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98040-093-0 01 1 0907-1310 ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 1311- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-091-0 01 1 0907-1310 ●
2 00.859 PLATE ASM; PRESSURE,CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-091-0 01 1 1311- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0907-1310 ●
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1311- ● ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0907-1310 ●
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-303-0 01 1 1311- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0907-1310 ●
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-313-0 01 1 1311- ● ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0907-1310 ●
116 00.799 BLOCK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-110-0 01 1 1311- ● ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0907-1310 ●
137 00.862 BOLT; CLU COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1311- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0907-1310 ●
140 00.862 PIN; STRAIGHT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 1311- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0907-1310 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1311- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98043-208-0 01 1 0907-1310 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98043-208-0 01 1 1311- ● ●

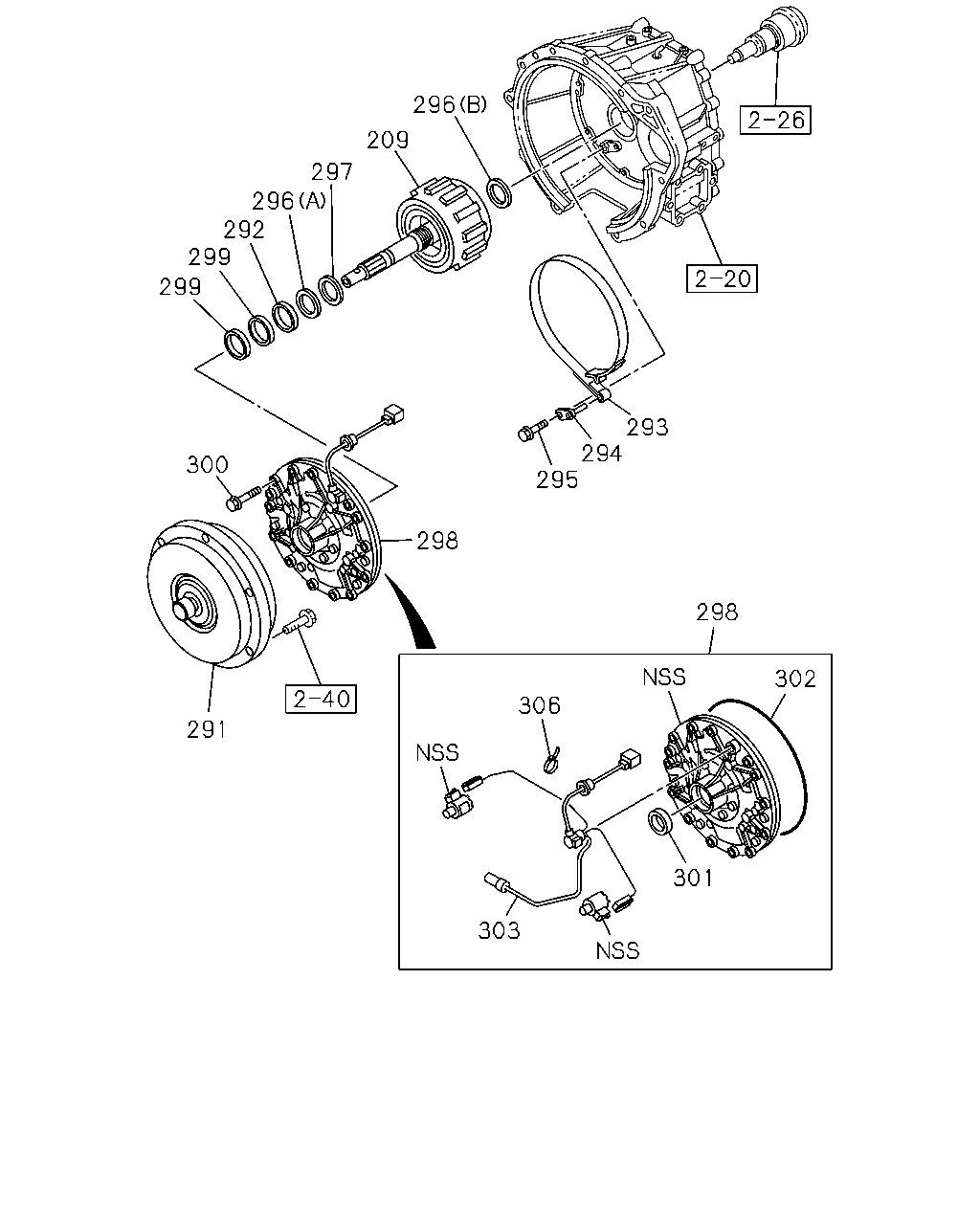

çizim 385409
296 209 297 296 292 299 299 293 294 295 298 300 291 306 298 302 301 303
BalonParca AdiParca NoAdetTipApplied Date A B
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-930-2 01 1 1311-1412 ● ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-320-0 01 1 1501- ● ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-659-2 01 1 1311- ● ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1311- ● ●
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 1311- ● ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1311- ● ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1311- ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1311- ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1311- ● ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1311- ● ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 1311- ● ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1311- ● ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1311- ● ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1311- ● ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1311- ● ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 1311- ● ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 1311- ● ●
